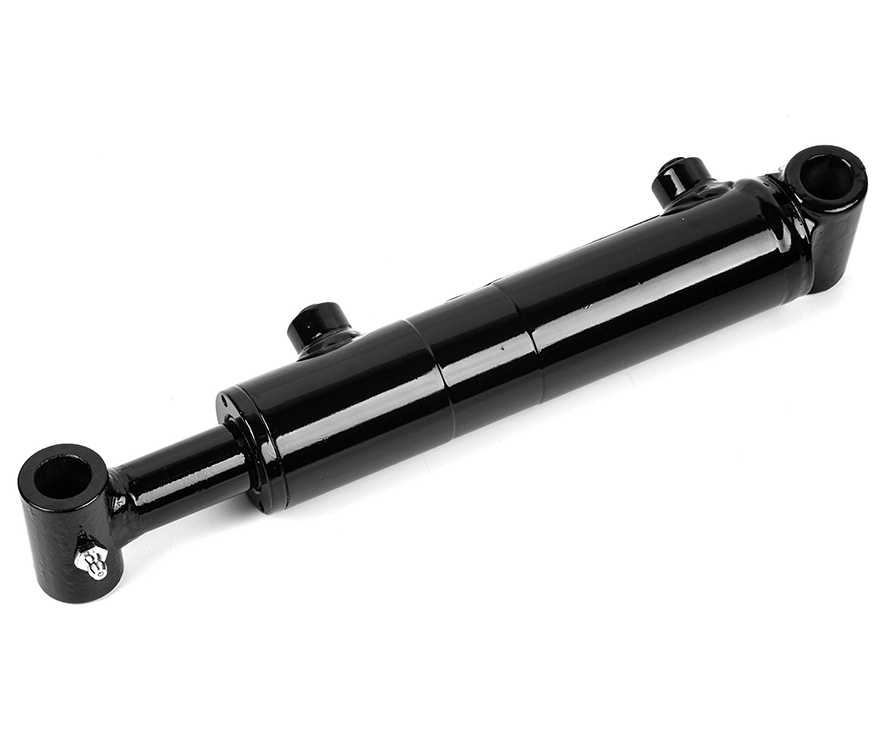

WBU Cross-Tube Welded Hydraulic Cylinder
The WBU Cross-tube welded hydraulic cylinders are one of HUTCHIN's the most popular items. This type of welded hydraulic cylinders, rated at 3000PSI, are mainly used in heavy duty and demanding applications. All welded hydraulic cylinders from HUTCHIN are equipped with HALLITE seals and have a warranty period of up to 2 years.

The WBU Cross-Tube Welded Rod Cylinder is constructed using advanced welding techniques, ensuring superior strength and durability. With its compact design and efficient performance, this cylinder is capable of handling heavy loads and providing smooth and precise movement. The WBU Series Welded Hydraulic Cylinder China is the perfect choice for industries requiring reliable and efficient hydraulic systems.

Characteristics of WBU Cross-Tube Welded Hydraulic Cylinder

Operating pressure: 3000PSI

Construction: Heavy duty welded construction

Materials: Ductile iron for Piston; Hard chrome plated steel rod; Honed steel tube, precision finished

Seals: Hallite

Ports: NPT, SAE, BSP available

Color: Standard gloss black paint; Custom color available upon request.

Package: Wooden crate reinforced with iron frame

Specification of WBU Cross-Tube Welded Hydraulic Cylinder
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TWBU30-1504 1" 1.5x4 12" 16" 1/4NPT 3/4" 8
TWBU30-1506 1.5x6 14" 20" 9
TWBU30-1508 1.5x8 16" 24" 10
TWBU30-1510 1.5x10 18" 28" 11
TWBU30-1512 1.5x12 20" 32" 13
TWBU30-1514 1.5x14 22" 36" 14
TWBU30-1516 1.5x16 24" 40" 15
TWBU30-1518 1.5x18 26" 44" 16
TWBU30-1520 1.5x20 28" 48" 18
TWBU30-1524 1.5x24 32" 56" 20
TWBU30-2004 1-1/4" 2x4 12" 16" 3/8NPT 1" 12
TWBU30-2006 2x6 14" 20" 13
TWBU30-2008 2x8 16" 24" 15
TWBU30-2010 2x10 18" 28" 17
TWBU30-2012 2x12 20" 32" 19
TWBU30-2014 2x14 22" 36" 20
TWBU30-2016 2x16 24" 40" 22
TWBU30-2018 2x18 26" 44" 24
TWBU30-2020 2x20 28" 48" 25
TWBU30-2024 2x24 32" 56" 29
TWBU30-2028 2x28 36" 64" 32
TWBU30-2030 2x30 38" 68" 34
TWBU30-2032 2x32 40" 72" 36
TWBU30-2036 2x36 44" 80" 39
TWBU30-2040 2x40 48" 88" 42
TWBU30-2048 2x48 56" 104" 49
TWBU30-2504 1-1/2" 2.5x4 12" 16" 1/2NPT 1" 16
TWBU30-2506 2.5x6 14" 20" 18
TWBU30-2508 2.5x8 16" 24" 20
TWBU30-2510 2.5x10 18" 28" 22
TWBU30-2512 2.5x12 20" 32" 25
TWBU30-2514 2.5x14 22" 36" 27
TWBU30-2516 2.5x16 24" 40" 29
TWBU30-2518 2.5x18 26" 44" 31
TWBU30-2520 2.5x20 28" 48" 34
TWBU30-2524 2.5x24 32" 56" 38
TWBU30-2528 2.5x28 36" 64" 43
TWBU30-2530 2.5x30 38" 68" 45
TWBU30-2532 2.5x32 40" 72" 47
TWBU30-2536 2.5x36 44" 80" 51
TWBU30-2540 2.5x40 48" 88" 56
TWBU30-2548 2.5x48 56" 104" 65
TWBU30-3004 1-1/2" 3x4 12" 16" 1/2NPT 1" 19
TWBU30-3006 3x6 14" 20" 22
TWBU30-3008 3x8 16" 24" 24
TWBU30-3010 3x10 18" 28" 27
TWBU30-3012 3x12 20" 32" 29
TWBU30-3014 3x14 22" 36" 32
TWBU30-3016 3x16 24" 40" 34
TWBU30-3018 3x18 26" 44" 36
TWBU30-3020 3x20 28" 48" 39
TWBU30-3024 3x24 32" 56" 44
TWBU30-3028 3x28 36" 64" 49
TWBU30-3030 3x30 38" 68" 51
TWBU30-3032 3x32 40" 72" 54
TWBU30-3036 3x36 44" 80" 59
TWBU30-3040 3x40 48" 88" 63
TWBU30-3048 3x48 56" 104" 73
TWBU30-3504 1-3/4" 3.5x4 14" 18" 1/2NPT 1-1/4" 27
TWBU30-3506 3.5x6 16" 22" 30
TWBU30-3508 3.5x8 18" 26" 33
TWBU30-3510 3.5x10 20" 30" 36
TWBU30-3512 3.5x12 22" 34" 39
TWBU30-3514 3.5x14 24" 38" 42
TWBU30-3516 3.5x16 26" 42" 45
TWBU30-3518 3.5x18 28" 46" 48
TWBU30-3520 3.5x20 30" 50" 51
TWBU30-3524 3.5x24 34" 58" 57
TWBU30-3528 3.5x28 38" 66" 64
TWBU30-3530 3.5x30 40" 70" 67
TWBU30-3532 3.5x32 42" 74" 70
TWBU30-3536 3.5x36 46" 82" 76
TWBU30-3540 3.5x40 50" 90" 82
TWBU30-3548 3.5x48 58" 106" 94
TWBU30-4004 2" 4x4 14" 18" 1/2NPT 1-1/2" 34
TWBU30-4006 4x6 16" 22" 38
TWBU30-4008 4x8 18" 26" 41
TWBU30-4010 4x10 20" 30" 45
TWBU30-4012 4x12 22" 34" 49
TWBU30-4014 4x14 24" 38" 52
TWBU30-4016 4x16 26" 42" 56
TWBU30-4018 4x18 28" 46" 60
TWBU30-4020 4x20 30" 50" 63
TWBU30-4024 4x24 34" 58" 71
TWBU30-4028 4x28 38" 66" 78
TWBU30-4030 4x30 40" 70" 82
TWBU30-4032 4x32 42" 74" 85
TWBU30-4036 4x36 46" 82" 93
TWBU30-4040 4x40 50" 90" 100
TWBU30-4048 4x48 58" 106" 115
TWBU30-5004 2-1/2" 5x4 14" 18" 1/2NPT 1-3/4" 65
TWBU30-5006 5x6 16" 22" 70
TWBU30-5008 5x8 18" 26" 75
TWBU30-5010 5x10 20" 30" 80
TWBU30-5012 5x12 22" 34" 85
TWBU30-5014 5x14 24" 38" 90
TWBU30-5016 5x16 26" 42" 96
TWBU30-5018 5x18 28" 46" 101
TWBU30-5020 5x20 30" 50" 106
TWBU30-5024 5x24 34" 58" 116
TWBU30-5028 5x28 38" 66" 126
TWBU30-5030 5x30 40" 70" 131
TWBU30-5032 5x32 42" 74" 137
TWBU30-5036 5x36 46" 82" 147
TWBU30-5040 5x40 50" 90" 157
TWBU30-5048 5x48 58" 106" 178

PART NUMBER INSIDER DIAMETER OUTSIDER DIAMETER A B c D E F G H ROD DIAMETER PORT
TWBU15- 1.50" 2.00" 8.00” 1.25" 0.76" 2.62" 2.25" 2.00" 1.06" 1.87" 1.00" 1/4NPT
TWBU20- 2.00" 2.50" 8.00" 1.50" 1.01" 2.25" 2.75" 2.25" 1.00" 2.06" 1.25" 3/8NPT
TWBU25- 2.50" 3.00" 8.00" 1.50" 1.01" 2.25" 3.25" 2.25" 0.81" 2.18" 1.50" 1/2NPT
TWBU30- 3.00" 3.50” 8.00" 1.50" 1.01" 2.25" 3.75" 2.25" 0.81" 2.18" 1.50" 1/2NPT
TWBU35- 3.50" 4.00" 10.00" 2.00" 1.26" 4.00" 4.25" 2.25" 0.81" 2.18" 1.75" 1/2NPT
TWBU40- 4.00" 4.50" 10.00" 2.25" 1.51" 3.75" 4.75" 2.50" 0.81" 2.18" 2.00" 1/2NPT
TWBU50- 5.00" 5.50" 10.00" 3.00" *1.76" 3.50" 5.75" 3.25" 1.25" 2.75" 2.50" 1/2NPT
FOR 5.00" BORE:2.00"PINS ARE AVAILABLE WITH REMOVABLE BUSHING
FOR 1.50" TO 4.00" BORE SAE PORTS ARE AVAILABLE
SEAL TEMPERATURE RANGE: -30°C/+100oC(-22°F/ + 212°F)
SEAL MAXIMUM SPEED:3 FT/SEC
MAXIMUM RETRACTED WORKING PRESSURE= 3000 PSI
