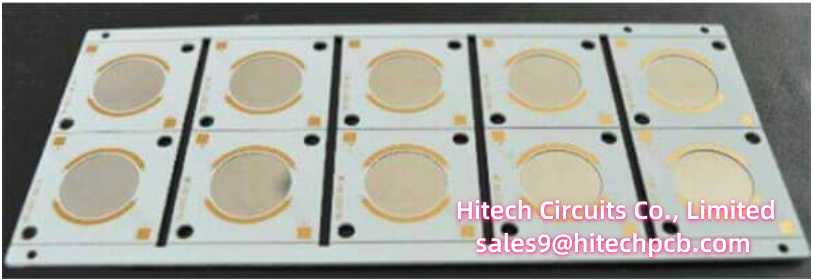

Hitech high reflectivity and high power 5730 LED square mirror COB aluminum pcb with driver integrated surface light source, design the light-emitting area and shape size of the light source according to the product shape and structure.
Technical Parameters
Product type: COB Aluminum PCB
Material: Aluminum plate +high thermal insulation material
Layer/Thickness: 1L/1.6 mm
Outer Copper:/ 1.5 OZ
Surface treatment: HASL LF
Min Line Width: ≥ 0.3mm
Min Line Space: ≥0.25mm
Min Hole: ≥3 mm
Solder Mask: White X 1 side
Technical featuer: special materials
Application: Lamps and lanterns

LED COB Aluminum PCB features a square mirror design with integrated driver surface light sources for maximum power and energy output without producing excess heat or damaging other components. Email [email protected] if you are looking for reliable LED COB Aluminum PCB.
