Complementary to a single mode fiber bundle, a 2-D tapered fiber optic cable bundle uses a flat-bottom groove and lid to stack multiple fibers tightly together in a rectangular or circle arrangement.

Features of Tapered Fiber Bundle
Arbitrary pattern

Customer determined core pitch

Pitch accuracy<5um

Fiber type: SM/MM/PM

Compact Design

Customized solutions

How Single Mode Fiber Optic Bundle Works

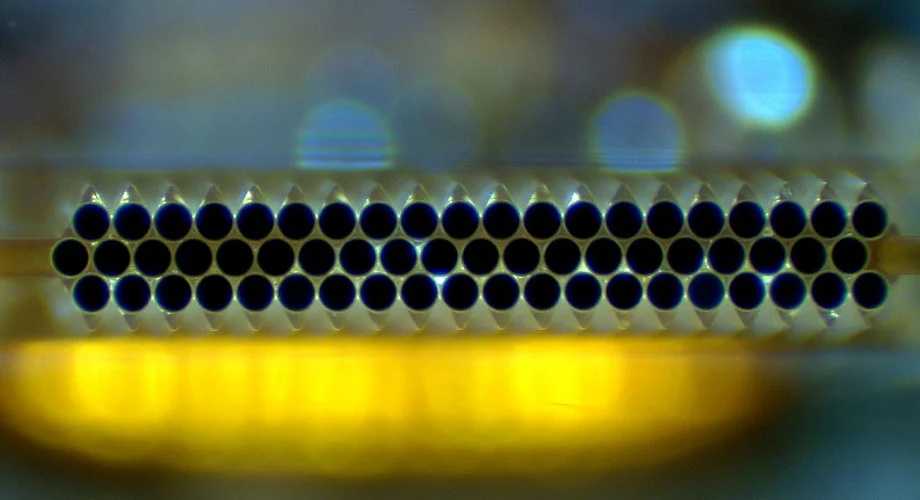

2-D fiber optic bundle, or fiber bundle optics, uses flat-bottom groove and lid to stack multiple fibers tightly together in a rectangular or circle arrangement. In bundled fibers, the core distance of the fiber is usually determined by the fiber diameter, so once the type of the bundled fiber is determined, the core distance of the fiber is fixed as well. To achieve smaller core pitch, MEI SU has its own corroding technique to reduce the existing fiber diameter to any size.

If you want to know more about pm fiber array, please visit our website.
