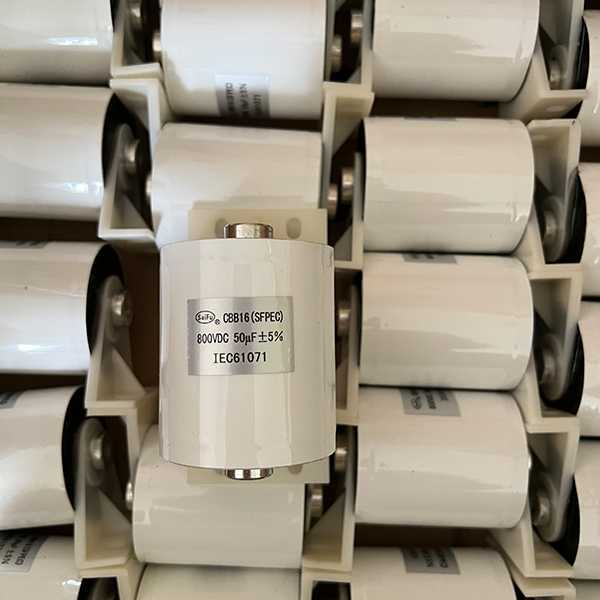

CBB16 Welding Inverter DC Filter Capacitor
CBB16 Welding Inverter DC Filter Capacitor's Application：

1. Used in filter, absorption, blocking, and resonance circuits of high-frequency switching power supply.

2. Widely applied to EMI, such as high-frequency welding inverters, UPS, electric vehicles, etc.

Cn Un Imax dv/dt (V/μs) Ls U t-t U t-c tgδ Size
(μF) (V) (A) (nH) (V) (V) (20℃,10kHz) (mm)
CBB15(SFPEC)
0.47 1200VDC 7 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 46×18×34
1 1200VDC 15 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 46×34×36
2 1200VDC 25 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 50×46×50
3 1200VDC 35 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 50×46×50
30 1250VDC 30 200 ≤10 1800V, 10S 3000VAC,60S ≤100×10-4 74×46×49
40 1250VDC 40 200 ≤10 1800V, 10S 3000VAC,60S ≤100×10-4 74×46×49
CBB16(SFPEC)
2 500VAC 25 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 ф63×49
3 500VAC 35 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 ф63×49
4 500VAC 50 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 ф63×49
5 500VAC 60 1300 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 ф63×49
6 500VAC 80 1400 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 ф76×49
10 1400VDC 6 200 ≤10 1800V, 10S 3000VAC,60S ≤30×10-4 ф50×60
20 1400VDC 10 200 ≤10 1800V, 10S 3000VAC,60S ≤30×10-4 ф50×60
50 350VDC 14 200 ≤10 600V, 10S 3000VAC,60S ≤30×10-4 ф50×60
40 800VDC 10 200 ≤10 1200V, 10S 3000VAC,60S ≤30×10-4 ф40×60
60 800VDC 15 200 ≤10 1200V, 10S 3000VAC,60S ≤30×10-4 ф50×60
100 800VDC 28 200 ≤10 1200V, 10S 3000VAC,60S ≤30×10-4 ф62×60
200 800VDC 26 200 ≤10 1200V, 10S 3000VAC,60S ≤30×10-4 ф60×110

Note: Other specifications and size outside table are negotiable.

Features of CBB16 Inverter Welding Machine Capacitor
1. Used to absorb or filter high-frequency impulses in high-power high-frequency switches.

2. Low ESR, high ripple current and large current shock handling capabilities.

3. Low LS, good high-frequency characteristics

4. Self-healing property

5. Long lifetime

6. Plastic case, resin sealing

Now the price of CBB16 capacitor is reasonable, if you have needs, please contact us.

As a capacitor factory, we will do our best to meet all the needs of customers.
