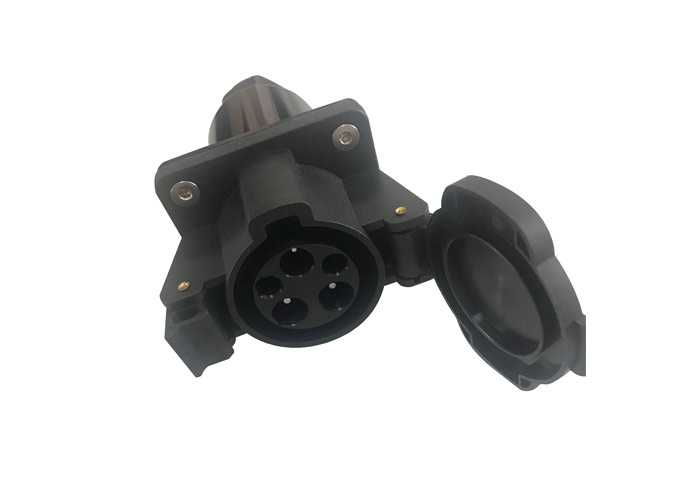

SAE EV Charging Socket
SAE car charging socket is mainly used to connect the vehicle for charging during maintenance purpose. It's mostly used for the manufacturing industry and auto service providers. SAE socket adapts fast-charging system as well as normal charging system depending on the connector and power source.

Features of Jayuan SAE EV Charging Socket
IP55 Working Grade.

Fits American Standard SAE J1772-2012.

Optional Installing of Prevention Cap (Left, Right, Front).

Oil Proof, Pressure Proof, Impact Resistant, flame retardant, Wear-resisting.

Specifications of SAE EV Charging Socket
Electrical Environment Materials Mechanical
Insulation Resistance: >1000MΩ (DC500V) Operating Temperature: -30℃~50℃ Shell (Thermoplastic): UL94-VO Life: no-load plug>10000times
Flame Retardent
Pins Temperature Rise: <50K Waterproof IP Grade: IP55 Contact Pin: Copper Alloy, Silver/Nickel Plated External Force: 1meters Drop and 2tons vehicle run over pressure affordable.
Withstand Voltage: 2500V / / / / Insertion Force: <100N
Contact Impedance: 0.5mΩMax / / / / Sealing Gasket: (Silicon) Rubber
Rated Current: 16A/32A/40A/50A / / / / / /
Rated Voltage: 240V / / / / / /

As a solar products supplier, we will do our best to meet all the needs of customers.

If you want to know more kinds of solar powered products, please visit our website.
