#Electric #Vehicle #Charging

Mechanical Life

Mechanical life: no-load plug>10000times

Insertion force:<100N

Applied Material

Shell material: thermoplastics, flame retardant grade UL94-0

Contact - tube: copper alloy, silver plated

Environmental Performance

Operating temperature: -30℃~+50℃

Electrical Performance

The rated current: 10A, 16A, 32A, 63A

The rated voltage: 250V/440V

Insulation resistance: > 1000MΩ(DC500V)

Pins temperature rise:<50K

Withstand voltage: 2500V

Contact impedance: 0.5mΩMax

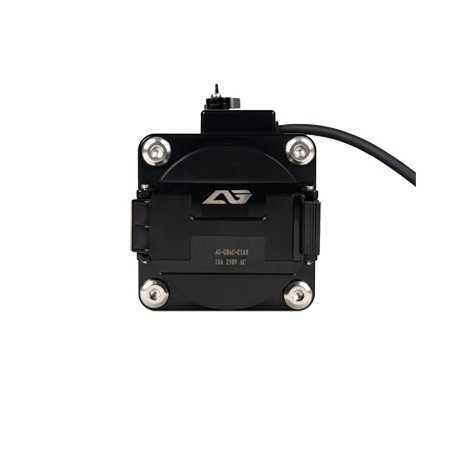

Features of GB/T Electric Vehicle Charging Socket
Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles> GB/ T 20234.2-2015.

Have a electromagnetic locking device (can match with hela lock), have functions of signal feedback.
