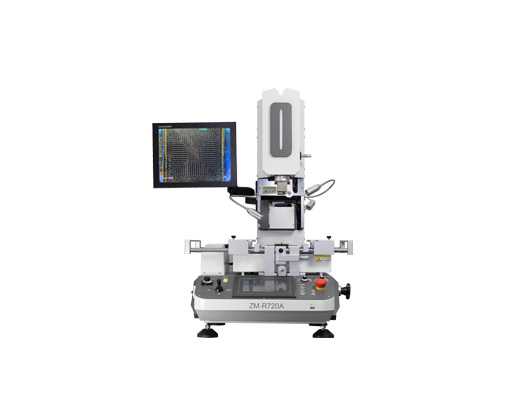

ZM-R720A LED/Micro Component Rework Station
ZM R720A mini/micro BGA rework station is a precision optical intelligent LED rework station suitable for the rework of precision microdevices. This machine adopts imported HD CCD digital imaging, automatic optical zoom system, rework of precision microdevices, carbon fibre infrared BGA heating tube, and automatic feeding. Besides that, Seamark also has other types of BGA led rework stations for you to choose from.

Functions of R720A Micro/Mini BGA Rework Station
01
Carbon Fiber Infrared Heating Tube
The IR preheating zone uses carbon fiber infrared tube heating and high temperature resistant microcrystalline panel protection, and a multi-functional movable PCB fixing bracket.

02
Precision Tiny Devices and Automatic Feeding
Seamark dedicated to the repair equipment of precision micro devices, automatic feeding device, optional LED feeder feeding fixture.

03
High Definition Display
Using imported high-definition CCD (2m pixels) digital imaging system with automatic optical zoom, automatic control laser red-dot precision alignment, using 15' HD industrial display screen.

As one of the top BGA Rework Station suppliers in China, Seamark ZM is famous for its rich technical force, complete detection means, reliable quality, good service. If you want to know the micro BGA LED rework station and to get a perfect kind of repair machine for your factory, please contact Seamark ZM first.

Specification Of ZM R720A Micro/Mini BGA Rework Station
Power Supply AC220V±10% 50/60HZ
Power 6.15KW(Max), Top heater(1.45KW) Bottom heater (1.2KW), IR Preheater (3.2KW),Other(0.3KW)
PCB Size 412*370mm(Max); 6*6mm(Min)
BGA Chip Size 60*60mm(Max);0.6*0.6mm(Min)
IR Heater Size 380*280mm
Temperature Sensor 1
Operation Method 7" HD touch screen
Control System Autonomous heating control system V2（software copyright）
Display System 15" HD industrial display ( 1080P 16:9)
Alignment System 2 Million Pixel HD digital imaging system, automatic optical zoom with laser red-dot indicator
Vacuum Adsorption Automatic
Alignment Accuracy ±0.01mm
Temperature Control K-type thermocouple closed-loop control with accuracy up to ±1℃
Feeding Device Yes
Positioning V-groove with universal fixture
Dimensions L810*W635*H870mm
Weight 84.5KG
