Designed for water and dust tight (IP67)
Small compact size
Long life and high reliability
Widely used in automotive electronics, appliances, industrial control, etc.

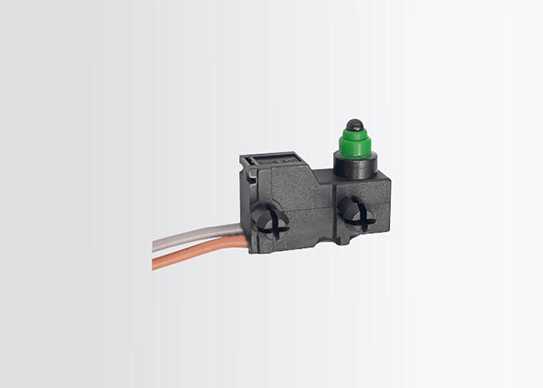

Mini Sealed 24 Volt Micro Switch G305 Specifications
Place of Origin Guangdong, China (Mainland)
Brand Name Micro Switch Manufacturer Unionwell
Model Number G305
Max Operating  Force (at pin plunger) 130gf
Terminal Type Mold Lead Wires on Right Side
Lever Type No Lever/#13 Special Lever
Circuit Code SPDT/SPST-NO/SPST-NC
Certifications ENEC, UL/cUL, CQC
OEM/ODM Available
Rating 2A 24VDC; 4A 12VDC μ 40T85 10E4
Operating  Frequency Electrical 0.1A 120cycles/min; 4A 10~30 cycles/min
Mechanical 120 cycles/min
Contact Resistance (Initial Value) ≤100mΩ
Insulation Resistance ≥100MΩ
Vibration Durability 10~55Hz, move 0.75mm (p-p)
Dielectric Strength 500VAC (50~60Hz)
Operating  Temperature -40~+85°C
Operating  Humidity 85%RHMax
Service Life Electrical 100, 000cycles
Mechanical min 500,000cycles


Mini Waterproof Sealed Micro Switch G305 Related Applications
The Micro Switch 24v G305 is found in various automotive applications such as seat belt buckle switch, door locks, and trunk release mechanisms.
