Mainstream Sidestream Capnography Sensor
Complete model: Compatible with equipment from many well-known manufacturers around the world, with wide compatibility;

Using medical TPU plastic and low impedance wire: It has the advantages of good texture, bending resistance, corrosion resistance, and stable waveform;

Gold-plated nickel-plated equipment end connection hardware and electrode surface: Excellent electrical conductivity, ensuring full contact and reliable connection;

Using imported electronic components: It has the advantages of accurate value and stable waveform.

Specification of Side Stream Capnography Sensor
Project Specifications
Principle of Operation Non-dispersive infrared(NDIR) single beam optics, dual wavelength, no moving parts.
Initialization Time Capnogram displayed in less than 3 seconds, full specifications within 3 minutes(At 25°C)
CO2 Measurement Range 0 - 114 mmHg; 0 - 15 %; 0 - 15.2 kPa
CO2 Rise Time Rise Time Less than 80 ms
CO2 Resolution 0.1mmHg 0 to 38 mmHg.
0.25 mmHg 39 to 114mmHg.
CO2 Accuracy 0 - 40mmHg ±2 mmHg.
41 - 76mmHg ±5% of reading.
77 - 114 mmHg ±8% of reading.
Above 80 breaths per minute ±12% of reading.
* Note: Gas temperature at 25°C.
CO2 Stability Short term drift: Drift over four hours shall not exceed 1 mmHg maximum.
Long term drift: Accuracy specification will be maintained over a 120-hour period.
Sampling Frequency 100Hz。
Respiration Rate Range 3 to 150 breaths per minute.
Respiration Rate Accuracy ±1 breath.
Temperature Operating: 0 to 40°C; Storage: -40 to 70°C; Transport: -40 to 70°C.
Humidity Operating: 10 to 90% RH, non-condensing; Storage: 10 to 90% RH, non-condensing. Transport: 10 to 90% RH, non-condensing.
Atmospheric Pressure Operating: 400-800 mmHg; Storage: 400-800 mmHg; Transport: 400-800 mmHg.
Water Resistance IPX4 - Splash-proof - Sensor only.
Sensor Weight <250g
Sensor Size Deep*Wide*High: 102mm*62mm*38mm
Cable Length 0.75m

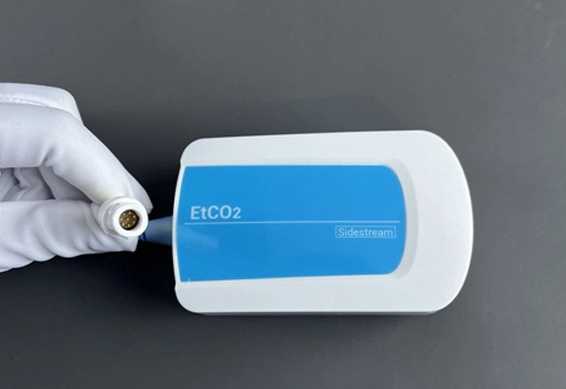

Details of Sidestream Capnography Sensor
Quick Details of Sidestream Capnography Sensor
Designed for use with monitors and ventilators equipped with a carbon dioxide function, it accurately and swiftly collects end-tidal carbon dioxide values and generates visual curves. Both reusable and disposable consumables are available.

If you want to know more kinds of sidestream capnometer, please visit our website.

Now the price of capnography monitor for sale is reasonable, anything you need, please contact us.
