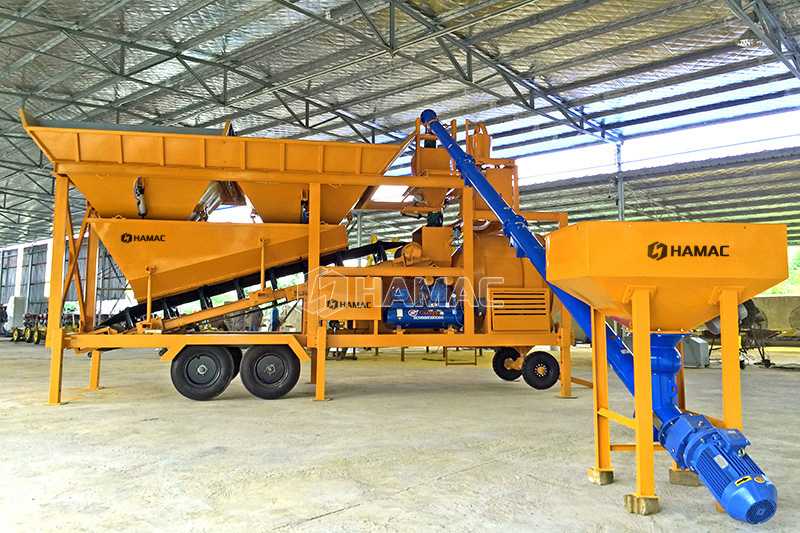

Portable Concrete Batching Plants: Efficient plants for Construction

Portable concrete batching plants are designed to streamline the process of concrete production on construction sites. These compact units are engineered to deliver high-quality concrete with a minimal footprint, making them ideal for a variety of projects.

How They Work

At the core of the operation is a wheel loader that feeds three separate hoppers with aggregates and sand of varying sizes. Each component is precisely weighed by load cells to ensure accurate mixing ratios. Cement is then delivered from a hopper or silo via a screw conveyor, while water is measured and added by a water pump. All materials are subsequently combined in a drum mixer to create a homogeneous blend.

Once mixed, the concrete is discharged into a transit mixer truck, a small dumper, or a trailer concrete pump, ready for use on-site.

Advantages of Portable Batch Plants

Compact Design: The entire concrete production process is integrated into a trailer unit, making it highly portable.
No Foundation Required: These plants can be operational immediately upon arrival at the construction site, saving time and resources.
Versatile Mixing Options: Choose between a drum type or a twin-shaft concrete mixer to suit the project's needs.
Container Compatibility: The plant can be fitted into a 40ft container for easy transportation and setup.
Cement Storage: Equipped with either a cement silo or hopper for efficient cement storage and use.
Cost-Effective: These plants offer a more economical option compared to those with double shaft mixers.

For more information or to inquire about purchasing a portable concrete batching plant, visit Hamac China's website.
