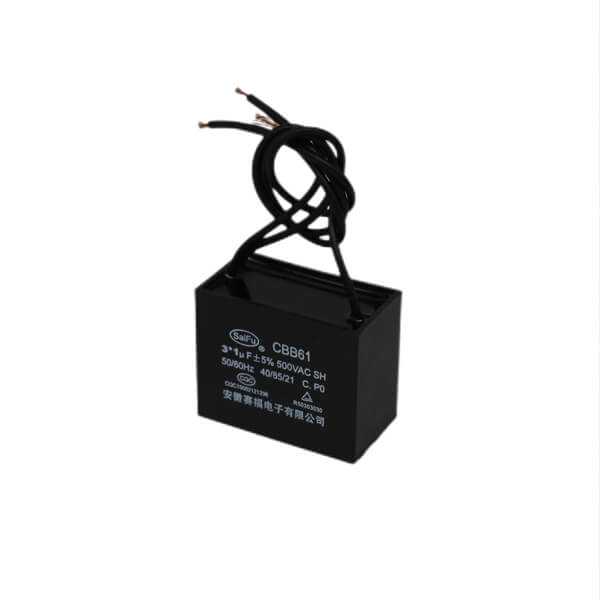

CBB61 Dual Capacitor
CBB61 capacitor ceiling fan is a machine suitable for the starting and running of single-phase motors with a frequency of 50HZ AC power supply, and can also play a role in speed regulation of the motor. It is characterized by plastic shell encapsulation, good appearance consistency; small high frequency loss, suitable for large current; high insulation resistance, good self-healing and long life. It is an important supporting component for electric fans, range hoods, air-conditioning fans, and bread machines.

Specification of CBB61 Dual Capacitor
Reference standards GB/T 3667.1（ IEC60252-1）
Climatic category 40 / 70 / 21, 40 / 85 / 21
Class of operation Class B (10000h) Class C (3000h)
Class of safety protection S0 /S3
Voltage range 250VAC, 370VAC, 440VAC, 450VAC
Capacitance range 1～35μF
Capacitance tolerance ± 5% , ± 10%, ± 15%
Dissipation factor 20 x10-4 (100Hz, 20°C)
Test voltage terminal to terminal UTT 2Un for 2 seconds
Test voltage terminal to case UTC (2Un+1000)VAC or 2000VAC- 50Hz for 60 seconds
Insulation resistance ≥3000s (100Hz, 20°C, 1min)

Structure of CBB61 Dual Capacitor
The capacitor core is wound by the metalized organic film.

Plastic shell, flame retardant epoxy resin potting, single capacitor core, or multi-capacitor core can be installed in one shell.

The installation components include plastic ears and iron ears.

The lead-out methods include plastic-encapsulated leads, tinned copper pins, quick-connect terminals, soldering lugs, etc.

The specifications of size and terminal outside table could produce according to customer requirements.

Features of CBB61 Dual Capacitor
Widely applied to the starting and running of AC single-phase motors at 50Hz/60Hz frequency power.

Self-healing property.

Good stability and reliability.

As one of capacitor manufacturers in china, we can provide types of capacitor for sale, anything you need, please contact us.
