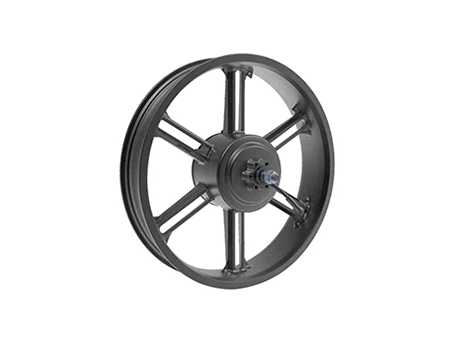

This direct drive hub motor is a high-power brushless e bike motor hub, it provides 750W~1000W rated power and support 90nm max torque.

Main Parameter of DGW25R Ebike Brushless Motor
specification parameter
Driving position Rear
Wheel size 20in-28in
Spoke 36holes 12G
Rated power 750W
Rated voltage 36V~48V
Max.torque ≥90N.m
Efficiency ≥80％
Cable side Left
Number of magnet 20
Reduction gear ratio 1:05
Installation dimension 175mm~190mm
Inside speed sensor 1~6
Hall sensor With/Without
Free wheel Cassette 9-10S/
Screw 6-7S
Brake Disc-brake/V-brake
Classification of waterproof IPX5
Weight 4.9Kg

As one of hub motor manufacturers, we will do our best to meet all the needs of customers.
