Saifu Capacitor Film and Capacitor Wholesale

The metallized polypropylene film capacitor produced by Anhui Saifu Electronics Co., Ltd. is a capacitor formed by winding polypropylene film as the dielectric and the zinc-aluminum metallized layer by physical vapor deposition as the conductive plates. This capacitor for sale has the characteristics of non-polarity, stable capacitance, small loss tangent, small ESR and ESL, reasonable size, and self-healing. This bulk capacitor wholesale can be used in AC and DC occasions in industrial and civil fields, such as DC -Link, DC filter, DC pulse, AC motor, household appliances, low voltage compensation, AC filter, lamps, etc. SAIFU is an experienced capacitor factory, contact us if you are looking for industrial capacitor for sale.

Different Types of Capacitors & Capacitors Film for Sale
Metallised Capacitor Film
The capacitor main material is capacitor film, contain Metallised polypropylene film, metallised polyester film and plain film for capacitor use. According to customers requirement produce.

AC Motor Capacitor
AC Motor Capacitor mainly used for Household Electric Appliances,such as air conditioner,fan,Water pump, washing machine and etc.

Industrial Capacitor
Industral Capacitor mainly used for industral equipment or vehicle,such as used in rail transit traction or ship drive converter, various high-power industrial inverters, power harmonic govemance and SVG equipment, new energy and etc.

Capacitor Working Principle

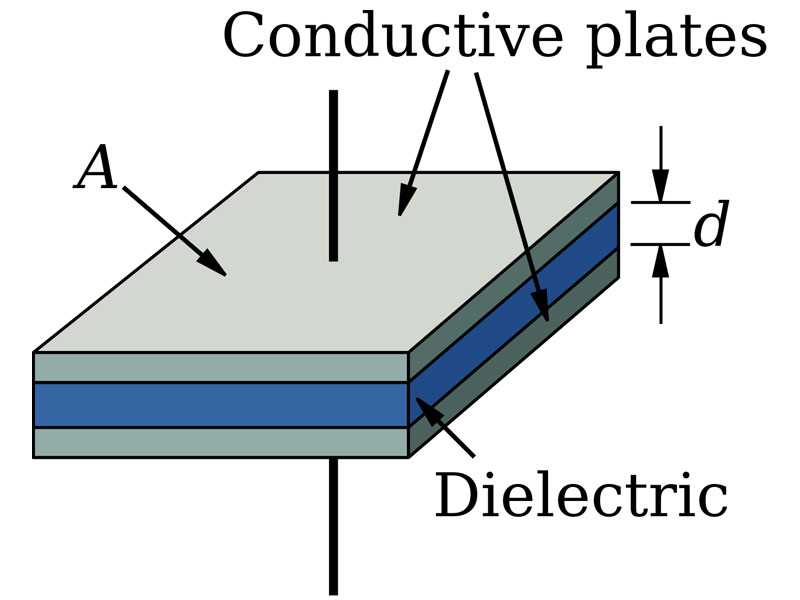

A capacitor consists of two conductive plates separated by a dielectric. The opposing surfaces of the two conductive plates can hold equal and opposite charges and create an electric field. The dielectric of Saifu's capacitors is polypropylene film, and the conductive plate is metallized layers (zinc-aluminum or pure aluminum layers) by physical vapor deposition (vacuum evaporation). For ease of use, two or more layers of metallized film with lengths of several meters to thousands of meters are wound into capacitor elements. Saifu's capacitors for sale are composed of single to hundreds of capacitor elements according to capacitor specifications.

Multilayer Ceramic Capacitor Manufacturing Process
The manufacturing process of multilayer ceramic capacitors (MLCCs) generally involves the following steps:

Mixing: The raw materials, which typically include ceramic powders, metal oxides, and binders, are mixed together in a ball mill to form a homogeneous slurry.

Forming: The slurry is then poured into a mold or cast onto a tape, which is then cut into individual chips of the desired size and shape.

Drying: The formed chips are dried in a drying oven to remove any remaining moisture from the slurry.

Firing: The dried chips are then fired in a high-temperature furnace to sinter the ceramic and metal oxide powders into a solid, crystalline structure. This process also burns off the organic binders, leaving behind a pure ceramic material.

Electrode deposition: Once the chips have been fired, metal electrodes are deposited onto the ceramic surface using a variety of techniques, such as screen printing or sputtering.

Stacking: The chips are then stacked on top of each other, with each layer separated by a thin layer of insulating material, typically made of ceramic or glass.
