ACREL ATE200 HIGH VOLTAGE SWITCHGEAR TEMPERATURE AND HUMIDITY MEASURING
ATE200 high voltage thermal monitoring sensor is a belt switchgear temperature sensor that is capable of individual installation within high-voltage cabinets and low-voltage drawer cabinets. This switchgear temperature control sensor is mainly used to monitor the temperature of electrical connection points such as cable joints and circuit breaker contacts in high and low-voltage switch cabinets, to prevent the overheating of the contact resistance caused by oxidation, looseness, dust, and other factors during the operation process from becoming a safety hazard, which can improve equipment safety protection, timely, continuously and accurately reflect the operating status of the equipment, and reduce the accident rate of the equipment.

Contact us now for more info about ATE200 industrial temperature monitoring sensor and our other wireless temperature monitoring device!

Specification of ATE200 High Voltage Switchgear Temperature And Humidity Measuring
Specification
Model Specification Installation
ATE200M 35*35*17mm Strap Binding
-50℃~+125℃
Accuracy: ±1℃
Lifetime>5 years
470MHz
Open space distance: 150m
ATE200P 62.4*32.4*16mm, φ13.5mm Outdoor Strap
L=330mm
-50℃~+125℃
Accuracy: ±0.5℃
Lifetime>5 years
470MHz
Open space distance: 150m

Features of ATE200 High Voltage Switchgear Temperature And Humidity Measuring
01
ATE200 switchgear wireless temperature sensor wifi can be directly installed on the heating node in the 0.4-35kV power distribution cabinet. The temperature measurement data is sent to the transceiver through radio frequency technology, and then the transceiver sends the data to the temperature measurement terminal for display;

02

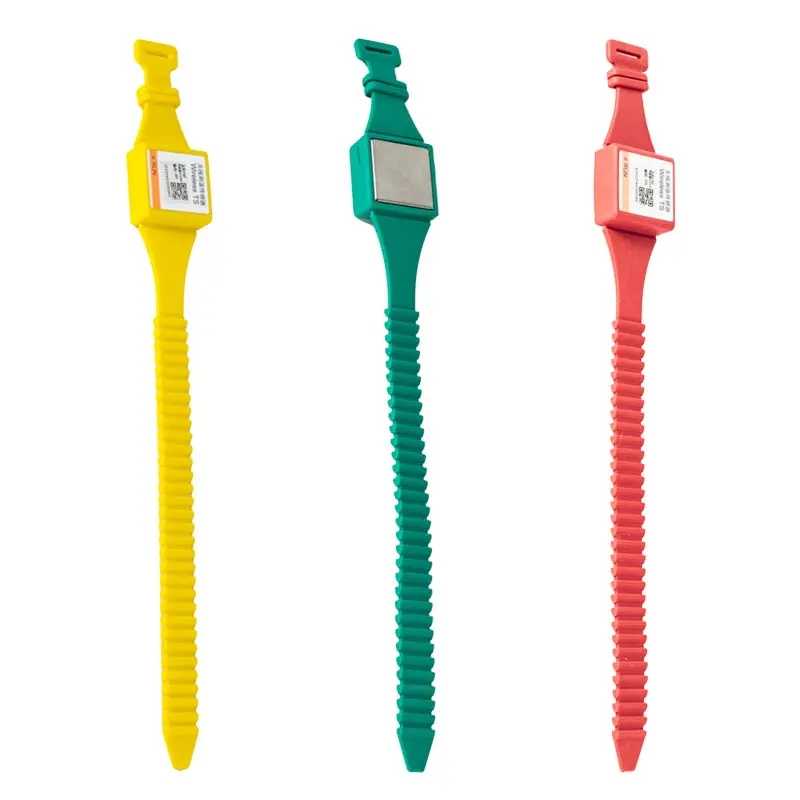

It is fixed at the temperature measuring contact with a watch strap, which is generally more suitable for temperature measurement of circuit breaker contacts, busbars, etc.;

03
Powered by batteries, the transmission distance of this switchgear wireless remote temperature monitor is 10 meters in open areas, and the service life is 5 years.
