H05Z K cables and H07Z-K cables are referred unsheath FLEXIBLE single-core cables insulated with halogen-free crosslinked compound and having low emission of smoke and corrosive gases when exposed to fire with rated voltage up to and including 450/750V.

The maximum conductor operating temperature for the cables are 90℃ and for fixed wiring application. It is often referred LSZH building wire.

H07Z-K are cables for fixed wiring. The conductor is in class 5. The size of cable is 1.5--240 mm² with voltage 450/470. H05Z k wire is for internal wiring. The conductor shall be class5 with a voltage of 300/300v. The size of the cables is from 0.5-1mm².

we supply the cables according to BS EN 50525-3-41 and IEC 60227.

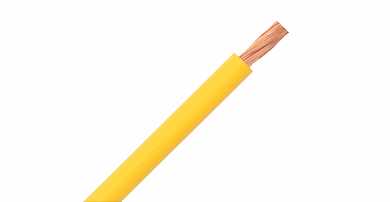

Description of CU/LSZH H05Z-K LSZH Flexible Building Wire
Conductor: plain annealed copper Class 5
Insulation: LSZH
Rated voltage: 300V/500V
Operating temperature: -15℃～+90℃
Min bending radius: more than 6 times of overall diameter.

Application Of CU/LSZH H05Z-K LSZH Flexible Building Wire
H05Z K cable are used for the internal wiring of switchboards and distributor boards with voltage 1000v. They normally installed in conduit and trunking or can be surface mounted if used as earth cable. They are good options for using in public buildings to reduce the threat to life and equipment caused by smoke and toxic fumes. They can't be installed in concrete without mechanic protection.

As one of the most professional underground cable manufacturers, JENUIN has high-quality control cable wire for sale. Welcome to contact us if needed.
