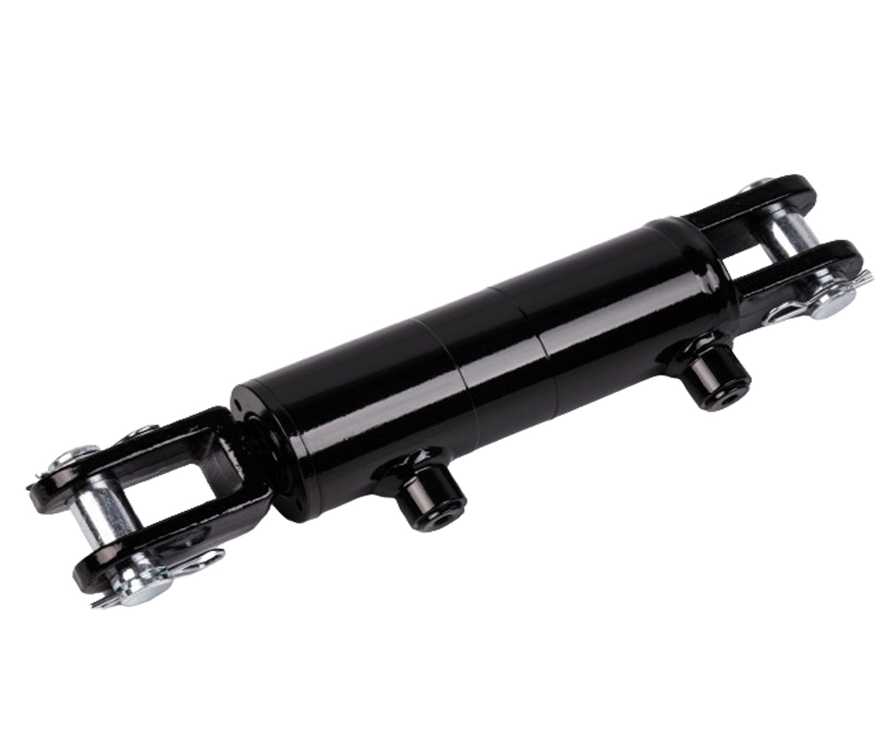

WCL Clevis Welded Hydraulic Cylinder
The WCL welded 3000 PSI hydraulic cylinders are clevis-mounted and have an operating pressure of up to 3000PSI. Manufactured from honed cold drawn tube and hard chrome plated rod, fitted with HALLITE branded seals, these heavy duty welded cylinders are designed for rugged use, and come with standard gloss black color. Custom color are available with your request.

The WCL Clevis Welded Hydraulic Cylinder is a versatile and durable hydraulic cylinder. With its compact design and efficient performance, this cylinder can handle heavy loads and provide smooth and precise movement.

Characteristics of WCL Clevis Welded Hydraulic Cylinder

Operating pressure: 3000PSI

Construction: Heavy duty welded construction

Materials: Ductile iron for Piston; Hard chrome plated steel rod; Honed steel tube, precision finished.

Seals: Hallite

Ports: NPT,SAE,BSP available

Color: Standard gloss black paint; Custom color available upon request

Package: Wooden crate reinforced with iron frame

Specification of WCL Clevis Welded Hydraulic Cylinder
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TWCL30-1504 1" 1.5"x4" 14-1/4" 18-1/4" 3/8NPT 3/4" 8
TWCL30-1506 1.5"x6" 16-1/4" 22-1/4" 9
TWCL30-1508 1.5"x8" 18-1/4" 26-1/4" 11
TWCL30-1510 1.5"x10" 20-1/4" 30-1/4" 12
TWCL30-1512 1.5"x12" 22-1/4" 34-1/4" 13
TWCL30-1514 1.5"x14" 24-1/4" 38-1/4" 14
TWCL30-1516 1.5"x16" 26-1/4" 42-1/4" 15
TWCL30-1518 1.5"x18" 28-1/4" 46-1/4" 17
TWCL30-1520 1.5"x20" 30-1/4" 50-1/4" 18
TWCL30-1524 1.5"x24" 34-1/4" 58-1/4" 20
TWCL30-2004 1-1/4" 2"x4" 14-1/4" 18-1/4" 3/8NPT 1" 14
TWCL30-2006 2"x6" 16-1/4" 22-1/4" 16
TWCL30-2008 2"x8" 18-1/4" 26-1/4" 18
TWCL30-2010 2"x10" 20-1/4" 30-1/4" 19
TWCL30-2012 2"x12" 22-1/4" 34-1/4" 21
TWCL30-2014 2"x14" 24-1/4" 38-1/4" 23
TWCL30-2016 2"x16" 26-1/4" 42-1/4" 25
TWCL30-2018 2"x18" 28-1/4" 46-1/4" 26
TWCL30-2020 2"x20" 30-1/4" 50-1/4" 28
TWCL30-2024 2"x24" 34-1/4" 58-1/4" 31
TWCL30-2028 2"x28" 38-1/4" 66-1/4" 35
TWCL30-2030 2"x30" 40-1/4" 70-1/4" 36
TWCL30-2032 2"x32" 42-1/4" 74-1/4" 38
TWCL30-2034 2"x34" 44-1/4" 78-1/4" 40
TWCL30-2036 2"x36" 46-1/4" 82-1/4" 42
TWCL30-2040 2"x40" 50-1/4" 90-1/4" 45
TWCL30-2048 2"x48" 58-1/4" 106-1/4" 52
TWCL30-2504 1-1/2" 2.5"x4" 14-1/4" 18-1/4" 1/2NPT 1" 18
TWCL30-2506 2.5"x6" 16-1/4" 22-1/4" 20
TWCL30-2508 2.5"x8" 18-1/4" 26-1/4" 24
TWCL30-2510 2.5"x10" 20-1/4" 30-1/4" 25
TWCL30-2512 2.5"x12" 22-1/4" 34-1/4" 27
TWCL30-2514 2.5"x14" 24-1/4" 38-1/4" 29
TWCL30-2516 2.5"x16" 26-1/4" 42-1/4" 32
TWCL30-2518 2.5"x18" 28-1/4" 46-1/4" 34
TWCL30-2520 2.5"x20" 30-1/4" 50-1/4" 36
TWCL30-2524 2.5"x24" 34-1/4" 58-1/4" 40
TWCL30-2528 2.5"x28" 38-1/4" 66-1/4" 45
TWCL30-2530 2.5"x30" 40-1/4" 70-1/4" 47
TWCL30-2532 2.5"x32" 42-1/4" 74-1/4" 49
TWCL30-2534 2.5"x34" 44-1/4" 78-1/4" 52
TWCL30-2536 2.5"x36" 46-1/4" 82-1/4" 54
TWCL30-2540 2.5"x40" 50-1/4" 90-1/4" 58
TWCL30-2548 2.5"x48" 58-1/4" 106-1/4" 67
TWCL30-3004 1-1/2" 3"x4" 14-1/4" 18-1/4" 1/2NPT 1" 22
TWCL30-3006 3"x6" 16-1/4" 22-1/4" 24
TWCL30-3008 3"x8" 18-1/4" 26-1/4" 27
TWCL30-3010 3"x10" 20-1/4" 30-1/4" 29
TWCL30-3012 3"x12" 22-1/4" 34-1/4" 31
TWCL30-3014 3"x14" 24-1/4" 38-1/4" 34
TWCL30-3016 3"x16" 26-1/4" 42-1/4" 36
TWCL30-3018 3"x18" 28-1/4" 46-1/4" 39
TWCL30-3020 3"x20" 30-1/4" 50-1/4" 41
TWCL30-3024 3"x24" 34-1/4" 58-1/4" 46
TWCL30-3028 3"x28" 38-1/4" 66-1/4" 51
TWCL30-3030 3"x30" 40-1/4" 70-1/4" 53
TWCL30-3032 3"x32" 42-1/4" 74-1/4" 56
TWCL30-3034 3"x34" 44-1/4" 78-1/4" 58
TWCL30-3036 3"x36" 46-1/4" 82-1/4" 61
TWCL30-3040 3"x40" 50-1/4" 90-1/4" 66
TWCL30-3048 3"x48" 58-1/4" 106-1/4" 75
TWCL30-3504 1-3/4" 3.5"x4" 14-1/4" 18-1/4" 1/2 N PT 1" 27
TWCL30-3506 3.5"x6" 16-1/4" 22-1/4" 30
TWCL30-3508 3.5"x8" 18-1/4" 26-1/4" 35
TWCL30-3510 3.5"x10" 20-1/4" 30-1/4" 36
TWCL30-3512 3.5"x12" 22-1/4" 34-1/4" 39
TWCL30-3514 3.5"x14" 24-1/4" 38-1/4" 42
TWCL30-3516 3.5"x16" 26-1/4" 42-1/4" 46
TWCL30-3518 3.5"x18" 28-1/4" 46-1/4" 49
TWCL30-3520 3.5"x20" 30-1/4" 50-1/4" 52
TWCL30-3524 3.5"x24" 34-1/4" 58-1/4" 58
TWCL30-3528 3.5"x28" 38-1/4" 66-1/4" 64
TWCL30-3530 3.5"x30" 40-1/4" 70-1/4" 67
TWCL30-3532 3.5"x32" 42-1/4" 74-1/4" 70
TWCL30-3534 3.5"x34" 44-1/4" 78-1/4" 73
TWCL30-3536 3.5"x36" 46-1/4" 82-1/4" 76
TWCL30-3540 3.5"x40" 50-1/4" 90-1/4" 82
TWCL30-3548 3.5"x48" 58-1/4" 106-1/4" 94
TWCL30-4004 2" 4.0"x4" 14-1/4" 18-1/4" 1/2NPT 1" 33
TWCL30-4006 4.0"x6" 16-1/4" 22-1/4" 37
TWCL30-4008 4.0"x8" 18-1/4" 26-1/4" 42
TWCL30-4010 4.0"x10" 20-1/4" 30-1/4" 44
TWCL30-4012 4.0"x12" 22-1/4" 34-1/4" 48
TWCL30-4014 4.0"x14" 24-1/4" 38-1/4" 52
TWCL30-4016 4.0"x16" 26-1/4" 42-1/4" 55
TWCL30-4018 4.0"x18" 28-1/4" 46-1/4" 59
TWCL30-4020 4.0"x20" 30-1/4" 50-1/4" 63
TWCL30-4024 4.0"x24" 34-1/4" 58-1/4" 70
TWCL30-4028 4.0"x28" 38-1/4" 66-1/4" 77
TWCL30-4030 4.0"x30" 40-1/4" 70-1/4" 81
TWCL30-4032 4.0"x32" 42-1/4" 74-1/4" 85
TWCL30-4034 4.0"x34" 44-1/4" 78-1/4" 89
TWCL30-4036 4.0"x36" 46-1/4" 82-1/4" 92
TWCL30-4040 4.0"x40" 50-1/4" 90-1/4" 100
TWCL30-4048 4.0"x48” 58-1/4" 106-1/4" 114
TWCL30-5004 2-1/2" 5.0"x4" 16-1/4" 20-1/4" 1/2NPT 1" 64
TWCL30-5006 5.0"x6" 18-1/4" 24-1/4" 69
TWCL30-5008 5.0"x8" 20-1/4" 28-1/4" 74
TWCL30-5010 5.0"x10" 22-1/4" 32-1/4" 79
TWCL30-5012 5.0"x12" 24-1/4" 36-1/4" 84
TWCL30-5014 5.0"x14" 26-1/4" 40-1/4" 89
TWCL30-5016 5.0"x16" 28-1/4" 44-1/4" 95
TWCL30-5018 5.0"x18" 30-1/4" 48-1/4" 100
TWCL30-5020 5.0Bx20" 32-1/4" 52-1/4" 105
TWCL30-5024 5.0"x24" 36-1/4" 60-1/4" 115
TWCL30-5028 5.0"x28" 40-1/4" 68-1/4" 125
TWCL30-5030 5.0"x30" 42-1/4" 72-1/4" 130
TWCL30-5032 5.0"x32" 44-1/4" 76-1/4" 136
TWCL30-5034 5.0"x34" 46-1/4" 80-1/4" 141
TWCL30-5036 5.0"x36" 48-1/4" 84-1/4" 146
TWCL30-5040 5.0"x40" 52-1/4" 92-1/4" 156
TWCL30-5048 5.0"x48" 60-1/4" 108-1/4" 177

PART NUMBER INSIDER DIAMETER OUTSIDER DIAMETER *A B C D *E F G H 1 J K ROD DIAMETER PORT
TWCL15- 1.50" 2.00" 8.25" 1.62" 0.87" 1.37" 2.25" 1.37" 0.75" 0.76" none 0.93" 1.87" 1.00" 3/8NPT
TWCL20- 2.00" 2.50" 10.25" 2.12" 1.12" 2.12" 3.12" 2.12" 1.00" 1.01" none 1.00" 2.06" 1.25" 3/8NPT
TWCL25- 2.50" 3.00" 10.25" 2.12" 1.12" 2.12" 3.12" 2.12" 1.00" 1.01" none 0.81" 2.18" 1.50" 1/2NPT
TWCL30- 3.00" 3.50" 10.25" 2.12" 1.12" 2.12" 3.12" 2.12" 1.00" 1.01" none 0.81" 2.18" 1.50" 1/2 N PT
TWCL35- 3.50" 4.00" 10.25" 2.37" 1.12" 2.00" 3.12" 2.12" 1.00" 1.01" 2.12" 0.93" 2.18" 1.75" 1/2NPT
TWCL40- 4.00" 4.50" 10.25" 2.37" 1.12" 1.75" 3.12" 2.00" 1.00" 1.01" 2.00" 1.06" 2.18" 2.00" 1/2NPT
TWCL50- 5.00" 5.50" 13.00" 3.12" 1.62" 2.25" 3.62" 2.25" 1.50" 1.51" none 1.37" 2.75" 2.50" 1/2NPT
*FOR 8.00" STROKE :*A= 12.25"(2.00" TO 4.00" BORE)
*FOR 8.00" STROKE :*E= 5.12"(2.00" TO 4.00" BORE)
FOR 1.50" TO 4.00" BORE:SAE PORTS ARE AVAILABLE
SEAL TEMPERATURE RANGE:-30°C/+100°C(-22°FF/+212°F)
SEAL MAXIMUM SPEED:3 FT/SEC
MAXIMUM RETRACTED WORKING PRESSURE= 3000 PSI
