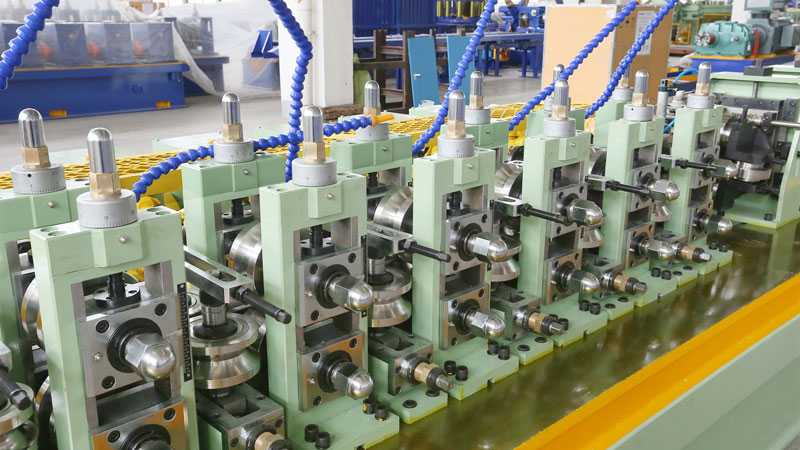

High Speed Tube Mill Line is used to produce tube diameter between φ4mm to φ50mm. The top working speed of this tube mill line can reach as high as 120m/min to 130m/min.

Main Technical Parameters of HighSpeedTube Mill (For reference only, will be as requests):
A: suitable strip coils

1. Suitable material: Carbon steel coil;

Alloy Steel Coil; API5L X42-X80

(For reference only, will be as requests)

2. Suitable strip width range: 13mm-157mm

3. Wall Thickness: 0.2mm-22mm

B. Finished products

1.Pipe O. D. φ4mm-φ50mm

2.Thickness: 0.2mm-3mm

3.Square tube: 6mmx6mm-39mmx39mm, thickness: 0.3mm-3mm

Length: 6m-12m

Length tolerance:+/-3mm

C. Equipment data (for reference only)

Production speed: 120-130m/min

Direction: Left to right or right to left from operator's side(as requests by customer)

Capacity: 10,000 ton/year-15, 000 ton/year

Electricity input power: 50kW-65kW

Foundation: 40m–50m (length) x 3.8m-4m (width)

Weight: About 30ton–300ton.

Operator: 6-8 people (as size requests)
High-Speed Tube Mill Line Technical parameters
Model Round pipe Square pipe Thickness Speed
mm mm mm m/min
RFT-12 Ф4-Ф12 0.2-0.5 120-130
RFT-16 Ф6-Ф16 0.2-0.8 120-130
RFT-20 Ф8-Ф20 6x6-15x15 0.3-1.0 120-130
RFT-25 Ф10-Ф25 7x7-19x19 0.3-1.5 120-130
RFT-32 Ф12-Ф32 9x9-25x25 0.5-2.0 120-130
RFT-50 Ф20-Ф50 15x15-39x39 0.8-3.0 120-130

High-Speed Tube Mill Line Applications
Finished Tubes by High-Speed Tube Mill
Specifications of High-Speed Tube Mill
Machine Condition Fully New, A Grade quality
Size As requests
Power Supply 220V/380V/415V/460V/480V, 50/60Hz, 3P (as requests)
Equipment Weight About 30ton-300ton
Dimension 40m–400m (length) x 3.8m-40m (width)
LOADING SIZE Normally need 4-30 x 40' containers
Equipment Color normally Blue/Green/White, or as requests
Place of Origin Zhejiang, China (Mainland)
Packing Standard and careful export packing

For more information about how to operate roll forming machine, please feel free to contact us!
