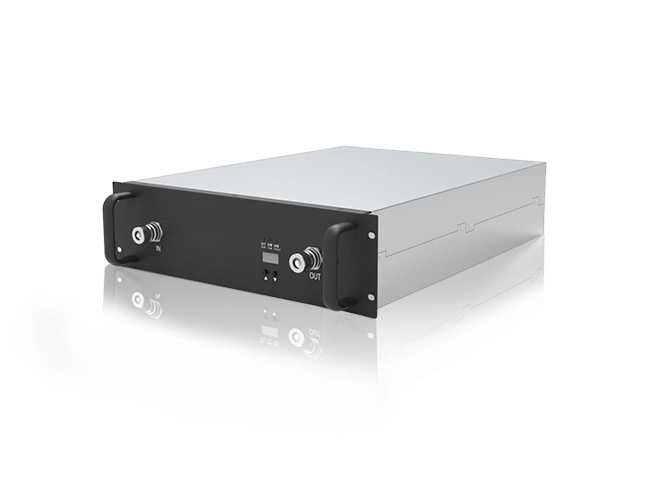

40KW 1000V High Voltage Charging Power Module
It is a high voltage power supply module that uses advanced liquid cooling technology to provide a fast and efficient charging experience for your electric vehicle. Ultra-wide input (260~530Vac) output voltage range (50~1000Vdc), the three phase rectifier module has a wide operating temperature range of -40°C to +75°C, and the efficiency is as high as 95.5% or more.

Specifications of 40KW 1000V High Voltage Charging Power Module
Module MXR100040L
Input Characteristics Input Voltage 260Vac~530Vac, three phase rectifier module+ PE
Input Current <80A
Grid Frequency 45Hz~65Hz
Power Factor ≥0.95(8kw≤output power≤20kw); ≥0.98(20kw≤ output power≤40kw)
ITHD ≤5％(20kw≤ output power≤40kw)
Output Characteristics Output Power 40kW
Voltage Range 50-1000Vdc
Current Range 0~133.3 A (continuously regulated)
Rated Current 40A
Voltage stabilized accuracy ≤±0.5%
Current stabilized accuracy ≤±1%
Current Sharing Imbalance ≤±3%
Ripple Peak to Peak ≤1%
Environmental Conditions Operating Temperatue -40℃～+75℃(output derating above 60℃)
Storage Temperature -40℃～+75℃
Relative Humidity ≤95% RH, Non-condensing
Altitude No derating below 2000m, When the altitude is above 1000m, it needs to set the actual altitude value,the working temperature decreases by 1°C for each additional 100 m.
MTBF >500,000 hours
Basic Indicators Size(W×D×H) 340×470×100mm
Weight ≤28kg
Efficiency(full load) >95.5%
Cooling Mode Liquid cooling
Communication Method CAN bus
Parallel Module Quantity ≤60pcs
Indicator Green: normal operation Yellow: alarm Red: fault LED digital tube

Now the price of high voltage rectifier is reasonable, anything you need, please contact us.

As a rectifier module manufacturer, we will do our best to meet all the needs of customers.
