Acrel BD series power transmitter is a device that converts electrical parameters such as current, voltage, frequency, power, power factor, etc. in the power grid into linear DC analog signals or digital signals through isolation.Widely used in PLC system, automation industry, water treatment company, etc.

BD-3P Three Phase Power Transducer can measure active power, reactive power, and isolate and transmit analog signals.can also measure voltage, current, power, power factor, frequency; 1.2 times the rated value overload; DC 0-5V/0-10V/0-20mA/4-20mA can be selected as analog output.
Input:AC 1A/5A,AC 100V/22V/380V
Output:DC 0-20mA/4-20mA/0-5V/0-10V
Power supply:AC 85~265V,DC 100V~350V,DC 24V
Accuracy:Class 0.5

Video of 3 Phase Power Transducer
Wiring of BD-3P Three Phase Power Transducer

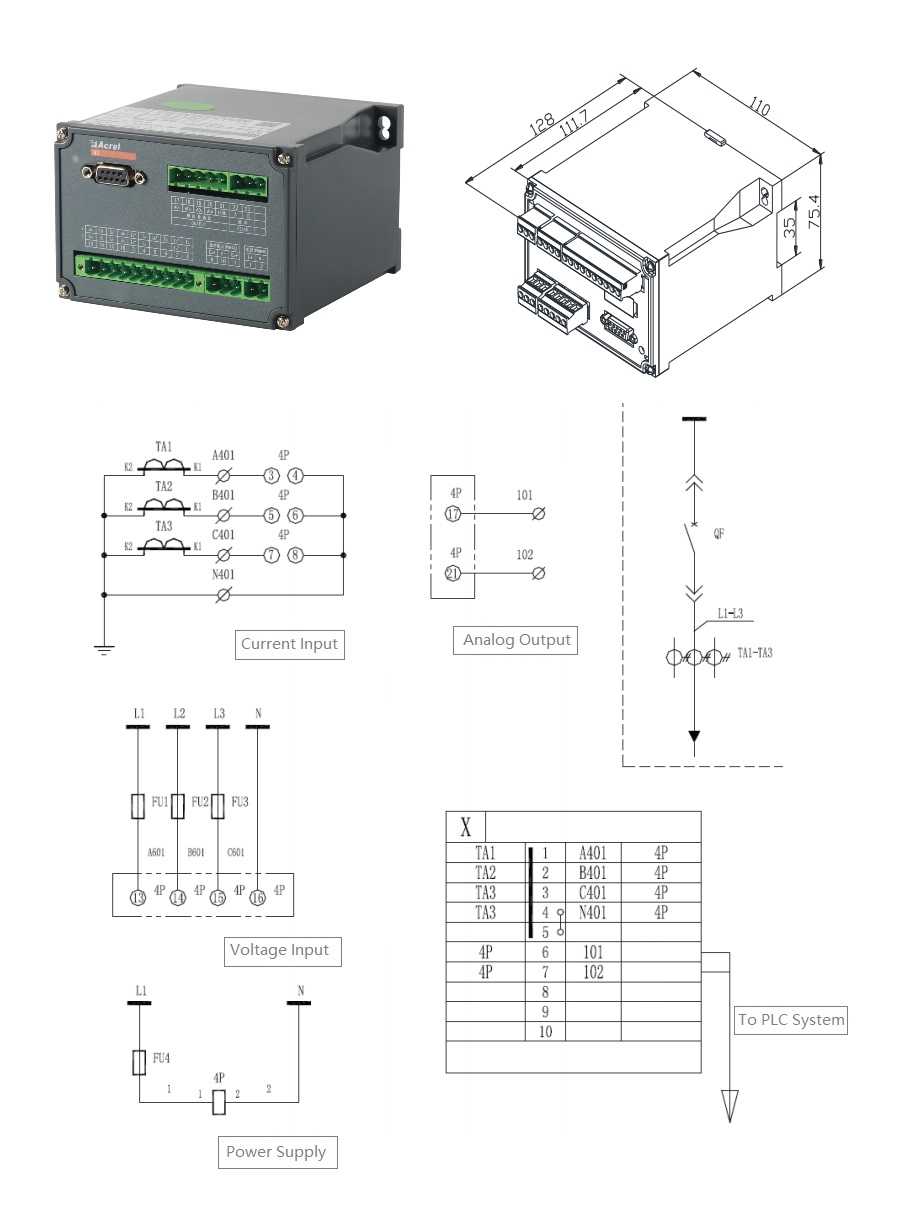

BD-3P Three Phase Power Transducer interface 3/4,5/6,7/8 is A/B/C phase current input,interface 13/14/15/16 is A/B/C/N phase voltage input,interface 1/2 power supply L/N(AC 85~265V,DC 100V~350V,DC 24V),interface 9/10/11 is the Ep/Eq pluse output,interface 17/18/19/20/21 is the four channels analog output DC 4~20mA,0~20mA,0~5V,0~10V which can connect to PLC system etc.

Application of BD-3P Three Phase watt var transducer
Industrial automation
Photovoltaic and wind power industry
Metallurgy, electric power and oil field
Railway locomotive and shipping industry
Package of BD-3P Three Phase Power Transducer

MINIMUM PACKAGE
MINIMUM PAKAGE Package dimensions(1 PC)
17*15.5*12.5cm Pakage Weight(1 PC)
0.55Kg

WHOLE BOX PAKAGE Package dimensions(4 PCS)
45.5*26*19.5cm Pakage Weight(4 PCS)
3.2kG

PRODUCT HS CODE 9030339000
