A spiral pipe mill machine is used to roll the low carbon steel/ low alloy steel strip into a tube by a certain forming angle and further weld it into a steel pipe by submerged arc welder. With the assistance of our spiral tube forming machines, large diameter pipes can be produced with a narrow steel strip.

We are your reliable China spiral welded pipe factory. If you are looking for spiral pipe making machine for spiral welded steel pipe, don't hesitate to contact us. As one of the professional spiral pipe manufacturers in China, Hangzhou Roll Forming Technology sells welded tube mills at reasonable prices.

Large Diameter Spiral Pipe Mill Technical Parameters
Model Specification Coil Width Thickness Coil Weight Capacity(Kw) Area
(mm) (mm) (mm) (ton) (Estimate M)
RFT-426 Φ219~Φ426 400~750 5~8 10 200 20×96
RFT-529 Φ219~Φ529 400~800 5~10 15 300 20×96
RFT-630 Φ219~Φ630 450~1050 5~12.7 15 400 20×96
RFT-720 Φ219~Φ720 500~1250 5~12.7 15 500 24×108
RFT-820 Φ219~Φ820 500~1300 6~12.7 20 500 24×108
RFT-1020 Φ219~Φ1020 500~1300 6~12.7 20 800 24×108
RFT-1420 Φ325~Φ1420 500~1560 6~18 30 1000 26×126
RFT-1620 Φ426~Φ1620 500~1560 6~20 30 1500 26×126
RFT-1820 Φ508~Φ1820 1100~1600 8~25.4 30 1500 30×180
RFT-2020 Φ508~Φ2020 1200~2000 8~25.4 40 1500 30×180
RFT-2400 Φ508~Φ2400 1200~2000 8~25.4 40 1800 30×180
RFT-3000 Φ508~Φ3000 1200~2000 8~25.4 40 1800 30×180

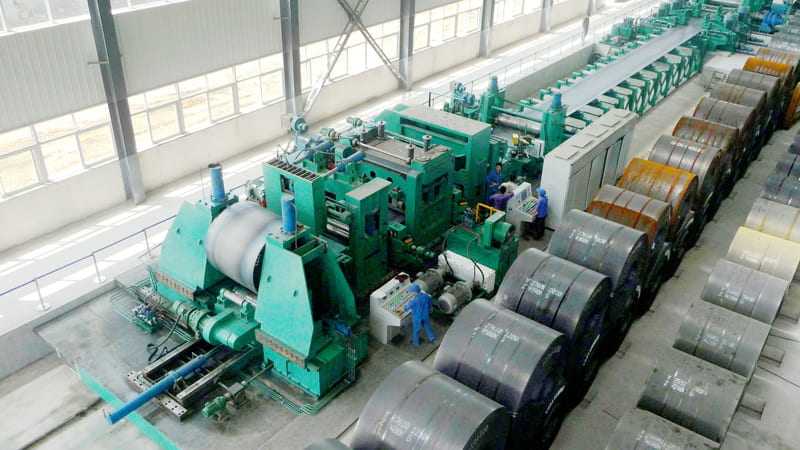

Main Equipment Components of spiral welded pipe making machine
Decoiler

Pinching & leveling machine

Manual/Electrical roll

End - Cutting & butt-welding machine

Rotary shear

Delivery machine

Guide board

Forming unit

Front bridge

Inside/outside welding device

Rear bridge

Flying saw cutter

Buried parts

Hydraulic system

Electric system

Inside/outside welder

Butt-weld car

Plasma cutter

Weld flux processing device

Beveling & end-facing machine

Hydraulic tester

Finishing equipment

Working Flow of Large Diameter steel welding pipe forming machine
Large Diameter Spiral Welded Steel Pipe Applications
For liquid delivery: water supply& drainage;

For gas delivery: coal gas, steam, and LPG;

For structural use: piling pipe, structural pipe in the field of bridge, dock, road, and construction, etc.
Finished large diameter spiral welded steel pipe by Spiral Tube Forming Machine
Specification of Spiral Pipe Making Machine
Machine Condition Fully New, A-Grade quality
Size As requests
Power Supply 220V/380V/415V/460V/480V, 50/60Hz, 3P (as requests)
Equipment Weight About 30ton-300ton
Dimension 40m–400m (length) x 3.8m-40m (width)
LOADING SIZE Normally need 4-30 x 40' containers
Equipment Color normally Blue/Green/White, or as requests
Place of Origin Zhejiang, China (Mainland)
Packing Standard and careful export packing

HZrollforming, as a professional tube mill manufacturer, offers a wide range of tube roll forming machine for you to choose from.
