#Acrel #ADL3000

● Measurement: 3-phase kWh (0.5S), Active Power, Reactive Power, Current, Voltage, Harmonic and etc
● Voltage Rating: 3x220/380V, 3x57.7/100V (3P4W); 3x380V, 3x100V (3P3W)
● Current Rating: 3x10(80)A; 3x1(6)A
● Frequency: 45~65Hz
● Commnunication: RS485 (MODBUS-RTU) and Infrared
● Multi-rate: Spike, Peak, Valley and Flat kWh
● Extra Function: Cable Temperature Measurement and DO/DI
● Display: LCD (8 digits)
● Dimension: 127*88*70mm (L*W*H)
● Wiring: 3-phase 4wire; 3-phase 3-wire
● Installation: 35mm DIN Rail
● Standard&Certificate: IEC; CE; EAC

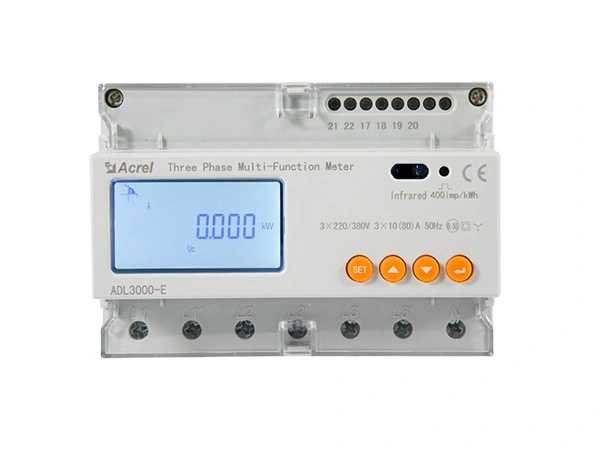

Features of Acrel ADL3000 UL 3 Phase Smart Energy Meter
ADL3000/DTSD1352 is a smart meter designed for power supply systems, industrial and mining enterprises, and utilities to calculate electricity consumption and manage electric demand. It features high precision, a small size, and simple installation. (Note: The meter can match to Solis Inverter to solar power zero export, if it is used for the Solis Inverter, please remark your Solis inverter model.)

Acrel Co Ltd. (Stock Code: 300286. SZ) is a high-tech enterprise concentrating on research, production, sales, and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. "Acrel" smart energy meter manufacturer is equipped with complete production lines from cloud platform software to sensors.
