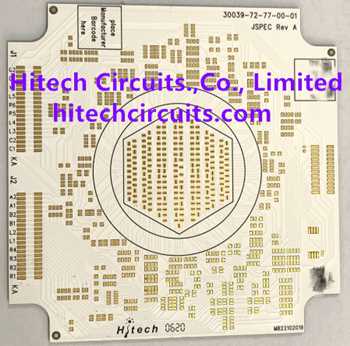

We are a professional ceramic pcb manufacturer, supplier from China, we mainly supply high quality Alumina (Al2O3) Ceramic PCB, Aluminum Nitride (AIN) Ceramic PCB board and IGBT Ceramic PCB. Our ceramic printed circuit boards features of high pressure, high insulation, high temperature, and high reliable and minor volume electronic products, Hitech is your best choice for ceramic PCB boards and needs. <br> <br>What is ceramic pcb board <br>Ceramic pcb boards are actually made of electronic ceramics as the basic material and can be made in various shapes. Among them, the characteristics of high temperature resistance and high electrical insulation of ceramic circuit boards are the most prominent. The advantages of low dielectric constant and dielectric loss, high thermal conductivity, good chemical stability, and similar thermal expansion coefficient to components are also very significant. <br> <br>Different types of ceramic pcb <br>Ceramic PCB is widely used in power electronics, electronic packaging, hybrid microelectronics and multi-chip modules due to its excellent thermal conductivity and air tightness. But not everyone is clear about the classification. Many manufacturers think ceramic PCBs are expensive and fragile as soon as they hear about ceramic PCBs. Yes, this is indeed a shortcoming of ceramic PCBs, but not all ceramic PCBs are like this. Today we will tell you about the different types of ceramic PCBs. <br> <br>Al2O3 ceramic PCB <br>Al2O3 ceramic PCB ( alumina ceramic PCB) refers to various ceramic PCBs with Al2O3 as the main raw material and an Al2O3 content of more than 75%. It has a rich source of raw materials, with advantages of low price, high mechanical strength and hardness, good insulation performance, good heat shock resistance, good chemical resistance, high dimensional accuracy, and good adhesion to metals. It is a ceramic substrate material with good comprehensive performance. Currently used Al2O3 ceramic substrates, the content of Al2O3 accounts for 85% to 99.5%. Among them, 96% Al2O3 ceramic PCB is widely used in the production of thick film circuit substrates and chip devices. The thermal conductivity of Al2O3 at room temperature is 29W/(m·K), which is close to the thermal conductivity of steel; with the increase of Al2O3 content, the electrical insulation performance and thermal conductivity of Al2O3 ceramic PCB will increase, but At the same time, it will also lead to an increase in the firing temperature, an increase in energy consumption, a large loss of kiln furniture, and an increase in manufacturing costs. <br> <br>SiC ceramic PCB <br>The thermal conductivity of SiC ceramic PCB is very high, 100～490W/(m·K) at room temperature, and it is related to the purity of SiC crystals. The higher the purity, the greater the thermal conductivity; the oxidation resistance is good, and the decomposition temperature is above 2500℃, it can still be used at 1600℃ in an oxidizing atmosphere; the coefficient of thermal expansion is also low, and it is close to Si, with good electrical insulation performance; SiC has a Mohs hardness of 9.75, second only to diamond and cubic BN, and has high mechanical strength. SiC ceramics have strong covalent bond characteristics and are difficult to sinter. Usually, a small amount of boron or aluminum oxide is added as a sintering aid to increase the density. Experiments show that beryllium, boron, aluminum and their compounds are the most effective additives, which can make SiC ceramics denser than 98%. <br> <br>BeO ceramic PCB <br>BeO has a brazine structure, in which oxygen ions are arranged in a hexagonal close-packed manner to form a hexagonal lattice. The general oxide is usually an ionic compound, but BeO has a strong covalent bond and an average molecular weight of only 12. Because of its good electrical properties, luminescence and photochemical properties, high mechanical strength, low dielectric loss, etc, it become one of the materials that people pay attention to. <br> <br>AlN ceramic PCB <br>AlN ceramic PCB (aluminum nitride ceramic) is a new type of high thermal conductivity ceramic packaging material. It has been extensively studied in the 1990s and gradually developed. It is currently generally considered to be a promising electronic ceramic packaging PCB. AlN material has high thermal conductivity, excellent dielectric properties, high electrical insulation strength, stable chemical properties, strong corrosion resistance, and good mechanical properties. In particular, its thermal expansion coefficient matches with silicon, which makes it an ideal semiconductor packaging substrate materials and have been widely used in integrated circuits, microwave power devices, millimeter-wave packaging, high-temperature electronic packaging and other fields. <br> <br>Ceramic PCB for IGBT Module <br>IGBT stands for insulated-gate bipolar transistor. It is a bipolar transistor with an insulated gate terminal. The IGBT combines, in a single device, a control input with a MOS structure and a bipolar power transistor that acts as an output switch. IGBTs Ceramic PCB are suitable for high-voltage, high-current applications. They are designed to drive high-power applications with a low-power input. <br> <br>IGBT, or Insulated Gate Bipolar Transistor, is a BJT transistor with a MOS Gate, or we can say an IGBT module is the combination of a BJT and a MOS Gate. An IGBT chip is small in size, but it can control electrical energy transmission and achieve 100,000 times of current switch at ultra-high voltages of 650 million V in only 1 second. <br> <br>IGBT modules have been applied in automotive, industrial, aerospace, consumer electronics, and many other industries for many years. But how to optimize the thermal dissipation of an IGBT package so the module can work at a higher power? If thermal can dissipate more quickly, the IGBT module can have more advanced applications. For this purpose, engineers are using ceramic PCBs for IGBT packaging. <br> <br>Ceramic PCBs dissipate thermal from IGBT chip to the outer packaging <br> <br>You may ask, how much thermal does an IGBT module generate when it works? It is equal to the heat generated by 100 electric furnaces. So much thermal has to be dissipated immediately from the IGBT chip and leads to the application of ceramic PCBs. <br> <br>How does a ceramic PCB protect the IGBT module from the heat? In an IGBT module, a ceramic PCB is placed under the IGBT chip, or we can say that the chip is assembled on the ceramic circuit board. The ceramic PCB connects and supports the chip and dissipates thermal quickly from it to the outer packaging. In this way, the chip is protected from the influence of thermal. <br> <br>Why Ceramic PCBs can be used for IGBT thermal dissipation <br> <br>There are alumina (Al₂O₃) PCBs, aluminum nitride (AlN) PCBs, and silicon nitride (Si₃N₄) PCBs used for thermal dissipation of IGBT modules. <br> <br>Why ceramic PCBs can dissipate thermal effectively for the IGBT module? Because ceramic materials have good properties of thermal dissipation and electrical insulation. Unlike aluminum substrate PCBs, ceramic PCBs do not use an insulation layer that hinders thermal dissipation. During the ceramic PCB manufacturing process, the copper-clad is directly bonded onto the ceramic substrate at high temperatures under high pressures. Then the circuit layer is manufactured by the photoresist coating method. When the circuit board is manufactured, the IGBT and other components are mounted on the board. Ceramic materials have ultra-high insulation and can withstand breakdown voltage up to 20KV/mm. The thermal conductivity of alumina PCBs is 15-35W/mK, aluminum nitride PCB 170-230W/mK, and silicon nitride PCB 80+W/mK. On the contrary, an aluminum PCB has thermal dissipation of only 1-12W/mK. <br> <br>Usages and applications of ceramic printed circuit boards <br>Ceramic printed circuit boards have a wide range of applications and can be used in the LED field, solar panel components, high-power power semiconductor modules, semiconductor refrigerators, electronic heaters, power control circuits, power hybrid circuits, smart power components, high-frequency switching power supplies , solid state relays, automotive electronics, communications, aerospace and military electronic components. <br> <br>Advantages of ceramic PCB boards <br>Higher thermal conductivity <br>More matching thermal expansion coefficient <br>Stronger and lower resistance metal film <br>The solderability of the substrate is good, and the use temperature is high <br>Good insulation <br>Low high frequency loss <br>High-density assembly is possible <br>It does not contain organic ingredients, is resistant to cosmic rays, has high reliability in aerospace and has a long service life <br>The copper layer does not contain an oxide layer and can be used for a long time in a reducing atmosphere <br>Disadvantages of ceramic pcb boards <br>1. Fragile <br>This is one of the most important shortcomings. At present, only small-area ceramic printed circuit boards can be produced. <br> <br>2. Expensive <br>There are more and more requirements for electronic products. Ceramic circuit boards only meet the requirements of some relatively high-end products, and low-end products will not be used at all. <br> <br>Ceramic PCB VS Aluminum PCB <br>The biggest difference between the ceramic PCB and the aluminum PCB is the material and structure. The ceramic PCB uses ceramic as the substrate material. In terms of structure, the insulation performance of the ceramic itself is very good, so the ceramic PCB does not need an insulating layer. <br> <br>The aluminum PCB is a metal-based copper clad laminate with good heat dissipation function. Generally, a single side pcb is composed of a three-layer structure, which is a circuit layer (copper foil), an insulating layer and a metal base layer. For high-end use, it is also designed as a double-sided PCB board, and the structure is circuit layer, insulating layer, aluminum base, insulating layer, and circuit layer. Very few applications are using multi-layer boards, which can be formed by bonding ordinary multi-layer pcb boards with insulating layers and aluminum bases. <br> <br>The thermal conductivity of the aluminum PCB is almost between 1.0 and 2.0. It can be seen from the structure that the aluminum PCB has an insulating layer, so its thermal conductivity is mainly related to the insulating layer. The thermal conductivity of the aluminum PCB with an insulating layer is not outstanding, but much better than the general FR-4 PCB. <br> <br>At present, the ceramic PCBs on the market are mainly aluminum nitride ceramics and alumina ceramics. The thermal conductivity of alumina ceramics is almost 15~31, and the thermal conductivity of aluminum nitride is almost 135~175. <br> <br>Obviously, the thermal conductivity of ceramic PCB is much better than that of aluminum PCB. The insulating layer is the core technology of aluminum PCB, which mainly plays the role of bonding, insulation and heat conduction. The insulating layer of the aluminum PCB is the largest thermal barrier in the power module structure. The better the thermal conductivity of the insulating layer, the more conducive to the diffusion of heat generated during the operation of the device, and the more conducive to reducing the operating temperature of the device, so as to achieve the purpose of increasing the power load of the module, reducing the volume, extending the life, and improving the power output. In other words, the aluminum PCB performance is subject to the insulating layer. The ceramic PCB has no insulating layer, so there will be no such troubles. <br> <br>Main manufacturing process of ceramic pcb <br>Drilling: the use of mechanical drilling to produce connecting pipes between metal layers <br>Plated through holes: After the copper lines between the connecting layers are drilled, the circuits between the layers are not conductive. Therefore, a conductive layer must be formed on the hole wall to connect the lines. This process is generally called “PTH Process” in the industry. The main working procedures include three procedures of slag removal, chemical copper and copper electroplating. <br>Dry film lamination: production of photosensitive etching resistive layer. <br>Inner circuit image transfer: Use exposure to transfer the image of the negative to the board surface. <br>Outer circuit exposure: After the photosensitive film is attached, the circuit board has gone through a manufacturing procedure similar to that of the inner circuit board, and then exposed and developed again. The main function of the photosensitive film this time is to define the areas that need electroplating and those that do not need electroplating, and the area we cover is the area that does not need electroplating. <br>​​Magnetron sputtering: Using the energy and momentum exchange between the positive ions generated in the gas glow discharge process and the surface atoms of the target material, the material is moved from the source material to the substrate to realize the deposition of the thin film. <br>Etching – Formation of external circuits: A technology that removes materials using chemical reaction or physical impact. The functionality of etching is reflected in the selective removal of specific patterns. After the electroplating of the circuit is completed, the circuit board will be sent for stripping, etching, and stripping the tin wire. The main work is to completely strip the electroplating resist and expose the copper to be etched in the etching solution. Since the top of the circuit area has been protected by tin, an alkaline etching solution is used to etch the copper, but because the circuit has been protected by tin, the circuit in the circuit area can be retained, so that the surface circuit of the overall circuit board appears. <br>Solder-resistant paint coating: The purpose of ceramic circuit boards is to carry electronic parts and achieve the purpose of connection. Therefore, after the circuit of circuit board is completed, the area where the electronic parts are assembled must be defined, and the non-assembly area should be properly protected with polymer materials. Since solder is used for the assembly and connection of electronic parts, this kind of polymer material that partially protects the circuit board is called “solder resist paint.” At present, most photosensitive solder resists paint use wet ink coating. <br>Preparation process and technology of ceramic PCB <br>The preparation process of ceramic PCB can be divided into four categories: HTCC, LTCC, DBC and DPC. <br> <br>HTCC (High-Temperature Co-fired Ceramic) preparation method requires a temperature above 1300°C, but due to the choice of electrode, the preparation cost is quite expensive; <br>The preparation of LTCC (Low-Temperature Co-fired Ceramic) requires a calcination process at about 850°C, but the precision of the prepared circuit is poor, and the thermal conductivity of the finished product is low; <br>The preparation method of DBC (Direct Bonded Ceramic) requires the formation of an alloy between copper foil and ceramics, and the calcination temperature needs to be strictly controlled within the temperature range of 1065-1085°C. Because the preparation method of DBC requires the thickness of copper foil, it should generally not be lower than 150~300 microns, thus limiting the wire width to depth ratio of this type of ceramic circuit board. <br>The preparation method of DPC (Direct Plated Ceramic) includes vacuum coating, wet coating, exposure and development, etching and other process, so the price of its products is relatively high. In addition, in terms of shape processing, DPC ceramic PCB need to be laser cut, traditional drilling, milling machines and punching machines cannot accurately process them, so the bonding force and line width are more precise with laser cutting. <br>Advantages of Ceramic PCB <br>As the name implies, a ceramic PCB is a circuit board using ceramic as a substrate. The performance of ceramics is better than that of ordinary substrates. It is a circuit board prepared by using a thermally conductive ceramic powder and an organic binder at a temperature lower than 250 °C, and its thermal conductivity is 9-20 W / m.k. Ceramic circuit boards are widely used in the manufacture of the electronics industry. Due to their advantages of good thermal conductivity, high voltage resistance, and stable chemical properties, ceramic circuit boards have become an important component in the manufacture and manufacture of electronic products. <br>Thermal conductivity refers to the ability of a substrate to transfer heat energy. The higher the conductivity, the better the thermal conductivity. So heat energy can be effectively transferred to the heat dissipation system, which reduces the temperature of the product and extends the life of the product. Since the main material of the ceramic PCB is ceramic, and the ceramic itself has a very high thermal conductivity, the use effect of the ceramic PCB can be remarkably improved. <br>Ceramic is a kind of material with high mechanical strength. The ceramic PCB made of the main material also inherits the mechanical strength. Therefore, the ceramic PCB can not only carry various components better, but also support the use of other components. Also because of its good processing properties, it is possible to achieve multi-layering of circuit boards according to user requirements during production. <br>Ceramic is an insulating material that can effectively insulate electrical resistance and withstand high voltage. Therefore, after applying ceramic circuit boards to various electronic products, it can better exert its insulation advantages. Moreover, ceramic circuit boards have a low dielectric constant, so they can maintain good stability in high temperature and high humidity environment, which makes the operation of electronic products safer and more reliable. <br>As technology continues to innovate, new electronic products are becoming more and more, and circuit boards have always been an integral part. Today’s electronic products have higher and higher performance requirements for circuit boards, and ordinary circuit boards can no longer meet current technical requirements. Therefore, the use of ceramic circuit boards can not only meet the status quo, but also bring its powerful functionality, and the safety performance of the products is also more guaranteed. <br> <br>FAQs about Ceramic PCBs at Hitech Circuits <br>1. What types of Ceramic PCBs does Hi-Tech Circuits offer? <br> <br>Hi-Tech Circuits specializes in various types of Ceramic PCBs, including Aluminum Oxide (Al2O3), Aluminum Nitride (AlN), and Boron Nitride (BN). These materials are chosen for their exceptional thermal management and reliability in challenging environments. <br> <br>2. Can Hi-Tech Circuits customize Ceramic PCBs according to specific requirements? <br> <br>Yes, we offer customization options for our Ceramic PCBs to meet the unique needs of your projects. This includes variations in layout, size, thickness, and materials. Our team works closely with clients to ensure their specifications are met. <br> <br>3. How does Hi-Tech Circuits ensure the quality of its Ceramic PCBs? <br> <br>We employ stringent quality control measures at every step of the manufacturing process, from material selection to final inspection. Our facilities are equipped with advanced testing equipment to ensure each PCB meets our high standards of quality and reliability. <br> <br>4. What is the lead time for Ceramic PCB production at Hi-Tech Circuits? <br> <br>The lead time varies based on the complexity and quantity of the order. Typically, our production time ranges from 2 to 4 weeks. However, we also offer expedited services for urgent projects. Please contact us for more specific timelines. <br> <br>5. Does Hi-Tech Circuits support low-volume orders for Ceramic PCBs? <br> <br>Yes, we support both low- and high-volume orders to cater to the diverse needs of our clients. Whether you need a prototype or large-scale production, we are equipped to handle your requirements efficiently. <br> <br>6. What file formats do I need to submit for my Ceramic PCB design? <br> <br>We accept various file formats, including Gerber RS-274X, PCBDOC, DXF, and DWG. If you have your design in another format, please contact us to discuss compatibility. <br> <br>7. Can Hi-Tech Circuits assist in the design phase of my Ceramic PCB project? <br> <br>Absolutely! We have a dedicated team of engineers who can assist with PCB design and layout, ensuring that your project is optimized for manufacturing and performance.

Hitech express prototype PCB assembly manufacturing is a specialized service that enables us to take complicated PCB fabrication, components souring and prepare them for assembly and testing. As the top PCB manufacturer in the China, Hitech Group can fulfill your prototype and production needs. We understand that bringing a product to market in a timely and cost effective manner can mean everything in business. Our quality, experience, service and pricing combine to become your efficient and reliable electronic supplier. We use the latest equipment to assembly complex PCBs as promptly as possible – often with 24 hours. We are setup specifically for deal with fast turn electronics assembly and all the issues that go hand in hand with the process, giving us an upper hand over most manufacturers, our team is capable of manufacturing prototype printed wiring board assembly volumes of 1-50 pieces. <br> <br>Our knowledgeable and experienced staff have the know-how and equipment to be able to deal with any project you care to send our way – no job is too demanding. We can guarantee we will deliver exactly what you need with both speed and quality, so you can rest easy knowing you’re in good hands. <br> <br>Benefits of PCB Prototype Assembly <br>The reason for ordering a PCB prototype, it’s because is that you want to quickly assess how well your PCB design is going to work. You cannot do that without going through the board assembly process. Fortunately, HitechPCB can do your PCB prototype assembly in-house, so you can find out quickly just how well your assembled PCB prototype works. <br> <br>There’s no need to fabricate it here and then search for a specialist in prototype PCB assembly. That would take too long and defeat the purpose of making a PCB prototype in the first place. Work with HitechPCB, and let us do it all for you – fast. <br> <br>PCB Prototype Assembly Featuring Our Equivalently High Quality Standards <br>While prototype assembly typically consists of a limited production run, we bring the same high level of quality and care to the process as with our full-production assembly projects. We utilize the same resources and personnel to ensure the best possible results. Our capable team is fully qualified to handle every aspect of the process, including the procurement of PCB parts and electronics components, circuit boards fabrication, PCB assembly manufacturing and quality control. We will also follow your original PCB prototype design to the letter. We won’t make any modifications or alterations without your approval. <br>Our services include Design for manufactur (DFM) ablity and Design for Testing (DFT) to ensure your PCBA prototype will meet your exact design specifications. We can even assemble prototypes for high-density FR-4 circuit boards. <br> <br>Prototype PCB Assembly at Competitive Prices <br>HitechPCB offers a number of ways to minimize your PCB prototype assembly costs. We are the best possible option when it comes to all of your PCB solutions including printed circuit board fabrication, PCB components sourcing and prototype circuit board assembly needs. Because we do everything in-house with our team of highly-trained engineers and design experts, you know you’ll get a smooth and efficient flow of communication that will result in you getting just the prototypes you want. You or your management team won’t get tied up in logistics trying to get a design company to communicate with a manufacturer. <br>To get PCB prototype assembly quote for your custom PCB project, please send related circuit spec and BOM files to us. We will give the PCB Assembly price within 24 hours. <br> <br>PCB Assembly Quote within 12 holes for urgent project <br>A PCB assembly is a circuit board with all the necessary components. Various factors like the number of different parts, type of PCB assembly, and services determine how you get your PCB assembly quote. Usually, lots of suppliers quote PCBA need more than 5 days, but we have lots of experienced staff, for PCB assembly quote can send to you within 12holes for urgently project quote. <br> <br>Hitech Group offers SMT Assembly services for our Printed circuit boards customers. We will quote you in a short time, we will follow your BOM list to purchase components. We provide competitive prices for PCBA services like our PCBs. All your projects can be done under one roof: PCB manufacturing, assembly, PCBA Testing! <br> <br>To get a quick turnaround PCB assembly quote , you need provide these data. <br>Gerber files, BOM list, Q’ty, testing program, request lead time, shipping address, etc. <br> <br>Welcome to choose Hitech Group as your PCB, Electronic assembler, PCB assembly manufacturer, for quick turnaround lead time of bare PCB, please review the link. <br> <br>Quick turn price and lead time.

Hitech express prototype PCB assembly manufacturing is a specialized service that enables us to take complicated PCB fabrication, components souring and prepare them for assembly and testing. As the top PCB manufacturer in the China, Hitech Group can fulfill your prototype and production needs. We understand that bringing a product to market in a timely and cost effective manner can mean everything in business. Our quality, experience, service and pricing combine to become your efficient and reliable electronic supplier. We use the latest equipment to assembly complex PCBs as promptly as possible – often with 24 hours. We are setup specifically for deal with fast turn electronics assembly and all the issues that go hand in hand with the process, giving us an upper hand over most manufacturers, our team is capable of manufacturing prototype printed wiring board assembly volumes of 1-50 pieces. <br> <br>Our knowledgeable and experienced staff have the know-how and equipment to be able to deal with any project you care to send our way – no job is too demanding. We can guarantee we will deliver exactly what you need with both speed and quality, so you can rest easy knowing you’re in good hands. <br> <br>Benefits of PCB Prototype Assembly <br>The reason for ordering a PCB prototype, it’s because is that you want to quickly assess how well your PCB design is going to work. You cannot do that without going through the board assembly process. Fortunately, HitechPCB can do your PCB prototype assembly in-house, so you can find out quickly just how well your assembled PCB prototype works. <br> <br>There’s no need to fabricate it here and then search for a specialist in prototype PCB assembly. That would take too long and defeat the purpose of making a PCB prototype in the first place. Work with HitechPCB, and let us do it all for you – fast. <br> <br>PCB Prototype Assembly Featuring Our Equivalently High Quality Standards <br>While prototype assembly typically consists of a limited production run, we bring the same high level of quality and care to the process as with our full-production assembly projects. We utilize the same resources and personnel to ensure the best possible results. Our capable team is fully qualified to handle every aspect of the process, including the procurement of PCB parts and electronics components, circuit boards fabrication, PCB assembly manufacturing and quality control. We will also follow your original PCB prototype design to the letter. We won’t make any modifications or alterations without your approval. <br>Our services include Design for manufactur (DFM) ablity and Design for Testing (DFT) to ensure your PCBA prototype will meet your exact design specifications. We can even assemble prototypes for high-density FR-4 circuit boards. <br> <br>Prototype PCB Assembly at Competitive Prices <br>HitechPCB offers a number of ways to minimize your PCB prototype assembly costs. We are the best possible option when it comes to all of your PCB solutions including printed circuit board fabrication, PCB components sourcing and prototype circuit board assembly needs. Because we do everything in-house with our team of highly-trained engineers and design experts, you know you’ll get a smooth and efficient flow of communication that will result in you getting just the prototypes you want. You or your management team won’t get tied up in logistics trying to get a design company to communicate with a manufacturer. <br>To get PCB prototype assembly quote for your custom PCB project, please send related circuit spec and BOM files to us. We will give the PCB Assembly price within 24 hours. <br> <br>PCB Assembly Quote within 12 holes for urgent project <br>A PCB assembly is a circuit board with all the necessary components. Various factors like the number of different parts, type of PCB assembly, and services determine how you get your PCB assembly quote. Usually, lots of suppliers quote PCBA need more than 5 days, but we have lots of experienced staff, for PCB assembly quote can send to you within 12holes for urgently project quote. <br> <br>Hitech Group offers SMT Assembly services for our Printed circuit boards customers. We will quote you in a short time, we will follow your BOM list to purchase components. We provide competitive prices for PCBA services like our PCBs. All your projects can be done under one roof: PCB manufacturing, assembly, PCBA Testing! <br> <br>To get a quick turnaround PCB assembly quote , you need provide these data. <br>Gerber files, BOM list, Q’ty, testing program, request lead time, shipping address, etc. <br> <br>Welcome to choose Hitech Group as your PCB, Electronic assembler, PCB assembly manufacturer, for quick turnaround lead time of bare PCB, please review the link. <br> <br>Quick turn price and lead time.

Hitech express prototype PCB assembly manufacturing is a specialized service that enables us to take complicated PCB fabrication, components souring and prepare them for assembly and testing. As the top PCB manufacturer in the China, Hitech Group can fulfill your prototype and production needs. We understand that bringing a product to market in a timely and cost effective manner can mean everything in business. Our quality, experience, service and pricing combine to become your efficient and reliable electronic supplier. We use the latest equipment to assembly complex PCBs as promptly as possible – often with 24 hours. We are setup specifically for deal with fast turn electronics assembly and all the issues that go hand in hand with the process, giving us an upper hand over most manufacturers, our team is capable of manufacturing prototype printed wiring board assembly volumes of 1-50 pieces. <br> <br>Our knowledgeable and experienced staff have the know-how and equipment to be able to deal with any project you care to send our way – no job is too demanding. We can guarantee we will deliver exactly what you need with both speed and quality, so you can rest easy knowing you’re in good hands. <br> <br>Benefits of PCB Prototype Assembly <br>The reason for ordering a PCB prototype, it’s because is that you want to quickly assess how well your PCB design is going to work. You cannot do that without going through the board assembly process. Fortunately, HitechPCB can do your PCB prototype assembly in-house, so you can find out quickly just how well your assembled PCB prototype works. <br> <br>There’s no need to fabricate it here and then search for a specialist in prototype PCB assembly. That would take too long and defeat the purpose of making a PCB prototype in the first place. Work with HitechPCB, and let us do it all for you – fast. <br> <br>PCB Prototype Assembly Featuring Our Equivalently High Quality Standards <br>While prototype assembly typically consists of a limited production run, we bring the same high level of quality and care to the process as with our full-production assembly projects. We utilize the same resources and personnel to ensure the best possible results. Our capable team is fully qualified to handle every aspect of the process, including the procurement of PCB parts and electronics components, circuit boards fabrication, PCB assembly manufacturing and quality control. We will also follow your original PCB prototype design to the letter. We won’t make any modifications or alterations without your approval. <br>Our services include Design for manufactur (DFM) ablity and Design for Testing (DFT) to ensure your PCBA prototype will meet your exact design specifications. We can even assemble prototypes for high-density FR-4 circuit boards. <br> <br>Prototype PCB Assembly at Competitive Prices <br>HitechPCB offers a number of ways to minimize your PCB prototype assembly costs. We are the best possible option when it comes to all of your PCB solutions including printed circuit board fabrication, PCB components sourcing and prototype circuit board assembly needs. Because we do everything in-house with our team of highly-trained engineers and design experts, you know you’ll get a smooth and efficient flow of communication that will result in you getting just the prototypes you want. You or your management team won’t get tied up in logistics trying to get a design company to communicate with a manufacturer. <br>To get PCB prototype assembly quote for your custom PCB project, please send related circuit spec and BOM files to us. We will give the PCB Assembly price within 24 hours. <br> <br>PCB Assembly Quote within 12 holes for urgent project <br>A PCB assembly is a circuit board with all the necessary components. Various factors like the number of different parts, type of PCB assembly, and services determine how you get your PCB assembly quote. Usually, lots of suppliers quote PCBA need more than 5 days, but we have lots of experienced staff, for PCB assembly quote can send to you within 12holes for urgently project quote. <br> <br>Hitech Group offers SMT Assembly services for our Printed circuit boards customers. We will quote you in a short time, we will follow your BOM list to purchase components. We provide competitive prices for PCBA services like our PCBs. All your projects can be done under one roof: PCB manufacturing, assembly, PCBA Testing! <br> <br>To get a quick turnaround PCB assembly quote , you need provide these data. <br>Gerber files, BOM list, Q’ty, testing program, request lead time, shipping address, etc. <br> <br>Welcome to choose Hitech Group as your PCB, Electronic assembler, PCB assembly manufacturer, for quick turnaround lead time of bare PCB, please review the link. <br> <br>Quick turn price and lead time.

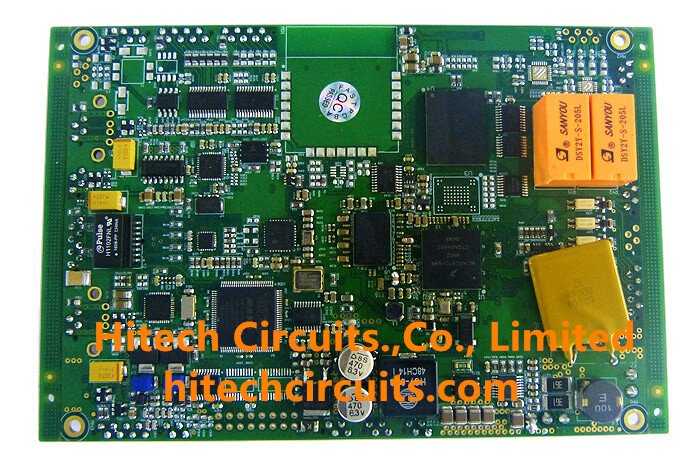

Hitech Circuits provides a full turnkey solution to all of your electronics assembly requirements. From PCB fabrication, components sourcing, pcb assembly to full box build assembly we can provide a full electronics manufacturing services solution to your electronics manufacturing requirements. Using surface mount production machinery consisting of three surface mount technology placement machines, a screen printing machine and a 10 zone reflow oven, accompanied by offline bench assembly, visual inspection and rework stations, we can offer small to medium volume services for all your pcb assembly requirements. We offer pcb assembly, visual inspection, functional and electronics testing and programming services. We can source all components, bare pcbs and production stencils. If you would like to work with an electronics manufacturer you can trust then please get in touch. <br> <br>Also, we offer both turn-key and partial turn-key PCB Electronics assembly. <br> <br>For full turn-key services, we manage and produce everything including manufacturing the circuit boards, finding &amp; ordering PCB components, quality inspection &amp; testing and the final product assembly. <br> <br>Advantages of Full Turnkey PCB Assembly Services <br> <br>• Shorter Lead Time <br> <br>As a fundamental form of electronic assembly, PCB assembly primarily contains three phases: PCB fabrication, components procurement and PCB assembly. Traditionally, you should quote and confirm design files with sales and engineers working for your PCB manufacturer, then components distributors and finally PCB assemblers. Such series of quotations and confirmations just need your time spent in contacting with different partners. If those partners are from different countries, you have to overcome some problems such as time zone, communication habits etc. Full-turnkey PCB assembly, however, is a highly-efficient form of electronic assembly. As soon as full-turnkey PCB assembly is determined, an overall assembly quotation and indispensible issues prohibiting smooth manufacturing will be raised so that three times of communication have been cut to one time with electronic assembly efficiency dramatically improved in Hitech Circuits Co., Limited. <br> <br>• Lower Cost <br> <br>Another advantage of full-turnkey PCB assembly service is overall cost reduction. Pack-up service is usually cheaper than separate ones as far as electronic assembly is concerned. At least, freight fee will be saved because you don’t need to get manufactured PCB boards and electronic components delivered to assembly workshop. Moreover, components procurement may get easy and customer-friendly because experienced electronic assemblers are usually able to provide reliable components with relatively low cost based on their long-term cooperation with parts manufacturers or distributors. <br> <br>• Transparent Monitoring <br> <br>When it comes to electronic assembly process, it’s significant yet difficult to monitor your products’ manufacturing stage as it is totally related with your products’ performance and time to market. Full-turnkey PCB assembly allows engineers at each stage to be aware of what they’ve accomplished and to better understand their status for better performance of final products. <br> <br>Who Can Benefit Most From Our Turnkey PCB Assembly Services? <br> <br>Now that full turnkey PCB assembly allows PCB designers to make better use of their time to focus more on PCB design, it works perfectly on companies striving for frequent upgrading and refreshing of products. They need to dig into deeper market by providing multiple creative electronic products and they strongly call for a steady and smooth electronic assembly process. <br> <br>Turnkey printed circuit board assembly is also an ideal electronic assembly solution for small businesses or startup companies that want to bring smaller quantities of assembled PCBs to market without having to invest in or carry an extensive inventory. It also offers a more cost-effective, efficient means of assembling and testing PCB prototypes for new products. In addition, quick-turn PCB assembly service makes sense for any company that needs to receive their circuit boards with the shortest possible lead time.

Hitech Circuits provides a full turnkey solution to all of your electronics assembly requirements. From PCB fabrication, components sourcing, pcb assembly to full box build assembly we can provide a full electronics manufacturing services solution to your electronics manufacturing requirements. Using surface mount production machinery consisting of three surface mount technology placement machines, a screen printing machine and a 10 zone reflow oven, accompanied by offline bench assembly, visual inspection and rework stations, we can offer small to medium volume services for all your pcb assembly requirements. We offer pcb assembly, visual inspection, functional and electronics testing and programming services. We can source all components, bare pcbs and production stencils. If you would like to work with an electronics manufacturer you can trust then please get in touch. <br> <br>Also, we offer both turn-key and partial turn-key PCB Electronics assembly. <br> <br>For full turn-key services, we manage and produce everything including manufacturing the circuit boards, finding &amp; ordering PCB components, quality inspection &amp; testing and the final product assembly. <br> <br>Advantages of Full Turnkey PCB Assembly Services <br> <br>• Shorter Lead Time <br> <br>As a fundamental form of electronic assembly, PCB assembly primarily contains three phases: PCB fabrication, components procurement and PCB assembly. Traditionally, you should quote and confirm design files with sales and engineers working for your PCB manufacturer, then components distributors and finally PCB assemblers. Such series of quotations and confirmations just need your time spent in contacting with different partners. If those partners are from different countries, you have to overcome some problems such as time zone, communication habits etc. Full-turnkey PCB assembly, however, is a highly-efficient form of electronic assembly. As soon as full-turnkey PCB assembly is determined, an overall assembly quotation and indispensible issues prohibiting smooth manufacturing will be raised so that three times of communication have been cut to one time with electronic assembly efficiency dramatically improved in Hitech Circuits Co., Limited. <br> <br>• Lower Cost <br> <br>Another advantage of full-turnkey PCB assembly service is overall cost reduction. Pack-up service is usually cheaper than separate ones as far as electronic assembly is concerned. At least, freight fee will be saved because you don’t need to get manufactured PCB boards and electronic components delivered to assembly workshop. Moreover, components procurement may get easy and customer-friendly because experienced electronic assemblers are usually able to provide reliable components with relatively low cost based on their long-term cooperation with parts manufacturers or distributors. <br> <br>• Transparent Monitoring <br> <br>When it comes to electronic assembly process, it’s significant yet difficult to monitor your products’ manufacturing stage as it is totally related with your products’ performance and time to market. Full-turnkey PCB assembly allows engineers at each stage to be aware of what they’ve accomplished and to better understand their status for better performance of final products. <br> <br>Who Can Benefit Most From Our Turnkey PCB Assembly Services? <br> <br>Now that full turnkey PCB assembly allows PCB designers to make better use of their time to focus more on PCB design, it works perfectly on companies striving for frequent upgrading and refreshing of products. They need to dig into deeper market by providing multiple creative electronic products and they strongly call for a steady and smooth electronic assembly process. <br> <br>Turnkey printed circuit board assembly is also an ideal electronic assembly solution for small businesses or startup companies that want to bring smaller quantities of assembled PCBs to market without having to invest in or carry an extensive inventory. It also offers a more cost-effective, efficient means of assembling and testing PCB prototypes for new products. In addition, quick-turn PCB assembly service makes sense for any company that needs to receive their circuit boards with the shortest possible lead time.

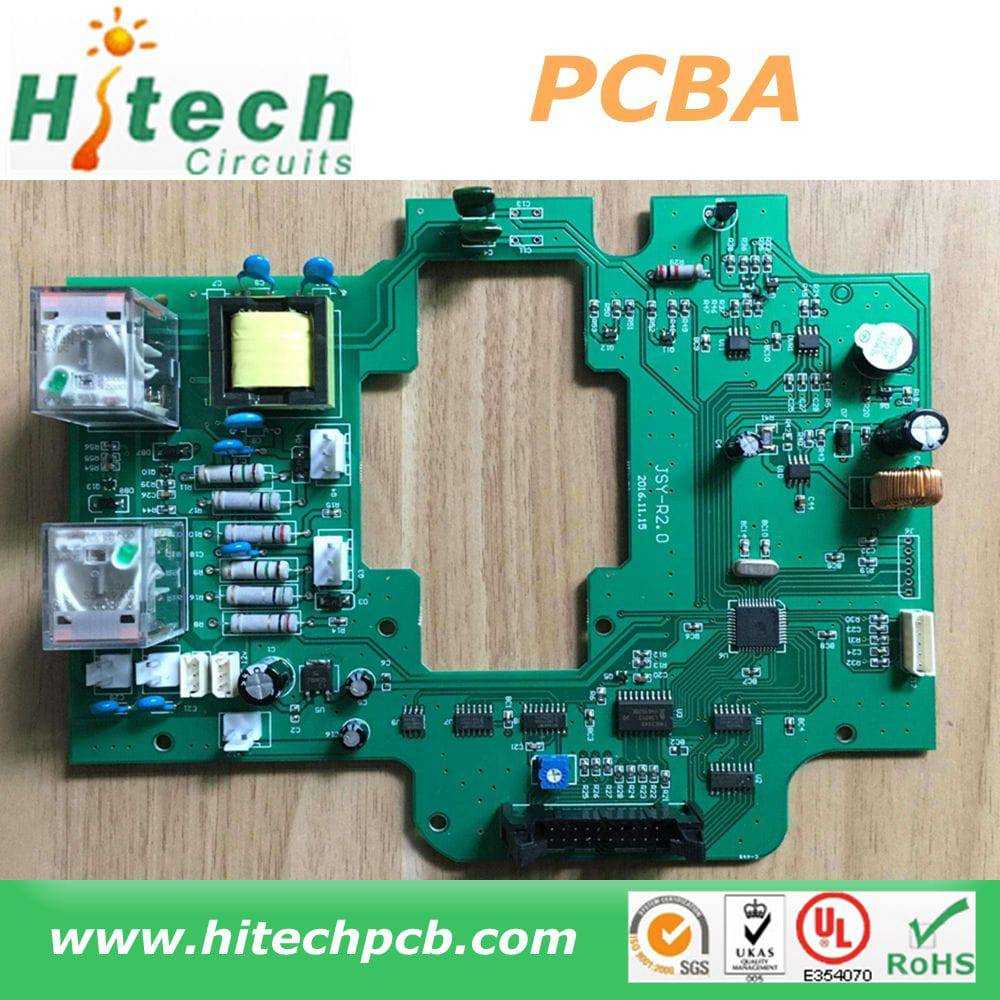

Printed Circuit Board Assembly Services <br>Printed Circuit Board Assembly Service ( PCB Files &amp; BOM List, please send to [email protected] ( Fast Quote ) <br> <br>Printed Circuit Board Assembly is a process that requires knowledge not just of Printed Circuit Board components and assembly but also of printed circuit board design, Printed Circuit Board fabrication and a strong understanding of the final product. Circuit board assembly is just one piece of the puzzle to delivering the perfect product the first time. <br> <br>Printed Circuit Boards (PCBs) are across many industrial and consumer electronics, used in products ranging from remote controls to military weaponry. The versatility of PCBs comes from their lightweight, compact, and flexible construction, which can be adapted to suit circuits of any complexity. Though PCBs are relatively commonplace, their complexity makes it critical to source new circuit boards from reliable suppliers. Printed Circuit Board Assembly services harness these complexities. <br> <br>Hitech Group offers comprehensive Printed Circuit Board Assembly services that help our customers fully realize their designs. We have extensive experience working with customers in a broad range of highly innovative industries, including Communication, Aerospace &amp; Defence, Automotive, Industrial control, Medical equipments, Oil &amp; Gas, Security, and so on.
