OVERVIEW:

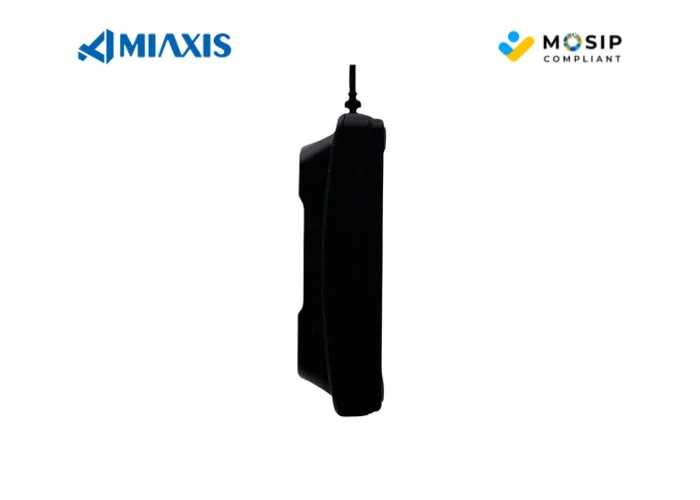

MIAXIS® Model SM-93 is an FBI-PIV&Mobile ID FAP30 certified and MOSIP SBI2.0 Compliant Secure Fingerprint Authentication Scanner. It's a compact & portable fingerprint collection device for easy integration with new or existing applications. Powered by USB 2.0 and supports Windows, Linux and Android operating systems. Ideal for secure biometric authentication and national e-ID programs.

FEATURES:
MOSIP Compliant

MOSIP SBI2.0 compliant fingerprint scanner

Max. encryption capture time within 4 seconds

FBI Certificates:

FBI PIV and FBI Mobile ID FAP30 certificates

Biometric standard: ISO 19794-4, ANSI 381, WSQ, JPEG, RAW, BMP, MINEX III compliance

Live Fingerprint Detection

Machine-learning-based live finger detection technology to differentiate fake fingers

Auto-reject fake materials including silicon, paper, rubber and more

Easy Integration

SDKs available for Android, MS Windows compatible

UART&USB multiple interfaces

Advanced Algorithm

Template options: MIAXIS, ISO 19794-2 & ANSI 378

Miaxis proprietary Justouch® fingerprint extractor & matcher passed NIST MINEX III compliance

Value-added customised APIs for software integration

Dustproof and Waterproof

IP54 dustproof and waterproof

SPECIFICATION:
Sensor Type Optical sensor
Image Resolution 500 dpi
Image Size 400×500 pixel
FAP(fingerprint acquisition profile) FAP30
Image Formats WSQ, JPEG, RAW, BMP, ISO 19794-4, ANSI 381
Image Gray Scale 8 bit, 256 levels
Live Finger Detection Yes
Sensing Area 21.4×26.4mm
Ingress Protection IP65(sensor surface)
ESD Immunity ±8kV contact discharge; ±15kV air discharge
Supply Current ≤200mA(USB powered); ≤50mA(USB powered at sleep mode)
Supply Voltage DC 5V±5%
Operating Temperature －10℃～＋55℃
Operating Humidity 20%RH～90%RH
Security FTM based, MOSIP L1 Device, SBI 2.0
Compliance FBI-PIV&Mobile FAP30, MOSIP L1, CE&FCC certified, MINEX III
Dimensions 82×47.9×24mm（L×W×H）
Support OS Linux Kernel 4.15 or Higher Windows 7 or Higher Android 4.1 or Higher

If you want to know more about biometric device low price, please contact us.

As one of biometric reader manufacturers, we will do our best to meet all the needs of customers.
