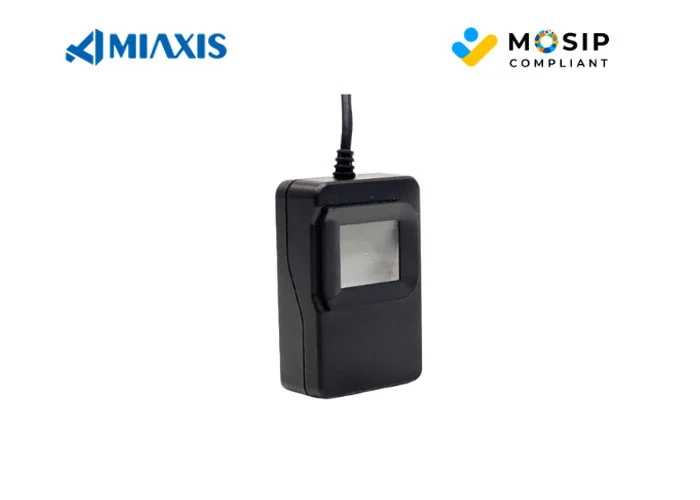

#biometric #thumb #machine #price <br>OVERVIEW: <br>MIAXIS® Model SM-93 is an FBI-PIV&amp;Mobile ID FAP30 certified and MOSIP SBI2.0 Compliant Secure Fingerprint Authentication Scanner. It&#039;s a compact &amp; portable fingerprint collection device for easy integration with new or existing applications. Powered by USB 2.0 and supports Windows, Linux and Android operating systems. Ideal for secure biometric authentication and national e-ID programs. <br> <br>FEATURES: <br>MOSIP Compliant <br> <br>MOSIP SBI2.0 compliant fingerprint scanner <br> <br>Max. encryption capture time within 4 seconds <br> <br>FBI Certificates: <br> <br>FBI PIV and FBI Mobile ID FAP30 certificates <br> <br>Biometric standard: ISO 19794-4, ANSI 381, WSQ, JPEG, RAW, BMP, MINEX III compliance <br> <br>Live Fingerprint Detection <br> <br>Machine-learning-based live finger detection technology to differentiate fake fingers <br> <br>Auto-reject fake materials including silicon, paper, rubber and more <br> <br>Easy Integration <br> <br>SDKs available for Android, MS Windows compatible <br> <br>UART&amp;USB multiple interfaces <br> <br>Advanced Algorithm <br> <br>Template options: MIAXIS, ISO 19794-2 &amp; ANSI 378 <br> <br>Miaxis proprietary Justouch® fingerprint extractor &amp; matcher passed NIST MINEX III compliance <br> <br>Value-added customised APIs for software integration <br> <br>Dustproof and Waterproof <br> <br>IP54 dustproof and waterproof <br> <br>SPECIFICATION: <br>Sensor Type Optical sensor <br>Image Resolution 500 dpi <br>Image Size 400×500 pixel <br>FAP(fingerprint acquisition profile) FAP30 <br>Image Formats WSQ, JPEG, RAW, BMP, ISO 19794-4, ANSI 381 <br>Image Gray Scale 8 bit, 256 levels <br>Live Finger Detection Yes <br>Sensing Area 21.4×26.4mm <br>Ingress Protection IP65(sensor surface) <br>ESD Immunity ±8kV contact discharge; ±15kV air discharge <br>Supply Current ≤200mA(USB powered); ≤50mA(USB powered at sleep mode) <br>Supply Voltage DC 5V±5% <br>Operating Temperature －10℃～＋55℃ <br>Operating Humidity 20%RH～90%RH <br>Security FTM based, MOSIP L1 Device, SBI 2.0 <br>Compliance FBI-PIV&amp;Mobile FAP30, MOSIP L1, CE&amp;FCC certified, MINEX III <br>Dimensions 82×47.9×24mm（L×W×H） <br>Support OS Linux Kernel 4.15 or Higher Windows 7 or Higher Android 4.1 or Higher <br> <br>If you want to know more about biometric device low price, please contact us. <br> <br>As one of biometric reader manufacturers, we will do our best to meet all the needs of customers. <br> <br> <br>[a]https%3A%2F%2Fwww.miaxis.net%2Fproducts%2Fsm-93-mosip-sbi2.0-compliant-fap30-fingerprint-scanner.html[/a]

#oem #fingerprint #module <br>Thumb Scanner Machine Overview <br>MIAXIS® Model SM-91M is a FBI PIV&amp;Mobile ID FAP20 certified optical Fingerprint Authentication Scanner. <br> <br>It&#039;s a compact &amp; portable fingerprint collection device for easy integration with new or existing applications. <br> <br>Powered by USB 2.0/3.0 and supports standard SDK with SBI (MDS) for Windows, Linux and Android operating systems. <br> <br>Ideal for secure biometric authentication and national e-ID programs. <br> <br>Biometric Thumb Machine Features: <br>MOSIP Compliant <br> <br>MOSIP SBI2.0 compliant fingerprint device <br> <br>FBI Certificates: <br> <br>FBI PIV and FBI Mobile ID FAP20 certificates <br> <br>Biometric standard: ISO 19794-4, ANSI 381, WSQ, JPEG, RAW, BMP, MINEX III compliance <br> <br>Live Fingerprint Detection <br> <br>Machine-learning-based live finger detection technology to differentiate fake fingers <br> <br>Auto-reject fake materials including silicon, paper, rubber and more <br> <br>Easy Integration <br> <br>SDKs available for Android, MS Windows compatible <br> <br>Plug&amp;play USB powered device <br> <br>Advanced Algorithm <br> <br>Template options: MIAXIS, ISO 19794-2 &amp; ANSI 378 <br> <br>Miaxis proprietary Justouch® fingerprint extractor &amp; matcher passed NIST MINEX III compliance <br> <br>Value-added customised APIs for software integration <br> <br>Dustproof and Waterproof <br> <br>IP54 dustproof and waterproof <br> <br>Biometric Thumb Machine Specification: <br>Specification Detail <br>Sensor type Optical <br>Resolution 500dpi <br>Active platen area 15.24mm x 20.32mm <br>Image Size 300*400 pixel <br>FAP (fingerprint acquisition profile) FAP20 <br>Security FTM based, MOSIP L1 Device, SBI 2.0 <br>Compliance FBI-PIV, MOSIP L1, CE &amp; FCC certified <br>Maximum Acquisition time (Placement to Template) &lt;3s <br>Grey scale 8 bit (256 levels ) <br>Live finger detection Yes <br>Platen Ingress Protection IP54 (platern surface) <br>ESD immunity +/-8kV contact discharge;+/-15kV air discharge <br>Supply voltage DC 5V±5% <br>Communication interface USB2.0 <br>Operating Temperature -10°C to +45°C <br>Storage Temperature -20°C to +50°C <br>Operating humidity 20%RH～90%RH <br>Product size 60*40*21.9mm (L*W*H) <br>Weight 80g <br>Operating system environment Windows XP/Windows 7/ Windows 10 Android 4.0/5.0/6.0 <br> <br>Now the biometric thumb machine price is reasonable, if you have needs, please contact us. <br> <br>Established in 2000, Miaxis Biometrics is one of the leading biometric device manufacturers, specializing in single fingerprint scanners and multi-biometrics solutions. With proprietary algorithms, we serve high-end government and commercial sectors. <br> <br> <br> <br> <br>[a]https%3A%2F%2Fwww.miaxis.net%2Fproducts%2Fsm-91m-mosip-certified-fingerprint-scanner.html[/a]

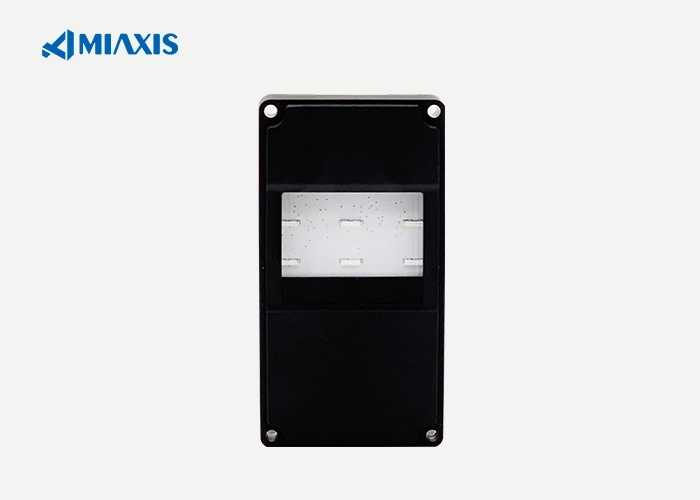

#fingerprint #oem #module <br> <br>OVERVIEW: <br>Miaxis SM-93M is an FBI-PIV&amp;FAP30 certified oem fingerprint module, with a durable and compact 15mm slim optical sensor. Born for identity authentication application scenarios. SM-93M can be easily assembled into mobile handheld authentication devices for indoor and outdoor uses. <br> <br>FEATURES: <br>Certificates <br> <br>lFBI PIV and FBI Mobile ID FAP30 certificates <br> <br>Biometric standard: ISO 19794, ANSI 381, ANSI-378, WSQ, JPEG2000, MINEX III compliance <br> <br>Live Fingerprint Detection <br> <br>Machine-learning-based live finger detection technology to differentiate fake fingers <br> <br>Auto-reject fake materials including silicon, paper, rubber and more <br> <br>Easy Integration <br> <br>SDKs available for Android, MS Windows and Linux compatible <br> <br>UART&amp;USB multiple interfaces <br> <br>Advanced Algorithm <br> <br>Template options: MIAXIS, ISO 19794-2 &amp; ANSI 378 <br> <br>Miaxis proprietary Justouch® fingerprint extractor &amp; matcher passed NIST MINEX III compliance <br> <br>Value-added customised APIs for software integration <br> <br>Dustproof and Waterproof <br> <br>IP65 dustproof and waterproof <br> <br>SPECIFICATION: <br>Sensor Type Optical Sensor Dimensions 67.5×36.0×15.1mm(L×W×H) <br>Image Resolution 500dpi Weight Approx. 43g <br>Image Size 400×500 pixels Operating Temperature -10℃ to +55℃ <br>Image Standard FBI PIV&amp;FAP30 Operating Humidity 20%RH - 90% RH <br>Live Finger Detection Yes Supply Voltage DC 5V±5%(USB powered) <br>Sensing Area 20.32 x 25.4mm Supply Current ≤200mA(USB powered) <br> ≤50mA(USB powered at sleep mode) <br>Image Gray Scale 8bit, 256 level Ingress Protection IP65(Sensor Surface) <br>Image Format WSQ, JPEG2000, RAW, BMP, ISO 1974-4, ANSI 381 Support OS Linux Kernel 4.15 or higher; <br> Windows 7 or higher; <br> Android 4.1 or higher <br>ESD Immunity ±8kV contact discharge, ±15kV air discharge (Sensor Surface) <br> <br>As a biometric machine company, we will do our best to meet all the needs of customers. <br> <br> <br> <br> <br>[a]https%3A%2F%2Fwww.miaxis.net%2Fproducts%2Fmiaxis-sm-93m-fbi-piv-certificated-fingerprint-oem-module.html[/a]
