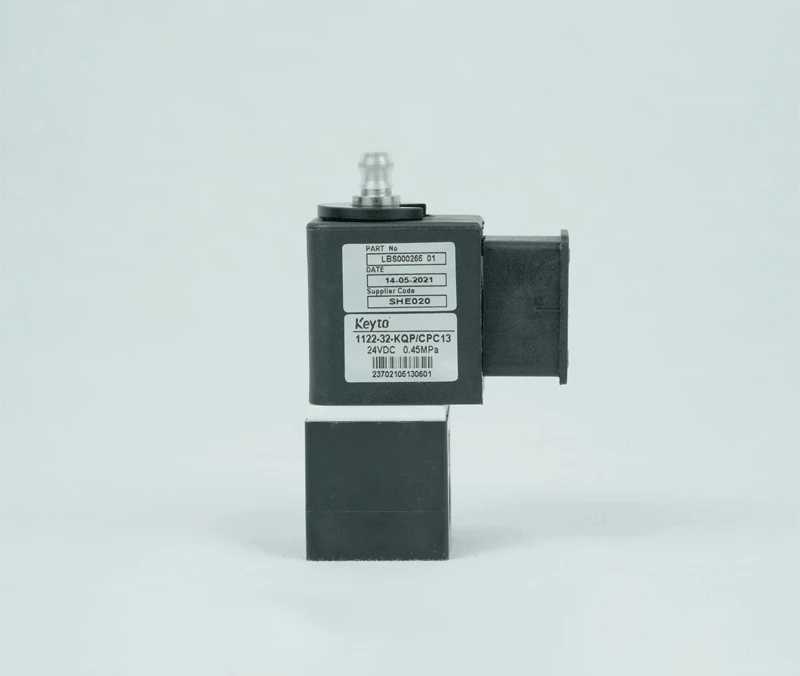

Miniature Piston Valve 1122
1122 Series plunger valve with large orifice is developed by Keyto independently, its mainly function is switch on/off liquid path. This valve has many multiple options type, can tolerate high pressure, the life cycle can reach more than 1.2 million cycles. It’s a high precision, low cost and maintenance-free plunger solenoid valve. The solenoid valve is mainly used in the inkjet printing industry.

Feature of Miniature High Pressure Solenoid Valve 1122
Keyto Plunger Valve 1122 series has high pressure resistance feature. It is better than other Keyto valves series, and it’s easy to use. It also has multiple options for wetted materials:

①Valve body: POM.

②Seal material: EPDM.

Specifications of Miniature Piston Valve 1122
Structure Direct acting poppet type
Valve type 2/3-way N.C.
Port No. 3
Orifice diameter 1.5mm
CV 0.035
Mediums Water, Air, Weak acid and base, MEK and so on.
Operating temperature 0~60℃(No freezing)
Pressure(in – out) 0~0.4MPa
Leakage 0
Response time <40ms
Dead volume 0
Voltage fluctuation -10%~+10%
Power Consumption 3.5W

Note: Please kindly reach out to our sales team for design and specification final clarification and confirmation.


Reasons to Buy Keyto Miniature Piston Valve 1122
01
Orifice diameter
1.5mm.

02
Flow capacity
CV≥0.035; Flow Rate≥6ml/s (Pressure differential 50kpa, 25℃, pure water).

03
High Pressure Resistance
Better than other Keyto valves series, and it’s easy to use.

04
Wetted materials
①Valve body: POM ②Seal material: EPDM.

05
Performance characteristics
High life cycle, high performance.
