[a]https%3A%2F%2Fen.keyto.com%2Fproducts%2Fpinch-valve-1224%2F[/a] <br> <br>#mini #pinch #valve <br> <br>Pinch Valve 1224 <br>The 1224 series solenoid valve manifold is a family of single channel pinch valves. This series <br> <br>solenoid valve is a high performance, low cost and maintenance free mini pinch valve with <br> <br>multiple model options, controlling the switch of flow path for different types of tube. The life cycle of valves can be more than 2 million. The tubing of solenoid valve is simple and easy to clean, applying to the application that test samples are with impurities and particulate matters and avoid cross-contamination among samples. <br> <br>Feature of Pinch Valve 1224 <br>Keyto pinch valve solenoid has three series. The mainly different is the port size. The port size means the pipe diameter you want to used. <br> <br>In addition to port size, we have many functions to choose from. like single port or dual port, and different installations and different voltage to meet your unique needs. <br> <br>Specifications of Pinch Valve 1224 <br>Type 1224 Single Channel N.O Pinch Valve <br>Installation Method Base-mounted or Bracket mounted <br>Dimension 58 * Φ25 mm <br>Power Consumption 12V: 5.1W / 24V: 5.4W <br>Pressure -70 kPa ~ 250 kPa(N.O.) <br>Orifice 2 mm <br>Flow rate 8.5 g/s（ 25℃, 50kPa, under pure water） <br>Tube Size 2*4 mm <br>Recommended Silicone Hardness Shore hardness: 60 <br> <br>Reasons to Buy Keyto Pinch Valve 1224 <br>01 <br>Silicon tube specification <br>2mm X 4mm, shore hardness: 60. <br> <br>02 <br>Low capacity <br>2.2mm X 4mm silicon tube, CV≥0.05, flow≥8.5mL/s (differential pressure 50KPa, 25℃, pure water). <br> <br>03 <br>Silicon tube depends <br>Wetted material depends on the silicon tube. <br> <br>04 <br>Long lifetime <br>Long lifetime, high performance. <br> <br>As a fluid control company, we will do our best to meet all the needs of customers.

[a]https%3A%2F%2Fen.keyto.com%2Fproducts%2Fmini-diaphragm-liquid-pumps%2F[/a] <br> <br>#Miniature #Liquid #Pump <br> <br>The working principle of the diaphragm pump is that the motor drives the elastic diaphragm to reciprocate through the eccentric wheel so that the volume of the cavity changes. The inlet and outlet are designed as one-way valves to realize the suction and discharge of the medium. <br> <br>Diaphragm Miniature Liquid Pump for Sale <br>Diaphragm Micro Liquid Pump 7121 <br>This is a single-head diaphragm pump with liquid passing. There are mainly two flow rates to choose from 300ml/min and 600ml/min. <br> <br>Double-head Mini Diaphragm Pump 7122 <br>This is a double-head diaphragm pump with liquid passing. There are different flow rates to choose from: 300ml/min, 600ml/min and 1.2L/min... <br> <br>Mini Diaphragm Liquid Pump Benefits <br> <br>The advantages of diaphragm mini liquid pumps are as follows: <br> <br>Compact structure, light-weight and large flow; <br> <br>Excellent dynamic balance, low vibration and low noise; <br> <br>Using brush-less motor with long life and maintenance-free; <br> <br>The pump body material has good resistance to corrosion and oxidation, and is applicable for a variety of working media; <br> <br>High output pressure. <br> <br>Excellent reliability and easy installation. <br> <br>As a fluid control ltd, we specialize in designing and manufacturing precise fluid subassemblies and parts tailored for a wide range of applications demanding advanced fluid ontrol and measurement. Our expertise lies in seamlessly coordinating these components, resulting in imaginative and improved OEM fluidic frameworks that surpass expectations.

[a]https%3A%2F%2Fen.keyto.com%2Fproducts%2Fminiature-piston-valve-1122%2F[/a] <br> <br>#Keyto <br> <br>Miniature Piston Valve 1122 <br>1122 Series plunger valve with large orifice is developed by Keyto independently, its mainly function is switch on/off liquid path. This valve has many multiple options type, can tolerate high pressure, the life cycle can reach more than 1.2 million cycles. It’s a high precision, low cost and maintenance-free plunger solenoid valve. The solenoid valve is mainly used in the inkjet printing industry. <br> <br>Feature of Miniature High Pressure Solenoid Valve 1122 <br>Keyto Plunger Valve 1122 series has high pressure resistance feature. It is better than other Keyto valves series, and it’s easy to use. It also has multiple options for wetted materials: <br> <br>①Valve body: POM. <br> <br>②Seal material: EPDM. <br> <br>Specifications of Miniature Piston Valve 1122 <br>Structure Direct acting poppet type <br>Valve type 2/3-way N.C. <br>Port No. 3 <br>Orifice diameter 1.5mm <br>CV 0.035 <br>Mediums Water, Air, Weak acid and base, MEK and so on. <br>Operating temperature 0~60℃(No freezing) <br>Pressure(in – out) 0~0.4MPa <br>Leakage 0 <br>Response time &lt;40ms <br>Dead volume 0 <br>Voltage fluctuation -10%~+10% <br>Power Consumption 3.5W <br> <br>Note: Please kindly reach out to our sales team for design and specification final clarification and confirmation. <br> <br> <br>Reasons to Buy Keyto Miniature Piston Valve 1122 <br>01 <br>Orifice diameter <br>1.5mm. <br> <br>02 <br>Flow capacity <br>CV≥0.035; Flow Rate≥6ml/s (Pressure differential 50kpa, 25℃, pure water). <br> <br>03 <br>High Pressure Resistance <br>Better than other Keyto valves series, and it’s easy to use. <br> <br>04 <br>Wetted materials <br>①Valve body: POM ②Seal material: EPDM. <br> <br>05 <br>Performance characteristics <br>High life cycle, high performance. <br> <br>If you want to know more kinds of fluid control components, please visit our website.

#pinch #solenoid #valve <br> <br>To protect the health care, lots of global diagnostics companies bring high-capacity PCR test machine which requires huge consumables including tips, ragents and microfludic chips. The microfludic design is making a mirco liquid path system become a consumable product possible and offer feasible and cost-competitive solutions for many designs, like Gene related machine, CAR-T innovations, to avoid system-level cross-contamination. Keyto oem microfluidics and consumable solutions have both standard products compatible with other brands and customized products for customer needs. <br> <br>Microfluidic Applications <br>1 <br>Microfluidics is the study of systems that can process small quantities of fluids by using tiny channels having dimensions at the microscale – typically tens to hundreds of micrometres. Although in the nascent stage, microfluidics is rapidly emerging as a breakthrough technology that finds applications in diverse fields ranging from biology, IVD and chemistry to information technology and optics. <br> <br> <br>2 <br>And The fluid path is formed by custom microfluidics channels to control the liquid to achieve various functions, often used in various instruments such as molecular diagnostics, gene sequencing, and so on. <br> <br>3 <br>Compared to conventional assays, microfluidic chips have more stringent requirements for detection. For example, it requires high sensitivity, fast response time, and a smaller size. So now optical and electrochemical detection is the most widely used technology for microfluidic. <br> <br>Integrated Microfluidic Packaging <br>Microfludic technology offers a compelete new solutions to achieve a small size for a fluid system since lots of tubes are replaced by fluidic path in-between plactic plates. With further exploring the technique, scientists and senior technicians are investigaing the method of integrating the regents into the microfludic manifolds to further reduce instruments flexibility and make it portable. <br> <br>For more information about Multi-channel syringe pump, please feel free to contact us! <br> <br>If you are looking for a reliable valves &amp; flow control resources ltd, don&#039;t hesitate to contact us! <br> <br> <br> <br>[a]https%3A%2F%2Fen.keyto.com%2Fproducts%2Fmicrofludic-and-consumables%2F[/a]

#liquid #handler <br>Diaphragm Solenoid Valve are an essential component in the IVD, ensuring precise and efficient control of fluid flow. Keyto Solenoid Valves are crafted with precision and adhere to rigorous medical standards. These valves are designed with a flexible diaphragm that provides a tight seal and prevents fluid leakage. Our Diaphragm Solenoid Valves are available in a range of models to suit your needs and are sure to deliver results that exceed expectations. Trust Keyto for all your solenoid needs and experience the difference in precision and reliability. <br> <br>Diaphragm Type Solenoid Valve VS Miniature Proportional Valve <br> <br>Miniature Proportional Valve <br>A proportional valve is a new type of hydraulic control device. On the ordinary pressure valve, flow valve, and directional valve, the proportional electromagnet is used to replace the original control part to continuously and proportionally control the pressure, flow, or direction of the oil flow according to the input electrical signal. Proportional valves generally have pressure compensation performance, and the output pressure and flow can not be affected by load changes. <br> <br>The proportional valve performs continuous step control according to the proportion and automatically compensates and controls the target according to the information collected according to the actual situation. The valve opening direction, opening amount, or spring setting force are all follow-ups, realizing a series of continuous and controllable follow-up actions. <br> <br>Micro Diaphragm Solenoid Valve <br>The ordinary solenoid valve is a single action on-off valve, which can&#039;t perform continuous step control in proportion. Its valve opening direction, opening amount, or spring setting force are all fixed and cannot be changed according to the actual situation. <br> <br>Diaphragm Type Solenoid Valve VS Miniature Proportional Valve <br>Diaphragm Solenoid Valve Operation <br>When the solenoid valve is in the closed state, under the action of the spring force and the gravity of the valve core, the sealing surface of the valve core sealing block is in close contact with the annular plane of the valve seat. Since the annular plane of the valve seat is tiny, the sealing surface of the valve core forms a small annular sealing belt, which plays a good sealing role. When the coil of the small solenoid valve is energized, the valve core moves upward against the pressure of the spring force and the self-weight under the electromagnetic energy. At this time, the sealing surface of the valve core is separated from the valve seat, the pipeline is connected, and the medium flows out through the valve core hole; When the coil is powered off, the attractive electromagnetic force of the coil disappears, and the valve core moves downward under the action of the spring force to close the air circuit. <br> <br>FAQs of Micro Diaphragm Solenoid Valve <br> <br>What is the use of micro diaphragm solenoid valve? <br>Solenoid valve function: it is a cut-off valve that automatically opens and closes by electromagnetic force. It is mainly used as an automatic basic device for controlling objects and belongs to the actuator. Usage: it can be used in an industrial control system to regulate medium direction, flow, speed, and other parameters, so it is widely used in various production fields. Most of Keyto&#039;s solenoid valves are used in IVD or medical terminals. <br> <br>Does the micro diaphragm solenoid valve require pressure? <br>The micro diaphragm valve needs to be energized through the circular motion of the motor and the mechanical device to form pressure so that the diaphragm inside the pump makes the reciprocal motion and the air in the pump cavity compress and stretches. Under the check valve, a positive pressure is formed at the drainage port; a vacuum is created at the pumping port, thus forming a pressure difference with the outside atmosphere. Under this pressure difference, water is pressed into the water inlet and discharged from the drainage port. Under the action of kinetic energy transmitted by the motor, water is continuously drawn in and discharged, forming a relatively stable water flow. <br> <br>For more information about Multi-channel syringe pump, please feel free to contact us! <br> <br>If you are looking for a reliable fluid control ltd, don&#039;t hesitate to contact us! <br> <br> <br> <br>[a]https%3A%2F%2Fen.keyto.com%2Fproducts%2Fmicro-diaphragm-solenoid-valves%2F[/a]

#microfluidic <br>A stepping motor drives the metering pump to ensure the smoothness of the movement. The moving pair is an imported joint ball bearing with high life. The quantitative suction and discharge of liquid are realized by driving the number of rotating turns of the stepping motor. <br> <br>What is the Function of a precision metering pump? <br>1 <br>Miniature metering pump (dosing pump) is a precision sample adding pump independently developed by Keyto. Its primary function is to achieve accurate quantitative filling of liquid. <br> <br>2 <br>The metering pump bracket and its transmission structure are compact and have high suction and discharge fluid accuracy and aspiration and dispense liquid accuracy. The aspiration and dispense fluid range varies with different plunger diameters. <br> <br>Metering Pump VS Centrifugal Pump <br> <br>The differences of mini metering pump and centrifugal pump are as follows: <br> <br>The peristaltic pump uses a rotating roller to squeeze the hose to transport liquid. Because the liquid only flows in the hose, has no contact with the pump head, does not produce cross contamination, and has high conveying accuracy and small shearing effect, it is widely used in the chemical industry, environmental protection, scientific research, pharmacy, beverage, food, printing, and other fields. <br> <br>The flow of precision metering pumps is adjusted by rotating the adjusting handwheel to drive the adjusting screw to turn to change the distance between bow connecting rods and the movement stroke of plunger (piston) in the pump chamber to determine the flow. The scale of the adjusting handwheel determines the plunger stroke, so the pump has excellent performance. The diaphragm metering pump is not easy to leak, with high safety performance and accurate metering. <br> <br>FAQs of Metering Pump <br> <br>Is a small metering pumps a centrifugal pump? <br>With each of its strokes, a metering pump, a type of reciprocating pump, releases a precise volume of liquid via positive displacement. A wheel and worm shaft are used to change the pump&#039;s rotational motion into reciprocating motion. <br> <br>What type of pump is a small metering pump? <br>Metering pump, also known as dose pump, dosing pump, is a positive displacement pump that is designed to inject a chemical or another substance into a stream of water, gas or steam. Metering pumps are typically small and provide extremely precise flow rates for maximum control. They provide the foundation of a comprehensive metering system made for automated chemical dispersion. They are pumps made to measure flow control and deliver precise fluid volumes. Metering pumps can now pump a wide range of liquids, including corrosives, acids, and bases, as well as slurries and viscous liquids, with extreme accuracy. <br> <br>Are metering pumps self priming? <br>A control pump used for quantitative liquid dosage is the metering pump. It can self-prime while being transported, preventing the liquid in the suction pipe from backflowing, and allowing for an automated and speedy start of the metering pump. <br> <br>For more information about Multi-channel syringe pump, please feel free to contact us! <br> <br>If you are looking for a reliable fluid control ltd, don&#039;t hesitate to contact us! <br> <br> <br> <br>[a]https%3A%2F%2Fen.keyto.com%2Fproducts%2Fmetering-pump%2F[/a]

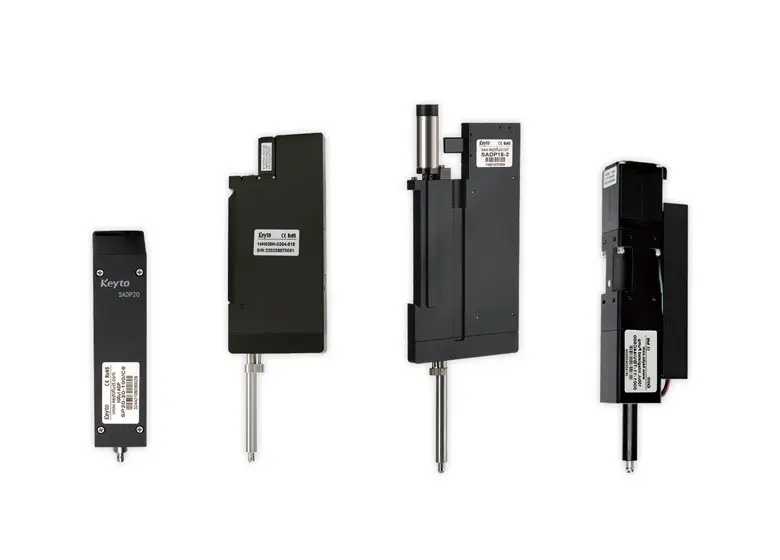

#micro #fluid <br>Liquid handling components become a very critical part of lab process standardization and automation. To better serve and support Keyto global customers, Keyto developed and innovated Superb Air Displacement Pipetting product line SADP 16, 18, 20, 28, Programmable Syringe Pump, Metering Pump, Rotary Shear Valve and Piston Syringe Pump to achieve good accuracy and precision. By applying Keyto liquid handling solutions, customer design will have less piece-to-piece variation then improve product performance and reliability. In general, Keyto liquid handling components and be applied in various industries&#039; lab process optimization, like ELISA, time-resolved fluorescence, nucleic acid preparation, PCR setup, next-generation sequencing for genomic research, TLC spotting, SPE, liquid-liquid extraction, drug discovery, etc... <br> <br>Automatic Liquid Handling Equipments in the Pharmaceutical Industry <br>Automatic Liquid Handling Equipments in the Pharmaceutical Industry <br>Pharmaceutical industry requires millions of repeatable tests for the development and validation to make sure the newly developed products are effective and meeting the regulation. In the whole development process the automated liquid handling instruments are the basic and best infrastructure to eliminate human falts and improve the validation tests robustness. With more and more automated pipette machines come to the markets, automated liquid handling platforms with integrated automated pipette machines becomes good options of the pharmaceutical industry. <br> <br>Why Choose Keyto As Your Liquid Handling Components Supplier? <br>When selecting a trusted supplier for your liquid handling components, Keyto should be at the top of your list. Keyto stands out as a preferred choice due to their extensive range of high-quality products and exceptional service. <br> <br>Keyto offers a wide selection of liquid handling components, including liquid handling pipettes, automated pipettor components, and liquid handling robot syringe pumps. Their comprehensive product range caters to the diverse needs of laboratory researchers and pharmaceutical companies, ensuring all your fluid handling requirements are met. <br> <br>Keyto is committed to delivering superior quality components. Their products are manufactured using advanced technologies and undergo rigorous quality control processes to guarantee durability, accuracy, and consistency. <br> <br>Keyto is continuously driving innovation in Liquid handling pump. They invest in research and development to introduce new technologies and enhance their product offerings. By choosing Keyto as your supplier, you gain access to the latest advancements in liquid handling, empowering you to improve the efficiency and accuracy of your fluid handling processes. <br> <br>In summary, Keyto is the ideal supplier for your liquid handling components due to their extensive product range, superior quality, exceptional customer service, and commitment to innovation. Choose Keyto to access top-quality liquid handling pipettes, automated pipettor components, and liquid handling robot syringe pumps. <br> <br>Laboratory Liquid Handling <br>Precision liquid handling plays a vital role in scientific research and various industries. Key components for this process include liquid handling pipette, automated pipettor components, and liquid handling robot syringe pumps. These tools enable precise and accurate measurement, transfer, and dispensing of liquids in a controlled manner. Liquid handling pipettes allow manual handling, while automated pipettor components and liquid handling robot syringe pumps offer automation options for higher throughput and enhanced efficiency. These components are essential for achieving reliable and reproducible results in laboratory experiments, drug discovery, diagnostics, and various other applications. <br> <br>OEM Liquid Handling <br>Syringe automated liquid handling is a critical process in scientific research and industrial applications. Key components include liquid handling pipettes, OEM liquid handling components, and liquid handling robot syringe pumps. Liquid handling pipettes allow precise measurement and transfer of liquids. OEM liquid handling components provide customizable solutions for specific requirements. Liquid handling robot syringe pumps offer automated fluid dispensing for increased efficiency and accuracy. Together, these components ensure reliable and controlled liquid handling, essential for achieving accurate results in various laboratory procedures and applications. <br> <br>For more information about automated liquid handling systems, please feel free to contact us! <br> <br>If you are looking for a reliable fluid control company, don&#039;t hesitate to contact us! <br> <br> <br> <br>[a]https%3A%2F%2Fen.keyto.com%2Fproducts%2Fliquid-handling-and-transfer-components%2F[/a]

#keyto <br>The 5JXX series metering pump is a precision metering pump developed by Keyto, its main function is to achieve precise liquid metering. With its compact support and drive structure, the metering pump has high precision and accuracy of liquid aspiration and dispensing. Aspiration and dispensing range that varies by piston diameter. <br> <br>Reasons to Buy Keyto high accuracy metering pumps 5JXX <br>01 <br>Dosing aspiration <br>Extremely high and stable precision of dosing aspiration and dispensing over the life cycle of the metering pump. <br> <br>02 <br>Angle adjustment range <br>0.5 - 20°. <br> <br>03 <br>Suction lift <br>4m. <br> <br>04 <br>Optocoupler <br>Optocoupler sensor to locate the starting level of liquid aspiration and dispensing; <br> <br>05 <br>Electric machinery <br>1.8°two-phase step motor of long-life and high-performance. <br> <br>For more information about fluid control components, please feel free to contact us! <br> <br>If you are looking for a reliable microfluidic manufacturer, don&#039;t hesitate to contact us! <br> <br> <br> <br> <br>[a]https%3A%2F%2Fen.keyto.com%2Fproducts%2Fhigh-precision-metering-pump-5jxx%2F[/a]

#liquidhandling <br>The 2HXX series precision China glass syringe is independently developed by Keyto and its main function is to achieve aspiration and dispensing with precise dosing. The glass syringe for sale has a very high repeatability precision(CV) and accuracy of aspiration and dispensing. The service life of this China glass syringe is up to 400,000 cycles of full strokes for Teflon (PTFE) pistons and up to 800,000 cycles of full strokes for UHMWPE pistons without compromising repeatability precision(CV) and accuracy. <br> <br>Why Choose Keyto As Your China Glass Syringe Supplier? <br>01 <br>Available in a wide range of syringe volumes <br>Our China glass syringe is available in a wide range of syringe volumes: 100μL~10mL. <br> <br>02 <br>Extremely high and consistent metering precision and accuracy <br>The wholesale glass syringe is extremely high and consistent metering precision and accuracy over the life cycle. <br> <br>03 <br>Maintenance-free <br>Advanced borosilicate glass machining technology, rigorous inspection procedures, and unique sealing solutions to ensure maintenance-free over the life cycle of the China glass syringes for sale. <br> <br>04 <br>Good chemical resistance and high wear resistance <br>Good chemical resistance and high wear resistance of the materials of the components in contact with the reagents. Ensures that no replacement components are required during the life cycle of glass syringes. <br> <br>05 <br>Use of medical grade lubricant <br>Use of medical grade lubricant GESF96. <br> <br>06 <br>Maximum working pressure <br>Maximum working pressure of glass syringes for sale: 0.3 MPa. <br> <br>For more information about fluid control components, please feel free to contact us! <br> <br>[a]https%3A%2F%2Fen.keyto.com%2Fproducts%2Fglass-syringes%2F[/a]
