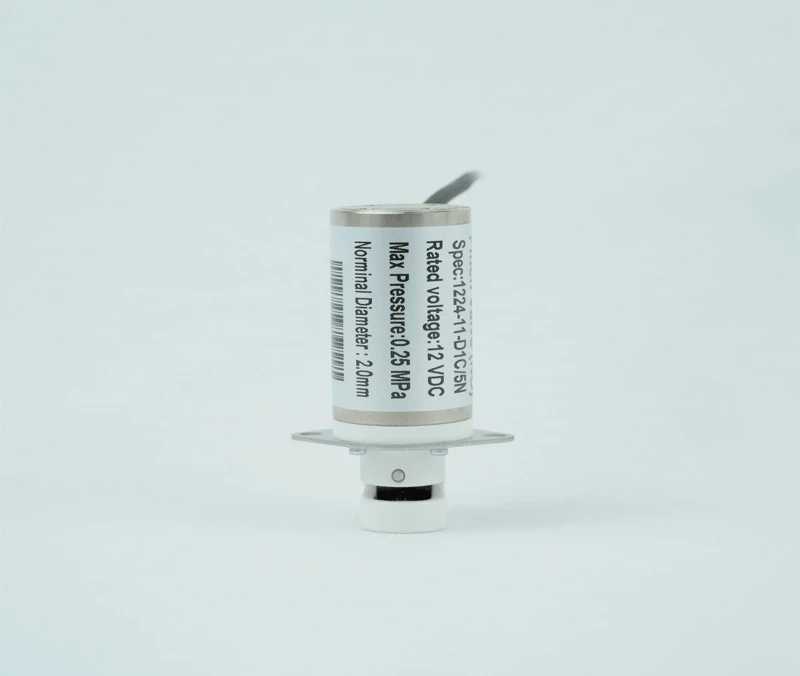

Pinch Valve 1224
The 1224 series solenoid valve manifold is a family of single channel pinch valves. This series

solenoid valve is a high performance, low cost and maintenance free mini pinch valve with

multiple model options, controlling the switch of flow path for different types of tube. The life cycle of valves can be more than 2 million. The tubing of solenoid valve is simple and easy to clean, applying to the application that test samples are with impurities and particulate matters and avoid cross-contamination among samples.

Feature of Pinch Valve 1224
Keyto pinch valve solenoid has three series. The mainly different is the port size. The port size means the pipe diameter you want to used.

In addition to port size, we have many functions to choose from. like single port or dual port, and different installations and different voltage to meet your unique needs.

Specifications of Pinch Valve 1224
Type 1224 Single Channel N.O Pinch Valve
Installation Method Base-mounted or Bracket mounted
Dimension 58 * Φ25 mm
Power Consumption 12V: 5.1W / 24V: 5.4W
Pressure -70 kPa ~ 250 kPa(N.O.)
Orifice 2 mm
Flow rate 8.5 g/s（ 25℃, 50kPa, under pure water）
Tube Size 2*4 mm
Recommended Silicone Hardness Shore hardness: 60

Reasons to Buy Keyto Pinch Valve 1224
01
Silicon tube specification
2mm X 4mm, shore hardness: 60.

02
Low capacity
2.2mm X 4mm silicon tube, CV≥0.05, flow≥8.5mL/s (differential pressure 50KPa, 25℃, pure water).

03
Silicon tube depends
Wetted material depends on the silicon tube.

04
Long lifetime
Long lifetime, high performance.

As a fluid control company, we will do our best to meet all the needs of customers.
