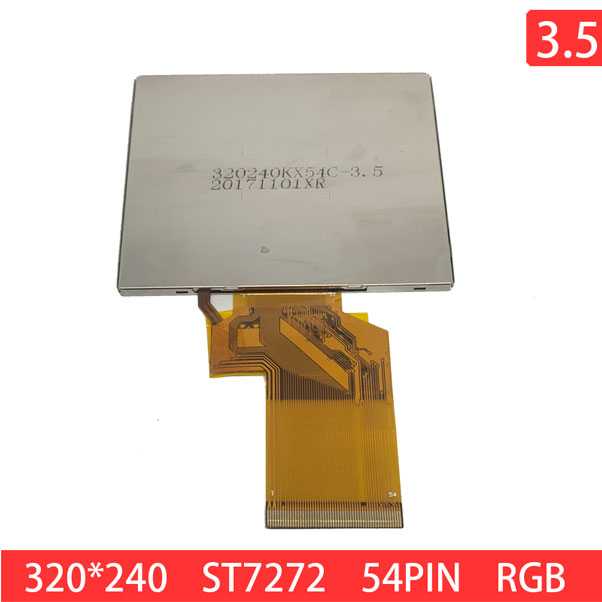

EX03501-A01 is a 3.5-inch color active matrix TFT liquid crystal display. The dimension size of this 3.5 inch tft lcd display is 76.14x63.84 mm, size of active area is 70.08x52.56 mm (3.5”diagonal), and its resolution is 320x240 pixels. The module supports RGB interface with contrast ratio 300 : 1 and brightness 300 cd/m2. EX03501-A01 RGB TFT LCD display module power supply voltage is 3.0-3.6V, typical value is 3.3V. Operating temperature ranges from -10℃ up to +60℃; storage temperature covers from-20℃ to +70℃.This single-display module is suitable for use in industry, household appliances, toys and  medical treatment,etc.

3.5 Inch TFT LCD Display General Specifications
No. Item Specification
1 LCD size 3.5 inch
2 Resolution 320 (RGB)X240
3 Active area 70.08(H)×52.56(V)mm
4 Module size 76.14(W)*63.84(H)*3.22(T)
5 Polarizer Transmissive
6 Driver IC HX8238D
7 Interface RGB 8/24
8 Brightness 300cd/m²
9 Backlight Color White
10 Contrast Ratio 300:1
11 Viewing Direction 6 o'clock
