EX03501-A01 is a 3.5-inch color active matrix TFT liquid crystal display. The dimension size of this 3.5 inch tft lcd display is 76.14x63.84 mm, size of active area is 70.08x52.56 mm (3.5”diagonal), and its resolution is 320x240 pixels. The module supports RGB interface with contrast ratio 300 : 1 and brightness 300 cd/m2. EX03501-A01 RGB TFT LCD display module power supply voltage is 3.0-3.6V, typical value is 3.3V. Operating temperature ranges from -10℃ up to +60℃; storage temperature covers from-20℃ to +70℃.This single-display module is suitable for use in industry, household appliances, toys and  medical treatment,etc. <br> <br>3.5 Inch TFT LCD Display General Specifications <br>No. Item Specification <br>1 LCD size 3.5 inch <br>2 Resolution 320 (RGB)X240 <br>3 Active area 70.08(H)×52.56(V)mm <br>4 Module size 76.14(W)*63.84(H)*3.22(T) <br>5 Polarizer Transmissive <br>6 Driver IC HX8238D <br>7 Interface RGB 8/24 <br>8 Brightness 300cd/m² <br>9 Backlight Color White <br>10 Contrast Ratio 300:1 <br>11 Viewing Direction 6 o&#039;clock <br> <br>As one of the most professional 3.5 inch lcd manufacturers, we provide 3.5 inch lcd china, china 3.5 inch lcd, china 3.5 inch rpi lcd, etc. For 3.5 inch lcd price and buy 3.5 inch lcd, please feel free to contact us! <br> <br>If you are looking for a reliable tft lcd panel manufacturer, don&#039;t hesitate to contact us! <br> #tft #lcd #panel #manufacturer <br>[a]https%3A%2F%2Fwww.exsontech.com%2Fproducts%2F3.5-inch-320-240-qvga-54pin-rgb-tn-300nits-tft-module-display.html[/a]

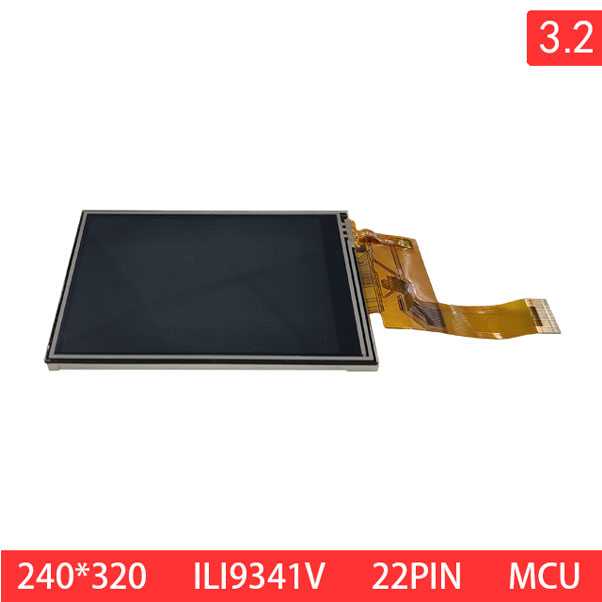

EX03201-A01 is a 3.2-inch diagonal 240x320 portrait standard TFT LCD display module. The dimension size of this module is 55.04×77.5 mm, size of active area is 48.6×64.7 mm. This 3.2 spi tft display module uses ILI9341 driver IC which supports MCU8BIT interface. This 3.2-inch TFT LCD module has brightness 300 cd/m2 with contrast ratio (typical value) 900:1. The module works within the temperature -20 to +60℃, storage temperature ranges from -30 to +70℃.This single-display module is suitable for use in industry, household appliances, toys and  medical treatment,etc. <br> <br>General Specifications of 3.2 Inch 240X320 QVGA 22PIN MCU IPS 300nits <br>No. Item Specification <br>1 LCD size 3.2 inch <br>2 Resolution 240(RGB)×320 <br>3 Active area 48.6(W)×64.7(H)mm <br>4 Module size 55.04(W)×77.5(H)×2.5(T)(Exclude FPC)mm <br>5 Polarizer Transmissive <br>6 Driver IC ILI9341 <br>7 Interface MCU8BIT <br>8 Brightness 300cd/m² <br>9 Backlight Color White <br>10 Contrast Ratio 900:1 <br>11 Viewing Direction All <br>Outline Dimension of 3.2 Inch 240X320 QVGA 22PIN MCU IPS 300nits <br> <br>As one of the most professional tft 3.2 manufacturers, we provide china 3.2 tft display, tft 3.2 inch, 3.2 tft spi, tft lcd 3.2, 3.2 tft lcd display, 3.2 tft lcd datasheet, etc. For more information, please feel free to contact us! <br> <br>If you are looking for a reliable tft lcd panel manufacturer, don&#039;t hesitate to contact us! <br>#tft #3.2 #manufacturers <br>[a]https%3A%2F%2Fwww.exsontech.com%2Fproducts%2F3.2-inch-240-320-qvga-22pin-mcu-ips-300nits-tft-module-display.html[/a]

This single-display module is suitable for use in Automobile products. <br>The LCD adopts one backlight with 128 High brightness white LEDs. <br>Construction: 23.6 lcd ,White LED backlight. <br> <br>General Specifications of 23.6 Inch 1920x1080 FHD 30PIN LVDS-Double IPS 600nits <br>No. Item Specification <br>1 LCD size 23.6 inch <br>2 Resolution 1920 (RGB)X1080 <br>3 Display mode Normally Black <br>4 Pixel pitch 0.2715(W) x 0.2715(H) mm <br>5 Active area 521.28 (W)X293.22 (H) mm <br>6 Module size 544.8(W)X320.5(H)X9.45(D) mm <br>7 Pixel arrangement RGB-vertical stripe <br>8 Interface LVDS <br>9 Backlight power consumption 23.04 w <br>10 Panel power consumption TBD <br>11 Weight 511.6 g (Typ);  529.5 g (Max) <br>Outline Dimension of 23.6 Inch 1920x1080 FHD 30PIN LVDS-Double IPS 600nits <br> <br>As a professional tft panel manufacturer, we provide fhd lcd panel, fhd tft display, fhd vs tft, hd tft screen, etc. For fhd tft display means or more information, please feel free to contact us! <br>#hd #tft #screen <br>[a]https%3A%2F%2Fwww.exsontech.com%2Fproducts%2F23.6-inch-1920-1080-fhd-30pin-lvds-double-ips-600nits-tft-module-display.html[/a]

EX21501-A01 is a 21.5-inch 1920×1080 Resolution IPS TFT LCD module that supports the LVDS interface. It can be operating at temperatures from 0~50℃ and storage temperatures range from -20~65℃. And, it features 600(nits) high brightness and wider viewing angle technology. Industrial tft display is suitable for industrial and medical imaging, etc. <br> <br>General Specifications of 21.5 Inch 1920x1080 FHD 30PIN LVDS-Double IPS 600nits <br>No. Item Specification <br>1 LCD size 21.5 INCH <br>2 Resolution 1920×1080 <br>3 Active area 476.64(H)×268.11(V)mm <br>4 Module size 487.54(H)×279.684（V）×1.335（D）mm <br>5 Interface LVDS-Double <br>6 Brightness 600cd/m2 <br>7 Contrast Ratio 4000:1 <br>8 Pixel arrangement RGB vertical stripe <br>9 Surface Treatment Anti-Glare <br>10 Display Colors 16.7M <br>11 Polarizer Transmissive <br>12 Display mode Normally Black <br>Outline Dimension of 21.5 Inch 1920x1080 FHD 30PIN LVDS-Double IPS 600nits <br> <br>As a professional tft panel manufacturer, Exson has high-quality 21.5 lcd panel for sale. Welcome to contact us if needed. <br>#tft #panel #manufacture <br>[a]https%3A%2F%2Fwww.exsontech.com%2Fproducts%2F21.5-inch-1920-1080-fhd-30pin-lvds-double-ips-600n-tft-module-display.html[/a]

[a]https%3A%2F%2Fwww.exsontech.com%2Fproducts%2F21.5-inch-1920-1080-fhd-30pin-lvds-double-ips-600nits-open-frame-tft-display.html[/a] <br>#capacitive #touchscreen <br>21.5 Inch 1920x1080 FHD 30PIN LVDS-Double IPS 600nits Open Frame LCD <br>EX21501-A01 is a 21.5 inch 1920×1080 Resolution IPS TFT LCD module that supports LVDS interface. It can be operating at temperatures from 0~50℃ and storage temperatures range from -20~65℃. And, it features with 600(nits) high brightness and wider viewing angle technology. Open frame tft display is Suitable for industrial and medical imaging、 self-service terminals、 retail terminals、 supermarket checkout machines,etc. <br> <br>General Specifications of 21.5 Inch 1920x1080 FHD 30PIN LVDS-Double IPS 600nits Open Frame <br>RGB vertical stripe <br>No. Item Specification <br>1 LCD size 21.5 INCH <br>2 Resolution 1920×1080 <br>3 Active area 476.64(H)×268.11(V)mm <br>4 Module size 487.54(H)×279.684（V）×1.335（D）mm <br>5 Interface LVDS-Double <br>6 Brightness 600cd/m2 <br>7 Contrast Ratio 4000:1 <br>8 Pixel arrangement <br>9 Surface Treatment Anti-Glare  <br>10 Display Colors 16.7M <br>11 Polarizer Transmissive <br>12 Display mode Normally Black <br> <br>As a professional tft module factory, we provide tft lcd display module, ips tft capacitive touchscreen, ips capacitive, ips capacitive screen, ips lcd capacitive, ips touch panel, ips capacitive touchscreen, ips lcd touch screen, ips lcd capacitive touchscreen, china tft lcd display, etc. For more information, please feel free to contact us!

[a]https%3A%2F%2Fwww.exsontech.com%2Fproducts%2F2.4-inch-240-320-qvga-6pin-uart-tn-220nits-tft-module-display.html[/a] <br>#tft #lcd #display, <br>EX02402-A01 is a 2.4 inch, UART TN TFT LCD module . The module dimension is 44.02(W)×78.11(H); active area 36.72(W)×48.96(H) mm (2.4&quot;diagonal). Its resolution is 240x320 pixels (width 240pixels x height 320 pixels) . This 2.4 inch tft lcd display module has built-in IC ST7789V supporting RS232/TTL interface. The brightness is 220 cd/m2 . Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃.This single-display module is suitable for use in industry, household appliances, toys and medical treatment,etc. <br> <br>General Specifications of 2.4 Inch 240x320 QVGA 6PIN UART TN 220nits <br>No. Item Specification <br>1 LCD size 2.4 inch <br>2 Resolution 240(RGB)×320 <br>3 Active area 36.72(W)×48.96(H) <br>4 Module size 44.02(W)×78.11(H)×7.56(T)mm <br>5 Viewing Direction 12 O’CLOCK <br>6 Driver IC ST7789V <br>7 Interface UART  RS232/TTL <br>8 Brightness 220cd/m2 <br>9 color 250cd/m2 <br>10 Operating temperature -20℃-70℃ <br>11 Storage temperature -30℃~+80℃ <br> <br>Outline Dimension of 2.4 Inch 240x320 QVGA 6PIN UART TN 220nits <br> <br>As a professional tft lcd supplier, we provide tft lcd display, 2.4 inch lcd, 2.4 inch lcd display, 2.4 inch tft, 2.4 inch display, 2.4 inch tft display, 2.4 inch tft lcd, china tft display, etc. For more information, please feel free to contact us!

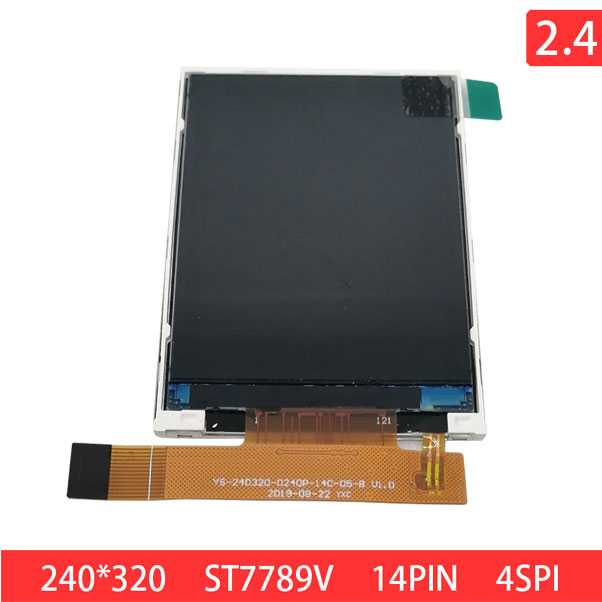

[a]https%3A%2F%2Fwww.exsontech.com%2Fproducts%2F2.4-inch-240-320-qvga-14pin-spi4-ips-250nits-tft-module-display.html[/a] <br>#display #tft #lcd <br>2.4 Inch 240x320 QVGA 14PIN SPI4 IPS 250nits TFT LCD Display Module <br>EX02401-A01 is a 2.4 inch, IPS active matrix TFT LCD module with transmissive mode. The module dimension is 42.72(W)×60.40(H)mm; active area 36.72(W)×48.96(H) mm (2.4&quot;diagonal). Its resolution is 240x320 pixels (width 240pixels x height 320 pixels) and every pixel is made up of three vertical strips of Red, Green and Blue dots. <br> <br>General Specifications of 2.4 Inch 240x320 QVGA 14PIN SPI4 IPS 250nits <br>No. Item Specification <br>1 LCD size 2.4 inch <br>2 Resolution 240(RGB)×320 <br>3 Active area 36.72(W)×48.96(H) <br>4 Module size 42.72(W)×60.40(H)×2.21(T)(Exclude FPC) <br>5 Viewing Direction All <br>6 Driver IC ST7789V <br>7 Polarizer Transmissive <br>8 Interface 4-SPI <br>9 Brightness 250cd/m2 <br>10 Back Light White <br>11 Pixel arrangement RGB vertical stripe <br> <br>Outline Dimension of 2.4 Inch 240x320 QVGA 14PIN SPI4 IPS 250nits <br> <br>Features of 2.4 Inch 240x320 QVGA 14PIN SPI4 IPS 250nits <br>The module features wide viewing angle thanks to the IPS panel which is one of the most popular techniques on the market now. This china 2.4 tft display module has built-in IC ST7789V supporting SPI interface. The brightness is 250 cd/m2 with contrast ratio 800:1. Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃..This single-display module is suitable for use in industry, household appliances, toys and medical treatment,small consumer electronics and other fields. <br> <br>As one of the most professional 2.4 tft manufacturers, we provide china display tft lcd, 2.4 inch lcd china, china 2.4 inch lcd, china lcd panel, etc. For 2.4 inch lcd price or more information, please feel free to contact us!

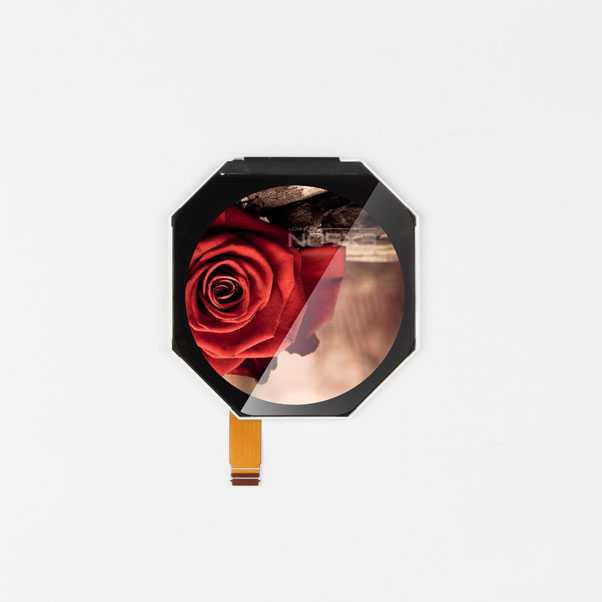

[a]https%3A%2F%2Fwww.exsontech.com%2Fproducts%2F2.47-inch-480-480-round-35pin-mipi-400nits-tft-module-display.html[/a] <br>#round lcd #display #module <br>EX02403-A01 is a 2.47 inch, ADS active matrix TFT LCD module with transmissive mode. The module dimension is 69.19(W)×71.74(H)×2.45(T)mm; active area 62.64(W)×62.64(h)(2.47&quot;diagonal). Its resolution is 480x480 pixels (width 480pixels x height 480 pixels) . This 2.47 inch round lcd display module has built-in IC HX8370-C supporting MIPI interface. The brightness is 400 cd/m2 with contrast ratio 1000:1. Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃.This single-display module is suitable for use in industry, household appliances, toys and medical treatment, etc. <br> <br>As a professional round lcd display manufacturer, we provide china lcd display tft, round lcd module, round tft screen, lcd round, round tft lcd, china lcd module, etc. For more information, please feel free to contact us!

[a]https%3A%2F%2Fwww.exsontech.com%2Fproducts%2F2.47-inch-480-480-round-35pin-mipi-400nits-tft-module.html[/a] <br>#circular #lcd <br>EX02403-A01 2.47 Inch Circular LCD Panel/Screen/Display is a color active matrix TFT-LCD Panel using amorphous silicon TFT&#039;s (Thin Film Transistors) as an active switching devices. This model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 2.47 inch diagonally measured active area with resolutions 480 horizontal by 480 vertical pixel array. Each pixel is divided into Red, Green, Blue dots which are arranged in 2 domain stripe and this panel can display 16.7M colors.It is Suitable for vehicle mounted, handheld terminal, industrial LCD, etc. <br> <br>General Specifications of 2.47 Inch 480x480 Round 35PIN MIPI 400nits-1 <br>No. Item Specification <br>1 LCD size 2.47 inch <br>2 Resolution 480x480 <br>3 Active area 62.64×62.64(circle)mm <br>4 Module size 69.19(H)×71.74(V)×2.45(D) mm <br>5 Interface MIPI <br>6 Brightness 400cd/m2 <br>7 Contrast Ratio 1000:1 <br>8 Driver IC HX8379-C <br>9 Polarizer Transmissive  <br>10 Display Colors 16.7M <br>11 Viewing Direction All <br>12 Weight 25g (Max) <br> <br>Outline Dimension of 2.47 Inch 480x480 Round 35PIN MIPI 400nits-1 <br> <br>As a professional tft lcd screen factory, we provide china custom lcd display, circular lcd display module, circular tft, circular lcd panel, circular display screen, circular tft display, circle lcd display, circular lcd screen, circular lcd, china lcd display tft, etc. For more information, please feel free to contact us!

[a]https%3A%2F%2Fwww.exsontech.com%2Fproducts%2F2.3-inch-320-240-qvga-40pin-muc-tn-300nits-tft-module-display.html[/a] <br>#320x240 #lcd <br>EX02301-A01 is a 2.3 inch, TN TFT LCD module with transmissive mode. Its resolution is 320x240dots (320 vertical by 240 horizontal pixel) and every pixel is made up of three vertical strips of Red, Green and Blue dots. This miniature 2.3 inch TFT module has built-in IC ILI9342C supporting MUC serial interface. The brightness is 300 cd/m2 .Operating temperature covers from -20℃~+70℃, storage temperature range is from -30℃~+80℃. <br> <br>General Specifications of 2.3 Inch 320x240 QVGA 40PIN MUC TN 300nits <br>No. Item Specification <br>1 LCD size 2.3 inch <br>2 Resolution 320（RGB）x240 <br>3 Active area 46.75(W)×35.06(H)mm <br>4 Module size 51.00(W)×45.80(H)×2.35(T)(Exclude FPC)mm <br>5 Viewing Direction 6 o&#039;clock <br>6 Driver IC ILI9342C <br>7 Polarizer Transmissive <br>8 Operating temperature -20℃-70℃ <br>9 Storage temperature -30℃~+80℃ <br>10 Brightness 300cd/m2 <br> <br>Features of 2.3 Inch 320x240 tft QVGA 40PIN MUC TN 300nits <br>This single-display module is suitable for use in security, handheld devices, instruments and meters, POS machines, police law enforcement instruments, military handheld, vehicle electronics, industrial control equipment and instruments, medical equipment, smart home, Internet of things, new retail, household appliances, small consumer electronic products, and other industries. <br> <br>As a professional china lcd display supplier, we provide china lcd display module, 2.4 inch lcd panel, 320x240 tft display, 320x240 lcd display, 320x240 lcd, etc. For more information, please feel free to contact us!

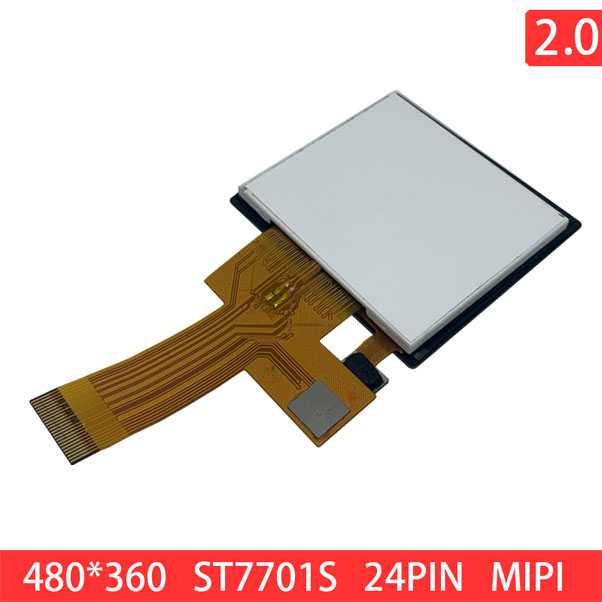

[a]https%3A%2F%2Fwww.exsontech.com%2Fproducts%2F2.0-inch-480-360-hvga-24pin-mipi-ips-250nits-tft-module-display.html[/a] <br>#hvga #tft <br>EX02002-A01 is a 2.0inch, IPS TFT LCD module with transmissive mode. Its resolution is 480×360dots (480 vertical by 360 horizontal pixel) and every pixel is made up of three vertical strips of Red, Green and Blue dots. This miniature 2.0 inch TFT module has built-in IC ST7701S supporting MIPI serial interface. The brightness is 250 cd/m2 with contrast ratio 1000:1.Operating temperature covers from -20℃~+70℃, storage temperature range is from -30℃~+80℃.This single-display module is suitable for use in industry, household appliances, toys and medical treatment,etc. <br> <br>General Specifications of 2.0 Inch 480x360 HVGA 24PIN MIPI IPS 250nits <br> <br>No. Item Specification <br>1 LCD size 2.0inch <br>2 Resolution 480(RGB)×360 <br>3 Active area 40.8(W)×30.6(H) <br>4 Module size 49.1(W)×45.96(H)×2.53(T)(Exclude FPC)mm <br>5 Interface MIPI1 <br>6 Polarizer Transmissive <br>7 Brightness 250cd/m2 <br>8 Pixel arrangement RGB vertical stripe <br>9 Back Light 450cd/m² <br>10 Viewing Direction All <br>11 Contrast Ratio 1000:1 <br> <br>As a professional china lcd module manufacturer, we provide china lcd display panel, dsi tft display, dsi tft, dsi lcd panel, mipi dsi lcd panel, mipi lcd panel, mipi tft, hvga lcd, hvga tft, etc. For more information, please feel free to contact us!
