Barrel Blasting Machines <br>Barrel blast shot blasting machines, also sometimes referred to as tumble blast machines or vibratory finishing machines, are another type of industrial machine used for cleaning and surface treatment of parts. They work by tumbling workpieces inside a rotating barrel chamber along with an abrasive media. <br> <br>Specification of Barrel Blasting Machines <br>Type BBM1500 <br>Productivity(t/h) 6 <br>Max. weight of single workpiece (kg) 40 <br>Max. length of single piece(mm) 500 <br>Diameter of drum(mm) Ø1500 <br>Effective volume(m³) 0.6 <br>Number of blast wheel 1 <br>Blast wheel power(kW) 30 <br>Max. Loading capacity(kg) 1500 <br> <br>How Does Barrel Blasting Machines Work? <br>Rotating Barrel Chamber: The core component is a cylindrical barrel chamber that rotates on a horizontal axis. This tumbling motion throws the parts against each other and the abrasive media, creating a cleaning and finishing action. <br> <br>Abrasive Media: The chamber is filled with an abrasive media, which can be steel shot, ceramic grit, or even organic media like walnut shells depending on the desired cleaning or finishing effect. <br> <br>Compound (Optional): In some cases, a liquid compound can be added to the blasting media to enhance the cleaning process or achieve a specific surface finish. <br> <br>#barrel#blast#shot#blasting#machine <br>[a]https%3A%2F%2Fwww.etsaindustry.com%2Fproducts%2Fbarrel-blast-shot-blasting-machine.html[/a]

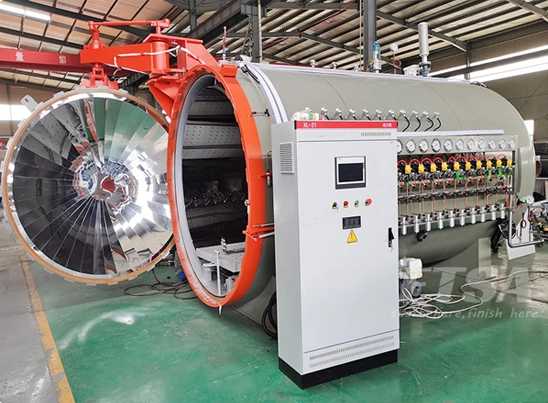

Carbon Fiber Industrial Composite Autoclave <br>Our industrial autoclave range includes a specialized pressure vessel designed exclusively for the production of composite materials. This carbon fiber autoclave, a top-selling item, is a pivotal tool in the manufacturing of composites. <br> <br>Composites, also known as composition materials, are created by combining two or more materials with distinct physical or chemical properties. This combination results in a material with unique characteristics that differ from its individual components. <br> <br>For the production of composites, the autoclave machine for carbon fiber by ETSA, one of leading autoclave machine manufacturers, stands as one of the most effective and widely used techniques. In this process, a two-sided mold set is assembled, forming both surfaces of the panel. This mold set is then placed within the industrial autoclave, where it is exposed to both the required elevated pressure and temperature. <br> <br>Manufacturers rely on these carbon fiber autoclave for sale to process and cure their composites. The high pressure and heat generated within the autoclave are crucial for achieving the desired fiber content in the final product. This ensures the production of composites with optimal properties and performance. <br> <br>Specification of Carbon Fiber Industrial Composite Autoclave <br>Model Effective Diameter Effective Length Design Temp. Design Pressure Pres. &amp; Depres. Rate Heating &amp; Cooling <br> Rate <br>ETSA-CA1850 1800 mm 5000 mm 250-400 °C 1.2-4.0 MPa 0-0.1 MPa/min 0.5-5 °C/min <br>ETSA-CA1860 1800 mm 6000 mm 250-400 °C 1.2-4.0 MPa 0-0.1 MPa/min 0.5-5 °C/min <br>ETSA-CA1880 1800 mm 8000 mm 250-400 °C 1.2-4.0 MPa 0-0.1 MPa/min 0.5-5 °C/min <br>ETSA-CA2030 2000 mm 3000 mm 250-400 °C 1.2-4.0 MPa 0-0.1 MPa/min 0.5-5 °C/min <br>ETSA-CA2040 2000 mm 4000 mm 250-400 °C 1.2-4.0 MPa 0-0.1 MPa/min 0.5-5 °C/min <br>ETSA-CA2060 2000 mm 6000 mm 250-400 °C 1.2-4.0 MPa 0-0.1 MPa/min 0.5-5 °C/min <br>ETSA-CA2080 2000 mm 8000 mm 250-400 °C 1.2-4.0 MPa 0-0.1 MPa/min 0.5-5 °C/min <br>ETSA-CA2550 2500 mm 5000 mm 250-400 °C 1.2-4.0 MPa 0-0.1 MPa/min 0.5-5 °C/min <br>ETSA-CA2560 2500 mm 6000 mm 250-400 °C 1.2-4.0 MPa 0-0.1 MPa/min 0.5-5 °C/min <br>ETSA-CA25100 2500 mm 10000 mm 250-400 °C 1.2-4.0 MPa 0-0.1 MPa/min 0.5-5 °C/min <br>ETSA-CA2880 2800 mm 8000 mm 250-400 °C 1.2-4.0 MPa 0-0.1 MPa/min 0.5-5 °C/min <br>ETSA-CA3050 3000 mm 5000 mm 250-400 °C 1.2-4.0 MPa 0-0.1 MPa/min 0.5-5 °C/min <br>ETSA-CA3060 3000 mm 6000 mm 250-400 °C 1.2-4.0 MPa 0-0.1 MPa/min 0.5-5 °C/min <br>ETSA-CA3080 3000 mm 8000 mm 250-400 °C 1.2-4.0 MPa 0-0.1 MPa/min 0.5-5 °C/min <br>ETSA-CA30100 3000 mm 10000 mm 250-400 °C 1.2-4.0 MPa 0-0.1 MPa/min 0.5-5 °C/min <br>ETSA-CA30120 3000 mm 12000 mm 250-400 °C 1.2-4.0 MPa 0-0.1 MPa/min 0.5-5 °C/min <br>ETSA-CA32100 3200 mm 10000 mm 250-400 °C 1.2-4.0 MPa 0-0.1 MPa/min 0.5-5 °C/min <br> <br>The Main Components Of Carbon Fiber Industrial Composite Autoclave <br>Carbon fiber autoclave equipment includes cylinder body parts, vacuumsystems, heating systems, pressurization systems, insulation systems, control systems, instrument monitoring parts, etc. <br> <br>The cylinder body parts: The cylinder body parts includes saddle bracket, tank doors, bent arms and brackets, docking flanges, and the straight cylinder part of the cylinder part. <br> <br>Heating system: The heating system uses a stainless steel electric heating tube with a specific power to heat the air inside the tank. There is a circulating fan at the rear of the tank, which blows the hot air inside the tank to evenly spread the heat. <br> <br>The pressurization system: The pressurization system uses high-pressure air for pressurization. Pre store a certain pressure of compressed air through a rated power air compressor and air storage tank. When in use, open the intake valve to supplement the pressure inside the autoclave. <br> <br>Insulation system: There are two types of insulation systems: external insulation and internal insulation. External insulation involves applying an insulation layer on the outer side of the pipe wall, while internal insulation involves building an insulation layer on the inner wall of the tank. These two insulation methods each have their own characteristics, and suitable insulation types can be selected according to different processing techniques. The insulation layer can reduce energy consumption and improve the efficiency of the composite autoclave <br> <br>Control system: Carbon fiber autoclave generally use a fully automatic PLC computer control system, which can monitor the temperature and pressure inside the tank in real time. The control system has a data export function, which can query historical working curves and generate reports. The control systemrequires high precision in controlling the temperature rise and fall rate, pressure rise and fall rate, and time point inside the tank. It generally has a relatively precise control range for temperature, pressure, and time. <br> <br>Loading trolley: Composite material prefabricated products need to be placed on the loading trolley inside the tank first, and then pushed into the tank through the trolley outside the tank. Both the loading trolley inside the tank and the trolley outside the tank are equipped with movable pulleys, which can facilitate and save effort in moving positions. After completing the work, drag the loading truck inside the tank onto the cart outside the tank, and use the cart to push the finished composite material products to the next working position. <br> <br>Benefit Of Carbon Fiber Industrial Composite Autoclave <br>As a type of autoclave equipment, the carbon fiber industrial composite autoclave offers numerous benefits that are crucial for manufacturers. Among these are its exceptional quality, safety features, ease of operation, precise control capabilities, and extended service life. These factors are paramount in the design and fabrication process of our industrial autoclaves. <br> <br>Our autoclave machines for carbon fiber are seamlessly integrated with a powerful controlling system, featuring interactive screens and multiple levels of security. This ensures smooth and efficient operation, while also safeguarding against any potential hazards. <br> <br>As a turnkey solution for large and highly productive units, our industrial composite autoclaves are designed with over 20 years of industrial expertise. We employ a professional modular manufacturing process and a specifically tailored computer control system. <br> <br>Safety is paramount, and our autoclaves are equipped with automatic controls for over-pressure and temperature protection, as well as door safety interlocks. This ensures a safe working environment for operators. <br> <br>Moreover, our carbon fiber autoclaves for sale are designed for high quality and energy efficiency, making them a cost-effective choice for manufacturers. We also offer customized installation services to meet the specific needs of our clients. <br> <br>In summary, the carbon fiber industrial composite autoclave offers a comprehensive solution for manufacturers, combining exceptional quality, safety, ease of operation, and extended service life. <br> <br>Typical Autoclave Applications of Carbon Fiber Industrial Composite Autoclave <br>Carbon fiber autoclave applications include aerospace structural products, medical tabletsaops and accessories, many ballistic / armor products, and high-performance structural components requiring high fiber fractions and high consolidation of materials. Since several different parts are processed simultaneously, autoclave processing can be used for cost-effective prototyping. <br> <br>Operation Process Of Carbon Fiber Industrial Composite Autoclave <br>Step 1: Preparation process. <br> <br>This mainly includes the preparation of tools and materials, including the preparation of main materials and auxiliary materials, quantity, validity period, and respective usage conditions. <br> <br>Step 2: Material paving process <br> <br>Cutting. Cut the main raw materials according to the design requirements in different sizes and layers, and use graphic analysis software to cut the prepreg into corresponding sizes. <br> <br>Layering. Including manual layering, automatic tow laying, automatic tape laying, and fiber winding, manual layering can manufacture almost any shape of composite materials. <br> <br>Compaction. Perform pre compaction treatment. <br> <br>Step 3: Curing preparation process. <br> <br>Including bagging of components, cutting and laying of auxiliary materials, etc. <br> <br>Step 4: Curing. <br> <br>Curing is a necessary step in the production of composite materials, including heating, compaction, and curing. Thermosetting resin reacts under certain curing conditions to form a three-dimensional network structure. <br> <br>Step 5: Detection. <br> <br>This includes visual inspection, ultrasonic or X-ray non-destructive testing, and quality testing of cured composite materials. <br> <br>Step 6: Finishing <br> <br>Trimming can be done using a planer, high-speed water cutting machine, or milling machine. For cured composite materials, there may be some flying edges or burrs, which can be trimmed by a planer or milling machine to meet the design requirements. <br> <br>Now the carbon fiber autoclave cost is reasonable, if you have needs, please contact us. <br>#carbon#fiber#autoclave#for#sale <br>[a]https%3A%2F%2Fwww.etsaindustry.com%2Fproducts%2Fcarbon-fiber-industrial-autoclave.html[/a]

Composite autoclaves are specialized pressure vessels designed to cure composite materials under precisely controlled conditions. With continuous advancements in efficiency, control, and speed, composite autoclaves for sale remain a cornerstone technology for innovation in the world of composite materials. <br> <br>Composite Autoclave Types <br>Carbon Fiber Industrial Composite Autoclave <br>Autoclave for Composite Curing <br>Laboratory Composite Autoclave <br> <br>The Advantages of Composite Autoclaves in Industrial Applications <br>Composite Autoclaves: Elevating Industrial Manufacturing with High-Performance Curing <br> <br>Composite materials have become game-changers in numerous industries due to their exceptional strength-to-weight ratio, design flexibility, and superior performance characteristics. However, unlocking the full potential of these materials relies heavily on the curing process. This is where composite autoclaves step in, offering a multitude of advantages over traditional curing methods in industrial applications. <br> <br>Superior Quality and Performance: <br> <br>Precise Pressure Control: Unlike ovens with limited pressure capabilities, composite autoclaves from ETSA, one of professional composite autoclave suppliers and composite autoclave manufacturers, can apply significantly higher and precisely controlled pressure. This ensures optimal compaction of laminate layers within the composite, eliminating air pockets (voids) and achieving complete resin flow and fiber wetting. These factors are paramount for achieving the desired mechanical properties, strength, and overall performance of the final composite part. <br> <br>Uniform Heating Throughout: Composite autoclaves for sale guarantee consistent and uniform heat distribution across the entire composite structure, regardless of its size or complexity. This even heat distribution is crucial for attaining consistent material properties throughout the part, eliminating inconsistencies and potential weak points. <br> <br>Environmental protection and energy saving: The autoclave molding process does not use harmful substances such as solvents and paints, which has the advantages of environmental protection and energy saving. <br> <br>The Key Uses of Composite Autoclaves <br>Curing High-Performance Composites: These small composite autoclaves are essential for curing advanced composite materials like carbon fiber and Kevlar. The high pressure ensures optimal compaction of the laminate layers, eliminating air pockets and achieving complete resin flow for maximum strength and performance. <br> <br>Aerospace Industry: As one of autoclave machine types, the composite autoclaves are heavily relied upon in aerospace manufacturing to create high-performance aircraft parts like wings, fuselages, and control surfaces. These parts require a perfect balance of strength, lightweight properties, and dimensional accuracy, which autoclaves help achieve. <br> <br>Automotive Industry: The automotive industry utilizes composite autoclaves to produce lightweight and high-strength components for cars, trucks, and racing vehicles. This translates to improved fuel efficiency, performance, and overall handling characteristics. <br> <br>The process of autoclave molding includes the following: <br>Mold preparation <br> <br>Cutting and stacking <br> <br>Combination and bagging <br> <br>Hot press curing <br> <br>Can stripping <br>#composite#autoclave#suppliers <br>[a]https%3A%2F%2Fwww.etsaindustry.com%2Fproducts%2Fcomposite-autoclave%2F[/a]

A crawler type shot blast cleaning machine, also known as a tumble belt shot blasting machine or rubber belt shot blasting machine, is designed for the efficient and uniform surface treatment of bulk quantities of small to medium-sized workpieces. This type of machine is particularly well-suited for removing rust, scale, sand, and burrs from various parts; preparing surfaces for painting, coating, or plating; and even shot peening to increase fatigue strength. It is commonly used in industries such as foundry, forging, automotive, and metal manufacturing. <br> <br>Tumblast Machine &amp; Barrel Blasting Machines Types <br>Tumble Belt Shot Blasting Machine <br>Barrel Blasting Machines <br> <br>Benefits of Crawler Shot Blasting Machines <br>Efficient Cleaning of Large Workpieces: They are ideal for blasting large, heavy, or oddly shaped parts that wouldn&#039;t fit well in traditional blasting cabinets. The continuous movement on the crawler track ensures all surfaces are exposed to the abrasive media for uniform cleaning. <br> <br>Improved Productivity: The continuous processing nature of these machines allows for faster blasting of large workpieces compared to manual methods or using smaller blasting cabinets. <br> <br>Reduced Labor Costs: Automating the blasting process with a crawler machine minimizes reliance on manual labor for handling heavy pieces, potentially lowering overall production costs. <br> <br>Versatility: Some shot blasting machine crawler type offer adjustable track speeds and blast intensity settings to accommodate a variety of workpiece sizes and cleaning requirements. <br> <br>Function of Crawler Shot Blasting Machine Industrial Sandblasting Equipment <br>Continuous Blasting: Unlike blast cabinets where blasting stops for loading/unloading, crawler shot blasting machines offer a more continuous process. Workpieces are placed on a caterpillar track (hence the name &quot;crawler&quot;) that moves them steadily through the blasting chamber. This allows for efficient processing of large or heavy pieces. <br> <br>Multiple Blast Wheels: Strategically positioned blast wheels within the chamber bombard the workpieces with abrasive media as they travel on the crawler track. This ensures thorough cleaning of all surfaces, even on complex-shaped objects. <br> <br>Durable Construction: These machines are built to handle the weight and potential impact of large workpieces. They typically feature robust construction materials and heavy-duty components for reliable operation in demanding environments. <br>#crawler#type#shot#blast#cleaning#machine <br>[a]https%3A%2F%2Fwww.etsaindustry.com%2Fproducts%2Fcrawler-shot-blasting-machine%2F[/a]
