[a]https%3A%2F%2Fwww.vxolinearmotion.com%2Fproducts%2Ftapered-roller-bearings%2F[/a] <br>#linear #motion #control #systems <br>Tapered roller bearing, which is produced by VXO cam roller bearings, a tapered roller bearing supplier, have tapered inner and outer ring raceways and are configured with tapered rolling elements. This design can withstand the simultaneous action of combined axial and radial loads. The followings are the dual tapered roller bearings for sale. <br> <br>Key Features of Tapered Roller Bearing <br>Low friction - The roller end face and the baffle are optimally designed, and the baffle guide surface is polished to reduce its roughness, thus promoting the formation of lubricating oil film and reducing friction. It also reduces the wear of the retaining edge. Preload is better maintained and noise levels during operation are reduced. <br> <br>Long service life - Optimized design of the outer surface profile of the rolling element with convexity or logarithmic curve shape can optimize the load distribution between the contact surface of the raceway surface and the rolling element, avoiding the generation of edge stress at both ends of the rolling element. And it can reduce the sensitivity of the bearing to misalignment error and shaft deflection. <br> <br>Improve bearing reliability - THB flange mounted tapered roller bearings raceway and rolling body surface profile are optimized and finely machined to ensure a lower surface roughness. It is more conducive to the formation of lubricating oil film when working. Thus improving the overall performance and reliability of the bearing. <br> <br>Easy to install - Separable and interchangeable bearing parts are more convenient for installation, disassembly and maintenance. <br> <br>Taper Roller Bearing Advantages <br>Can bear the combined bearing and radial load <br>Low friction, low noise, low vibration, longer life <br>Separable and interchangeable parts for easier installation, disassembly and maintenance <br> <br>Tapered Roller Bearing VS Ball Bearing <br>Angular contact ball bearing can withstand a large speed and a certain axial force. <br> <br>The taper roller bearings bear lower speed than the former, and bear greater axial force than the former. <br> <br>Tapered Roller Bearing Types <br>Tapered roller bearings are separable bearings. Both the inner and outer rings of the bearing have tapered raceways. This type of bearing is divided into single row, double row and four harga tapered roller bearing according to the number of columns of rolling elements. <br> <br>Generally, the tapered angle of the outer ring raceway of a single row tapered roller bearing is between 10° and 19°, which can bear the combined action of axial load and radial load at the same time. The greater the cone angle, the greater the ability to withstand axial load. Bearings with large taper angle, add B to the rear code, and the taper angle which is between 25° and 29°can bear larger axial loads. In addition, single row tapered roller bearings can adjust the size of the clearance during the installation process. <br> <br>The cup (or cone) of a high speed tapered roller bearings is a whole unit, integrated. The small end faces of the two cones (or cups) are opposite, with a spacer in the middle. The clearance is adjusted by the thickness of the spacer. The thickness of the spacer can also be used to adjust the preload of the double row tapered roller bearing. <br> <br>The performance of small tapered bearings is basically the same as that of double row tapered roller bearings, but it bears a greater radial load than stainless steel tapered roller bearings and has a slightly lower limit speed. It is mainly used for heavy machinery. <br> <br>Tapered Roller Bearing vs Cylindrical Roller Bearing <br>Tapered roller bearings and cylindrical roller bearings have similar names, and both belong to separable bearings, but they are quite different. <br> <br>Bearing capacity: When cylindrical roller bearings have no ribs or retaining rings, they can only bear radial force; stainless tapered roller bearing can bear radial force and axial force; but they are generally used in the form of bearings with double row or more rows. Double row cylindrical roller bearings can withstand larger radial forces, but no axial forces. In addition to the radial force, the one with a single retaining ring can also withstand the axial force of one side, and the one with double retaining rings can not only bear the radial force, but also bear the axial force of both sides. Double-row and multi-row surplus timken bearings can withstand radial forces as well as axial forces on both sides. <br> <br> <br>Running speed: The speed of single row cylindrical roller bearings is the best. Whether they are double row cylindrical roller bearings, cylindrical roller bearings with single ribs, or cylindrical roller bearings with retaining rings, their limiting running speeds are faster than tapered roller bearings. <br> <br>Accuracy: Generally, the accuracy of single-row and double-row cylindrical roller bearings is better than that of single row tapered roller bearings. Compared with other types of bearings, cylindrical roller bearings and tapered roller bearings have lower accuracy. <br> <br>Noise: Among them, the single row cylindrical roller bearing has the lowest noise. <br> <br>These differences determine their different working environments. If you want to choose the most suitable bearing, you need to know enough about the characteristics of the bearings. <br> <br>The N type and NU type can move axially, can adapt to the chan <br> <br>For more information about linear motion control systems and linear guides and bearings, please feel free to contact us!

[a]https%3A%2F%2Fwww.vxolinearmotion.com%2Fproducts%2Fsquare-nut%2F[/a] <br>#linear #motion #systems <br>Square type single Nut <br> <br>The Square Nut is finished with a large mounting face paraller to the Nut center. <br> <br>Nut itself has Housing function. This allows for a more compact design compared to Flange type. <br> <br>Stability in the Low-speed Range <br> <br>With this nut, the motor can be connected independently with the screw shaft and the ballnut, thus to allow micro feeding within the motor&#039;s stable rotation range. <br> <br>Smooth Motion <br> <br>It achieves smoother motion than rack-and-pinion based straight motion. <br> <br>Low Noise even in High-speed Rotation <br> <br>This nut produces very low noise when the balls are picked up along the end cap. <br> <br>High Rigidity <br> <br>The support bearing of this model is larger than that of the screw shaft rotational type. <br> <br>Compact <br> <br>Since the nut and the support bearing are integrated, a highly accurate, and a compact design is achieved. <br> <br>Easy Installation <br> <br>By simply mounting this model to the housing with bolts, a Square Nut rotating mechanism can be obtained. <br> <br>For more information about linear motion systems and high speed linear bearings, please feel free to contact us!

[a]https%3A%2F%2Fwww.vxolinearmotion.com%2Fproducts%2Fspherical-roller-bearings%2F[/a] <br>#linear #motion #systems <br>Self-aligning roller bearings can adapt to the severe environment and working condition, are mainly designed to bear very heavy radial loads and heavy axial loads, have extremely high impact load resistance, and can realize full-capacity load through self-aligning functions thereof in the case that an installation axes are misaligned. <br> <br>In outer rings of the cam roller bearings, two rows of rollers have a common spherical raceway. Thus, they can be automatically aligned in a wide range of swing angles and can accept axis alignment errors within a certain range. <br> <br> <br>Spherical Rolling Bearing Types <br>As a spherical ball bearing supplier in China, VXO offers two types of sphere roller bearing, symmetrical and asymmetrical, according to the cross-sectional shape of the rollers. Asymmetric spherical roller bearings are an early product and are mainly used for machine maintenance service. <br> <br>Spherical roller bearings are divided into cylindrical bore and tapered bore. Tapered bore taper is 1:12, suffix code is K spherical roller bearing, 1:30 suffix code is K30 spherical roller bearing. When this type of bearing is combined with a tapered shaft, the inner ring can be moved axially to adjust the radial clearance of the bearing. <br> <br>The installation of Spherical Roller Bearing <br>Spherical roller bearings are equipped with drum-shaped roller bearings between the inner ring with two raceways and the outer ring with spherical raceways. The curvature center of the outer ring raceway surface is consistent with the bearing center, so it has the same centering function as the self-aligning ball bearing. When the shaft and housing are deflected, the load and the axial load in two directions can be adjusted automatically. Large radial load capacity is suitable for heavy load and shock load. Spherical roller bearings whose inner diameter is a tapered bore can be directly installed. Or an adapter sleeve or withdrawal sleeve can be used to install it on the cylindrical shaft. The cage uses a steel stamping cage, a polyamide forming cage and a copper alloy car cage. <br> <br>For self-aligning spherical roller bearings, the use of a middle mounting ring can prevent the outer ring from tilting and rotating when installing the bearing with the shaft into the box shaft hole. It should be remembered that some sizes of self-aligning ball bearings have balls protruding from the side of the bearing, so the middle mounting ring should be recessed to prevent damage to the balls. A large number of bearings are generally installed by mechanical or hydraulic press-in method. <br> <br>For split roller bearings, the inner ring and the outer ring can be installed separately, which simplifies the installation process, especially when the inner and outer rings require interference fit. When installing the shaft with the inner ring in place into the bearing box that already contains the outer ring, care must be taken to check whether the inner and outer rings are correctly aligned to avoid scratching the bearing raceways and rolling parts. If cylindrical and needle roller bearings use inner rings without flanges or inner rings with flanges on one side, it is recommended to use mounting sleeves. The outer diameter of the sleeve should be equal to the inner ring raceway diameter F, and the tolerance standard for machining should be d10. <br> <br>As a linear motion manufacturer, we provide linear motion parts, spherical roller bearing self aligning, spherical roller bearing pillow block, double row spherical bearing, bearing roller spherical, linear motion systems, etc. For more, please feel free to contact us!

[a]https%3A%2F%2Fwww.vxolinearmotion.com%2Fproducts%2Fsingle-row-angular-contact-ball-bearing%2F[/a] <br>#linear #motion #control <br>VXO single row angular contact ball bearing can accommodate axial loads in one direction only. This type of bearing is typically adjusted against a second bearing. Their bearing rings have an upper and a lower shoulder and are non-separable. <br> <br>Features Of Single Row Angular Contact Ball Bearing <br>Less axial space <br>Can be used for applications where two single row angular contact bearing arranged back-to-back take up too much axial space. <br>Accommodates radial as well as axial loads in either direction <br>Accommodates tilting moments <br>Stiff bearing arrangement <br> <br>For more information about linear motion control and motion control systems, please feel free to contact us!

[a]https%3A%2F%2Fwww.vxolinearmotion.com%2Fproducts%2Froller-bearings%2F[/a] <br>#motion #control #systems <br>A roller bearing is one of the two types of rolling, or anti-friction bearings, the other being the ball bearing. A roller bearing has two grooved tracks, but instead of balls, roller bearings utilize rollers. The rollers may be cylindrical, spherical or tapered. If the rollers are cylindrical, only radial loads (perpendicular to the axis of rotation) can be carried, but with tapered or spherical rollers both radial and thrust loads can be carried. In a given space, a roller bearing can carry a greater radial load than a ball bearing can. This is because convex roller bearings utilize line contact to support loads, whereas ball bearings utilize point contact. Roller bearings are available in a wide array of bore sizes, from 15mm to 1000mm and larger are not uncommon. For more linear motion bearing direct from linear bearing manufacturers, contact us. <br> <br>Use of Roller Bearing <br>Roller bearings are used in all main shaft and auxiliary drive shaft applications to support pure radial load. Our different types of roller bearings include angular roller bearings, spiral roller bearings, and sleeve roller bearings perfectly satisfies any requirement. <br> <br>They allow for axial shaft elongation due to temperature changes with no additional load effect on the bearing. <br> <br>The primary use of roller bearings is to support rotating shafts and reduce friction between moving parts. They can handle both radial and axial loads, making them suitable for applications that require high precision, speed, and reliability. <br> <br>Bearing Roller Material <br>The material used for bearing rollers depends on the application and the desired properties of the bearing. Common materials include: <br> <br>1. Steel - Steel is a popular choice for bearing rollers due to its strength, durability, and resistance to wear and corrosion. It can be used in a wide range of applications, including industrial machinery, automotive components, and aerospace systems. <br> <br>2. Ceramic - Ceramic rollers are known for their high temperature resistance, low friction, and excellent wear resistance. They are often used in high-speed and high-temperature applications, such as in turbines and jet engines. <br> <br>3. Plastic - Plastic rollers are lightweight, corrosion-resistant, and have low friction. They are often used in applications where noise reduction is important, such as in conveyor systems. <br> <br>4. Carbon - Carbon rollers are lightweight, have high strength, and are resistant to wear and corrosion. They are often used in high-performance applications, such as in racing cars and bicycles. <br> <br>5. Hybrid - Hybrid rollers are made from a combination of materials, such as ceramic and steel, to achieve a balance of properties. They are often used in applications where high performance is required, such as in high-speed spindle bearings. <br> <br>Applications Of Roller Bearings <br>As motion control products, roller bearings are an essential component of many machines and devices used in various industries. Roller bearings are used in a wide range of applications, from heavy equipment and machinery to power generation, manufacturing, and aerospace. They are used to reduce friction between moving parts, increase load capacity, and improve overall efficiency. Here are some of the most common applications of roller bearings: <br> <br>Automotive industry: Roller bearings are used in car engines, transmissions, and other components to reduce friction, improve performance, and increase durability. <br> <br>Aerospace industry: Roller bearings are used in aircraft engines, landing gear, and other critical components where high precision and reliability are essential. <br> <br>Industrial machinery: Roller bearings are used in various types of industrial machinery, including conveyors, printing presses, and machine tools, to reduce friction and increase efficiency. <br> <br>Wind turbines: Roller bearings are used in wind turbine generators to support the rotor shaft and increase efficiency. <br> <br>Medical equipment: Roller bearings are used in medical equipment such as CT scanners and X-ray machines to reduce friction and increase precision. <br> <br>Construction equipment: Roller bearings are used in construction equipment such as cranes, excavators, and bulldozers to support heavy loads and improve maneuverability. <br> <br>Railroad industry: Roller bearings are used in trains and railcars to support the weight of the train and reduce friction between the wheels and the track. <br> <br>Power generation: Roller bearings are used in power generation equipment such as turbines and generators to support heavy loads and reduce friction. <br> <br>Overall, roller bearings are used in a wide range of applications where reducing friction, increasing load capacity, and improving efficiency are essential. <br> <br>As a linear motion manufacturer, we provide linear motion bearing, concave rollers with bearings, cartridge roller bearing, cam yoke roller bearing, cam with a roller follower, cam follower interchange, motion control systems, etc. For cam follower bearing types and cam follower bearing price, please feel free to contact us!

[a]https%3A%2F%2Fwww.vxolinearmotion.com%2Fproducts%2Fprecision-cylindrical-roller-bearings%2F[/a] <br>#cylindrical #roller #bearing <br>These bearings are therefore particularly well suited for machine tool spindles where the high precision ball bearings arrangement must accommodate heavy radial loads and high speeds, while providing a high degree of stiffness. <br> <br>VXO super-precision single row cylindrical roller bearing have a higher speed capability than double row bearings while double row bearings are more suitable for heavier loads. <br> <br>Features of Precision Cylindrical Roller Bearings <br>High speed capability <br>High radial load carrying capacity <br>High rigidity <br>Low friction <br>Low cross-sectional height <br> <br>For more information about linear motion control systems, please feel free to contact us!

[a]https%3A%2F%2Fwww.vxolinearmotion.com%2Fproducts%2Fprecision-bearings%2F[/a] <br>#linear #motion #components <br>Super Precision Bearings <br>High precision bearings are utilized in applications where superior accuracy, reliability of operation, high running speeds, long life, rigidity and limiting of noise and vibration are critical. Super precision ball bearings are utilized on machine tools, such as turning centers, milling, grinders, machining centers and to support linear screw. Other super precision bearings applications include aircraft, medical equipment and robotics. For more linear motion bearing direct from linear bearing manufacturers, contact us. <br> <br>How Are Precision Bearings Made? <br>Standard ezo precision ball bearings generally use stamped steel cages. <br> <br>Extra bl precision bearings, on the other hand, use cages made from stainless steel, bronze, or phenolic— Cages made from these materials offer higher speeds and better loading capabilities. <br> <br>What Is A Precision Bearing Used For? <br>With high running accuracy, high-speed performance and high system rigidity, SKF super-precision bearings are ideal for machine tools and other precision applications such as rolling mills, racing cars and marine vessels. The bearings also minimize noise, vibration and heat generation. <br> <br>As a super precision bearings srl, we provide masta precision housing, beemer bearings, ceramic precision balls, linear motion components, etc. For more information, please feel free to contact us!

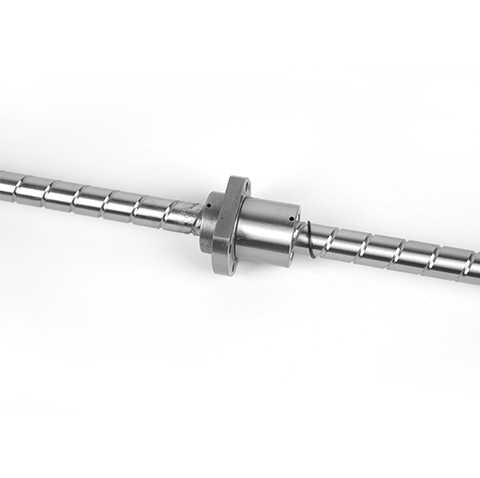

[a]https%3A%2F%2Fwww.vxolinearmotion.com%2Fproducts%2Fprecision-ball-screw%2F[/a] <br>#linear #motion #products <br>VXO precision ball screw are ideal for large fabrication machines in injection molding, pressing and metal fabrication. They move heavy loads in horizontal and vertical axes accurately and safely, while providing long and reliable life with minimum maintenance. Our standard portfolio contains sizes up to 160 millimeters in diameter with a maximum dynamic load of up to 1,440 kN. VXO also has the capability to customize these ball screw nut assembly according to your specific application requirements. <br> <br>If you need any kinds of medical linear motion products, please contact us, as a professional linear motion manufacturer, VXO is willing to offer you high quality products.
