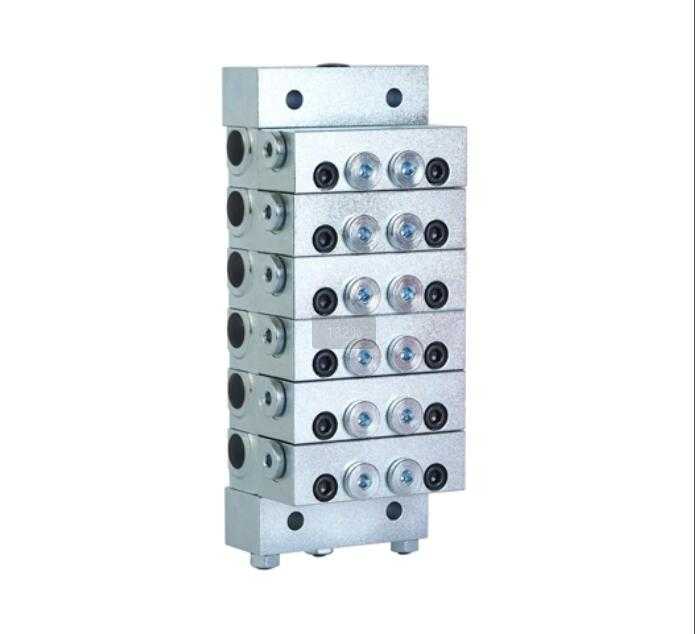

#device <br>[a]https%3A%2F%2Fwww.cisolube.com%2Fproducts%2Fvsp-distributor-valve.html[/a] <br>VSP modular distributor valve can ensure accurate lubrication, and is suitable for all kinds of harsh conditions, is a perfect lubricant distributor solution. <br> <br>The divider consists of two main parts: <br> <br>THE BASE (consisting of a minimum of three elements) <br> <br>THE METERING VALVES (available with both a single outlet as well as a double one) <br> <br>To maximize the performance of the plant, it is crucial to use electrical monitoring elements that detect malfunctioning or system blockage. <br> <br>Thanks to its modularity, the system can be easily expanded and replacement of metering elements can occur without removing the pipework, thereby guaranteeing low maintenance costs. The modularity of the dividers furthermore allows you to bundle lubrication points according to system requirements. <br> <br>Typical applications: automobile, industrial, equipment, wind power, construction machinery, etc. <br> <br>Modular overall supply, save assembly time for customers. <br> <br>Stainless steel is available. <br> <br>Characteristics of VSP grease metering device <br>Three kinds of thread are available: R, NPT, BSPP <br>Nickel-plated steel <br>Oil-NLGI 2 <br>FKM O RING <br>CE certification

#metering <br>[a]https%3A%2F%2Fwww.cisolube.com%2Fproducts%2Fvl-1-metering-valves.html[/a] <br> <br>The VL-1, VL-1X series metering devices are for single-line, high-pressure centralized lubrication systems dispensing lubricants compatible with flouroelastomer packings and viscosity up to NLGI 2. Output is externally adjustable. An indicator pin permits visual check of metering device operation. Individual metering devices can be removed easily for inspection or replacement. <br> <br>Characteristics of VL-1 grease metering valve <br>Shipped with manifolds from 1 to 6 ports (lubrication points) <br>Output is externally adjustable <br>Each indicator pin permits visual check of injector operation <br>Individual metering devices can be removed easily for inspection or replacement <br>Includes fitting for feed lines via alternate outlet port

#System <br>[a]https%3A%2F%2Fwww.cisolube.com%2Fproducts%2Fsingle-line-lubrication-system%2F[/a] <br>The automatic single-line lubrication system is the most widely spread total loss lubrication system in the general engineering field. <br> <br>Small quantities of oil or fluid grease are fed intermittently in the desired cycle time of the lubrication point. Example 5 to 1000 mm³ dosing volume, to 25 bar pressure at lubrication point, for a pump pressure of 25 to 150 bar. <br> <br>Characteristic of Automatic Single Line Lubrication System <br>Connecting numerous lubrication points <br>Smallest dosing quantities <br>Compact construction <br>For oil or grease <br>Cost-effective <br>Easy assembly <br>Custom centralized grease lubrication system

#lubrication <br>[a]https%3A%2F%2Fwww.cisolube.com%2Fproducts%2Fprogressive-lubrication-system%2F[/a] <br>This automatic progressive lubrication system sequentially dispenses lubricant to various points. It&#039;s ideal for machines with many lubrication points and ensures precise lubrication distribution. <br> <br> <br> <br>This centralized progressive lubrication systems, designed with advanced technology, sequentially dispenses lubricant to various points in a machine. Central progressive lubrication system is an ideal solution for machines that have numerous lubrication points, such as industrial machinery or heavy-duty vehicles. The automatic progressive lubrication systems ensure precise lubrication distribution, which is crucial for the smooth operation and longevity of the machine. Central progressive lubrication systems reduce the risk of over or under lubrication, which can lead to mechanical failures or unnecessary wear and tear. Furthermore, centralized progressive lubrication systems also save time and resources by automating the lubrication process, eliminating the need for manual lubrication. This series progressive lubrication system is not only efficient but also contributes to the overall maintenance and performance of the machine. Cisolube centralized grease lubrication system is a reliable and cost-effective solution for maintaining optimal lubrication in complex machinery. <br> <br>Characteristic of Automatic Progressive Lubrication Systems <br>Compact, flexible kit <br>Monitored function <br>Channels flow through completely <br>CISO Progressive Lubrication Systems have wide range of use <br>CISO Progressive Lubrication Systems have integrated return valve inside <br>CISO Progressive Lubrication System Components <br>Lubricating pumps <br> <br>A —GT lubrication pump <br>B —GM lubrication pump <br> <br>1 —Outlet relief valve elements <br>2 —Main line <br>3 —Filter <br>4 —pressure switch <br>Grease distributor <br>5 —progressive distributor（1generation） <br>6 —progressive distributor（2generation） <br>7 —progressive distributor（2generation） <br>8 —progressive distributor（3generation） <br>9 —Function control <br>10 —Fault Monitoring <br>11 —Pipes and hoses <br>12 —Line to the lubrication point <br>13 —Controller

#lubrication <br>[a]https%3A%2F%2Fwww.cisolube.com%2Fproducts%2Flubrication-pump%2F[/a] <br>CISO’s Lubrication Pump is a high-quality, reliable solution for maintaining optimal machinery performance. Engineered with precision, auto lubricating pump ensures consistent and efficient lubrication, reducing wear and tear and extending machinery lifespan. Auto grease pump&#039;s robust design and user-friendly operation make it an essential tool for various industries. With CISO&#039;s Lubrication Pump, you can expect improved productivity and reduced maintenance costs. <br> <br>Design And Advanced Solutions of Lubrication Grease Pumps <br>Oil and grease <br>Multiple grease filling ways <br>Powerful centralized grease lubrication system <br>CE Certification <br>Design patent <br>With special materials, to achieve excellent anti-shock ability <br>Special design of pump make it easy to observe the oil level and prevent oil deterioration. With low liquid level alarm, flashing buzzer. Also can choose the type of output <br> <br>Maintenance of Lubrication Grease Pumps <br>Impermeability of the system and the container fill level must be checked at regular intervals. A fault occurs if the circulation control has not responded within the monitoring time. <br> <br>Reasons: <br>a) Container or barrel empty. <br>b) Pump not ventilated or defective. <br>c) System blocks at high pump pressure. <br> <br>Lubrication line closed <br>Lubrication point or its channel closed <br>Outlet on the progressive distributor closed <br> <br>Unauthorised <br>Piston in the progressive distributor fits tightly (bracing, contamination) <br>Channel within the progressive distributor closed due to contamination. <br>All pistons of a progressive distributor are at centre position. <br> <br>In case the system is blocked, fault may occur at any location in the system. There is overpressure at the blocked location, which is signalled to the relevant pressure indicator by a protruding pin. Source of fault can thus be localised on a secondary distributor <br> <br> <br>For more information about lubrication pump price, please feel free to contact us!

#electric <br>[a]https%3A%2F%2Fwww.cisolube.com%2Fproducts%2Fgts-single-line-lubrication-pump.html[/a] <br>GTS pump is a electric grease pump predisposed to operate with a maximum of one pumping unit. Its design is particularly suitable for single-line systems. <br> <br>There are two model modes: <br> <br>Standard: can be managed by an external PLC. Since it does not come with an internal control unit, this is the most economic solution for lubricating your systems. <br> <br>Automatic: With integrated control system, which can be set up local running time. Equipped with local operation and alarm light, alarm with buzzer, provide low level and pulse alarm, which can be combined with the monitor of distributor units into a perfect operating system. <br> <br>Characteristics of GTS Single Line Lubrication Pump <br>oil and grease <br>Reservoirs: 2L/4L/6L/8L <br>Voltages: 12VDC/24VDC/220V <br>Multiple grease filling ways <br>Powerful centralized control system <br>CE Certification <br>Design patent <br>IP65

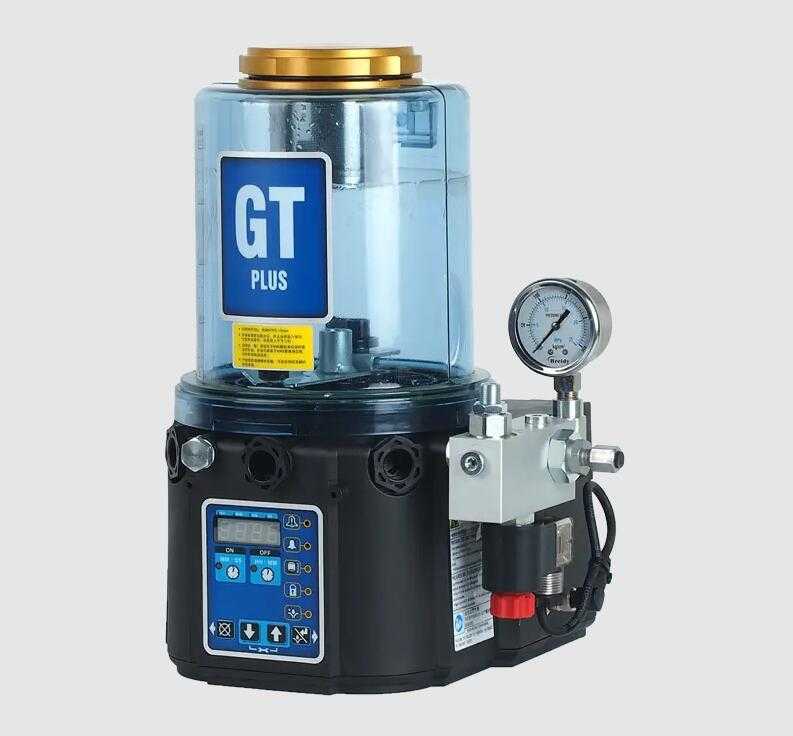

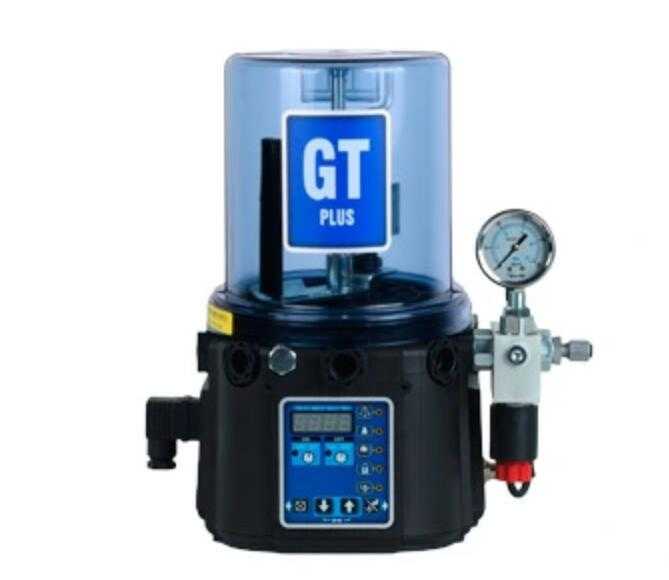

#Lube <br>[a]https%3A%2F%2Fwww.cisolube.com%2Fproducts%2Fgt-plus-progressive-auto-lubrication-pump.html[/a] <br> <br>GT PLUS automatic lube pump is a piston pump predisposed to operate with a maximum of five pumping units. Its design is particularly suitable for progressive systems or single-line systems. <br> <br>Five independent line lubrication at the same time. <br> <br>Output can be combined and increase displacement. <br> <br>With special materials, to achieve excellent anti-shock ability. <br> <br>Special design of pump make it easy to observe the oil level and prevent oil deterioration. With low liquid level alarm, flashing buzzer. Also can choose the type of output. <br> <br>Standard: automatic lube pump can be managed by an external PLC. Since it does not come with an internal control unit, this is the most economic solution for lubricating your systems. <br> <br>Automatic: With integrated control system, which can be set up local running time. Equipped with local operation and alarm light, alarm with buzzer, provide low level and pulse alarm, which can be combined with the monitor of distributor units into a perfect operating system. <br> <br>Characteristics of GT PLUS Progressive Automatic Lube Pump <br>Pump oil and grease <br>RESERVOIRS: 2/4/6/8/12L <br>VOLTAGES: 12VDC/24VDC/90-240VAC <br>Multiple grease filling ways <br>Powerful centralized control system <br>CE Certification <br>Design patent <br>IP65 <br> <br>Progressive Auto Lube Pump Solutions <br>Cisolube Progressive Lubrication Pump Solutions provide advanced lubrication for a variety of industrial applications, enhancing efficiency and reliability across different sectors. In agricultural machinery, these automatic lube pumps ensure optimal lubrication of moving parts, reducing wear and extending equipment life. For construction machinery, automatic lube pumps offer consistent and precise lubrication, vital for maintaining performance under heavy loads and harsh conditions. In the petroleum industry, Cisolube automatic lube pumps deliver robust lubrication solutions, minimizing downtime and maintenance costs in critical operations. Wind power equipment also benefits from these automatic lube pumps, as they ensure smooth and reliable operation of turbine components, crucial for energy production. Cisolube automatic lube pumps are designed for high performance and durability, making them an essential component in maintaining the operational efficiency and longevity of machinery across these diverse fields.

#Pump <br>[a]https%3A%2F%2Fwww.cisolube.com%2Fproducts%2Fgt-max-single-line-lubrication-pump.html[/a] <br> <br>GT-MAX AUTOMATIC PUMP is an ideal small and medium grease pump. CISO&#039;S GT-MAX can be used in Single line lubrication system. <br> <br>Single line lubrication system: 10MPa 10ml/min <br> <br>The outlet pressure gauge module GT-Max is compact in appearance and can be supplied with a oil pan for circulating fat filling or a pre-filled grease is optional. <br> <br>Characteristics of GT-Max Single Line Lube Grease Pumps <br>Compact design <br>For use in Single-line lubrication systems <br>Operating preasure: 10MPa <br>Chinese and english control system <br>CE certification <br> <br>Single Line Lube Grease Pump Solutions <br>Cisolube Single Line Lube Grease Pump Solutions are designed to deliver precise and efficient lubrication for automation equipment and machine tool equipment. In automation, these lube grease pumps ensure seamless and consistent lubrication, enhancing the performance and reliability of robotic systems and automated processes. For machine tool equipment, lube grease pumps provide accurate grease distribution to critical components, reducing wear and extending the lifespan of tools and machinery. Their single-line design simplifies installation and maintenance, making them an ideal choice for high-demand industrial environments where reliability and ease of use are paramount.
