#telecom #cable #connectors <br>With a rated voltage of 600V AC/DC power supply and 60V AC/DC signal, this connector is versatile and efficient. Its mechanical characteristics include an overall insertion force of ≤150N and an overall pull-out force of ≥30N, ensuring secure connections. Made with high-quality materials and surface treatments that comply with RoHS requirements, the 141095 Electrical Connector guarantees durability and safety. Store this telecommunication connector in a dry, moisture-proof, dust-proof, and mildew-proof packaging box in a temperature-controlled warehouse. Don&#039;t miss out on this reliable and long-lasting connector from Yonggui. <br> <br>The Details of 141095 Electrical Connector <br>141095-JL-S (5+24) R Receptacle (Empty seat, no contact) <br> <br>The Details of 141095 Electrical Connector <br>141095 Socket Assembly Φ5.75-4AWG- Silver <br> <br>The Details of 141095 Electrical Connector <br>141095 socket <br> <br>The Details of 141095 Electrical Connector <br>141095-JL-P (5+12) PW Plug <br> <br>The power contact is fully installed, and the signal contact is installed in 3 columns. Signal socket assembly hole: 1, 2, 6, 7, 8, 12, 13, 14, 18, 19, 20, 24. <br> <br>The Details of 141095 Electrical Connector <br>141095-JL-P (5+10) PW Plug <br> <br>The power contact is fully loaded, and the signal contact is shown in the figure. Signal jack assembly hole: 1, 5, 6, 7, 12, 13, 18, 19, 20, 24. <br> <br>The Details of 141095 Electrical Connector <br>141095-JL-P (5+16) PW Plug <br> <br>The power contact is fully installed, and the signal contact is installed in 4 columns. Signal jack assembly hole: 1, 2, 5, 6, 7, 8, 11, 12, 13, 14, 17, 18, 19, 20, 23, 24. <br> <br>Specifications of 141095 Electrical Connector <br>Electrical parameter Rated voltage 600V AC/DC Power supply, 60V AC/DC Signal <br> Rated current 100A Power supply；2A Signal <br> Contact resistance ≤0.75mΩ Power supply; ≤15mΩ Signal <br> Insulation resistance ≥5000 MΩ <br> Withstand voltage Between power contacts and between power contacts and signal contacts)3000V AC/Minute, Signal contact between components 500V AC/Minute <br>Mechanical characteristic Overall insertion force ≤150N Fill all contacts <br> Overall pull-out force ≥30N Fill all contacts <br> Mechanical life ≥200times <br>Working environment temperature -40℃～+125℃ <br> humidity 95%RH（40°C) <br> Vibration 10-2000Hz, acceleration)147m/s², Instant break)≤1us <br> strike acceleration)490m/s², Instant break)≤1us <br>Materials and surface treatment, etc. insulator PBT+30%GF, BLACK, UL94V-0 <br>Hazardous substances comply with RoHS requirements Power contact Copper alloy, silver plated <br> Signal contact Copper alloy, tin plating <br> Gear sleeve Copper alloy <br> <br>141095 Electrical Connectors Storage Condition <br>The packaging box containing the product should be packed in a dry, moisture-proof, dust-proof and mildew-proof packaging box. Products need to identify the product number Code, name, production date, inspection seal and other information. The packaged products should be placed in an ambient temperature of -10~+40°C. Store in a warehouse with a humidity below 80% RH and no acidic, alkaline or other corrosive gases in the surrounding air. in the above Under the conditions, the storage period shall not exceed two years from the date of production. <br> <br>If you want to know more types of telecom cable connectors, please visit our website. <br> <br>[a]https%3A%2F%2Fwww.yongguielectric.com%2Fproducts%2F141095-electrical-telecom-cable-connector%2F[/a]

#connector# rectangular <br>Spacing: 12mm <br> <br>Cable specification: 6AWG <br> <br>Termination Mode: Wire end: Crimp; Board end: Soldering <br> <br>Installation Method: Wire end: panel mounting; Board end: PCB board mounting <br> <br>Installation Torque: 1.5±0.3N•m <br> <br>Breaking Torque: 2.5N•m <br> <br>Connection Mode: / <br> <br>PCB Thickness: 2mm(Recommended thickness) <br> <br>The Details of 141054 Rectangular Electrical Connectors China <br>141054-JL-S4P (Plug) <br> <br>The Details of 141054 Rectangular Electrical Connector <br>Recommended installation hole size <br> <br>The Details of 141054 Rectangular Electrical Connector <br>141054 Socket accessories φ5.75-6AWG-Crown spring gold plated <br> <br>The Details of 141054 Rectangular Electrical Connector <br>141054-JL-P4RW-5 Receptacle (Position 1 is a long needle) <br> <br>The Details of 141054 Rectangular Electrical Connector <br>M4 floating installation screw <br> <br>Specifications of 141054 Rectangular Electrical Connectors <br>Electrical Characteristic Pins 4 max <br> Rated Current 100A <br> Rated Voltage 1000V DC <br> Withstand voltage 2000V AC <br> Contact Resistance ≤1 mΩ <br> Insulation Resistance ≥1000MΩ DC 500V（normal temperature） <br>Mechanical Characteristic Overall insertion force 60N Max <br> Single leg separation force 6N Min <br> Mechanical life 500 times <br> Protection Class / <br>Materials and surface treatment Material Contact: copper alloy; base material: PBT+30% <br> Surface Treatment： 0.05μm Gold plating 0.05μm <br> Test Area / <br>Work environment Operating Temperature -55℃～+125℃ <br> Relative Humidity 40℃, ≤90% <br> Salt Spray Test 48hours <br> Vibration 10-2000Hz, acceleration 147m/s², instantaneous interruption ≤1us <br> Shock Acceleration 490m/s2 <br> <br>141054 Rectangular Electrical Connector Technical Parameters <br>The telecom connectors should be used within the technical parameters provided; <br> <br>Package Spec: / <br> <br>Storage Spec: Products packed into boxes should be stored in a warehouse with an ambient temperature of -10°C to +40°C, a relative humidity below 80%, and no acidic, alkaline or other corrosive gases in the surrounding air. The storage period shall not exceed two years from the date of production. <br> <br>[a]https%3A%2F%2Fwww.yongguielectric.com%2Fproducts%2F141054-rectangular-electrical-connector%2F[/a]

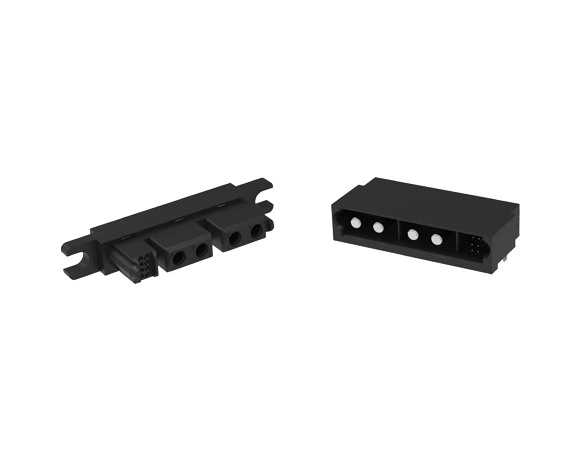

#rectangular #connector <br>The Yonggui 141030C Rectangular Connector is a high-quality solution for efficient and reliable electrical connections. With a rated voltage of 1000V DC (power) and 48V DC (signals), it accommodates diverse power supply needs. Featuring a rated current of 50A (power) and 3A (signals), low contact resistance, and high insulation resistance, the connector ensures optimal performance. Constructed with durable materials, it can withstand voltages up to 3000V AC and 500V DC. The telecommunication connector has a mechanical life of over 100 cycles, and it is packaged in a dry, moisture-proof box suitable for storage in warehouses with temperatures from -10 to +40°C and humidity below 80%RH. <br> <br>The Details of 141030C Connector Rectangular <br>141030C-JL-P12PWA (Plug) <br> <br>The Details of 141030C Rectangular Connector <br>Recommended installation hole size <br> <br>The Details of 141030C Rectangular Connector <br>141030C-JL-S(4+8)R (Receptacle) <br> <br>The Details of 141030C Rectangular Connector <br>Recommended panel installation hole size <br> <br>Specifications of 141030C Rectangular Connector <br>Parameters Details Values <br>Electrical Parameter Rated voltage 1000V DC; Signal 48V DC <br> Rated current 50A ; Signal 3A <br> Contact resistance Power supply≤1mΩ; Signal≤13mΩ <br> Insulation resistance ≥3000MΩ (Normal temperature); Signal)≥3000 MΩ(Normal temperature) <br> Withstand voltage Power supply: 3000V AC (Sea level); Signal: 500V DC <br> Mechanical life ≥100times <br>Other Parameters Working environment -55°C-125°C <br> Connector core number 4 Power supply+8 Signal <br> Terminal wiring 8AWG <br>Materials and surface treatment, etc Fixing screws Steel nickel plated <br> Insulator Engineering plastics ,BLACK, UL94V-0 <br> Contact member Copper alloy（The power terminal is silver plated, and the signal terminal is gold plated） <br> Harpoon Copper alloy;（tin plating) <br> <br>Storage Condition of 141030C Rectangular Connector <br>The packaging box containing the product should be packed in a dry, moisture-proof, dust-proof and mildew-proof packaging box. Products must be marked with product code, name, production date, inspection seal and other information. Packaged products should be stored in a warehouse with an ambient temperature of -10~+40°C, a relative humidity below 80%RH, and no acidic, alkaline or other corrosive gases in the surrounding air. <br> <br>If you want to know more different rectangular connector types, please visit our website. <br> <br>As one of electrical connectors suppliers, we will do our best to meet all the needs of customers. <br> <br> <br>[a]https%3A%2F%2Fwww.yongguielectric.com%2Fproducts%2F141030c-rectangular-connector%2F[/a]

#600v #receptacle <br>Yonggui Electric presents the 141027B-JL-S4R rectangular receptacle, a rectangular unit with a 600V AC voltage, 40A current, and impressive electrical performance. It boasts low contact and high insulation resistance, enduring over 100 cycles. Operating in a broad temperature range, it features flame-retardant materials and high-conductivity copper components. Trust Yonggui for quality and reliability. <br> <br>The Details of 141027B-JL-S4R 600V Receptacle <br>If the tolerance is not noted, press X): ±0.5, X.X: ±0.35, X.XX: ±0.25; Unit: mm <br> <br>The Details of 141027B-JL-S4R Receptacle <br>Matching jack(φ3.0, matching number: 4PCS): 141027B-φ3 socket Assembly -6mm²- Silver (114021002249) (Tolerances not noted are ±0.2, unit: mm) <br> <br>The Details of 141027B-JL-S4R Receptacle <br>Recommended panel opening size <br> <br>Specifications of 141027B-JL-S4R Receptacle <br>Parameters Details Values <br>Electrical Parameter Rated voltage 600V AC <br> Rated current 40A (Suitable for 8AWG/10mm² wire) <br> Contact resistance ≤1mΩ <br> Insulation resistance ≥3000MΩ (Normality) <br> Withstand voltage 3000V AC (Sea level) <br>Mechanical Parameter Mechanical life ≥100times <br> Insertion and extraction force Insertion force≤54N; Pullout force 12N~54N <br> Pressure plate holding force ≥400N <br> Single-hole separation force 3.0N～9.0N <br> Fixation of contact parts) The axial load is 82N, and the axial displacement of the contact with the shell should not exceed 1mm <br>Environment Features Connector operating temperature -55℃～+125℃ <br> Storage temperature 40℃±2℃ <br> Relative humidity 90%~95%RH <br> Salt spray level Neutral salt spray 48H, Only contact parts are assessed <br> Vibration Product frequency 10Hz～500Hz; Acceleration 98m/s2 vibration test after the appearance of no damage; No loosening, displacement, no abnormal insertion and removal; No power outage exceeding 1us <br> Strike After the 294m/s2 impact test, the appearance of the product is not damaged, loose, shifted, and inserted and removed without abnormal; No electrical interruption exceeding 1us <br>Materials and surface treatment, etc Insulating body PBT Black; Flame retardant rating: UL94-V0 <br> Back sleeve High conductivity copper, surface treatment: Silver plating on nickel base <br> Crown spring Beryllium copper, surface treatment: Silver nickel base, impregnated with 823 protectant <br> Locating pawl Phosphor copper, surface treatment: Nickel base tinned <br> <br>The Production of 141027B-JL-S4R Receptacle <br>Telecom connectors are prohibited from plugging or unplugging when powered; <br> <br>The gap between the plug and the receptacle should be less than 2.0mm; <br> <br>Between the plug and receptacle of the connector, the allowable mating limit guide deviation is 1.8mm, and the guide deviation of the equipment guide rail is required to be less than 1.8mm)； <br> <br>After crimping the connector receptacle socket, a 40mm long straight line must come out from the end before bending the cable to avoid misalignment of the pinhole during insertion, causing damage to the socket. <br> <br>The connector must be aligned with the guide before insertion to avoid serious damage to the connector when forced insertion without alignment. <br> <br>The connector socket is a floating installation. After the installation screws are tightened, it is necessary to ensure that the socket can float normally to prevent the socket from being locked by the installation screws, causing the connector head base to be unable to automatically guide, align, and engage. <br> <br>The connector is not allowed to withstand other forces other than its own contact force during the mating process. <br> <br>From the time the module enters the guide rail until the module is fully inserted, it is recommended that the entire process be controlled between (3 to 5) seconds. <br> <br>After the socket is crimped or soldered, the tail must be covered with a heat-shrinkable sleeve to avoid short-circuiting and ignition at the tail. The heat-shrinkable sleeve must be (2±1)mm away from the maximum outer circumferential end face of the socket to prevent the positioning claw from being unable to stuck jack; <br> <br>When placing the contact (socket) into the corresponding hole of the housing, the contact must be inserted in place and gently pulled back to ensure that the positioning claw is stuck (the contact cannot be pushed out in the axial reverse); <br> <br>It is recommended that the thickness of the cabinet panel should be at least 1.5mm. Otherwise, the panel may be deformed after repeated insertion or removal; <br> <br>When the PCB board is immersed in three anti-paint, do not allow the three anti-paint to flow to the surface of the contact in the plug-in interface. <br> <br>Now the price of receptacle connectors is reasonable, if you have needs, please contact us. <br> <br>As one of electrical connectors manufacturers, we will do our best to meet all the needs of customers. <br> <br>[a]https%3A%2F%2Fwww.yongguielectric.com%2Fproducts%2F141027b-jl-s4r-rectangular-receptacle-connectors%2F[/a]
