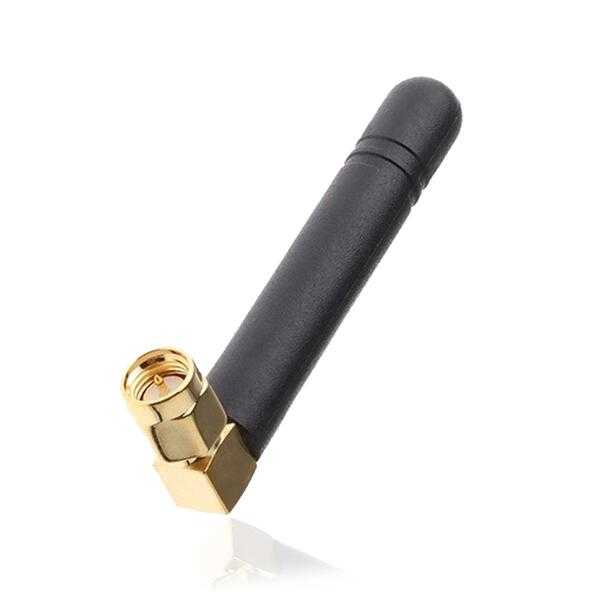

4G/LTE Mini Sport Shorty Antenna With SMA Connector (AC-Q7027-40W) <br>The LTE Stubby antenna is a wideband stub antenna operating from 700 MHz to 2700 MHz with either a SMA-Male Straight or SMA-Male Right Angle connector <br> <br>The LTE Stubby antenna is a compact, stub antenna designed for 700-2700 MHz LTE applications. <br> <br>Ideally suited to complement modems and terminals where a discreet, but robust antenna is require, the LTE Stubby offers an innovative solution for deployment. <br> <br>With a VSWR across the bands of better than 3:1 the LTE Stubby offers effective performance for its size and facilitates support for worldwide LTE bands. <br> <br>The LTE stubby has an overall length of 47mm for the SMA-Male straight version or 65mm for the SMA-Male Right angle version. <br> <br>Specification of 4G/LTE Mini Cooper Stubby Antenna With SMA Connector <br>Electrical <br>Frequency Range 698-960/1710-2700MHz <br>Gain 2.15dBi <br>V.S.W.R 698-960MHz≤4.0;1710-2700MHz≤2.0 <br>Radiation Omni <br>Polarization Vertical <br>Maximum Input Power 5W <br>Impedance 50Ώ <br>Connector SMA male <br>Antenna Radome Material TPEE <br>Mechanical <br>Dimensions Φ8×47mm <br>Weight 10g <br>Operating Temperature -40℃ to+70℃ <br>RoHS Compliant YES <br> <br>Features of 4G/LTE Mini Stubby Terminal Antenna With SMA Connector <br>01 <br>Bottom section of antenna: We have two options: Fixed-straight and 90-degree right-angled bottom section. <br> <br>02 <br>2.15dBi omni directional radiates WiFi wireless signal to high &amp; low elevations in local area. <br> <br>03 <br>A very high-performance antenna with VSWR of less than 4.0 (lower is better - Read about VSWR). <br> <br>As an antenna company, we will do our best to meet all the needs of customers. <br>#mini#stubby#antenna <br>[a]https%3A%2F%2Fwww.acantcomm.com%2Fproducts%2F4g-lte-mini-stubby-terminal-antenna-with-sma-connector-ac-q7027-40w%2F[/a]

4G/LTE LPDA Antennas <br>Asian Creation provides LPDA 4G antenna and lte lpda antennas, including High Gain LPDA Antenna 11dBi Multi Directional External Antenna and 4G Router External High Gain LPDA Antenna with Coaxial Cable. We offer high-quality and cost-effective 4G/LTE LPDA Antennas for your picking out. <br> <br>Types of 4G/LTE LPDA Antennas <br>High Gain LPDA Antenna 9dBi Multi Directional External Antenna (AC-D7027P09) <br>4G Router External High Gain LPDA Antenna with Coaxial Cable (AC-D7027P11) <br> <br>Directionality of 4G/LTE LPDA Antennas <br>Asian Creation offers both LPDA Antennas that can receives signals from all directions and LPDA Antennas that receives 3G/4G signals from a defined direction with a narrow-angle. In this way, customers can freely choose the LPDA Antennas which fits their needs most and are more cost-effective. <br> <br>Directionality of 4G/LTE LPDA Antennas <br>Strengths of 4G/LTE LPDA Antennas <br>Strengths of 4G/LTE LPDA Antennas <br>Compared to other antennas, the 4G/LTE LPDA Antennas provided by Asian Creation are relatively lightweight with the weight less than 1KG. Normally being installed outdoor, the 4G/LTE LPDA Antennas are relatively compact and help improve transmitting and receiving signals across a wide frequency spectrum range. Moreover, the 4G/LTE LPDA Antennas have a higher-gain up to 9dB, which can help you get 2 times stronger signal on the 4G routers. <br> <br>4G/LTE LPDA Antennas Applications <br>Fixed Wireless Access (FWA): LPDA antennas can be used for fixed wireless access deployments, providing high-speed internet connectivity to homes and businesses. Their directional characteristics help focus the signal towards specific areas, improving coverage and signal strength. <br> <br>Point-to-Multipoint Communication: LPDA antennas are suitable for point-to-multipoint communication scenarios, where a central hub communicates with multiple remote locations. This can be useful in scenarios like connecting multiple buildings or providing coverage in a specific geographic area. <br> <br>Remote Monitoring and Telemetry: LPDA antennas are employed in remote monitoring and telemetry applications, where data from sensors or devices needs to be transmitted over a distance. This can include applications in agriculture, environmental monitoring, or industrial settings. <br> <br>Rural Broadband Connectivity: LPDA antennas can contribute to providing broadband connectivity in rural or underserved areas. They can be used to cover larger areas with a focused, high-gain signal, extending the reach of LTE networks. <br> <br>Mobile Network Infrastructure: LPDA antennas are used in the infrastructure of mobile networks as directional antennas for point-to-point and point-to-multipoint backhaul links. They connect base stations or small cells to the core network, enhancing network capacity and coverage. <br> <br>Public Safety and Emergency Services: LPDA antenna signal can be deployed for public safety and emergency services to establish reliable communication links during disasters or emergencies. Their directional nature allows for targeted coverage in specific areas. <br> <br>Industrial Connectivity: In industrial environments, LPDA antennas are utilized for connecting remote facilities and monitoring equipment. They can support applications such as machine-to-machine communication and the Internet of Things (IoT) in industrial settings. <br> <br>Maritime and Offshore Communications: LPDA antennas can be used for maritime and offshore communication, providing connectivity for vessels, offshore platforms, and remote maritime installations. <br> <br>Surveillance and Security Systems: LPDA antennas play a role in surveillance and security applications, where a directional and high-gain antenna is needed for transmitting video and data over longer distances. <br> <br>Broadcasting and Event Coverage: In broadcasting and media production, LPDA antennas may be used for live event coverage. They help establish reliable communication links for transmitting audio, video, and data from remote locations to broadcasting centers. <br> <br>Education and Campus Connectivity: LPDA antennas can be deployed in educational institutions to provide high-speed internet connectivity across campuses. They support the growing demand for data-intensive applications in educational environments. <br>#4g#lpda#antenna <br>[a]https%3A%2F%2Fwww.acantcomm.com%2Fproducts%2F4g-lte-lpda-antennas%2F[/a]

parabolic antenna lte <br>4g dish antenna <br> <br>4G LTE Dish Antennas <br>4G/LTE Dish Antennas are antennas produced in the shape of a dish and based on the technology of 4G or LTE. Familar to other 4G/LTE Antennas, the 4G/LTE Dish Antennas have the advantages of high performance, superior gains and high efficiency. What&#039;s more, 4g dish antennas also include the specialities of dish design. <br> <br>Types of 4G/LTE Dish Antennas <br>1.7-2.7G 2X2 MIMO 4G Parabolic Antenna LTE (AC-D1727G28-09X2) <br>Outdoor High Gain Directional Dish 4G 1.7-2.7G Antenna 20dBi (AC-D1727G25-06X2) <br> <br>Gains of the 4G/LTE Dish Antennas <br>As one of the most important parameters of antennas, gains matter a lot in seleting suitable products. Asian Creation provides customers with extremely high gains, with the minimun gain of 20dBi. It means that the products we supply will have a strong ability in receiving and transmitting data. <br> <br>Gains of the 4G/LTE Dish Antennas <br>Operating Temperature of 4G/LTE Dish Antennas <br>Operating Temperature of 4G/LTE Dish Antennas <br>The operating temperature of 4G/LTE Dish Antennas varies from -40℃ to 70 ℃, enabling the product remains alive and working in almost all hard and tough environment. The durable and invulnerable 4G/LTE Dish Antennas will surely offer customers a nice shopping experience. <br> <br>4G/LTE Dish Antennas Applications <br>Point-to-Point Communication: 4G LTE dish antennas are frequently employed for point-to-point communication links. These links connect two fixed locations over a considerable distance, providing high-capacity data transfer for applications like backhaul connections between cell towers or connecting remote offices. <br> <br>Backhaul Links for Remote Areas: In remote or underserved areas where wired infrastructure is limited, 4G LTE dish antennas serve as backhaul links, connecting remote base stations to the core network. This helps extend mobile network coverage to areas that might otherwise be challenging to reach with traditional wired connections. <br> <br>Rural Broadband Access: Dish antennas are utilized in rural broadband deployments to provide high-speed internet access to homes and businesses in areas where traditional wired broadband is impractical. The directional nature of dish antennas allows for long-range coverage. <br> <br>Mobile Network Infrastructure: In addition to point-to-point communication, 4G LTE dish antennas can be used in the mobile network infrastructure for point-to-multipoint communication. They serve as the backhaul link connecting multiple base stations to the core network, supporting the overall network capacity and coverage. <br> <br>Disaster Recovery and Emergency Communications: 4G LTE dish antennas can be quickly deployed for temporary communication links during disaster recovery or emergency situations. They provide a reliable and high-capacity connection for first responders and emergency services. <br> <br>Surveillance and Security Systems: Dish antennas are employed in surveillance and security applications where a focused and long-range communication link is required. This can include connecting remote cameras or sensors to a central monitoring station. <br> <br>Broadcasting and Media Production: In broadcasting and media production, 4G LTE dish antennas are used for live event coverage. They enable high-quality, low-latency video and data transmission from remote locations to broadcasting centers. <br> <br>Military and Defense Applications: Dish antennas find applications in military and defense for secure and long-range communication. They are used in tactical deployments, remote monitoring, and communication between different military units. <br> <br>Research and Exploration: In remote research locations or exploration activities, such as oil and gas exploration, 4G LTE dish antennas are employed to establish communication links for data transfer and remote monitoring. <br> <br>Industrial Connectivity: Dish antennas can be used in industrial settings for connecting remote facilities, monitoring equipment, and enabling IoT applications that require high-speed and reliable communication. <br> <br>We can provide kinds of antenna for sale, if you have needs, please contact us. <br>#parabolic#antenna#lte <br>[a]https%3A%2F%2Fwww.acantcomm.com%2Fproducts%2F4g-lte-dish-antennas%2F[/a]

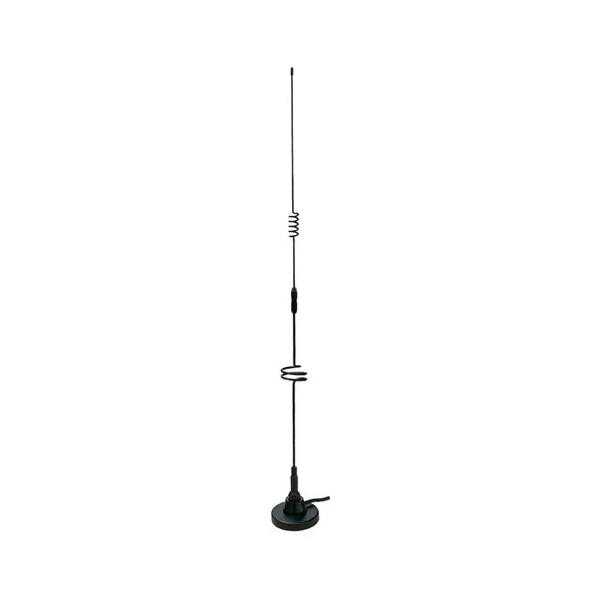

4G/LTE 6 dBi Antenna With Extra Cable (AC-Q7027I20) <br>The AC-Q7027I20 antenna delivers stable high omni-directional gain and across all 2G(GSM),3G and 4G(LTE),cellular bands from 700MHz to 2.7GHz. <br> <br>This high performing antenna can be used for all cellular devices and will not require changing antennas when deploying from country to country or technology to technology like CDMA to GSM or 3G to 4G. <br> <br>Being magnetic mount it is designed to be mounted on a ground plane for optimal performance. <br> <br>Specification of 4G/LTE 6dBi WiFi Antenna With Extra Cable <br> <br>Electrical <br>Frequency Range 790-960/1700-2700MHz <br>Gain 6dBi <br>V.S.W.R ≤2.0 <br>Radiation Omni-Direction <br>Polarization Vertical <br>Maximum Input Power 50W <br>Impedance 50Ώ <br>Connector SMA Male <br>Cable Type RG58U <br>Cable Length 3M <br>Antenna Radome Material Steel wire <br>Mount way Magnetic <br>Mechanical <br>Dimensions Φ70x670mm <br>Weight 315g <br>Operating Temperature -40℃ to+70℃ <br>RoHS Compliant YES <br> <br>Features of 4G/LTE 6 dBi Antenna Helium With Extra Cable <br>01 <br>This 4G LTE magnetic antenna giving you high gain, omni-directional coverage. <br> <br>02 <br>Strong Magnetic Base Mounting support the outdoor or indoor use. <br> <br>03 <br>This antenna compact, however is large enough to comfortably cover the frequency bands for LTE, 4G, 3G, GSM cellular connectivity. <br> <br>If you want to know more antenna uses, please visit our website. <br>#6#dbi#antenna#helium <br>[a]https%3A%2F%2Fwww.acantcomm.com%2Fproducts%2F4g-lte-6dbi-mobile-antenna-with-extra-cable-ac-q7027i20%2F[/a]

4G/LTE 3500MHz Terminal Antenna With RP SMA Antenna Outdoor(AC-Q7035-YZW) <br>The 4G/5G Whip Antenna is vertically polarized with an omnidirectional radiation pattern. <br> <br>These antennas are intended for demonstration use or short range communications only. <br> <br>It does not require a ground-plane to connect to. <br> <br>It has a quality ABS housing for use with 4G/5G terminals. <br> <br>Linear polarized antenna can be made very small and light weight, especially useful for weight-critical application It can be used straight or hinged 90 degrees. <br> <br>The signal antenna has a wide-band response and can also be used for other cellular and wireless applications such as GSM, LTE, UMTS, and WI-FI. <br> <br>Specification of 4G/LTE 3500MHz Terminal Antenna With SMA/RP SMA Connector <br>Electrical <br>Frequency Range 698-960/1710-3500MHz <br>Gain 2.15dBi <br>V.S.W.R ≤2.5 <br>Radiation Omni-direction <br>Polarization Vertical <br>Maximum Input Power 5W <br>Impedance 50Ώ <br>Connector SMA Male/RP SMA Male <br>Antenna Radome Material ABS <br>Mechanical <br>Dimensions Φ13×172mm <br>Weight 15g <br>Operating Temperature -40℃ to+70℃ <br>RoHS Compliant YES <br> <br>Features of 4G/LTE 3500MHz Terminal Antenna With SMA/RP SMA Connector <br>01 <br>A sleek profile for low visual impact and designed as an‘on device’antenna. <br> <br>02 <br>Fixed straight connector, fixed elbow and bendable design, suitable for smart home, smart city, intelligent agriculture, wireless router wireless meter reading. <br> <br>03 <br>Suitable for use on any 5G LTE router with a SMA type antenna, easy to install and use. <br> <br>If you want to know more kinds of reverse polarity antenna, please visit our website. <br>#reverse#polarity#antenna <br>[a]https%3A%2F%2Fwww.acantcomm.com%2Fproducts%2F4g-lte-3500mhz-terminal-antenna-with-sma-rp-sma-connector-ac-q7035-yzw%2F[/a]

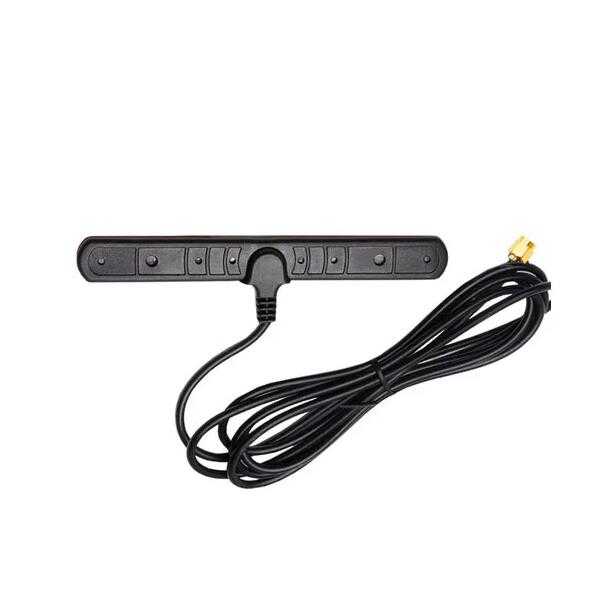

4G/5G LTE Weatherproof Antenna With Sticker Mount (AC-Q7038M09) <br>It is a fully IP67 rated waterproof 4G/5G external sticker antenna designed for use with all Cellular modules worldwide including new 5G LTE bands. It has been designed as a fully IP67 waterproof rated enclosure and with extended wideband cellular frequency range coverage of 698-960/1710-3800MHz, ready for use at all cellular bands across 5G/4G/3G/2G. <br> <br>Typical Applications Include: Transportation, Agriculture, Autonomous Vehicles/Robotics. <br> <br>Providing excellent efficiency and gain, this low profile communication antenna is ideal in areas where space is at a premium. It an ideal solution for outdoor applications. <br> <br>It can be mounted on glass or plastic and comes with a strong 3M adhesive already adhered to the bottom side of the antenna for ease of installation. <br> <br>The Cable length and connector type is fully customizable. <br> <br>Specification of 4G/5G LTE Weatherproof Antenna With Sticker Mount <br>Electrical <br>Frequency Range 698-960/1710-3800MHz <br>Gain 3dBi <br>V.S.W.R ≤2.0 <br>Radiation Omni-Direction <br>Polarization Vertical <br>Maximum Input Power 50W <br>Impedance 50Ώ <br>Connector SMA Male(can be customization ) <br>Cable Type RG174 <br>Cable Length 3M <br>Antenna Radome Material ABS <br>Mount way Sticker <br>Mechanical <br>Dimensions 12.8x107mm <br>Weight 40g <br>Operating Temperature -40℃ to+70℃ <br>RoHS Compliant YES <br> <br>Features of 4G/5G LTE Weatherproof Antenna With Sticker Mount <br>01 <br>Antenna with Operating system 2G/3G/4G/5G CBRS with Black Color and Adhesive mounted. <br> <br>02 <br>This antenna can be use for indoor and outdoor areas. Tracking devices, Vehicle sectors, Utilities. <br> <br>03 <br>It&#039;s a compact design that makes it simpler to install, while giving you increased gain. <br>#sticker#antenna <br>[a]https%3A%2F%2Fwww.acantcomm.com%2Fproducts%2F4g-5g-lte-weatherproof-antenna-with-sticker-mount-ac-q7038m09%2F[/a]

5dbi omni directional antenna range in meters <br>5g omni ceiling mount antenna / 5dbi omni antenna <br> <br>4G 5G LTE UWB 700-4000MHz Omni Terminal Antenna With N Male Connector (AC-Q7040-DLNQ) <br>This wideband terminal mount LTE Antenna is primarily designed for use with 4G LTE modules and devices such as routers, modems, and gateways that require the highest possible efficiency and peak gain to deliver best-in-class throughput on all major cellular (2G/3G/4G) bands worldwide for access points, terminals, and routers.It is a ground plane independent dipole, covering worldwide LTE, 4G, 3G, and GSM bands including 700/800/900/1800/2100 and 2600/3800 MHz for LTE, Cellular, GSM, and UMTS (3G) operation. It has a robust and discreet injection-molded cover and comes with an N-Male connector. This 4G LTE terminal antenna is an ideal solution for LTE and penta-band cellular applications including wireless routers, modems, and access points, and for telemetry and telematics where comprehensive LTE, cellular, GSM, and 3G capability is required. <br> <br>Two antennas can be used together on terminals and routers requiring MIMO or diversity functionality. <br> <br>Specification of 4G 5G Omni Ceiling Mount Antenna With N Male Connector <br>Electrical <br>Frequency Range 700-960/1710-4000MHz <br>Gain 3/5dBi <br>V.S.W.R ≤2.0 <br>Radiation Omni-direction <br>Polarization Vertical <br>Maximum Input Power 50W <br>Impedance 50Ώ <br>Connector N Male <br>Antenna Radome Material ABS <br>Mechanical <br>Dimensions Φ48×88mm <br>Weight 113g <br>Operating Temperature -40℃ to+70℃ <br>RoHS Compliant YES <br> <br>Click to see CBRS 5G antenna list. <br> <br>Features of 4G 5G LTE UWB 700-4000MHz Omni Terminal Antenna With N Male Connector <br>01 <br>Wideband 5G/4G dipole terminal antenna support 700MHz – 4.0GHz. <br> <br>02 <br>IP67 is designed for outdoor applications and a hinged screw-mounted version can be used indoors or outdoors. <br> <br>03 <br>The embedded N-connector design makes the antenna look more three-dimensional. <br> <br>If you want to know more about 5dbi omni directional antenna range in meters, please visit our website. <br> <br>Now the antenna price is reasonable, if you have needs, please contact us. <br>#5dbi#omni#antenna <br>[a]https%3A%2F%2Fwww.acantcomm.com%2Fproducts%2F4g-5g-lte-uwb-700-4000mhz-omni-terminal-antenna-wifi-connector-ac-q7040-dlnq%2F[/a]
