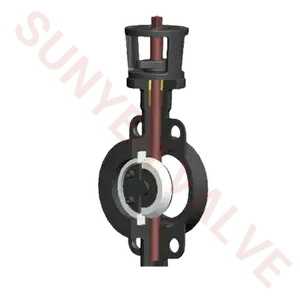

#ball #valve #flange #end <br>Sun Yeh 950T Ceramic Butterfly Control Valve Series, its appearance design not only conforms to the aesthetic concept but also conforms to industrial practicability. Full-lined ceramic structure, straight pipe runner, small flow resistance, and approximately equal percentage adjustment linearity can withstand strong corrosive slurry and alumina smelting and other abrasive industries. <br> <br>CHARACTERISTICS OF CERAMIC LINED BUTTERFLY VALVE <br>Sun Yeh corrosion-resistant Butterfly Valve is designed with a pair of clamps, which have the properties of erosion resistance, corrosion resistance, high-temperature resistance, and crushing resistance, The liner bushing material can be precise ceramics, rare metals, or non-metallic materials. <br> <br>The valve can be installed at 360* of the existing pipe connector due to the design of the clamp type. Flange connections are also available, <br> <br>It is a fixed flow direction, the chemical-resistant Butterfly Valve plate is designed at one-third of the valve body, and the outlet end runner length is about twice as long as the inlet end. By fully utilizing the principle of hydrodynamics protect the back pipe from the erosion of the high velocity medium. <br> <br>Its actuator connection is through the support interface, and the platform size meets the requirements of ISO521 international standards. <br> <br>Disc and stem are integrative, and there are round ceramic bushings on and below the disc to protect the stem from erosion and corrosion by medium. When stem rotates, Only the friction of the moving parts of disc in direct contact with the mortar and the friction of the pre-tightening of stem packing can be generated, which can ensure low torque. <br> <br>Forged steel metal protective shell can be coated with epoxy resin or nylon to meet the requirements of color recognition and corrosion resistance environment. Like stainless steel shells, it is allowed to be exposed to extremely harsh environments without external corrosive degradation. it firmly surrounds ceramic components to prevent them from any possible damagePipeline pressure is absorbed by the shell instead of being transferred to the ceramic because all flange bolts are connected directly to the shell. <br> <br>Strong ceramic liner fully encapsulated disc, which ensures that corrosive medium containing abrasive solids does not touch any external metal components. <br> <br>Valve disc with centre line design to ensure maximum flow through and minimum wear <br> <br>950T Ceramic Butterly Control Valve Series is specially designed for regulating and controlling, its disc and seat bushing are not contacted, and the disc can rotate 360&quot; totally. It is suitable for slurry medium working conditions and allowed to be used in leakage situations of grade lll. <br> <br>Our ceramics are thick and solid. A reasonable, highly engineered and thermal insulation control valve design proves that by using solid, thick-walled ceramic components and unique combinations, the valve can survive in continuous service much longer than that of hardening and spraying nickel-based tungsten carbide and surfacing materials. <br> <br>If you are looking for a reliable ceramic valve factory, don&#039;t hesitate to contact us! <br> <br> <br> <br>[a]https%3A%2F%2Fwww.sunyehvalve.com%2Fproducts%2Fceramic-fully-lined-butterfly-valve%2F[/a]

#Fixed #Valve <br>Welcome to Sun Yeh, your premier destination for top-tier ceramic-lined butterfly valves. We specialize in providing cutting-edge solutions for a range of industrial applications, offering both ceramic fully-lined butterfly valves and ceramic partially-lined butterfly valves. <br> <br>At Sun Yeh, we take pride in delivering products that embody excellence and reliability. Our ceramic lined butterfly valves are crafted with meticulous attention to detail, ensuring they meet the highest industry standards. These valves are designed to excel in challenging environments where corrosion and abrasion resistance are paramount. <br> <br>When you partner with Sun Yeh, you gain access to a reliable source for high-quality ceramic lined butterfly valves. Our commitment to innovation, durability, and customer satisfaction sets us apart as a trusted provider in the industry. Whether you need fully-lined or partially-lined butterfly valves, Sun Yeh is your go-to partner for exceptional performance and longevity. <br> <br>Contact us today to explore our comprehensive range of ceramic lined butterfly valves and discover how Sun Yeh can elevate your industrial processes with reliable and durable flow control solutions. <br> <br>BUTTERFLY VALVE FUNCTION <br>A butterfly valve is a type of quarter-turn valve that regulates or isolates fluid flow in a piping system. It consists of a disk mounted on a rotating shaft. When the valve is fully open, the disk is positioned parallel to the flow of fluid, allowing an almost unrestricted passage. When the valve is closed, the disk is turned so that it completely blocks the flow. The operation of the valve is simple: turning the handle or actuator 90 degrees rotates the disk to open or close the valve. <br> <br>Butterfly valves are known for their compact design and quick operation, making them a favorable choice for space-constrained environments. They are widely used across various industries such as water and wastewater treatment, chemical processing, and HVAC systems due to their efficient control of liquids and gases. The design allows for easy installation and maintenance, and the valves can handle large flow volumes, providing a cost-effective solution for flow control. <br> <br>BUTTERFLY VALVE TYPES <br>Butterfly valves, utilized across diverse industrial settings, are chosen for their material properties to match specific operational demands and environmental conditions: <br> <br>Cast Iron Butterfly Valve: Affordable and robust, ideal for lower pressure and temperature scenarios like water and air systems. It provides decent resistance to mild corrosion. <br> <br>Stainless Steel Butterfly Valve: This butterfly valve china excels in corrosion resistance and durability, making it suitable for harsh chemical environments, high-temperature operations, and sanitary applications that demand frequent cleaning. <br> <br>PVC Butterfly Valve: Notably lightweight and corrosion-resistant, these valves are perfect for chemical processes where metals might fail, as well as in water treatment and light industrial applications. <br> <br>Aluminum Butterfly Valve: Appreciated for its lightness and corrosion resistance, it is often used in pneumatic systems and in sectors aiming to reduce overall system weight. <br> <br>Titanium Butterfly Valve: Offers supreme corrosion resistance, ideal for extremely corrosive or challenging conditions like offshore marine environments and chlorine processing. <br> <br>Ceramic Lined Butterfly Valve: These valves feature a ceramic interior lining that provides excellent resistance to wear and extreme corrosion. They are particularly beneficial in handling abrasive materials and acidic or alkaline environments where standard metal valves would degrade quickly. <br> <br>CERAMIC LINED BUTTERFLY VALVE SELECTION <br>Selecting the right ceramic butterfly valve involves several critical considerations to ensure optimal performance in harsh environments. Firstly, assess the properties of the media, including its abrasiveness, chemical composition, and temperature. This assessment will guide the selection of the ceramic material and the valve design best suited for the application. Next, determine the required valve size based on the pipeline dimensions and flow rate needs. <br> <br>Pressure and temperature ratings are crucial; the valve must withstand the maximum expected conditions without degrading. Consider the type of connection (flanged, wafer, or lug) that best fits your system’s requirements for ease of installation and maintenance. Actuation is another important factor; choose between manual, pneumatic, electric, or hydraulic actuation based on your automation needs and available utilities. <br> <br>Finally, take into account the total cost of ownership, including initial costs, maintenance expenses, and potential downtime. Selecting a valve that balances these factors with the demanding conditions of your application will ensure long-term reliability and efficiency, reducing overall operational costs. <br> <br>BUTTERFLY VALVES VS GATE VALVES <br>Design and Operation <br>Butterfly Valve: Consists of a disc that rotates around a central axis within the valve body to open or close. It is a quarter-turn valve, meaning it operates by rotating the disc 90 degrees. This design allows for quick opening and closing but may not provide an absolutely tight seal. <br> <br>Gate Valve: Features a gate or wedge that moves up and down perpendicular to the direction of flow. It is a multi-turn valve, requiring several turns of the handle to fully open or close, providing a very tight seal when fully closed. <br> <br>Size and Space <br>Butterfly Valve: Compact and requires less space for installation, making it suitable for space-constrained applications. It is also lighter in weight, which can be beneficial in systems where overall weight is a concern. <br> <br>Gate Valve: Generally larger and heavier, requiring more space for installation, especially for the necessary clearance to operate the gate. <br> <br>Flow Characteristics <br>Butterfly Valve: Offers a relatively quick means of flow control and is suitable for both on/off and throttling services. However, the presence of the disc in the flow path can cause a pressure drop, even when fully open. <br> <br>Gate Valve: Ideal for applications requiring minimal obstruction of flow. When fully open, the gate is completely out of the flow path, providing a straight line flow with minimal pressure drop. <br> <br>Applications <br>Butterfly Valve: Often used in water distribution, HVAC systems, and light slurry applications. Its quick operation makes it suitable for emergency and safety applications where fast response is crucial. <br> <br>Gate Valve: Commonly used in petrochemicals, wastewater, and other applications where a free flow is necessary and the valve remains either fully open or fully closed. It is not typically recommended for throttling purposes as the partial opening can cause the gate to vibrate and wear. <br> <br>Cost and Maintenance <br>Butterfly Valve: Generally less expensive and easier to maintain due to fewer moving parts and simple construction. <br> <br>Gate Valve: Can be more expensive and require more maintenance, particularly in environments where the valve is opened and closed frequently, which can lead to wear and leakage. <br> <br>If you are looking for a reliable ceramic valve factory, don&#039;t hesitate to contact us! <br> <br> <br> <br> <br>[a]https%3A%2F%2Fwww.sunyehvalve.com%2Fproducts%2Fceramic-lined-butterfly-valve%2F[/a]

#ball #valve #flange #end <br> <br>Sun Yeh Ceramic Eccentric rotary ball valve Series features a dual eccentric design and torque sealing mechanism. By employing a double eccentric approach, it achieves a cam wedge tightening effect for effective torque sealing. During closure, the C-type ball gradually shifts in relation to the seat, reducing clearance and achieving a hard seal leakage grade of VI. This valve, offered by eccentric ball valve manufacturers, serves as a typical spherical seal with both cut-off and adjusting capabilities. Additionally, it can regulate and control throttling in challenging slurry mediums containing abrasive solid content, fibrous fluids, high viscosity, and scale-prone slurry. <br> <br>Our company can offer Ceramic Full Lined Eccentric Rotary Valves with all flow passages utilizing ceramic materials, as well as Ceramic Partial Lined Eccentric Rotary Valves with only the flow passages partially using ceramic materials, based on specific operating conditions. <br> <br>CHARACTERISTICS OF CERAMIC LINED ECCENTRIC ROTARY VALVE <br>Sun Yeh Ceramic Eccentric rotary globe valve is also known as Cam Flexible Valve because of its cam-shaped rotation track. The valve body is integrated structure, single seat and through-shaft design, which has the advantages of wear resistance, erosion resistance, high temperature resistance and anti-crushing. <br> <br>Due to the streamlined valve chamber design, when the valve opens, chamber opens and expands, cam ball is detached from valve seat, and there will be no sticking or blocking; when the valve closes, there is no material detention zone in the valve chamber, which avoid material crystallization turning on unable to open. <br> <br>It has self-cleaning function. When the valve is opening, cam spherical is tilted away from valve seat, and the fluid flushes sundries along the sealing surface totally. When the ceramic lined valve is closing, C-ball moves gradually relative to the valve seat, which can realize the shearing of the adhering sundries on the sealing pair to ensure the cleaning of the sealing pair, and the wear resistance of the solid C-type ceramic valve seat will not be damaged by intercepted objects. <br> <br>Its actuator connection is through the bracket interface, which meets the ISO 5211 size standard. <br>940T Ceramic Control Partial Core Rotary Valve has the advantages of light switch, low friction, no contact between spherical surface and sealing seat when opening and closing, small torsion and flexible rotation. <br> <br>When the sealing pair is opening and closing, there is shearing performance. Ceramics have self-cleaning and self-wetting properties which help to clean scales and adhesives on the sealing surface and maintain long-term tightness. <br> <br>According to the wedge effect created by eccentric core, the tighter the closure of C-ball and valve seat, the contact between seal pairs can be compensated by themselves. <br> <br>The Ceramic Ball and Ceramic Seal match perfectly and the best sealing effect is realized. It ensures V or above shutdown level and better regulation performance. <br> <br>If you are looking for a reliable ceramic valve factory, don&#039;t hesitate to contact us! <br> <br>[a]https%3A%2F%2Fwww.sunyehvalve.com%2Fproducts%2Fceramic-lined-eccentric-rotary-valve%2F[/a]

#Fixed #Valve <br>Sun Yeh 910T Ceramic ball valve flange end Series is crafted with precision, featuring fully lined ball valves made of ceramic. This series boasts various functions, including cutoff and adjustment capabilities. It is proficient in serving as a throttle regulator and cut-off controller in corrosive mediums with abrasive solid content. <br> <br>CHARACTERISTICS OF CERAMIC LINED FIXED VALVE <br>Sun Yeh Ceramic Control ball valve flange end adopts three-stage structure and fixed ball design to achieve higher pressure difference. The ball is always in the center axis motion, with no displacement because of pressure difference change, and it has the properties of wear resistance, corrosion resistance, high temperature resistance and crushing resistance. <br> <br>With three-piece design, symmetrical structure, fixed flow direction, front seal and automatic compensation principle of seal, its regulating performance will not affected by wear and tear of valve seat. <br> <br>Minimum cavity space reduces the retaining force of pipeline medium in the main cavity to the minimum, thus greatly reducing the problem of medium pollution. <br> <br>The actuator connection bracket adopts ISO5211 standard, which makes the installation quick and easy. <br> <br>Sun Yeh 910T Series Ceramic Lined Fixed Valve with fixed ball structure, Only rotational torsion occurs when the stem rotates, there is no differential pressure inside the tube to produce ball and seat extrusion friction force, and ultimately achieve torque. <br> <br>Forged steel metal protective shell can be coated with epoxy resin or nylon to meet the requirements of color recognition and corrosion resistance environment. Like stainless steel shells, the Ceramic Control Ball Valve, such as the Zirconia ceramic lined ball valve, is allowed to be exposed to extremely harsh environments without external corrosive degradation. lt firmly surrounds ceramic components to prevent them from any possible damagePipeline pressure is absorbed by the shell instead of being transferred to the ceramic because all flange bots are connected directly to the shell. <br> <br>Strong ceramic body fully encapsulates the ball and acts as a pressure vessel when fitted with the seat. It ensures that corrosive media do not touch any external metal components. <br> <br>Strong ceramic ball is anti-erosion and wear-resistant, and balls with 0-shaped and V-shaped openings just meet the application requirements of fast opening, linear flow, parabolic linear and equal percentage adjustment. <br> <br>Strong ceramic seat is wear-resistant and with ceramic-specific good self-lubrication, that is, the ceramic seat of the ceramic lined valve has excellent globoidal sealing performance and will not be damaged by intercepted objects and completely without the defects of metal hard sealing ball valve, such as easy leakage, large torsion distance and no anti-erosion and wear-resistant of sealing surface. <br> <br>Our Ceramic Ball and Ceramic Seal match perfectly and the best sealing effect is realized. lt ensures Vl leak level closure or better regulation performance. <br> <br>Our ceramics are thick and solid. A reasonable and highly engineered control valve design proves that by using solid, thick-walled ceramic components, the valve can survive in continuous service much longer than that of coated or PTFE-lined or PFA-lined valves. <br> <br> <br>If you are looking for a reliable ceramic valve factory, don&#039;t hesitate to contact us! <br> <br> <br> <br>[a]https%3A%2F%2Fwww.sunyehvalve.com%2Fproducts%2Fceramic-lined-fixed-valve%2F[/a]
