#machine <br>[a]https%3A%2F%2Fwww.dmncedm.com%2Fproducts%2Fcnc-edm-hole-drilling-machine%2F[/a] <br>CNC EDM drill, also known as cnc drilling edm small hole drilling machine, basically, there are three axis control(X, Y, Z), 4-axis control(X, Y, Z and W), 5-axis control(X, Y, Z, W and C), 6-axis control, (Y, Z, W, B, C) and even more. On the CNC EDM drill machine, Z axis spindle servo stroke: W axis is the stroke of machine head; C axis rotation in horizontal direction; B is swing in vertical direction. Equipped with automatic electrode or guide changer, CNC EDM drilling machine can do automatic machining. <br> <br>CNC EDM Small Hole Drilling Machine Highlights <br>CNC edm drill machine can drill deep hole with diameters 0.1mm ~ 3mm for C type, 0.2mm ~ 3mm for B type, 0.3mm ~ 3mm for A type <br>The speed of the drilling hole is 30mm~60mm depth per minute (it is different for different materials). Such CNC drill edm is a kind of fast hole drilling EDM CNC tech. <br>EDM high speed small hole drilling machine can drill wire-cut starting hole, filter hole, jet hole, gas hole, group holes and hole of super depth, etc. <br>high speed edm drill machine can drill small holes on the various conductive materials, even semiconductor material, especially stainless steel, chilled steel, copper, aluminum, and hard alloy, etc. <br>EDM fast hole drilling machine can easily erode the drill and screw tap etc. which is broken in the workpiece and not destroy the screw thread of the holes. <br>The working water can be normal water or saponification fluid and no pollution is brought. <br>The operation of the EDM drilling machine for sale is easy and convenient. <br>X, Y, Z three axes digital display with scale. <br>X, Y, Z three axes control. <br>Feel free if you want to know about EDM drilling machine price. <br> <br>CNC EDM Small Hole Drilling Machine Packing List <br> <br>No. Item name Specification Quantify <br>1 Inner hexagon spanner M3 M4 M5 M6 M8 1 piece each <br>2 Double-head screwdriver 1 piece <br>3 Shear for electrode 1 piece <br>4 Guide Ф0.5×12×42mm 1 piece <br>5 Guide Φ1.0×12×42mm 1 piece <br>6 Electrode Φ0.5×500mm 100 pieces <br>7 Electrode Φ1.0×500mm 100 pieces <br>8 Electrode seal 　Ф0-1.0mm 20 pieces <br>9 Chuck 4H 1 set <br>10 Balance bar mount 1 set <br>11 Tap connector 1 piece <br>12 Foot block M16 4 pieces <br>13 Water tank 1 piece <br>14 Water barrel 1 piece <br>15 Water cover 1 set <br>16 Manual 1 set <br>17 Packing list 1 set <br>18 Recycling tank(optional) 110L 1 set <br>19 Flushing seat(optional) 1 set <br>For more information about high speed small hole drilling edm and edm drill machines price, please feel free to contact us!

#machine <br>[a]https%3A%2F%2Fwww.dmncedm.com%2Fproducts%2Fautomation-cnc-edm-machine%2F[/a] <br>CNC spark EDM combines with robot, CMM, electrode and workpiece store station, and CNC high speed milling center to realize fully automatic production. DMNC provides a complete solution, and that&#039;s the CNC EDM automatic spark erosion machine.  <br> <br>Automation CNC spark machine Highlights <br>Robot and electrode/workpiece station available to realize automation application in electric discharge machining. <br>Latest 6th generation Windows7/Windows 10 platform control system <br>Abundant interfaces for communication <br>Automatic Up-and-down lifting working tank door for automation. <br>Intelligent automatic EDM discharging machining. <br>New expert database equipped cnc edm spark erosion machine. <br>Excellent performance of both cooper and graphite electrode machining. <br>Multiple pages editing at the same time, no need to stop machining. <br>Min machining current 0.1A. <br>Best surface finish Ra≤0.08µm <br>Positioning accuracy ≤5μm <br>Imported SP grade linear guideway <br>C2 grade ball screw <br>3 years of aging treatment of casting of the machine. <br>High jump function, after serval times of regular jump discharging, Z axis move higher, and then goes with regular jump height again, it is help for deep groove and massive area machining. <br>Machining speed is about 30% faster than DOS platform discharging control system. <br>Auxiliary learning function <br> <br>Automation CNC EDM Machine Function Configuration of Controller <br>No. Function explanation <br>1 LCD, touch screen input <br>2 Windows intelligent expert platform CNC EDM control system, help for every page, quick and easy to learn and use <br>3 Multiple pages to be edit at the same time, automatically generate a machining program with multiple cavities. <br>4 Can select any axis to start when do home after power off. <br>5 Coordinate position automatic memory CNC discharge machine. <br>6 React speed and machining efficiency are faster than the old system. <br>7 Standard with simultaneous three-axis control, Max six-axis simultaneous control <br>8 Super finish PIKA machining circuits-mirror surface machining function, Min machining current 0.1A <br>9 Expert machining parameters database: with high explosive power circuit, especially good for processing hard ally material) <br>Automatic and manual machining according to different combinations of a different material of electrode and workpiece: copper/steel, graphite 1/steel, graphite 2/steel, silver-tungsten/steel, copper-tungsten/steel, silver-tungsten/hard alloy, copper/zinc alloy, graphite/zinc alloy, copper/copper alloy. <br>10 AUTO machining function: <br>Input material of electrode and workpiece, machining area, shrinkage of the electrode, required surface finish and etc Then control system automatically calculates machining parameters from rough machining to finish machining according to the expert database. <br>11 Automatic positioning function: <br>End face positioning, cylinder center positioning, corner positioning, inner hole positioning, random three points positioning, discharging position self-decided positioning and etc. <br>12 Online measuring function: <br>Utilize automatic positioning function to do the online measuring and amending to the machined workpiece. <br>13 Automatic arcing removing circuit: <br>Real-time monitoring on the discharging status, if any tiny short circuit or arcing happens, the system would remove arcing and give the alarm <br>14 Safety control function: <br>Overload protection, code grammar detecting, oil level control, oil temperature control, automatic fire extinguisher <br>15 Power-off recovery function: <br>The system can remember the present position of coordinate when suddenly power-off happens, the present position can be kept. <br> <br>BIEM is one of the key edm machine manufacturer in china, we provide spark edm machine, edm sparking machine, edm erosion machine, cnc edm machine and etc. Want to know more? Please contact us.

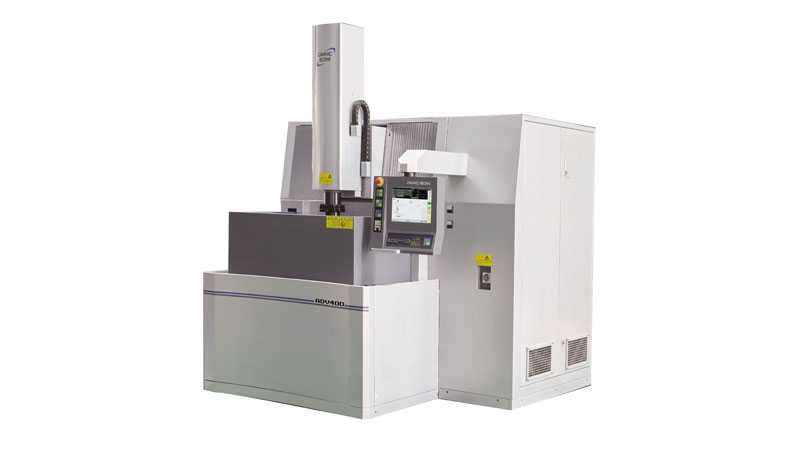

#ADV400 <br>[a]https%3A%2F%2Fwww.dmncedm.com%2Fproducts%2Fadv400-cnc-edm-machine-with-automatic-working-tank.html[/a] <br> <br>ADV series CNC die sinker EDM machine is designed for automation application in EDM machining field, the lifting of the working table is automatic, we utilize a robot to load and unload electrodes and workpieces, it is fully automatic and independent to realize unmanned manufacturing. The load capacity of the robot, electrode and workpiece store station could be customized designed according to different customers&#039; practical products. Latest Windows 7/ Window 10 platform control system provides abundant various interface for communications, CNC high-speed milling machine and CMM can be brought in to perform automatic electrode machining, electrode measurement, EDM discharging machining, final products measurement. As the labor cost keeps increasing, gradually it is also difficult to find an experienced and qualified operator, so DMNC provides customers new options to maximize production efficiency and save cost. <br> <br>Main Dimensions of ADI2500 CNC EDM Machine <br>X×Y×Z travel: 400×300×272mm; <br>Working table dimension: 600×400mm; <br>Working tank on the table: 750×620×350mm <br> <br>ADV400 CNC EDM Machine Specifications <br>No. Name ADV400 <br>1 Working table dimension(L×W) 600×400mm <br>2 X×Y×Z axis travel 400×300×272mm <br>3 Working tank dimension(L×W×H） 750×620×350mm <br>4 Highest level of working liquid 350mm <br>5 End of the spindle to the working table 422mm <br>6 Capacity of the oil tank 500L <br>7 Max weight of the electrode 50kg <br>8 Max weight of the workpiece 400kg <br>9 Positioning accuracy 5µm <br>10 Repeat positioning accuracy 3µm <br>11 Weight of machine 2900kg <br>12 Dimension of machine 1550×2440×2330mm <br>13 General input 9kVA(50A) <br>14 Input power 3 Phase 380/50Hz <br>15 CNC power generator Windows 7 based <br>16 Max working current 50A <br>17 Best surface finish Ra≤0.08µm <br>18 Min. wear of the electrode ≤0.05% <br>19 Max machining efficiency ≥500mm3/min <br>20 Interpolation methods Straight line, arc, helix <br>21 Accuracy compensation options Step pitch compensation of each axis, <br>gap compensation <br>22 Min. drive unit, Min command unit 1µm <br>23 The outer dimension of the controller 1250×550×1800mm <br>24 Display 15-inch touch screen <br>25 Remote control different gradesMFR0-3 <br> <br>There are many cnc edm machine suppliers, but we are one of the best choices for you.

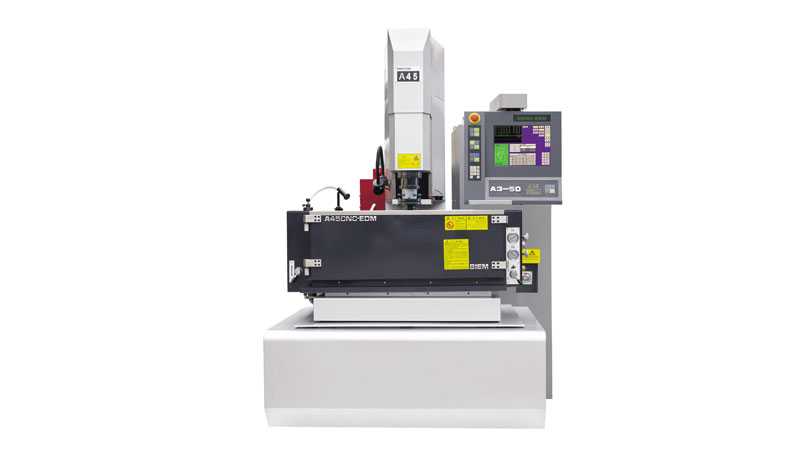

[a]https%3A%2F%2Fwww.dmncedm.com%2Fproducts%2Fa45-cnc-die-sinking-edm-machine-with-solid-carbide-circuits.html[/a] <br>#cnc #edm #machine <br>A45 CNC spark erosion machine has three-axis simultaneous control and 5th generation electrical discharging control system, best surface finish Ra≤0.08μm, Min. electrode wear ≤0.05%, standard equipped with 50A controller and Max machining efficiency ≥500mm3/min. Excellent performance and suitable dimension make A45 ideal for making various molds with the strict requirements of surface finish and accuracy. <br> <br>Main Dimensions of A45 CNC Die Sinking EDM Machine <br>X×Y×Z travel: 452×300×272mm; <br>Working table dimension: 600×400mm; <br>Working tank on the table: 1090×630×445mm <br> <br>A45 CNC Die Sinking EDM Machine Specifications <br>No. Name A45 <br>1 Working table dimension(L×W) 600×400mm <br>2 X, Y, Z axis travel 452×300×272mm <br>3 Working tank dimension(L×W×H） 1090×630×445mm <br>4 Highest level of working liquid 290mm <br>5 End of the spindle to the working table 600mm <br>6 Capacity of the oil tank 600L <br>7 Max weight of the electrode 25kg <br>8 Max weight of the workpiece 400kg <br>9 Positioning accuracy 6µm <br>10 Repeat positioning accuracy 3.5µm <br>11 Weight of machine 3100kg <br>12 Dimension of machine 1500×1680×2350mm <br>13 General input 9kVA(50A) <br>14 Input power 3 Phase 220/60Hz <br>15 CNC power generator A3-50 <br>16 Max working current 50A <br>17 Best surface finish Ra≤0.08µm <br>18 Min. wear of the electrode ≤0.05% <br>19 Max machining efficiency ≥500mm3/min <br>20 Interpolation methods Straight line, arc, helix <br>21 Accuracy compensation options Step pitch compensation of each axis, <br>gap compensation <br>22 Min. drive unit 1µm <br>23 The outer dimension of the controller 1250×550×1800mm <br>24 Display 15-inch touch screen <br>25 Remote control different gradesMFR0-3 <br> <br>If you want to know more about edm arc generator schematic, please visit our website. <br> <br>As one of cnc edm machine suppliers, we will do our best to meet all the needs of customers.

[a]https%3A%2F%2Fwww.dmncedm.com%2Fproducts%2Fa1880-double-heads-cnc-ram-edm-machine.html[/a] <br>#CNC #EDM #machine <br>A1880 twin heads CNC spark erosion machine has two separated controllers and two separated machine heads, three axis simultaneous control of each head and DMNC 5th generation electrical discharging machining control system, best surface finish Ra≤0.2μm, Min. electrode wear ≤0.1%, standard equipped with 50A controller and Max machining efficiency ≥500mm3/min. It is ram type CNC EDM machine, the working table of A1880 is fixed, so it can load heavy molds without affecting the motion of X and Y axis while moving. Two separated heads on A1880 RAM EDM machine can do separated machining at the same time.  <br> <br>Main Dimensions of A1880 Double Heads CNC RAM EDM Machine <br>X×Y×Z travel: 1950×800×600mm(single head); <br>1200×800×600mm(double heads); <br>Working table dimension: 2000×1000mm; <br>Working tank on the table: 3500×1800×650mm <br> <br>A1880 Double Heads CNC RAM EDM Machine Specifications <br>No. Name A1880 <br>1 Working table dimension(L×W) 2000×1000mm <br>2 X×Y× Z axis travel Double heads 1200×800×600mm(each) <br> Single head 1950×800×600mm <br>3 Working tank dimension(L×W×H） 3500×1800×650mm <br>4 Highest level of working liquid 420mm <br>5 End of the spindle to the working table 750-1350mm <br>6 Capacity of the oil tank 4900L <br>7 Max weight of the electrode 300kg <br>8 Max weight of the workpiece 5000kg <br>9 Weight of machine 13400kg <br>10 Dimension of machine 5204×5109×3861mm <br>11 General input 9kVA(50A) ×2 <br>12 Input power 3 Phase 380/50Hz <br>13 CNC power generator A3-50 <br>14 Max working current 50A×2 <br>15 Best surface finish Ra≤0.2µm <br>16 Min. wear of the electrode ≤0.05% <br>17 Max machining efficiency ≥500mm3/min <br>18 Interpolation methods Straight line, arc, helix <br>19 Accuracy compensation options Step pitch compensation of each axis, <br>gap compensation <br>20 Min. drive unit 1µm <br>21 The outer dimension of the controller 1250×550×1800mm <br>22 Display 15-inch touch screen <br>23 Remote control different grades MFR0-3

[a]https%3A%2F%2Fwww.dmncedm.com%2Fproducts%2F[/a] <br>#CNC #EDM <br>DMNC Provides Complete Solution Of EDM Machining Technology With 30+ Years&#039; Experience, Continuous Innovation, Strict Quality Control, and Swift Service. <br> <br>The CNC EDM machine for sale can machine deep ribs faster with more precision, as the CNC incorporates technology tables specifically for the machining of ribs. DM EDM guarantees the automatic program generation incorporates conversational operator input to produce the best-suited program for the type of rib or cavity being machined. Also, the Expert Erosion System controls the entire machining of a workpiece, from roughing to final finishing. The CNC EDM Spark Erosion Machine can operate around the clock in an unattended mode. <br> <br>Types of CNC EDM Spark Erosion Machine <br>CNC Die Sinker EDM Machine <br>Full lines of CNC die-sinking EDM spark erosion machines are available to satisfy your needs, from sinking EDM machining automation production line to CNC EDM with automatic electrode changer to realize semi-automatic production; from ZNC EDM machine to 3 axes, 4 axes, 5 axis control EDM sinker; from small size to big size with double heads; from spark erosion machine with regular accuracy purpose to high accuracy machining. All you need for CNC EDM spark erosion machine for sale, this is the right place. DMNC has wire erosion machines for sale; Feel free to contact us to get our EDM spark erosion machine price! <br> <br>CNC EDM Wire Cut Machine <br>As one of the EDM machine suppliers, we are producing and supplying various molybdenum wire cut CNC EDM machine tools for sale, they are high-rank types of fixed column and moving column with fully covered sheet metal design, &quot;C&quot; structure and &quot;T&quot; machines bed with integrated design wire cutting machines, and economical conventional &quot;F&quot; structure wire EDM machines. <br>Small Hole EDM Drilling Machine <br>Range of EDM drilling machine(super drill) available: ZNC small hole EDM(X and Y manual) and CNC small hole drilling EDM with 3-axis, 4-axis, 5-axis, 6-axis, and up to 7 axis control, the diameter of electrode range from Φ0.08mm to Φ3.0mm, with option up Φ6.0mm, machine sizes from 400×300mm up to more than 1000mm travel. Feel free to contact us if you want any low price EDM drilling machine! <br> <br>High Speed CNC Milling Machine G-600 <br>As we know there is dust while milling graphite material, special designed cutting liquid curtain of the high speed CNC milling machine keeps dust of graphite inside. Developed for machining graphite electrode for CNC die sinker, this type of machine is featured with High RPM spindle, high rigidity structure with FANUC controller to get the excellent performance of surface finish and accuracy, makes CNC graphite high-speed milling machine G-600, an automatic CNC milling machine, the ideal partner of producing high-quality electrodes used on types of EDM machine. It is worth mentioning that as the best Chinese CNC milling machine providers, you can 100% rest assures in DMNC.  <br> <br>FAQs of CNC EDM Machine For Sale <br>What is EDM CNC? <br>Electrical Discharge Machining Computer Numerical Control, namely EDM CNC, is a special machining method that uses the electrical erosion effect produced by the pulse discharge between electrodes in the working liquid to remove the conductive materials. It is also called discharge machining or electrical erosion machining. <br>  <br>How does EDM work? <br>In EDM, the tool electrode and the workpiece are connected to the two poles of the pulse power supply respectively, and immersed in the working liquid, or the working liquid is charged into the discharge gap. The tool electrode is fed to the workpiece through the gap automatic control system. When the gap between the two electrodes reaches a certain distance, the pulse voltage applied on the two electrodes will break down the working fluid and produce spark discharge.   <br> <br>What is the CNC EDM machine used for? <br>CNC EDM machine is mainly used for machining various kinds of molds, precision parts and other complex cavity and curved shape of various kinds of conductive materials. <br>What are the advantages of CNC EDM machine? <br>CNC EDM machine can carry on the multi-coordinate linkage and process the complex shape parts. When machining parts change, generally CNC EDM machine only needs to change the numerical control program, which can save production preparation time. The machine tool equipment itself has high precision, high rigidity and high productivity. <br> <br>If you want to know more about what does EDM stand for in machining, please visit our website.
