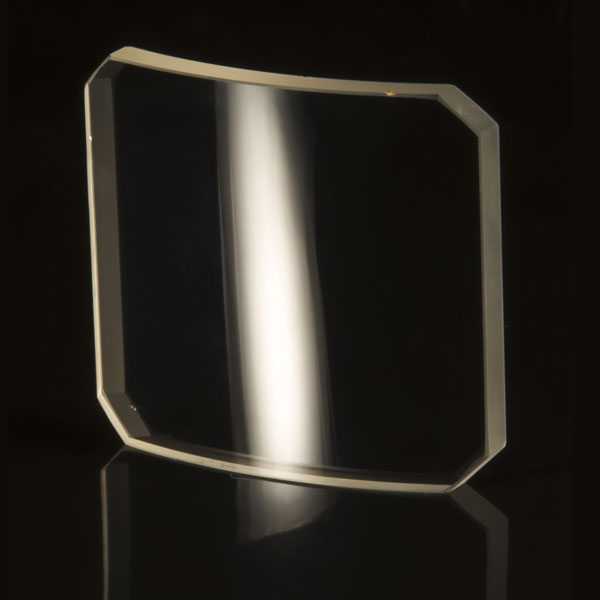

What is a meniscus lens <br>Meniscus cylinder Lens can increase the NA of the system while only adding slightly to the total spherical aberrations. The Negative Meniscus Lens is used to increase the focal length of another lens while maintaining the angular resolution of the optical assembly. This lens shape is best used when one conjugate is relatively far from the lens. <br> <br>Description Of Meniscus Cylindrical Lens <br>It is a lens that one surface is the convex shape, another surface is concave with a cylindrical shape, its role is making beam converging or diverging on a plane, and that beam doesn’t work for the perpendicular plane(cylindrical axis) with it. A cylindrical lens is used in turning a transmitted plane wave into a cylindrical wave, or turn an original cylindrical wave into a plane wave or spherical wave, such a kind of lens can correct ocular astigmation. <br>Ecoptik (also known as BRD Optical) uses classical processing technology and strict process control to ensure that the surface accuracy of the lens is sufficient to meet customer requirements. At the same time, we use the Zygo interferometer to perform multiple corrections and measurements during and final processing of the surface progress. <br> <br>Specification Of Meniscus Cylindrical Lens <br> Commercial High precision <br>Material Optical glasses, fused silica, silica, etc. <br>Diameter 0.5mm ~ 150mm <br>Diameter tolerance ±0.1mm ±0.02 <br>Focal length -50mm ~ 2000mm <br>Focal length tolerance ±2% (&lt;10mm) <br> ±0.5% &lt;10mm – 1000mm) <br> ±1% (&gt;1000%) <br>Centraticom &lt;3 arc min &lt;10 arc sec <br>Clear aperture &gt;85% ~92% of diameter <br>Surface quality ( Scratch / Dig) MIL 60/40 MIL 10/5 <br>Surface accuracy λ/[email protected] λ/10632.8nm <br>Bevel 0.05mm~0.2mm x 45° <br>Coating Up on  customer’s requirement. <br>For more information about cylindrical lens price, please feel free to contact us! <br> <br>If you are looking for a reliable custom optic manufacturer, don&#039;t hesitate to contact us! <br>#cylindrical#lens#price <br>[a]https%3A%2F%2Fwww.ecoptik.net%2Fproducts%2Fmeniscus-cylindrical-lens%2F[/a]

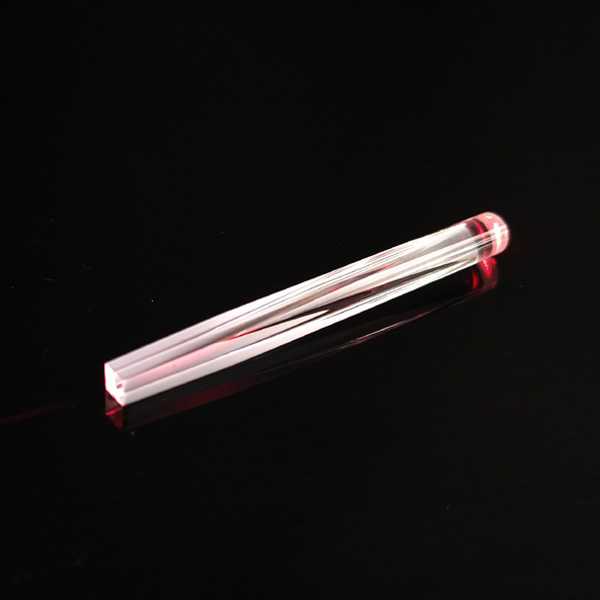

Prisms: Right angle prism, Dove prism, Beam splitter, Penta Prism, Corner prism, Trapezium Prism, Rhomoboid Prism, Roof  Prism, Cube prism, customized prisms, etc. <br> <br>Description Of Light Guide Prism <br>Ecoptik prisms have the advantages of right angle prism, Dove prism, Beam splitter, Penta Prism, Corner prism, Trapezium Prism, Rhomoboid Prism, Roof  Prism, Cube prism, customized prisms, etc. <br> <br>Specifications Of Light Guide Prism <br>Flatness 2λ-λ/10 <br>Surface Quality 80/50-10/5 <br>Angle Tolerance 3’-15’’ <br>Clear Aperture &gt;85%-95% <br>Chamfer 0.3mm×45°-0.1mm×45° <br>Coating As per customer’s requirement <br> <br> <br>As a light guide manufacturer, we provide light guide rod, guide rod light, custom light guides, etc. For more information, please feel free to contact us! <br> <br>If you are looking for a reliable custom lens manufacturer, don&#039;t hesitate to contact us! <br>#light#guide#prism <br>[a]https%3A%2F%2Fwww.ecoptik.net%2Fproducts%2Flight-guide-prism%2F[/a]

customized quartz glass components has a high transmittance from ultraviolet to near-infrared (185nm-00nm), and has a high transmittance in the deep ultraviolet region, making it widely used in ultraviolet lasers. In addition, compared with ordinary optical glass, fused quartz glass has better uniformity and lower thermal expansion coefficient, making it particularly suitable for applications in the ultraviolet to near-infrared wavelength range, high-power lasers and imaging fields. As a professional fused silica manufacturer, Ecoptik can provide the best fused silica, if you want to know the fused silica price, please feel free to contact us. <br> <br>Fused Silica Descriptions <br>As a major optical product material, the main characteristics of ir fused silica are:  <br>High purity and corrosion resistance  <br>High softening temperature, strong heat resistance  <br>Low thermal expansion coefficient, thermal shock resistance  <br>From the ultraviolet band to the infrared band have good light transmission performance  <br>Strong radiation resistance <br> <br>For more information about fused silica transmittance and fused silica density, please feel free to contact us! <br> <br>If you are looking for a reliable precision optical company, don&#039;t hesitate to contact us! <br>#customized#quartz#glass#components <br>[a]https%3A%2F%2Fwww.ecoptik.net%2Fproducts%2Ffused-silica%2F[/a]

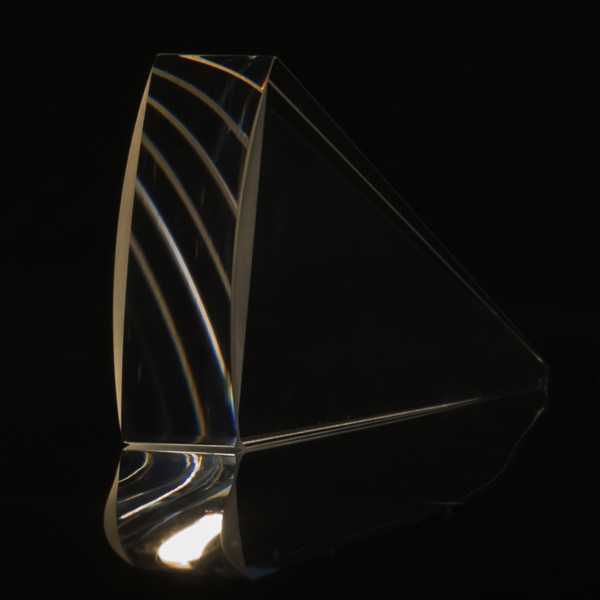

#buy #dielectric #mirror <br>Dove prisms have an unusual and very interesting characteristic , if you look through the prism and rotate it around a longitudinal axis, the image rotates through twice the angle through which the dove prism itself rotates. For optimal peformance, use dove prisms with collimated light. <br> <br>Description Of Dove Prism <br>Ecoptik dove prism have an unusual and very interesting characteristic, if you look through the prism and rotate it around a longitudinal axis, the image rotates through twice the angle through which the dove prism itself rotates. <br> <br>If you are looking for a reliable dove prism supplier don&#039;t hesitate to contact us! <br> <br>There are many dove prism manufacturers, but we are one of the best choices for you. <br> <br>As a professional optical products manufacturer, Ecoptik has high-quality custom optical components for sale. Welcome to contact us if needed. <br>[a]https%3A%2F%2Fwww.ecoptik.net%2Fproducts%2Fdove-prism%2F[/a]

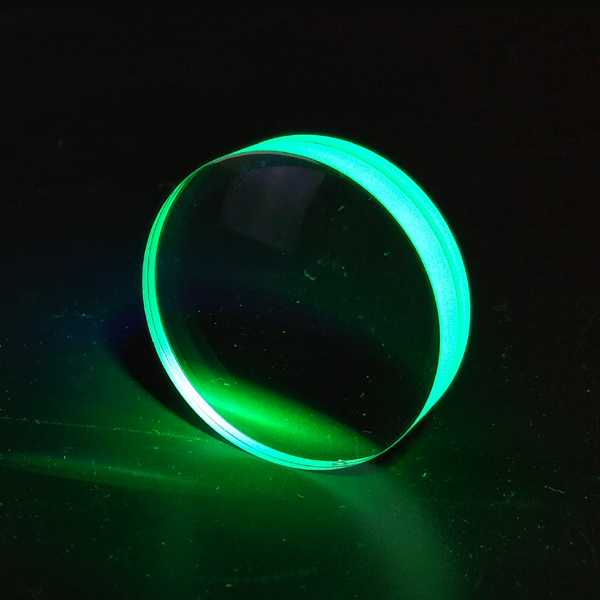

#dielectric #mirror #buy <br>The double convex lens/double convex mirror is symmetrical across both its horizontal and vertical axis. Each of the lens&#039;s two faces can be thought of as originally being part of a sphere. The fact that a double convex lens/mirror is thicker across its middle is an indicator that it will converge rays of light that travel parallel to its principal axis. A double convex lens/mirror is a converging lens. A double concave lens/mirror is also symmetrical across both its horizontal and vertical axis. The two faces of a double concave lens can be thought of as originally being part of a sphere. The fact that a double concave lens is thinner across its middle is an indicator that it will diverge rays of light that travel parallel to its principal axis. Adouble convex lenses/mirror is a diverging lens. These two types of lenses - a double convex and a double concave lens/mirror will be the only types of lenses that will be discussed in this unit of The Physics Classroom Tutorial. <br> <br>If you want to get the double convex lens price, please feel free to contact us. <br> <br>Description Of Double Convex Lens/Mirror <br>The fact that a custom convex lens is thinner across its middle is an indicator that it will diverge rays of light that travel parallel to its principal axis. A double concave lens is a diverging lens. These two types of lenses - a double convex and a double concave lens will be the only types of lenses that will be discussed in this unit of The Physics Classroom Tutorial. <br> <br>As a professional precision optical company, Ecoptik has high-quality optical element for sale. Welcome to contact us if needed. <br>[a]https%3A%2F%2Fwww.ecoptik.net%2Fproducts%2Fdouble-convex-lens%2F[/a]

#dielectric #mirror #cost <br>A double concave lens/double concave mirror has a negative focal length, thereby causing collimated incident light to diverge. The double concave lens/mirror has an equal radius of curvature on both sides of the lens. They are generally used to expand light or increase focal length in the existing system, such as beam expander and projection systems. <br> <br>Description Of Double Concave Lens/Mirror <br>The double concave lens of Ecoptik has a negative focal length, thereby causing collimated incident light to diverge. A double concave lens has an equal radius of curvature on both sides of the lens. <br> <br>As a professional custom lens manufacturer, Ecoptik has high-quality optical component for sale. Welcome to contact us if needed. <br>[a]https%3A%2F%2Fwww.ecoptik.net%2Fproducts%2Fdouble-concave-lens%2F[/a]

#cut #off #filters <br>Ecoptik (also known as BRD Optical) can provide the hemisphere, not only a glass dome but also an dome flange is widely used with all kinds of cameras such as CCTV, ROVs, etc. The flanges are easier to install. Of course, it retains all its optical properties. <br> <br>In the current market, more are acrylic domes with flange, After all, the acrylic material is easier to form, but its optical properties are limited, secondly, its surface is easy to be engraved, which will greatly reduce the imaging effect. <br> <br>It is harder for glass to form and make useful optical elements, Through repeated design and experiment, Ecoptik (also known as BRD Optical) has successfully produced an autumn optical dome with flange. <br> <br> <br>Description Of Acrylic Dome With Flange <br> <br>Ecoptik (also known as BRD Optical)can provide the Hyper hemisphere Dome lens, not only a glass dome but also a dome with flange is widely used with all kinds of cameras such as CCTV, ROVs, etc. The flanges are easier to install. Of course, it retains all its optical properties. <br> <br>In the current market, more are acrylic products, After all, the acrylic material is easier to form, but its optical properties are limited, secondly, its surface is easy to be engraved, which will greatly reduce the imaging effect. <br> <br>It is harder for glass to form and make useful optical elements, Through repeated design and experiment, Ecoptik (also known as BRD Optical) has successfully produced an autumn optical dome with flange. <br> <br>Specifications Of Acrylic Dome With Flange <br> <br>Material Optical glass BK7 / Fused silica <br>Out diameter 20mm~120mm <br>Thickness 2mm~5mm <br>Surface quality 60/40 <br>Fringe 10（5） <br>Centration &lt;2um <br> <br>There are many optical components companies, but we are one of the best choices for you. <br> <br>[a]https%3A%2F%2Fwww.ecoptik.net%2Fproducts%2Fdome-with-flange%2F[/a]

#cut #off #filter <br>A dielectric mirror, also known as a Bragg mirror, is a type of mirror composed of multiple thin layers of dielectric material, typically deposited on a substrate of glass or some other optical material. By careful choice of the type and thickness of the dielectric layers, one can design an optical coating with specified reflectivity at different wavelengths of light. Dielectric mirrors are also used to produce ultra-high reflectivity mirrors: values of 99.999% or better over a narrow range of wavelengths can be produced using special techniques. Alternatively, they can be made to reflect a broad spectrum of light, such as the entire visible range or the spectrum of the Ti-sapphire laser. Mirrors of this type are very common in optics experiments, due to improved techniques that allow inexpensive manufacture of high-quality mirrors. Examples of their applications include laser cavity end mirrors, hot and cold mirrors, thin-film beamsplitters, and the coatings on modern mirrorshades. Ecoptik (also known as BRD Optical) has various dielectric mirror glass for sale. If you want to know the dielectric mirror cost or buy dielectric mirror , please feel free to contact us. <br> <br>Description of Broadband Dielectric Mirror For Sale <br>A dielectric mirror is an optical mirror made of thin layers of dielectric optical coating deposited on an optical substrate. We offer dielectric laser mirrors for fixed, narrowband or broadband wavelength applications covering wavelength ranges from UV to IR. Wide selection of round, elliptical or custom shapes as well as flat, spherical, cylindrical surface mirrors. <br> <br>Ecoptik (also known as BRD Optical) provide the Visible broadband dielectric mirrors, UV dielectric coating, etc. If you want to know the dielectric mirror cost, please feel free to contact us. <br> <br>Ecoptik is a professional custom optic manufacturer, we provide custom optical components, dome flange and etc. Want to know what is a dielectric mirror or where to buy dielectric mirror? Please contact us. <br>[a]https%3A%2F%2Fwww.ecoptik.net%2Fproducts%2Fdielectric-mirror%2F[/a]

#corner #cube #prism <br>Infrared cut filter is the use of precision optical coating technology on optical substrate plating alternately high and low refractive index of optical film, achieve high visible light area (400-630 nm), near infrared (700-1100 nm) as optical filter, mainly used in mobile phone cameras, computer are photographed a built-in camera, car camera digital imaging field, is used to eliminate the influence on CCD/CMOS imaging infrared light.By imaging system with IR cutoff filter, block the part of the interference imaging quality of infrared light, can make the image more in line with the human eye made by the best feeling. <br> <br>Description Of Cut Off Filter <br> <br>Infrared cut filter is the use of precision optical coating technology on optical substrate plating alternately high and low refractive index of optical film, achieve high visible light area (400-630 nm), near infrared (700-1100 nm) as optical filter glass, mainly used in mobile phone cameras, computer are photographed a built-in camera, car camera digital imaging field, is used to eliminate the influence on CCD/CMOS imaging infrared light.By imaging system with infrared end filter, block the part of the interference imaging quality of infrared light, can make the image more in line with the human eye made by the best feeling. <br> <br>Specifications Of Cut Off Filters <br> <br>Material: Optical Glass <br> <br>Dimension:80mmx80mmx.03mm or customized size <br> <br>Cut-off Wavelength Specification <br>630nm Tavg&gt;90%@400-580nm,T=50%@630±10nm,Tavg&lt;3%@680-1050nm <br>635nm Tavg&gt;90%@420-590nm,T=50%@635±10nm,Tavg&lt;3%@680-1050nm <br>645nm Tavg&gt;90%@420-600nm,T=50%@645±10nm,Tavg&lt;3%@700-1050nm <br>650nm Tavg&gt;90%@420-600nm,T=50%@650±10nm,Tavg&lt;3%@700-1050nm <br>680nm Tavg&gt;90%@420-630nm,T=50%@680±10nm,Tavg&lt;3%@730-1100nm <br>690nm Tavg&gt;90%@420-640nm,T=50%@690±10nm,Tavg&lt;3%@740-1100nm <br>700nm Tavg&gt;90%@420-650nm,T=50%@700±10nm,Tavg&lt;3%@750-1100nm <br>705nm Tavg&gt;90%@420-650nm,T=50%@705±10nm,Tavg&lt;3%@750-1100nm <br> <br>There are many optical component companies, but we are one of the best choices for you. <br> <br>For more information about optical component design, please feel free to contact us! <br> <br>[a]https%3A%2F%2Fwww.ecoptik.net%2Fproducts%2Fcut-off-filter%2F[/a]

#retroreflector #prism <br>BK7 and UVFS Corner Cube Retroreflector Prism are designed to deviate incident light by 180 degrees independently of an angle of incidence. These corner cube prism have three mirror surfaces with angles at 90° to each other, juxtaposed to form the corner of a cube with the entrance face perpendicular to the cube&#039;s diagonal. <br> <br>Corner Cube Retroreflector Prism Description <br> <br>A corner cube retroreflector, also known as a CCR or trihedral optical prism, is an optical structure that consists of three adjacent, mutually-orthogonal plane-reflecting surfaces which form the corner of a cube. The corner cube reflects an incident ray at a specific angle, independent of the prism and beam orientations. <br> <br>Ecoptik corner cubes are used in a wide variety of applications such as spectroscopy, battlefield technology and satellites. Corner cubes enable range finding for weapons systems and aid in performing other precise displacement and distance measurements. For example, a satellite in orbit around the earth requires monitoring of its position while it measures plate tectonics and ocean surface topography. <br> <br>There are many optical component manufacturers, but we are one of the best choices for you. <br> <br>[a]https%3A%2F%2Fwww.ecoptik.net%2Fproducts%2Fcorner-cube-retroreflector%2F[/a]
