[a]https%3A%2F%2Fwww.phxfiber.com%2Fproducts%2Fwide-band-coupler.html[/a] <br> <br>#Wide #Band #Coupler <br> <br>Wide Band Coupler is also know as wideband directional coupler, which is built to split the optical power or wavelength through Fused Biconic Taper (FBT coupler) technique. The operating bandwidth of 1x2 or 2x2 Wide Band Coupler coupler is ±40nm. <br> <br>Specifications of Wideband Hybrid Coupler <br> Wide Band Coupler (WBC) <br>Grade P A P A <br>Port Configuration 1x2 or 2x2 <br>Operating Wavelength (nm) 1310,1550 or C+L Band C Band or L Band <br>Operating Bandwidth (nm) ±40 1528~1565 or 1570~1605 <br>Typical Excess Loss (dB) 0.07 0.1 0.07 0.1 <br>Insertion Loss (dB) 50/50 ≤3.4 ≤3.6 ≤3.35 ≤3.5 <br> 40/60 ≤4.4/2.6 ≤4.7/2.8 ≤4.4/2.55 ≤4.6/2.7 <br> 30/70 ≤5.7/1.9 ≤6.0/2.0 ≤5.7/1.85 ≤5.9/1.95 <br> 20/80 ≤7.6/1.25 ≤8.0/1.3 ≤7.55/1.25 ≤7.8/1.3 <br> 10/90 9.55~10.65/≤0.65 9.3~10.9/≤0.8 9.55~10.60/≤0.65 9.35~10.85/≤0.8 <br> 5/95 12.40~13.80/≤0.4 12.10~14.10/≤0.5 12.45~13.75/≤0.4 12.15~14.05/≤0.45 <br> 2/98 16.10~18.05/≤0.25 15.70~18.45/≤0.35 16.2~17.95/≤0.25 15.80~18.35/≤0.3 <br> 1/99 19.05~21.15/≤0.2 18.55~21.65/≤0.3 19.1~21.1/≤0.2 18.65~21.55/≤0.3 <br>PDL (dB) ≤0.10 ≤0.15 ≤0.10 ≤0.15 <br>Directivity (dB) ≥55 <br>Operating Temperature (℃) -40  ~  +85 <br>Package Dimension 250μm Bare Fiber: Φ3.0×45mm <br>900μm Loose Tube: Φ3.0×54mm <br>900um/2mm/3mm Loose Tube: 90×20×10mm <br> <br>Ordering Information of WideBand Coupler <br>WBC X XXX XXXX XX/XX X X XXX XX/XX <br> Grade Port number Operating Wavelength Coupling Ratio Pigtail Type Encapsulation Steel Tube Fiber Length Connector <br> P=Perfect 1×2 1310=1310 01/99 0=250um 3.0×45 1m FC/UPC <br> A=Grade A 2×2 1550=1550 02/98 1=900um 3.0x54 1.5m FC/APC <br> X=Customized 1528~1565 or 1570~1605. 03/97 4=others 2m SC/UPC.

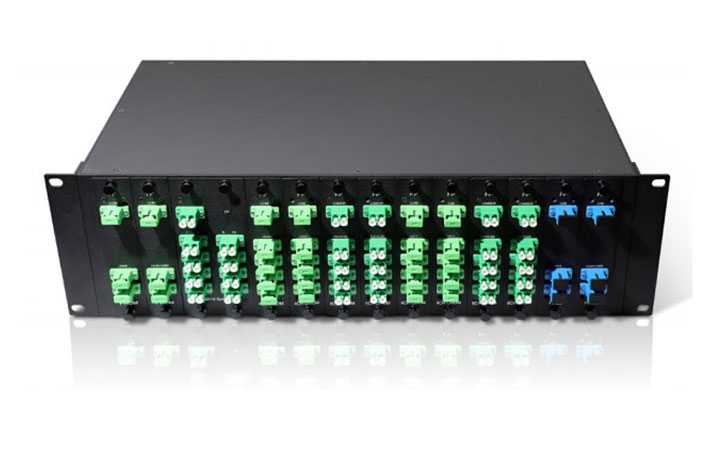

[a]https%3A%2F%2Fwww.phxfiber.com%2Fproducts%2Fwdm-rack-mount.html[/a] <br> <br>#wall #mount #network #rack <br> <br>The server cabinet shall consist of welded and assembled steel frame construction, supporting computer server and data storage equipment by providing additional space at the rear for cable management and front-to-rear airflow solutions. <br> <br>Parameters of WDM Network Cabinet Wall Mount Enclosure <br>Parameter 4 Channel 8 Channel 16 Channel 18 Channel <br> Mux Demux Mux Demux Mux Demux Mux Demux <br>Channel Wavelength (nm） 1270~1610/1271~1611 <br>Center wavelength Accuracy (nm) ±0.5 <br>Channel Spacing (nm） 20 <br>Channel Passband (@-0.5dB bandwidth (nm) +/-7.5/+/-6.5 <br>Insertion Loss (dB) ≤1.5 ≤2.5 ≤3.5 ≤3.5 <br>Channel Uniformity (dB) ≤0.6 ≤1.0 ≤1.5 ≤1.5 <br>Channel Ripple (dB) 0.3 <br>Isolation (dB） Adjacent &gt;30 <br> Non-adjacent &gt;40 <br>Insertion Loss (dB） Express with filter &gt;30 <br> Express without filter &gt;12 <br>Inertion Loss Temperature Sensitivity (dB/℃) &lt;0.005 <br>Wavelength Temperature Shifting (nm/℃) &lt;0.002 <br>Polarization Dependent Loss (dB） &lt;0.1 <br>Polarization Mode Dispersion (ps） &lt;0.1 <br>Directivity (dB) ＞50 <br>Return Loss (dB） ＞45 <br>Maximum Power Handling (mW) 300 <br>Opterating Temperature (℃) -40~+85 <br>Storage Temperature (℃) -40~+85 <br>Package Dimension (mm) (LGX box) L155.5xW102(129)xH29 <br> <br>Now the price of patch panel rack mount is reasonable, if you want to buy wall mount network rack, please contact us. <br> <br>If you want to know more kinds of fiber optic wall mount enclosure, please visit our website.

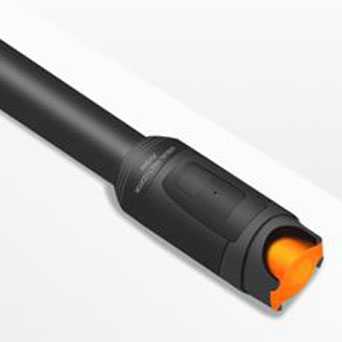

[a]https%3A%2F%2Fwww.phxfiber.com%2Fproducts%2Fvfl-pen.html[/a] <br> <br>#Fiber #VFL #Pen <br> <br>Combined with ergonomic design, it is mini and compact, simple to operate, easy to carry, and equipped with light-emitting diodes for status indication. It can be used for visual testing of optical fibers, optical cables, and connectors. When the tested optical fiber has a breakpoint, the laser light transmitting along the optical fiber will leak red light at the breakpoint, and the visible light can determine the position of the breakpoint. The effect depends on the fiber protective layer and the color of the cover. <br> <br>Product Parameter of Fiber VFL Pen <br> <br>Output Power ≥10mW ≥20mW ≥30mW <br>Wavelength 650nm <br>Optical Connector Universal 2.5mm adapter (FC/SC/ST) <br>Modulation Frequency CW/ 2Hz <br>Working Temperature 0~+60°C, &lt; 90%RH <br>Storage Temperature -20~ +70 °C, &lt; 90%RH <br>Power Supply 2xAA batteries <br>Continuous Working Time 12h 10h <br> <br>Size 175*26*26mm <br>Weight 173g <br> <br>Now the price of fiber visual fault locator pen is reasonable, if you have needs, please contact us. <br> <br>If you want to know more types of red light fiber optic tester, please visit our website.

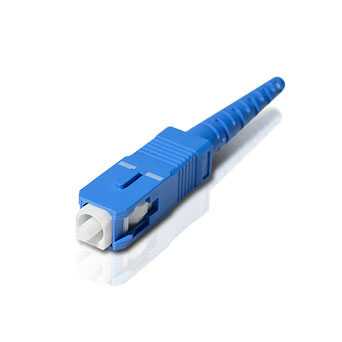

#optical #communication #devices <br> <br>[a]https%3A%2F%2Fwww.phxfiber.com%2Fproducts%2Fsc-upc-sm-connector.html[/a] <br> <br> <br>SM/SC Fiber Connector Definition <br>PHX design, develop molds and produce various of kinds of Single Mode and Multi-mode fiber optic connectors for ST, SC, FC, LC, E2000, MPO, MU and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally tested before shipping. <br> <br>Specification of SC/UPC SM Connector <br>Fiber Count Simplex Insertion Loss ≤0.25dB <br>Fiber Mode Single Mode Return Loss ≥55dB (UPC) <br>Polish Type UPC Durability &gt;1000times <br>Cable Diameter 0.9/1.2/2.0/3.0mm Operating Temp -40~85°C <br>Operating Wavelength 1310nm, 1550nm Ferrule Concentricity ≤1um <br> <br>We can provide kinds of sc upc optic fiber connector for sale, and the sc fiber connector price is reasonable, if you want to buy sc fiber connector, please contact us. <br> <br>If you want to know more kinds of sm sc fiber connectors, please visit our website. <br> <br>There are many optical fibre manufacturing companies in China, but we are one of the best choices for you.

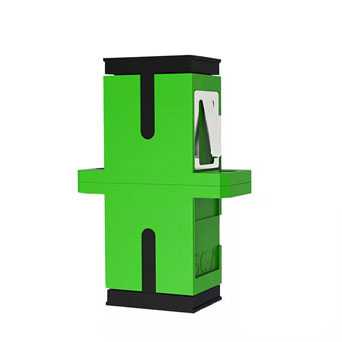

#optical #communication #equipment <br> <br>[a]https%3A%2F%2Fwww.phxfiber.com%2Fproducts%2Fsc-fiber-optic-adapter.html[/a] <br> <br> <br>SC Fiber Adapter <br>A fiber optic adapter also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber-optic lines. By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability, and reproducibility. And each fiber optic Adapter is functionally tested before shipping. <br> <br>Specification of SC Fiber Optic Adapter <br>Adapter Type SC Body Style Simplex <br>Connector Polish Type UPC/APC Connector Fiber Mode Singlemode <br>Insertion Loss ≤0.2dB Durability &gt;1000times <br>Mounting Type With Flange Alignment Sleeve Material Ceramic <br>Color Blue/Green RoHS Compliancy Status Compliant <br>Alternating Loss ≤0.2dB Working Temperature -40~85°C <br>Repeatability ≤0.2dB Storage Temperature -40~85°C <br> <br>Now the price of sc to lc fiber adapter is reasonable, if you have needs, please contact us. <br> <br>If you want to know more kinds of fiber optic products, please visit our website.

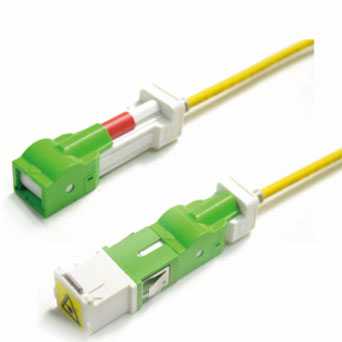

#fiber #optic #products <br> <br>[a]https%3A%2F%2Fwww.phxfiber.com%2Fproducts%2Fsc-auto-shutter-connector-and-adapter.html[/a] <br> <br> <br>SC Auto Shutter Connector And Adapter <br>SC apc fast connector features low insertion loss and added Loss, High stability, high reliability, the height of attenuation, high back loss, small volume, lightweight. Sc adapters with shutter opens and close automatically. SC Auto-door connector can be used with a regular SC adapter and offers the highest level of dust and laser protection available. The design of sc apc quick connector and sc adapters with shutter conforms to human engineering, which is easy to handle and suitable for optical cable diameter:2.0mm,3.0mm. Meets with RoHS and reach. <br> <br>Product Parameters of SC Auto Shutter Connector and Adapter <br>Type Parameter <br> SM-UPC SM-APC MM-UPC <br> Typical Max Typical Max Typical Max <br>Insertion Loss ≤0.10dB ≤0.30dB ≤0.15dB ≤0.30dB ≤0.05dB ≤0.30dB <br>Return Loss ≥50dB ≥60dB ≥30dB <br>Durability 500 times a plug <br>Operation Temperature -40 to + 85℃ <br> <br>Application of SC Auto Shutter Connector and Adapter <br>1. Optical fiber communication systems engineering. <br> <br>2. Fiber optic data communication network. <br> <br>3. Fiber CATV, FTTH engineering. <br> <br>4. Other optical technology tests. <br> <br>Features of FTTH SC Auto Shutter Connector and Adapter <br>1. Low insertion loss and added loss. <br> <br>2. High stability, high reliability, height of attenuation. <br> <br>3. High back loss, small volume, light weight. <br> <br>4. Shutters open and close automatically. <br> <br>5. SC Auto-door connector can be used with a regular SC adapter. <br> <br>6. Offers the highest level of dust and laser protection available. <br> <br>7. Connector design conforms to human engineering, easy to handle. <br> <br>8. Suitable for optical cable diameter:2.0mm,3.0mm. <br> <br>9. Meets with RoHS and reach. <br> <br>There are many fiber optic products suppliers, but we are one of the best choices for you.

#fiber #optic #equipment <br> <br>[a]https%3A%2F%2Fwww.phxfiber.com%2Fproducts%2Fsc-attenuator.html[/a] <br> <br> <br>SC Attenuator <br>Applied to SC-APC optical fiber interface, SC interface and RJ-45 interface look similar, but SC interface is flatter. <br> <br>Specification of SC Fiber Optic Attenuator <br>Fiber Connector SC/APC <br>Ferrule Type Zirconia Ceramic <br>Connector Gender Fixed Male to Female <br>Transfer Mode Singlemode <br>Attenuation 1dB 3dB 5dB 6dB 7dB 10dB 15dB 20dB 25dB <br>Operating Wavelength(nm) 1260~1620(SM) <br>Attenuation Accuracy ±0.5dB <br>Return Loss ≥60dB <br>Polarization Dependent Loss ≤0.2dB <br>Humidity 95%RH <br>Operating Temperature Range -40~85°C <br>Storage Temperature Range -40~85°C <br> <br>Specification of SC UPC Fiber Optical Attenuator <br>Fiber Connector SC/UPC <br>Ferrule Type Zirconia Ceramic <br>Connector Gender Fixed Male to Female <br>Transfer Mode Singlemode <br>Attenuation 1dB 3dB 5dB 6dB 7dB 10dB 15dB 20dB 25dB <br>Operating Wavelength(nm) 1260~1620(SM) <br>Attenuation Accuracy ±0.5dB <br>Return Loss ≥55dB <br>Polarization Dependent Loss ≤0.2dB <br>Humidity 95%RH <br>Operating Temperature Range -40~85°C <br>Storage Temperature Range -40~85°C <br> <br>There are many fiber optic products manufacturers, but we are one of the best choices for you.

#optical #communication #company <br> <br>[a]https%3A%2F%2Fwww.phxfiber.com%2Fproducts%2Fremote-optical-fiber-cable.html[/a] <br> <br> <br>Remote Optical Fiber Cable <br>Remote outdoor multimode fiber optic cable is made by placing a layer of aramid yarn outside the tightly set fiber and extruding a layer of sheath to form a sub-cable. The sub-cable is twisted together with the reinforced filling rope and extruded a layer of low-smoke halogen-free flame retardant material (LSZH) sheath to form the cable. Reinforcement materials can also be replaced with other high strength fiber materials upon request, or poly (TPU) or other agreed jacket materials can be provided upon request. The optical cable is mainly used for FTTA outdoor base station, tower top, radio frequency remote RRU and base station room end BBU device port interconnection, also can be used for some common indoor and outdoor environment inter-office wiring. <br> <br>GYXTW Outdoor Cable Specification <br>PRODUCT LIST Features Application <br>GYXTW Outdoor Cable Good tensile strength and crush. Access network. <br> Resistance performance. Bureaus network. <br> Good moisture-resistance,water blocking, and flexibility. Aerial and duct application <br> <br>Stretching Optical Fiber Cable Specification <br>Product List Features Application <br>GJYWFJH Indoor/Outdoor Cable Good mechanical and temperature characteristics. Remote base station communication such as RRU or BBU. <br> Good lateral compression and flexibility. Smart substation and CATV Outdoor application. <br>GJYFJH Indoor/Outdoor Cable Small diameter, lightweight, easy to connect, and support Emergency access to optical fiber communication. <br> large-capacity. <br>GJYWFJH2 Indoor/Outdoor Cable Good mechanical and temperature characteristics. Smart substation and CATV Outdoor application. <br> Good lateral compression and flexibility. <br> Small diameter, lightweight, easy to connect, and support <br> large-capacity data transmission. Used in FTTX, from residence to data center and cabling <br> level and vertical, also used in FTTH cable. <br> <br>Outdoor Optical Fiber Cable <br>Autonomous Vehicles <br>Optical Communication Systems <br>Local Area Networks <br>CATV Systems <br> <br>Now the price of single mode outdoor fiber cable is reasonable, if you have needs to buy outdoor single mode fiber optic cable, please contact us. <br> <br>As a fiber optic products supplier, we will do our best to meet all the needs of customers.

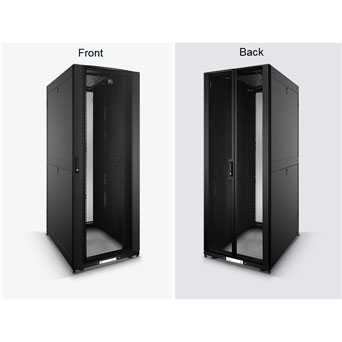

#fiber #optic #companies <br> <br>[a]https%3A%2F%2Fwww.phxfiber.com%2Fproducts%2Fracks-and-cabinets%2F[/a] <br> <br> <br>Racks and Cabinets <br>The rack is only used for integrated wiring, installing distribution frames, and cable management frames, to realize the management of cables and optical cable wiring systems. The width of the rack is usually the standard 19 inches, but the depth is greatly reduced, thereby reducing the footprint and saving costs. <br> <br>Cabinet <br> <br>The cabinet ftth is used in the fields of heat distribution, network equipment, communication equipment, and electronic equipment. The cabinet usually adopts a fully enclosed or semi-enclosed structure, which has the advantages of enhancing electromagnetic shielding, weakening equipment working noise, and reducing equipment ground area occupation. Some high-end cabinets It also has an air filter function, which improves the quality of the working environment of precision equipment. Many cabinets have a panel width of 19 inches. Therefore, a 19-inch cabinet is the most common standard cabinet. <br> <br>Different Types of Racks and Cabinets for Sale <br>42U Cabinet42U Cabinet <br>WDM Rack Mount <br> <br>Features of Fiber Optic Patch Cords <br>Compared with the cabinet, the rack is generally an open structure, unlike the cabinet with a fully enclosed or semi-enclosed structure, so in an environment with relatively poor air cleanliness, the surface of the equipment is more likely to accumulate dust. Therefore, the rack is not suitable for installing expensive network equipment cabinet. <br> <br>Cabinets are generally made of cold-rolled steel plates or alloys to store computers and related control equipment. They can provide protection for storage equipment, shield electromagnetic interference, and arrange equipment in an orderly and neat manner to facilitate future maintenance of equipment. Cabinets are generally divided into server cabinets, network cabinets, console cabinets, etc. <br> <br>Advantages of Fiber Optic Jumpers <br> <br>The Cabinet Layout is Reasonable <br>The cabinet layout is reasonable, the operation of cable introduction, fixing and grounding is convenient, and the maintenance is convenient. Power cables, signal cables and optical cables have independent inlet holes, which will not interfere with each other. <br> <br>The Cables are Made of Flame-Retardant Materials <br>The cables used in the cabinet are made of flame-retardant materials and adopt a modular design. The installation is very simple. 2-3 people can easily complete the equipment fixing and installation. <br> <br>The Industrial Frame Has A Reasonable Structure <br>Reasonable structure and high flatness. The industrial frame has a reasonable structure, high surface flatness, and no unevenness. After complying with these standards, the industrial frame is uniformly stressed, has a long service life, and avoids bending and deformation. <br> <br>Stable Structure And High Safety <br>The built industrial enclosed network rack is safe and stable, does not shake, and has a good carrying capacity. <br> <br>Fiber Optic Solutions We Serve <br>PHX FIBER products are widely applied in fiber optical communication systems, fiber optic sensors, CATV, fiber lasers and other fiber optical instruments, etc. <br>Local Area Networks <br> <br>Optical Fiber Used In Local Area Networks <br>CATV Systems <br> <br>Optical Fiber Used In CATV Systems <br>Autonomous Vehicles <br> <br>Optical technology in Autonomous Vehicles <br>Optical Communication Systems <br> <br>We can provide kinds of server rack system for sale, and the server rack cabinet price is reasonable, if you have needs to buy outdoor server rack cabinet and waterproof rack mount cabinet, please contact us. <br> <br>There are many fiber optic equipment suppliers in China, but we are one of the best choices for you.

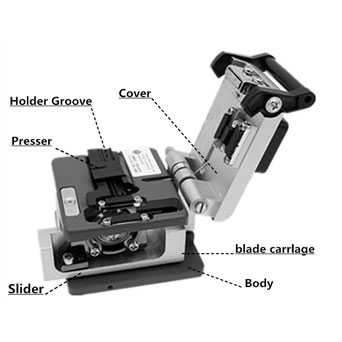

#sc #sm #connector <br> <br>[a]https%3A%2F%2Fwww.phxfiber.com%2Fproducts%2Fprecision-fiber-cleaver.html[/a] <br> <br> <br>Precision Fiber Cleavers <br>Using Precision Cleaver, please be cautious of the following particulars and prevent your body and property from harm and use carefully and usefully. Keep Precision Cleaver away from water. Place fiber precision cleaver away from the humid and dusty place. High temperature causes transforming, so keep it at a normal temperature. Be careful with a serious impact on it. To change to Multimode, use the wrench enclosed with the product to change a holder. Make sure that you fasten with the bolts properly. <br> <br>Specifications of Precision Fiber Cleaver <br>On the edge of the blade, the cleaving position from 1~12 is marked. <br>When it does not leave the fiber normally, clean the cleaving edge part, and rubber pad with alcohol-soaked cotton. (But, when cleaning rubber pad, do not use acetone or solvent) <br>And if it still does not leave, it means the cleaving edge is fully used, operators are required to change the cleaving position by the following order. <br>Cleaving Position Adjustment 1. Open the cover and make the blade carriage come out to the front of the body and hold it tight with your hands. <br> 2. Release 2 set screws (1st setscrew location: left of CAM, 2nd setscrew: backside of blade carriage). <br> 3. Rotate the blade counter-clockwise. The blade is originally fixed on &quot;position 1&quot;. Treat the blade with care not to touch the tip of the blade. <br> 4. Take the reverse order. (Fasten the setscrew with equal strength) <br> <br>Now the high precision fiber cleaver price is reasonable, if you have needs to buy high precision optical fiber cleaver, please contact us. <br> <br>As one of fiber optic equipment manufacturers, we will do our best to meet all the needs of customers.
