#ga #mur460 #diode <br>N76E003AT20 Overview <br>The N76E003 is an embedded flash type, 8-bit high performance 1T 8051-based microcontroller. The instruction set is fully compatible with the standard 80C51 and performance enhanced. <br> <br>The ic n76e003at20 contains a up to 18K Bytes of main Flash called APROM, in which the contents of User Code resides. The N76E003 Flash supports In-Application-Programming (IAP) function, which enables on-chip firmware updates. IAP also makes it possible to configure any block of User Code array to be used as non- volatile data storage, which is written by IAP and read by IAP or MOVC instruction. There is an additional Flash called LDROM, in which the Boot Code normally resides for carrying out In-System-Programming (ISP). The LDROM size is configurable with a maximum of 4K Bytes. To facilitate programming and verification, the Flash allows to be programmed and read electronically by parallel Writer or In-Circuit-Programming (ICP). Once the code is confirmed, user can lock the code for security. <br> <br>The n76e003at20 provides rich peripherals including 256 Bytes of SRAM, 768 Bytes of auxiliary RAM (XRAM), Up to 18 general purpose I/O, two 16-bit Timers/Counters 0/1, one 16-bit Timer2 with three-channel input capture module, one Watchdog Timer (WDT), one Self Wake-up Timer (WKT), one 16-bit auto-reload Timer3 for general purpose or baud rate generator, two UARTs with frame error detection and automatic address recognition, one SPI, one I C, five enhanced PWM output channels, eight-channel shared pin interrupt for all I/O, and one 12-bit ADC. The peripherals are equipped with 18 sources with 4-level-priority interrupts capability. <br> <br>The N76E003 is equipped with three clock sources and supports switching on-the-fly via software. The three clock sources include external clock input, 10 kHz internal oscillator, and one 16 MHz internal precise oscillator that is factory trimmed to ±1% at room temperature. The N76E003 provides additional power monitoring detection such as power-on reset and 4-level brown-out detection, which stabilizes the power-on/off sequence for a high reliability system design. <br> <br>The N76E003 microcontroller operation consumes a very low power with two economic power modes to reduce power consumption－ Idle and Power-down mode, which are software selectable. Idle mode turns off the CPU clock but allows continuing peripheral operation. Power-down mode stops the whole system clock for minimum power consumption. The system clock of the N76E003 can also be slowed down by software clock divider, which allows for a flexibility between execution performance and power consumption. <br> <br>With high performance CPU core and rich well-designed peripherals, the N76E003 benefits to meet a general purpose, home appliances, or motor control system accomplishment. <br> <br>If you are looking for a reliable electronic component company, don&#039;t hesitate to contact us!

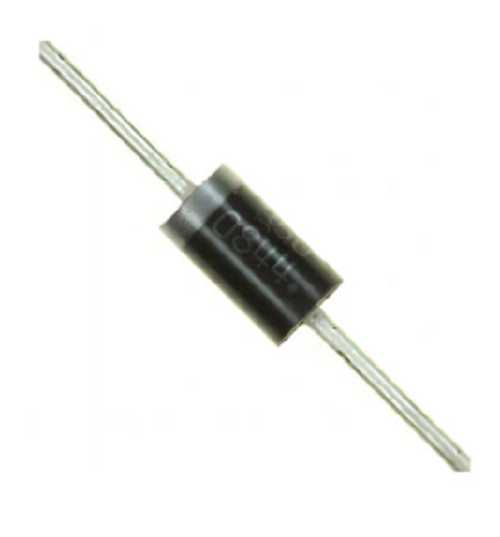

#ga #mur460 <br>Features Of ur460 diode <br>Ultrafast reverse recovery time <br>Low leakage current <br>Low switching losses, high efficiency <br>High forward surge capability <br>Glass passivated chip junction <br>Solder dip 275 °C max. 7 s, per JESD 22-B106 <br> <br>For more information about ga mur460 diode and mur460 diode price, please feel free to contact us! <br> <br>There are many electronic parts manufacturers, but we are one of the best choices for you.

#multilayer #inductor <br>Multilayer inductors are electronic components used for energy storage and transference in various electronic applications. They are composed of multiple layers of a conductor, separated by a ceramic or plastic material acting as the dielectric. Multilayer inductor offer high inductance values and low DC resistance, with a compact design ideal for high-density circuit board applications. They are widely used in RF circuits, mobile devices, and power filtering applications. <br> <br>Different Model Numbers Of Multilayer Inductor <br>Introducing our Multilayer Inductors - HK100510NJ-T, MPL2012S2R2MHT, MPL2012S4R7MHT, SCDS8D43T-100M-N, and VHF100505H2N0ST. These advanced inductors are designed to provide high performance in a compact size. With excellent Q factors, high self-resonance frequencies, and a wide range of inductance values, our multilayer inductors are ideal for a variety of applications, including power supplies, filters, and RF circuits. <br> <br>What Materials Are Used to Make Multilayer Inductors? <br>Multilayer inductors are typically made using ceramic materials, such as barium titanate, lead zirconate, and calcium titanate. Other materials, such as polypropylene and polystyrene, may be used in certain applications. The specific material used depends on factors such as the desired inductance value, performance requirements, and cost. <br> <br>What Role Do Multilayer Inductors Play in Power Supply Circuits? <br>Multilayer inductors are commonly used in power supply circuits to filter out high-frequency noise and stabilize the output voltage. In power supply circuits, multilayer inductors act as smoothing filters, which help prevent unwanted fluctuations and ensure a stable output. <br> <br>What Role Do Multilayer Inductors Play in Power Supply Circuits? <br>What Is a Multilayer Inductor and How Does It Work? <br>A multilayer inductor is a type of inductor that consists of multiple layers of a conductive material wound around a central core. When current passes through the inductor, a magnetic field is generated in the core, which results in energy storage. The inductance value and performance are affected by the number of layers and the geometrical arrangement of the conductive material. <br> <br>There are many electronic component suppliers, but we are one of the best choices for you.

#msi #chips <br>ZKHK&#039;s Medium Scale Integrated Circuit (SSI) is a highly reliable and low-cost integrated circuit solution, making it an ideal choice for all your electronic system needs. It features a wide range of integrated components, including logic gates, transistors, resistors, capacitors, and diodes. Its use of advanced fabrication technology ensures excellent performance and high quality. It&#039;s small size and low power consumption makes it an ideal choice for a variety of applications. <br> <br>Different Models of Medium Scale Integrated Circuit (MSI Chips) <br>MSI is an integrated circuit designed to reduce the size of complex circuits by combining multiple transistors, resistors, capacitors, and other components into a single chip. It is used in a wide range of applications, from consumer electronics to telecommunications. <br> <br>Applications Of Medium Scale Integration <br>Medium Scale Integration MSI is a type of integrated circuit (IC), which is used in a variety of applications. MSI devices typically contain between 10 to 100 logic gates and are used to build larger logic functions. MSI devices are used to create logic functions for consumer electronics, such as control logic for TV remote control systems, or for designing embedded systems for industrial control. They are also used in the automotive industry for engine control systems, and in medical devices for patient monitoring and data acquisition. <br> <br>Advanced Technologies For Medium Scale Integration <br>Advanced Technologies for Medium Scale Integration include multi-layer Printed Circuit Boards (PCBs), Surface Mount Devices (SMDs), System-in-Package (SiP) solutions, and Field Programmable Gate Arrays (FPGAs). These technologies are designed to reduce the size and cost of integrated circuits while still providing a high level of functionality and performance. They are used in a wide range of applications, including medical devices, automotive electronics, and industrial automation. <br> <br>Design Considerations For medium scale integrated circuits <br>Architecture: Carefully consider the structure of the system, including the number of gates, their arrangement, and the types of components used. <br> <br>Packaging: Ensure that the components are properly sealed and protected against environmental conditions. Consider the size and weight of the package to ensure it can be easily handled and transported. <br> <br>Testing: Develop a testing system that can accurately measure the performance of the circuit and ensure it meets the desired specifications. Additionally, consider design redundancies and fault tolerance to ensure reliability. <br> <br>Design Considerations For Medium Scale Integration <br> <br>There are many electronic parts manufacturers, but we are one of the best choices for you.

[a]https%3A%2F%2Fwww.zkhk-ic.com%2Fproducts%2Flqw18an2n2d00d.html[/a] <br>#lqw18an2n2d00d <br>LQW18AN2N2D00D Overview <br>The SMD inductor LQW18AN2N2D00D is a chip inductor that is designed to be used in a variety of electronic applications. <br> <br>This inductor has a compact design and features a small footprint, making it ideal for use in devices where space is at a premium. It is also highly reliable and has a long service life, thanks to its high-quality construction materials and design. <br> <br>The LQW18AN2N2D00D inductor has a nominal inductance of 2.2nH and a rated current of 1.5A. It operates at a frequency range of up to 2.4GHz and has a DC resistance of 0.04Ω. The inductor has a tolerance of ±0.3nH and is RoHS compliant. <br> <br>Overall, the SMD inductor LQW18AN2N2D00D is an excellent choice for use in a wide range of electronic devices and systems, including mobile devices, telecommunications equipment, audio and video equipment, and more. Its compact size, high reliability, and excellent performance make it a highly desirable component for many different applications. <br> <br>ZKHK distributes active and passive electronic component china of various internationally renowned brands, especially in non-volatile memory Flash, F-RAM, EEPROM and wireless memory/RFID, etc. [A1]. Its applications involve wireless communication, telecommunication equipment, enterprise network, digital media, home entertainment, automotive electronics, industrial control and many other fields; at the same time, it also provides customers with unpopular and military-grade component products.

[a]https%3A%2F%2Fwww.zkhk-ic.com%2Fproducts%2Flqw18an27ng00d.html[/a] <br>#lqw18an27ng00d <br>LQW18AN27NG00D Overview <br>The SMD inductor LQW18AN27NG00D is a chip inductor designed for use in a variety of electronic applications. <br> <br>The LQW18AN27NG00D inductor has a compact design and a small footprint, making it ideal for use in electronic devices where space is at a premium. It is also highly reliable and has a long service life, thanks to its high-quality construction materials and design. <br> <br>This inductor has a nominal inductance of 27nH and a rated current of 800mA. It operates at a frequency range of up to 1GHz and has a DC resistance of 0.05Ω. The inductor has a tolerance of ±2% and is RoHS compliant. <br> <br>Overall, the SMD inductor LQW18AN27NG00D is an excellent choice for use in a wide range of electronic devices and systems, including mobile devices, telecommunications equipment, audio and video equipment, and more. Its compact size, high reliability, and excellent performance make it a highly desirable component for many different applications. <br> <br>As one of electronic parts suppliers, we will do our best to meet all the needs of customers.

[a]https%3A%2F%2Fwww.zkhk-ic.com%2Fproducts%2Flqw18an18ng00d.html[/a] <br>#lqw18an18ng00d <br>LQW18AN18NG00D Overview <br>The SMD inductor LQW18AN18NG00D is a surface mount device (SMD) chip inductor that is designed to be used in a variety of electronic applications. <br> <br>The LQW18AN18NG00D has a compact design and a small footprint, making it ideal for use in devices where space is at a premium. It is also highly reliable and has a long service life, thanks to its high-quality construction materials and design. <br> <br>The inductor has a nominal inductance of 180nH and a rated current of 550mA. It operates at a frequency range of 100MHz to 500MHz and has a DC resistance of 0.18Ω. The LQW18AN18NG00D has a tolerance of ±5% and is RoHS compliant. <br> <br>Overall, the SMD inductor LQW18AN18NG00D is an excellent choice for use in a wide range of electronic devices and systems, including mobile devices, telecommunications equipment, audio and video equipment, and more. Its compact size, high reliability, and excellent performance make it a highly desirable component for many different applications. <br> <br>If you are looking for a reliable electronic components distributor, please choose us, and we will be your best partner.

[a]https%3A%2F%2Fwww.zkhk-ic.com%2Fproducts%2Flow-voltage-mos-transistor%2F[/a] <br>#low #voltage #mosfet <br>Low Voltage MOS Transistor <br>ZKHK&#039;s Low Voltage MOS Transistor is a reliable and highly efficient transistor designed to work in applications that require low voltage and low power. It is capable of switching up to 40V and can handle up to 250mA of current. It is available in a variety of packages including SOT-23, SOT-223, and SMD. The low voltage and low power requirements make it ideal for use in low-power and wearable applications. <br> <br>PRODUCTS <br>Different Model Numbers Of Low Voltage MOS Transistor <br>A low voltage mosfet transistor is an integrated circuit device for electrical applications, which offers low power consumption and high performance. It is used in a wide range of electronic applications from consumer electronics to industrial electronics. <br> <br>Common Design Considerations For Low Voltage MOS Transistors <br>Some common design considerations for low voltage MOS transistors include gate-source voltage, drain-source voltage, gate oxide thickness, and drain-source resistance. These factors must be optimized to ensure the transistor can properly switch and handle the current load. Gate-source voltage must be kept low to reduce charge injection and minimize the risk of latch-up. Drain-source voltage should be low enough to reduce leakage current. Gate oxide thickness should be chosen to minimize the channel resistance and improve switching speed. Drain-source resistance should be optimized to reduce power dissipation and minimize the voltage drop across the transistor. <br> <br>Benefits Of Using Low Voltage MOS Transistors In Low-power Applications <br>Low voltage MOS transistors offer significant power savings in low-power applications due to their lower voltage requirements. This reduces the amount of energy lost as heat and increases the efficiency of the system as a whole. <br> <br>Low voltage MOS transistors also reduce the complexity of the power supply circuitry since the lower voltage levels are easier to regulate and control. <br> <br>Finally, low voltage MOS transistors are easier to integrate into existing systems, since they require fewer levels of voltage conversion and can be connected directly to the power supply. <br> <br>What Are The Typical Operating Conditions For Low Voltage MOS Transistors? <br>Low voltage MOS transistors typically operate in a voltage range of 0.3V to 5V and a current range of 1uA to 1A. The gate voltage is usually between 0V and 5V. Generally, the temperature should be kept below 125°C, and the device should be operated in an environment with a relative humidity of less than 95%. It is important to ensure that the gate-source voltage does not exceed the maximum value specified by the manufacturer. Also, it is important to prevent any excessive power dissipation, as this can cause the device to overheat and damage it. <br> <br>There are many electronic component suppliers in China, but we are one of the best choices for you.

[a]https%3A%2F%2Fwww.zkhk-ic.com%2Fproducts%2Flk1305.html[/a] <br>#lk1305 <br>Since ZKHK was established in 2008, ZKHK has provided a variety of electronic components to countless customers around the world to meet the needs of customers. ZKHK provides including IC Chips, Transistors, MOS, Resistor, Potentiometer, Capacitor, Inductor, Diode and other common electronic components products, among them, ZKHK is more concentrating on providing IC Chips, and does its best to meet all the needs of global customers for IC chips. <br> <br>If you want to know more applications of lk1305, please visit our website. <br> <br>As a reliable electronic component company, we will do our best to meet all the needs of customers.

[a]https%3A%2F%2Fwww.zkhk-ic.com%2Fproducts%2Flarge-scale-integrated-circuit-lsi%2F[/a] <br>#large #scale #integration <br>Large Scale Integrated Circuit (LSI) <br>ZKHK&#039;s Large Scale Integrated Circuit (LSI) is a revolutionary new product that combines a wide range of functions in a single chip. It can be used in a variety of industries, such as telecommunications, automotive, and medical systems, and is designed to reduce power consumption and improve system performance. With its high speed, low power consumption, and high reliability, ZKHK&#039;s LSI is sure to revolutionize the way systems are designed and developed. <br> <br>PRODUCTS <br>Different Models Of Large Scale Integration LSI <br>LSI is an integrated circuit consisting of millions of transistors, resistors, and capacitors, used in a variety of applications such as digital signal processing, telecommunications, and computer systems. <br> <br>STM32F103C8T6 <br>STM32F103RCT6 <br>STM8S003F3P6 <br>STC8F2K16S2-28I-L <br>STC15W408AS-35I-SOP16 <br>PIC16F1936-I <br>STC89C52RC-40I-PDIP40 <br>R5F100FEAFP#10 <br> <br>Performance Optimization Of Large Scale Integration <br>To optimize the performance of large-scale integration, it is important to ensure that hardware components are properly designed and configured according to the application requirements. This includes selecting suitable components and configuring them to minimize latency and maximize throughput. <br> <br>It is also important to carefully optimize the software components of the system in order to ensure that they are efficient and properly integrated with the hardware components. This includes optimizing algorithms and data structures, as well as tuning the code to improve performance. <br> <br>Finally, it is important to optimize the system as a whole by ensuring that the system is properly monitored and managed and that the resources are used efficiently. This includes implementing proper capacity management and monitoring tools, as well as automating maintenance tasks. <br> <br>Cost-Effective Solutions For Large Scale Integration <br>Cost-effective solutions for large scale integration involve using systems such as cloud computing, virtualization, and containerization to reduce costs. By using these services, businesses can enable more efficient use of IT resources and reduce their spending. Additionally, businesses can utilize automation and artificial intelligence (AI) to streamline processes, freeing up time and resources. Finally, businesses can reduce costs by implementing an open-source platform, as these can be freely modified, adapted, and shared. <br> <br>What Is The Function Of Large Scale Integration? <br>Large Scale Integration (LSI) is a technology that allows for the integration of many transistors, logic gates, and other components onto a single chip. This technology allows for a much higher level of complexity in a much smaller space. This leads to the creation of faster, more efficient, and cheaper electronic devices that have more features than ever before. This technology is used in a variety of products, including cell phones, computers, digital cameras, and other devices. <br> <br>As a reliable electronic parts company, we will do our best to meet all the needs of customers.

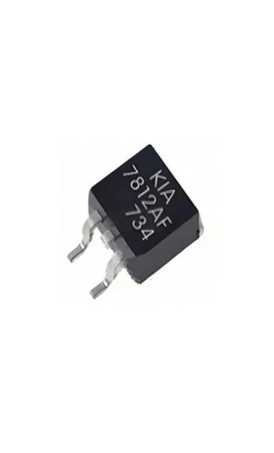

[a]https%3A%2F%2Fwww.zkhk-ic.com%2Fproducts%2Fkia7812af.html[/a] <br>#kia7812af <br>Features Of KIA7812AF <br>Internal Thermal Overload Protection. <br> <br>Internal Short Circuit Current Limiting. <br> <br>Output Current in Excess of 1A. <br> <br>Satisfies IEC-65 Specification. (International Electronical Commission). <br> <br>Package is DPAK, TO-220IS <br> <br>Suitable for MLCC, Tantalum and Low ESR Electrolytic Capacitors. <br> <br>Suffix U : Qualified to AEC-Q100(Grade 0) <br> <br>Automotive and standard product are electrically and thermally the same, except where specified. ex) KIA78**AF-RTF/PU. <br> <br>As one of electronic parts manufacturers, we can provide kinds of related products for sale, if you are interested, please contact us.

[a]https%3A%2F%2Fwww.zkhk-ic.com%2Fproducts%2Fkia7805a.html[/a] <br>#kia7805a <br>Features Of KIA7805A <br>Internal Thermal Overload Protection. <br> <br>Internal Short Circuit Current Limiting. <br> <br>Output Current in Excess of 1A. <br> <br>Satisfies IEC-65 Specification. (International Electronical Commission). <br> <br>Package is DPAK, TO-220IS <br> <br>Suitable for MLCC, Tantalum and Low ESR Electrolytic Capacitors. <br> <br>Suffix U : Qualified to AEC-Q100(Grade 0) <br> <br> : Automotive and standard product are electrically and thermally the same, except where specified. ex) KIA78**AF-RTF/PU. <br> <br>If you want to know more kinds of electronic component china, please visit our website.
