[a]https%3A%2F%2Fwww.rifatextile.com%2Fproducts%2Frfaw20-high-speed-assembly-winding-machine%2F[/a] <br>#Cone #Winding #Machine <br>RFAW20 High-Speed Assembly Cone Winding Machine <br>This product is a new assembly winder machine with a grooved drum that is based on the original model and optimizes the yarn guiding path. The product can be used to combine 2~3 strands of cotton, hemp, wool, and partial blending yarns into a doubling bobbin, which is suitable for processing subsequent processes such as a two-for-one twister machine. <br> <br>Specification of RFAW20 High-Speed Assembly Winding Machine <br>Items Parameters <br>Type Of Machine Double-side, single layer <br>Spindle Gauge 415mm <br>Yarn Type Cotton yarn, wool yarn, polyester yarn, blending yarn, etc <br>No. of Spindles Standard 100 spindles, 10 spindle/ section <br>Yarn Strands No. Of Merging 2-3Ply <br>Anti-stack Mode Electric intermittent type and grooved drum anti-fold <br>Driving Mode Single spindle motor direct driving <br>Winding Mode Random winding <br>Guiding Yarn Mode Groove drum <br>Yarn Guide Travel Route 152mm（6”）; 212mm（8”） <br>Max Yarn Speed 800m/min <br>Max Package Diameter Ø200mm <br>Tension Control Spring compression type <br>Yarn Break Monitoring Method Photoelectric break yarn detection, automatic stop and cut-off <br>Motor Power 0.09kW/spindle (6” ); 0.12kW/spindle (8”) <br> <br>Features of RFAW20 High-Speed Assembly Winding Machine <br>1 <br>Whole new bobbin creel structure to meet the stability requirement of yarn operation. <br> <br>2 <br>Excellent yarn passing passage structure to ensure high-speed running of yarn. <br> <br>3 <br>Optimized grooved drum structure can greatly reduce occurrence of yarn splitting. <br> <br>4 <br>Whole new control system to meet the process requirements of different customers. <br> <br>As a textile winding machine manufacturer, we can provide kinds of textile cone winding machine for sale, if you have needs, please contact us. <br> <br> <br>If you are looking for a reliable textile machinery factory, please choose ua, and we will be your best partner.

[a]https%3A%2F%2Fwww.rifatextile.com%2Fproducts%2Frf310-filament-fiber-two-for-one-twister%2F.[/a] <br>#TFO #machine <br>RF310 Filament Fiber Two-For-One Twister <br>Since the launch of the first set two for one twister in 1993, we have sold more than 3.5 million spindles. Strict requirements for quality allow RIFA two-for-one twister with &quot;high stability&quot;, &quot;high efficiency&quot; and &quot;high quality&quot; to have been highly appreciated by users. <br> <br>Specification of RF310 Filament Fiber TFO Machine Twister <br>ITEMS PARAMETERS <br>Operation Mode Double sides and double layers, guiding wire for threading <br>Number Of Spindles 32 spindle multiples, the standard type of 256 spindles <br>Spindle Pitch 225mm <br>Spindle Speed Range 3000-15000 r/min (Stepless adjustable) <br>Twist Range 80~5000T/m (Stepless adjustable) <br>Twist Direction S or Z twist <br>Spindle Tensioner Combination of multi-section tensioner ball and tension ring <br>Feeding Bobbin Dimension ( Inner Diameter * Outer Diameter* Length) Ø37×Ø42×320cm <br>Take Up Bobbin Dimension Parallel tube; length of 172 cm <br>Traverse Length Max. 160mm (Stepless adjustable) <br>Package Capacity 1500 g <br>Installation Power 19.1KW <br>Starting Mode Soft start <br>Winding Angle 5°~25°(Stepless adjustable) <br>Take Up Speed 40 m/min – max. 120 m/min <br>Suitable Yarn Count 10D~300D filament fiber <br>Spindle Driving Mode Belt circulation drive <br>Spindle Fixture Magnetic fixture <br>Take Up Tension Adjust the wrapping angle of yarn on the over-feeding roller <br>Machine Dimension (Excluding Overhead Blower) 16340X750X1850/1950 mm <br> <br>Features of RF310 Filament Fiber Two-For-One Twister <br>1 <br>High quality spindles, for higher speed, and lower energy consumption. <br> <br>2 <br>Optimized structure of bobbin creel is suitable for higher delivery speed and larger capacity. <br> <br>3 <br>More electronic technology applications make the equipment simple and easy to use. <br> <br>4 <br>Strict quality control, and stable equipment performance. <br> <br>As a textile machinery factory, we can provide kinds of related products for sale, if you are interested, please contact us.

[a]https%3A%2F%2Fwww.rifatextile.com%2Fproducts%2Fthrough-hot-air-bonding-non-woven-production-line.html[/a] <br>#non #woven #line <br>Through-Hot Air Bonding Non-woven Fabrics Production Line <br>The Through-hot air through nonwoven fabric production line from RIFA is a state-of-the-art solution for high-quality non-woven fabric production. This advanced system utilizes hot air to bond materials, ensuring superior product integrity and durability. The production line is designed for efficiency and ease of operation, with a high output rate that meets the demands of large-scale production. RIFA&#039;s innovative technology guarantees consistent product quality, making it an ideal choice for industries requiring reliable non-woven fabric solutions. <br> <br>Specs of Through-Hot Air Bonding Non Woven Line <br>Main parameters of equipment <br> production line <br>Product raw material ES fiber <br>Product direction Thin products are used for sanitary, catering, and other disposable products; Thick products, are used for making cold clothing, warm, mattresses, sofa cushions, etc. High-density hot-meltadh filter material sound insulation material shock absorption materials, etc. <br>Product weight 20-200g/㎡ <br>Product weight deviation CV%&lt;4% <br>Equipment width 2500mm-3800mm <br>Maximum production speed ≤100m/min <br> <br>As a textile machinery exporter, we will do our best to meet all the needs of customers.

[a]https%3A%2F%2Fwww.rifatextile.com%2Fproducts%2Fspun-laced-non-woven-fabrics-production-line.html[/a] <br>#spunlace #line <br>Spun-Laced Spunbond Non Woven Fabric Machine <br>The spunlace line from RIFA is a cutting-edge system designed for the production of high-quality non-woven fabrics. This line uses a spun-lacing process, which involves entangling fibers mechanically to create a fabric with superior softness, strength, and absorbency. The production line is highly efficient, capable of meeting the demands of large-scale production. RIFA&#039;s advanced technology ensures consistent product quality, making this production line an excellent choice for industries that require reliable and high-quality non-woven fabric solutions. <br> <br>Main parameters of equipment <br> Straight-laying production line Semi-cross-lapping production line Full-ross-lapping production line <br>Product raw material Cotton chemical fibers, e.g. Cotton chemical fibers, e.g. Cotton chemical fibers, e.g. <br> polyester, and viscose polyester, and viscose polyester, and viscose <br>Product direction Wet towel and cloth Wet wipe, cloth, mask, PVC leather base cloth PVC and PU leather base cloth <br>Product weight 30-80g/㎡ 30-120g/㎡ 30-200g/㎡ <br>Product weight deviation CV%&lt;3% CV%&lt;4% CV%&lt;5% <br>Product strength ratio CD: MD=4:1 CD: MD=2.5:1 CD: MD=1:1 <br>Equipment width 2500mm-3800mm 2500mm-3800mm 2500mm-3800mm <br>Maximum production speed 160m/min 60m/min 60m/min <br> <br>There are many textile machinery suppliers in China, but we are one of the best choices for you.

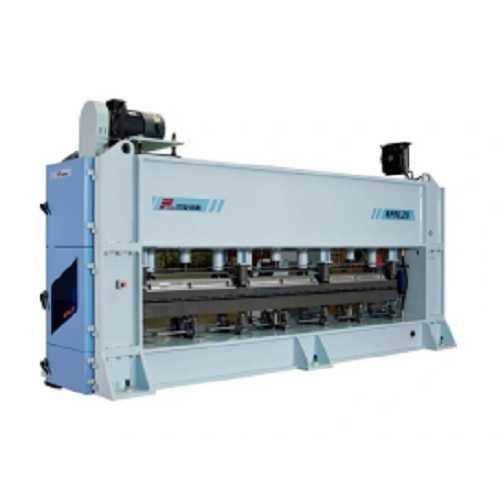

[a]https%3A%2F%2Fwww.rifatextile.com%2Fproducts%2Fnon-woven-fabrics-needle-punching-production-line.html[/a] <br>#needle #punching #line <br>Needle Punched Non Woven Needle Punching Machine <br>The Needle Punched Non-woven Fabrics Production Line from RIFA is an advanced system designed for the production of high-quality non-woven fabrics. This line uses a needle punching process, which mechanically entangles fibers to create a fabric with excellent strength and durability. The production line is highly efficient, capable of meeting the demands of large-scale production. RIFA&#039;s innovative technology ensures consistent product quality, making this needle punching line an ideal choice for industries that require reliable and high-quality non-woven fabric solutions. <br> <br>Production Line A of Needle Punched Non-woven Fabrics Production Line <br> <br>Production Line B of Needle Punched Non-woven Fabrics Production Line <br> <br>Production Line C of Needle Punched Non-woven Fabrics Production Line <br>Main parameters of equipment <br> production line A production line B production line C <br>Product raw material Pre-oxygen yam, aramid fiber Polyester, polypropylene fiber, aramid fiber, nylon, PPS, PTFE, etc Fibers, e.g. polyester, and polypropylene <br>Product direction Pre- oxygenated non-woven fabrics, flame retardant fireproof cotton, hearth pad, aramid non-woven fabrics Filter material, geotextile, automotive interiors Geotextile (Conform to CRCC Standard) <br>Product weight 60-1500g/㎡ 60-1200g/㎡ 60-1200g/㎡ <br>Product weight deviation CV%&lt;4% CV%&lt;&lt;5% CV%&lt;5% <br>Equipment width 2000mm-3600mm 2000mm-7200mm 6400mm-7200mm <br>Maximum production speed 1-10m/min 2-15m/min 2-15m/min <br> <br>We can provide kinds of needle punch machine for sale, and the needle punching machine price is reasonable, if you have needs, please contact us. <br> <br>There are many textile machinery manufacturers in China, but we are one of the best choices for you.

[a]https%3A%2F%2Fwww.rifatextile.com%2Fproducts%2Frfja32-glass-fiber-air-jet-machine%2F[/a] <br>#fiberglass #loom #machinery <br>RFJA32 Glass Fiber Air Jet Loom <br>The RFJA32 fiberglass air jet loom is a specialized fiberglass weaving machine designed for the production of glass fiber fabrics. This type of loom uses an air jet mechanism, which involves shooting the weft yarn across the loom using a jet of air. This method is highly efficient and allows for high-speed weaving. The RFJA32 is specifically designed to handle the unique properties of glass fiber, which is known for its strength, durability, and heat resistance. This makes it ideal for producing fabrics for industries such as aerospace, automotive, and construction, where these properties are highly valued. <br> <br>Features of RFJA32 Fiberglass Loom Machinery <br>1 <br>Automatic Control System: The adoption of high-performance 32-bit computer can realize online transmission of process parameters, data acquisition and modification, and provide hardware assurance and software support for the realization of unmanned operation, digital management and network monitoring in the plant. It not only provides rich information, but also has a service life of twice of the intelligent keyboard commonly used in China. <br> <br>2 <br>Beating Mechanism: Based on the characteristics of glass fiber fabric, adopt the special 4-link beating mechanism for glass fiber designed and optimized by computer. The beating motion is featured at short travel, small vibration, and long weft insertion time. It can make strong and stable beating during ultra-high speed operation and ensure weave high-quality fabric products. <br> <br>3 <br>Take-Up Mechanism: The rolling cloth fell support rod, stretching roller and cloth pressing roller completely eliminate the “removed weft” phenomenon caused by the winding of glass fiber fabric, to maintain a good style of the cloth surface off-machine. The take-up roller and cloth guide roller are wrapped with special friction materials to avoid pressure mark of the fabric. <br> <br>4 <br>Weft Insertion System: Adopt weft insertion components, e.g. weft feeder, main nozzle, auxiliary nozzle and stretch nozzle specially adapted to glass fiber yarn to meet the weft insertion needs of glass fiber yarn, reduce the damage to glass fiber weft yarn, reduce the wear of yarn to weft insertion components, and extend service life. <br> <br>5 <br>Double Back Rest Electronic Let-Off Mechanism: The double back rest electronic let-off mechanism specially designed for glass fiber fabric can accurately measure and maintain the warp tension. The control accuracy and response speed are improved significantly via AC servo motor driving technology, which can ensure the surface quality of glass fiber fabric. <br> <br>6 <br>High Efficiency Air Suction Device: The high-efficiency air suction device can effectively absorb the fine fibers produced during weaving, and it is helpful to the physical and mental health of operators. <br> <br>7 <br>Take-Up Mechanism: The control technology in combination of AC servo motor drive and angular displacement sensor can control the winding tension constantly and realize more accurate winding. Adopt large winding mechanism on the machine, with the maximum winding diameter can reach 800mm, which not only realizes large winding length, but also significantly reduces the floor area of equipment. The quick doffing mechanism makes doffing simple and fast. <br> <br>8 <br>Special Scissors Temple Mechanism: Based on the characteristics of high hardness and being difficult to cut of glass fiber, it specially designs cutting scissors to cut off the excess yarn head, featured at low cost, good effect and long service life. <br> <br>As a textile machinery company, we will do our best to meet all needs of customers.

[a]https%3A%2F%2Fwww.rifatextile.com%2Fproducts%2Frfjat28-air-jet-terry-looms%2F[/a] <br>#Rib #Machine <br>RFJAT28 Air Jet Terry Looms <br>The RFJAT28 Air Jet Terry Loom is a specialized rapier weaving machine designed for the production of terry cloth, a type of fabric with uncut loops that can absorb large amounts of water. This high speed rapier loom uses an air jet mechanism, which involves shooting the weft yarn across the loom using a jet of air, allowing for high-speed weaving. The RFJAT28 is specifically designed to create the looped structure of terry cloth, making it ideal for producing towels, bathrobes, and other similar products. Its high-speed operation and specialized design make it a valuable tool in the textile industry. <br> <br>Specification of RFJAT28 Air Jet Rapier Terry Looms <br>Item Specifications Options <br>Width Reed Width 190cm, 210cm, 230cm, 260cm, 280cm, 320cm, 340cm <br> Working Width Reed width minus 0-60cm (190-230cm) <br> Reed width minus 0-60cm (above 260cm) <br>Weft Selector 4 colors or 6 colors at will <br>Power Start Type Super motor <br> Operation Stop controlled by magnetic brake directly <br> Buttons on both sides <br>Beating link lever <br>Insertion Main nozzles and sub-nozzles Stretch nozzles <br> Profile double reed ABS <br> Relay main nozzle <br>Shedding Electronic dobby, max 20 shafts <br> Electronic Jacquard <br>Let-off Electronic continuous positive let-off <br> Ground beam flange: dia 800mm Ground beam flange: dia 91 4mm, dia 1 000mm <br> Pile beam flange: dia 1000mm Pile beam flange: dia 1250mm <br>Take-up Electronic take-up <br> Weft density: 25-300/inch <br> Max cloth: dia 600mm <br>Cone Stand Console stand for 8 cones (4 colors) <br> Console stand for 12 cones (6 colors) <br>Terry Motion Servo terry motion: dynamic terry control Loop formation by fabric movement. Automatic loop formation from 3 to 7 picks at will. <br> Loop length: 0-28mm at will, the accuracy of two neighboring loops&#039; height differences can be 0.1mm max <br>Selvage Mechanical <br>Yarn End Treatment Waste selvage winding roller <br>Weft Cutter LH mechanical <br> RH electronic <br>Weft Feeder Vibration type <br>Lubrication Main transmission: oil bath, other components: automatic centralization greasing <br>Stop Motion Weft: photoelectric weft sensor, double sensors <br> Warp: two rows and two lines of electric stop motion <br> Other: auto stop motion for selvage yarn <br> Stop indicating: stop reason on panel, 4 color lamps <br>Automatic Control: multi-function microcomputer system, with parameter setting/control/monitor/autodiagnosis/artificial intelligence interface <br> Inching by inverter (forward and reverse) <br> Others: monitor output terminal <br> Auto control air jet <br> <br>Dimensions of RFJAT28 Air Jet Terry Looms <br>R/S A B C W B1 B2 <br>190 1900 2460 2385 4578 － － <br>210 2100 2660 2585 4778 － 1330 <br>230 2300 2860 2785 4978 － 1430 <br>260 2600 3160 3085 5278 1090 － <br>280 2800 3360 3285 5478 1090 － <br>320 3200 3760 3685 5878 1090 － <br>340 3400 3960 3885 6078 1090 － <br> <br>Features of RFJAT28 Air Jet Terry Looms <br>1 <br>High-Speed Weaving: The RFJAT28 Air Jet Terry Loom uses an air jet mechanism for high-speed rapier weaving, significantly increasing production efficiency. <br> <br>2 <br>Specialized Design: This loom is specifically designed to create the looped structure of terry cloth, making it ideal for producing absorbent fabrics like towels and bathrobes. <br> <br>3 <br>Versatility: The RFJAT28 can handle a variety of yarn types and sizes, allowing for the production of a wide range of terry cloth products. This versatility makes it a valuable tool for textile manufacturers. <br> <br>Now the price of rapier weaving loom is reasonable, if you have needs, please contact us. <br> <br>If you want to know more kinds of rifa weaving machine, please visit our website.

[a]https%3A%2F%2Fwww.rifatextile.com%2Fproducts%2Frfad10-full-automatic-drawing-in-machine%2F[/a] <br>#automatic #drawing-in #machine <br>RFAD10 Full-Automatic Drawing-In Machine <br>RFAD10 full-automatic drawing-in machine is a kind of drawing-in equipment based on seed yarn mode. Drawing-in is not related to the loom beam, so pre-drawing can be conducted in advance, pre-drawing is parallel to the previous preparation procedure. The machine can quickly respond to market demand. After the completion of the drawing-in operation, the machine can be stored OEM production can be achieved, and the transportation is convenient. The whole machine has low energy consumption. The instantaneous power is less than 1KW, the gas consumption is 0.3m3/min, and the use cost is extremely low. <br> <br>Specification of RFAD10 Full-Automatic Drawing-In Machine <br>Item Content Remark <br>Working with 2300mm, 2800mm, 3600mm Series <br>Yarn count Cotton/TC <br>Speed 135 Times/min Instant fastest <br>Heald J, C, O Optional <br>Heald height 260mm—382mm Adjustable <br>Heald thickness 0.2mm, 0.3mm Adjustable <br>Hole size 5.5x1.2mm-8x3.8mm Adjustable <br>Heald stock 2 lines feed <br>Heald lines Max 16 lines <br>Dropper type closed <br>Dropper lines 6 lines <br>Dropper width 11mm <br>Dropper length 145mm, 165mm, 180mm Adjustable <br>Dropper thickness 0.2mm, 0.3mm, 0.4mm, 0.5mm Optional <br>Reed type Standard or profiled reeds <br>Dent density 15～75 dents/inch <br>Lease Lease 2 groups signal 4 lines <br>Electric control PLC, controller of movement &amp; vision <br>Input system Computer touching screen <br>Driving Servo motor, cylinder <br>Power 3-hp 380V, 50/60HZ, 3.0kW <br>Pneumatic 0.3m³/min, 0.4-0.7Mpa. <br>Harness Standard supply of 2 sets <br>Remark: <br>The actual drawing speed is related to weaving design, accessories, working surroundings, quantity of workers, and harness transport cart. More total warp ends, better drawing efficiency. <br> <br>Size And Weight of RFAD10 Full-Automatic Drawing-In Machine <br>Item Specification L=Length (mm) W=Width (mm) H=Height (mm) Weight (kg) <br>Drawing machine RFAD10-230 6100 1600 1700 1400 (not including cart) <br> RFAD10-280 7100 1600 1700 1490 (not including cart) <br> RFAD10-360 8500 1600 1700 1600 (not including cart) <br>Harness transport car 230cart 3000 650 1300 180 <br> 280cart 3700 650 1300 197 <br> 360cart 4300 650 1300 223 <br> <br>Features of RFAD10 Full-Automatic Drawing-In Machine <br>1 <br>This machine uses all the worldwide advanced technology, adopts seed-yarn drawing type. It does not matter to sizing quality, can make drawing in advance, store and transport. <br> <br>2 <br>The whole machine has extremely high cost-effectiveness,with a maximum instantaneous warp speed of 135 threads/minute. It is easy to maintain and maintenance cost is low. <br> <br>3 <br>Independent intellectual property right, completely designed by Rifa. <br> <br>4 <br>Rely on Rifa after-sale service net to run machines trouble free. <br> <br>Now the price of shuttle less loom machine is reasonable, if you have needs to buy shuttleless weaving machine, please contact us. <br> <br>If you want to know more kinds of rifa textile machine, please visit our website.

[a]https%3A%2F%2Fwww.rifatextile.com%2Fproducts%2Frfjw03-water-jet-loom-machine%2F[/a] <br>#water #jet #loom <br>RFJW03 Water Jet Looms <br>RFJW03 series water jet loom is suitable for weaving light and medium-thickness fabrics. Drawing on Rifa&#039;s experience in development of other water jet looms, the design is optimized, the weaving speed and quality of the loom are improved. The loom has varied configurations, it can meet the weaving needs of different customers and is a cost-effective loom. <br> <br>The RFJW03 series water jet weaving loom offers a variety of configurations, allowing it to meet the diverse weaving needs of our customers. Whether you&#039;re producing delicate, lightweight fabrics or more robust, medium-weight textiles, this loom can be tailored to your specific requirements. <br> <br>Specification of RFJW03 Water Jet Looms <br>Item Specifications <br>Width Reed Width 190, 210, 230, 280, 320, 340, 360cm <br> Working Width Reed width minus 0-70cm <br>Weft Color 2 colors at will <br>Power Start Mode Super motor / Direct motor <br> Motor Capacity 2.7kW, 3.0kW, 3.7kW, 4.5kW <br> Working Brake through electromagnetism clutch <br> Buttons (prepare, start, stop, forwarder inching, reverse inching, reverse one circle) <br> Automatic pick finding <br>Beating Lineal beating mechanism <br>Insertion Pump Plunger pump <br> Nozzle Annular nozzle manostat (ceramics jet needle) <br> Accumulator Vibration electric drum accumulator (2 color) Options: WBS Electric weft <br> Options: Electric weft Drawing device <br>Shedding Device Crank: 4 heald frames, 6 heald frames <br> Cam: 10 heald frames <br> Dobby: 16 heald frames <br> Jacquard <br>Let - off Electronic or mechanical <br> Max Tension 2500N, 5000N <br> Back-roller Standard <br> Flange Diameter 800mm, 1000mm Options: 1000mm <br>Take - up Electronic or mechanical <br> Cloth Diameter 520mm <br> Cloth Route Type S1, Type S2 <br>Cone Stand 4 cone stand <br>Selvage Planet gear <br>Handling of Yarn End Spindle false twisting <br>Weft Cutter Mechanical <br>Temple Up-mounted double temple shaft with double rings <br>Dehydration Tiny crevice pipe suction (Mechanical fan) <br>Stop motion Weft Stop OPF photoelectric sensor <br> Display of Stop Reasons Screen panel <br> Mult-function 4-light indicating <br>Automatic Main Control Auto control, fault removal, itself a diagnosis <br> Showing working info and maintenance data <br> Net Centralizing net connection, loom supervisory system <br> <br>Features of RFJW03 Water Jet Looms <br>1 <br>High-Speed Weaving: The RFJW03 Water Jet Loom uses a water jet mechanism for high-speed weaving, significantly increasing production efficiency and making it ideal for mass production. <br> <br>2 <br>Versatility: This loom can handle a variety of yarn types, including synthetic and blended yarns, allowing for the production of a wide range of fabric types. <br> <br>3 <br>Energy Efficiency: The RFJW03 Water Jet Loom is designed to use water efficiently, reducing energy consumption and making it a more environmentally friendly option for textile production. Its design also minimizes water waste, contributing to its overall sustainability. <br> <br>As one of water jet loom manufacturers, we can provide kinds of water jet weaving machine for sale, and the water jet loom price is reasonable, anything you need, please contact us. <br> <br>If you want to know more kinds of rifa machine, please visit our website.

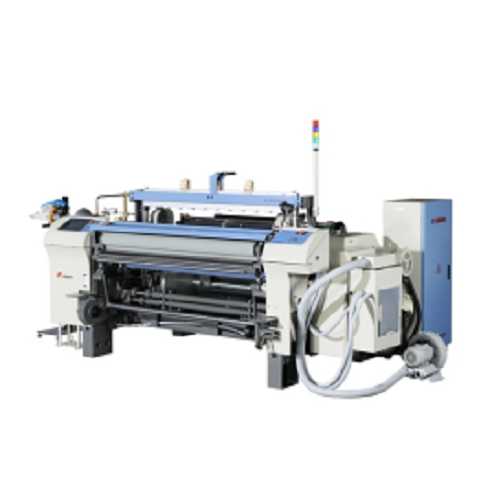

[a]https%3A%2F%2Fwww.rifatextile.com%2Fproducts%2Frifa-air-jet-loom-rfja30%2F[/a] <br>#air #jet #loom <br>RFJA30 Air Jet Loom <br>RFJA30 rifa air jet loom is developed by our company which has advanced performance on the base of the merit of RFJA20 it is developed for meeting higher weaving requirement. This rifa loom offers superior performance, incorporating the latest technology to ensure high-speed, efficient weaving. It is designed to handle a wide range of fabrics, making it a versatile solution for various textile applications. <br> <br>Specification of RFJA30 Air Jet Loom <br>Item Specification Optional <br>Reed Space Nominal: 150, 170, 190, 210, 230, 260, 280, 340, 360cm <br> Useful range: <br> reduction from nominal 0～60cm (150-260cm) <br> reduction from nominal 0～80cm (Above 280cm) <br>Yarn Range Spun: Ne100～Ne2.5 <br> Filament: 22dtex～1350dtex <br>Weft Selection 2-color, 4-color, 6-color with extension function <br>Drive The magnetic brake control position stops directly <br> Direct drive main motor 2.2kW (crank shedding), 3.0kW (cam shedding), 3.7kW (Dobby shedding), 6.5kW (Jacquard shedding) <br> Push button operated by both hands <br>Weft Insertion Insertion rate: max 2300 m/min <br> The main nozzle and sub nozzle combined system Stretch nozzle <br> Profile reed ABSweft break <br> Auxiliary main nozzle <br>Shedding Crank shedding: 4&amp;6 shafts <br> Positive cam shedding: 10 shafts max <br> Dobby shedding: 16 shafts max <br> Jacquard shedding <br>Let Off Negative or positive let-off <br> Double roller electronic let-off with automatic reverse function Double beam <br> Flange diameter Ф800mm Ф914mm, Ф1000mm <br>Take-Up Electronic take-up <br> Pick density: 25～300picks/inch, special 15～300picks/inch <br> Max take-up diameter: <br> Ф520mm (crank shedding) <br> Ф600mm (cam, dobby, Jacquard shedding) <br>Beating Crank-type beating, multiple sley sword beating <br> 4 links (narrow width), 6 links(wide width) <br>Length Measuring Vibratory weft accumulator <br>Accumulator Floor-type: 4 bobbins(2-color), 8 bobbins(4-color) <br>Bobbin Frame Planetary gear leno selvage <br>Selvage 2 rollers take-up; gear take-up <br>Waste Selvage Mechanical weft cutter, Electronic weft cutter <br>Weft Cutter Oil bath system for main driving parts, centralized lubrication system(Manual grease) Automatic lubrication system <br>Auto-Stop Motion Weft: photoelectric double weft sensor <br> Warp: Electronic 6-row contact bar system <br> Others: Automatic stop for leno yarn and waste salvage yarn break <br> Stop reason Indication: Indication on the control panel and 4 color indicating lamp <br>Automatic Control: Multiple-function computer control system with data setting/control/ monitor/self-diagnose/artificial intelligence interface <br> Pick finding: automatic pick finding <br> Slow motion (corotation and reverse) by inverter <br> Others: Monitor output terminal <br> Memorycard system <br> Jet automatic control <br> <br>Dimensions of RFJA30 Air Jet Loom <br>Flange dia Φ800 <br>L 1958 <br> <br>Note: <br> <br>1) L represents Φ The approximate size of the 800 side plate, as for other detailed dimensions, please consult our company directly. <br> <br>2) The diameter of the side plate is Φ 914 or Φ At 1000, the size of L in the diagram is the same. <br> <br>Nominal reed width (inches) 150 (60) 170 (67) 190 (75) 210 (83) 230 (91) 260 (102) 280 (110) 340 (134) 360 (142) <br>W(2C) Crank opening 3700 3900 4100 4300 4500 4800 5000 5600 5800 <br> Positive cam opening 4100 4300 4500 4700 4900 5200 5400 6000 6200 <br> Downward active multi-arm 4100 4300 4500 4700 4900 5200 5400 6000 6200 <br>A 1500 1700 1900 2100 2300 2600 2800 3400 3600 <br>B 2110 2310 2510 2710 2910 3210 3410 4010 4210 <br> <br>Note: W is the approximate size for double spraying. For detailed dimensions of other specifications, please consult our company directly. <br> <br>FEATURES <br>Features of RFJA30 Air Jet Loom <br>1 <br>Adopts new type electronic control system. <br> <br>2 <br>New designed frame structure. <br> <br>3 <br>New designed low vibration beating balance system. <br> <br>4 <br>New designed air bag structure of main nozzle and stretch nozzle. <br> <br>5 <br>New designed double back rest let-off structure. <br> <br>6 <br>Higher efficiency weft insertion system. <br> <br>7 <br>Adopts super power-saving electromagnetic valves and nozzles. <br> <br>8 <br>Powerful weaving expert system. <br> <br>As one of air jet loom manufacturers and air jet loom suppliers, we can provide kinds of air jet weaving machine for sale, and the air jet weaving machine price is reasonable, if you have needs, please contact us.
