SMC/BMC Antenna Reflector <br>High precision, high efficiency, and high gain <br> <br>The most important job of using SMC for the manufacture of antennas is to fully exploit its features and achieve high precision in antenna design from product design and process. Under the condition that the shrinkage ratio of the material and the SMC molding shrinkage rate have been considered in the mold size design, the SMC antenna reflective surface has a smaller shape from the original design paraboloid after molding. That is, the accuracy of the SMC molded antenna is completely guaranteed by the accuracy of the mold. The rms value of the SMC antenna molded integral reflection surface is 0.25 mm, and the rms value of the single-piece reflection surface of the split antenna is less than 0.3 mm, and the rms value of the reflective surface after assembly is less than 0.6 mm. <br> <br>Corrosion Resistance of SMC BMC Antenna Reflector <br>Conventional antenna materials such as aluminum plates and steel plates are made of metal materials, not as good as SMC which as a non-metal dielectric composite material in terms of acid resistance, alkali, salt, and corrosion resistance. The Pikington laboratory in the United States used infrared to analyze the surface of SMC materials and found that its surface is covered by additives, resin, and very fine calcium acid filler. It has good acid resistance, water resistance and corrosion resistance. The antenna reflection made by this material is solved the disadvantage of the traditional metal material antenna is easy to corrode. In coastal areas, rainy, humid areas and areas with excessive acid rain, the anti-corrosion advantages of SMC molded antennas are particularly prominent. The SMC molded antenna samples were placed in 130 highly corrosive chemical environments at an ambient temperature of 50 ° C. The results showed that the test samples showed little or no change. <br> <br>Long Life SMC/BMC Antenna Reflector <br>The average aluminum plate antenna is as small as 2-3 years in the coastal area, and more often 4-6 years, and it will generally be damaged by salt spray erosion and aging. The most obvious example is the cable TV (CATV) in Taiwan, which was built earlier than the mainland. It is estimated that there are nearly 1000 satellite TV receiving antennas on the island, all built in the mid-1980s, all of which were aluminum plate antennas, until the early 1990s. , that is, has begun to replace. The service life of SMC molded antennas is generally more than 15 years; PROMLIN&#039;s prototype SMC molded antennas in 1985 are still working normally, and they are subject to typhoons and heavy rain every year. <br> <br>Strong Wind Resistance of SMC/BMC Reflector <br> <br>Since the antenna reflection surface is designed during the molding process, multiple longitudinal and circumferential rib structures are designed. According to the structural strength calculation, the SMC antenna can withstand a wind load of 45 m/s, which shows its remarkable structural rigidity and strength. <br> <br>Special Reflective Layer Technology of SMC/BMC Antenna Reflector <br> <br>The reflective surface of the SMC antenna uses a metal aluminum mesh as a reflective layer of electromagnetic waves. The aluminum mesh in the finished antenna is evenly embedded under the surface SMC, which can reflect electromagnetic waves and insulate the atmosphere, and plays a good protective role. <br> <br>Good consistency, no deformation, easy to transport and install <br>Because SMC antenna adopts membrane pressure technology under high temperature and high pressure. Its material properties and processing technology determine the unparalleled consistency of SMC antennas with other antennas. This not only ensures the accuracy and high gain of the antenna, but also is very easy to install and debug. SMC, commonly known as &quot;glass reinforced plastic&quot;, has the characteristics of no deformation, which eliminates the adverse effects of antenna deformation on the satellite receiving system during transportation. <br> <br>Establithd in 2010 and located in Chengnan Development Zone, Luothe Tow, Huzhou City, Zhejiang Province, Zhejing Aobang Technology Co. L.d. not only has a mature and extensive prodution line of SMC/BMC moulds but also possesses many refined testing laboratoies in the industry. Whether at home or abroad, Zhejiang Aobang Techmnology Co. Ltd. can manufacture top-qulity SMC BMC composites with advanced mold making concepts and technologies. As a professional SMC/BMC moulds manufactuer, Waiwai Tree is a hightech enterpise who enjoys a good fame in the new motor and energy automobile industry both at home and abroad. <br> <br>Now the price of bmc compound is reasonable, if you have needs, please contact us. <br>#bmc #compound <br>[a]https%3A%2F%2Fwww.waiwaitree.com%2Fbmc-smc-products%2Fsmc-bmc-antenna-reflector.html[/a]

BMC Insulation <br>High-strength, wear-resistant, fire-resistant, color BMC material for medium and low voltage insulators such as SMC Insulated. Typical applications are switch boards, busbars, switchgear, etc. BMC composite (Body Molding Plastics) is a blend of glass fiber reinforced polyester resin and chemical mineral materials with special properties such as electrical insulation, low density, high mechanical strength and fire resistance. High sealing, high safety, low process and low cost. <br> <br>What Is Sheet Molding Compound Insulation and How Does It Work? <br>Sheet Molding Compound (SMC) insulation is a type of thermosetting material made from a blend of various components such as resins, glass fibers, and fillers. SMC insulation is used in various applications where high-strength and electrical insulation properties are needed. SMC insulation is formed by compression molding in a hydraulic press, which cures the material into a solid form. The resulting product is a rigid, durable, and electrically insulating material that is ideal for use in electrical equipment and systems. <br> <br>What Are the Benefits of Using SMC Insulation? <br>SMC insulation offers many benefits over other insulation materials. SMC insulation has excellent electrical insulation properties and is highly resistant to moisture, chemicals, and temperature fluctuations. Additionally, SMC insulation is lightweight, making it ideal for use in applications where weight is a concern. The SMC material is also easy to manufacture, which makes it a cost-effective solution for many industries. <br> <br>Common Applications of SMC Insulation <br>SMC insulation has a wide range of applications across various industries. Some common applications include electrical enclosures, switchgear, transformers, and motors. The material is also used in the automotive industry for parts such as bumpers and hoods. Additionally, SMC insulation is used in the construction industry for roofing and cladding panels. <br> <br>SMC Insulation Installation <br>SMC insulation is typically installed by mechanically fastening it to the substrate using screws or bolts. The material can also be bonded to the substrate using adhesives. The installation process should be performed by trained professionals to ensure that the material is installed correctly and safely. <br> <br>Environmental Considerations of SMC Insulation? <br>SMC insulation is an environmentally friendly material compared to other insulation materials such as fiberglass. SMC insulation is made from recyclable materials, and it is also a low-emitting material, meaning that it does not release harmful VOCs (Volatile Organic Compounds) into the air. Additionally, SMC insulation has a long lifespan and requires minimal maintenance, which reduces its environmental impact. <br> <br>If you want to know more about bmc molding, please visit our website. <br>#BMC #Insulation <br>[a]https%3A%2F%2Fwww.waiwaitree.com%2Fbmc-smc-products%2Fbmc-smc-insulation.html[/a]

BMC, SMC, GRP, GFK Wall Panel <br>Composite wall panel is a new generation of high performance building partition board made of a variety of building materials instead of traditional bricks and tiles. It has obvious advantages of environmental protection, energy reserving, no pollution, earthquake resistance, fire prevention, heat preservation, sound insulation and fast construction. <br> <br>BMC, SMC, GFK, GRP wall panels features <br> <br>Use imported silver ion, special effect antibacterial; <br>Energy saving; <br>Anti-corrosion, waterproof and moisture proof, mildewproof, fireproof; <br>No harmful substances, no formaldehyde; <br>Easy to clean and maintain; <br>Scratch resistant; <br>Can be repeatedly disassembled, easy to repair; <br>Low carbon Environmental protection, surface diffuse reflection and energy saving; <br>Can be recycled, the economical applicability of building materials, high cost performance; <br>Beautiful appearance. <br> <br>BMC, SMC, GFK, GRP wall panels applications: <br> <br>It is suitable for the projects with higher requirements of sound insulation, such as hotels, KTV, schools, hospitals, etc. <br>It is suitable for projects with limited construction requirements, such as shopping mall partition wall and secondary renovation partition wall. <br>It is suitable for the projects with requirements for reducing wall load: super high wall, light steel house, steel structure, prefabricated house. <br>Suitable for projects with special fire protection requirements, such as pipe well, firewall, large kitchen. <br>It is applicable to projects with requirements on construction schedule. <br>It is suitable for projects with special requirements for moisture-proof and waterproof: bathroom, toilet, kitchen, outdoor and other projects. <br>It is suitable for all kinds of regular partition walls, such as tooling, home decoration, internal and external walls, etc. <br> <br>BMC, SMC, GFK, GRP wall panels development <br> <br>In order to save land resources and energy, protect the environment and realize sustainable development, new wall materials emerge as the times require. At the beginning of the development of new wall materials, a variety of partition materials emerged, such as aerated brick, hollow board, gypsum board, magnesite board, cement brick and other representative materials. Although each kind of product has its own characteristics, and has its own space in the market. But the market is more demand for a new partition wall material which can integrate the performance characteristics of the above materials. In this environment, BMC, SMC, GFK, GRP wall panel was born. <br> <br>GRP, SMC, GFK, BMC panels advantages <br> <br>According to statistics, the use of composite wall panel materials can save about 30% of the total cost, and the construction efficiency of panel wall is at least three times higher than that of block and brick wall. Product quality in impermeability, lightweight, fire protection, technology has been mature, in achieving such performance, but also give consideration to sound insulation, shock resistance and other aspects of superior performance. <br> <br>Find BMC, SMC, GFK, GRP wall panels here in Aobang! <br> <br>Aobang has extensive experience in composite wall panels, and is able to offer various types of wall panels, such as the GRP wall panels, BMC panel, and we can also offer SMC panels, panels GFK, etc. To check more about wall panels and other parts, please contact us now! <br> <br>If you want to know more about bulk molding compound process, please visit our website. <br> <br>The high-composite precision molds produced by Waiwai Tree have the characteristics of low energy consumption; our SMC and BMC molds have no waste, and there is no need to clear the inner cavity. Having only a small temperature difference, our SMC/BMC composites have stable mold temperature, good appearance, and high efficiency. Thus, they are now widely used in new energy vehicles, high-speed rail, and electric motors. <br>#GRP #wall #panels <br>[a]https%3A%2F%2Fwww.waiwaitree.com%2Fbmc-smc-products%2Fbmc-smc-grp-gfk-wall-panel.html[/a]

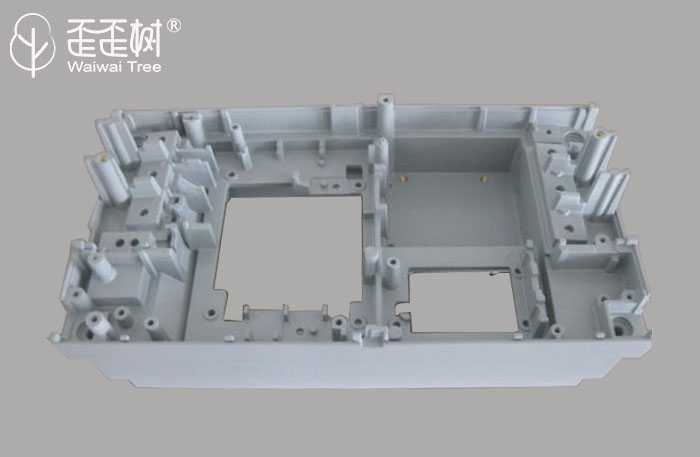

#mold #motors <br>SMC/BMC Framework Description <br> <br>Strong plasticity, precise size, high insulation and high temperature resistance. <br>BMC molded framework is suitable for various framework. Because of its short glass fiber characteristics, this kind of BMC composite material is more suitable for complex components, such as electrical equipment, automotive components, electrical energy parts shell, and so on. Some BMC products are required to meet A-level surface requirements due to high precision, high quality, and appearance, and the construction period is completed on time. <br> <br>SMC/BMC Framework Manufacturer <br>Since the inverter frame size depends one the power of inverter, different inverter would have various frame size. BMC framework would not only help to improve production efficiency, but also help to save cost. <br> <br>What Is Frame Moulding and Bmc Framework​? <br>Molding is the process of forming liquid or other easy-to-use materials with a mold. A mold is a hollowed out container used to shape the material. Frame Moulding is to mold the material into frames for equipment, construction, electronic products, etc. Moulding frame is an important step of producing in many sections since many product would need an integrated framework. <br> <br>BMC is a thermosetting plastic, mixed with various inert fillers, fiber-reinforced materials, catalysts, stabilizers, and pigments. According to the final application, compounds can be prepared to achieve strict size control, flame retardancy, high dielectric strength, corrosion and stain resistance, and color stability. <br> <br>The Advantages of Bmc Framework <br>The excellent flow characteristics of BMC framework make them ideal for applications requiring accuracy and dimensional accuracy. BMC has many unique characteristics, such as high hardness, lightweight, corrosion resistance, UV resistance, good insulation, excellent thermal properties, which lead to more satisfaction than thermoplastic. At the same time, since many components can be molded at the same time with these components, there is no need for later processing, which is more economical from the production point of view. <br> <br>Why Choose Aobang for Bmc Framework? <br>Waiwaitree is a professional supplier of BMC products and a reliable moulding for frames manufacturer. We are engaged in the design and manufacture of BMC products. We have a complete set of mould test line for BMC products and related moulding services. We have developed many BMC products, such as BMC insulation board, BMC shell, BMC flange, BMC household goods, etc. BMC frame owns many advantages that other materials cannot offer, and now, the BMC frame has become a popular choice in many sections. We can offer various services such as panel frame moulding, plastic frame moulding, etc. <br> <br>For more information about bmc molding, please feel free to contact us! <br> <br>[a]http%3A%2F%2Fwww.waiwaitree.com%2Fsmc-bmc-framework%2F[/a]

#motor #mold <br>Shell Moulding Description <br>BMC/SMC shell moulding is mainly injection molded. The application of SMC in anti-explosion electric appliances change the dominance of steel and aluminium in anti-explosion solution. Compared with steel and aluminium materials, SMC has excellent performance in corrosion resistance, is lightweight, flexible and easy in engineering design. Its mechanical property is comparable to metal material. A series of advantages, like anti-static, heat stability and long service life can be obtained through adjusting SMC material. <br> <br>Shell Moulding Manufacturer <br>Shell moulding include end cap mold, lamp housing mold, circuit breaker housing mold, cover mold. Light weight, high strength, precise size, high flatness, high insulation and high temperature resistance. The mold has a high degree of standardization, reasonable flow channel design, small cavity pressure, balanced temperature, no handle, and low power consumption. <br> <br>Shell Moulding Applications <br>Including SMC/BMC electric switch box mold, SMC electrical wiring box mold, SMC/BMC instrument panel cover mold, etc. <br> <br>Shell Moulding Products <br>Shell moulding we provide include end housing shell, Lighting shell, circuit breaker shell, enclosure shell. We provide end cap mould, lamp housing mould, circuit breaker mould and housing mould. <br> <br>Why BMC is the most suitable material for loudspeaker? <br>BMC shell is a novel shell for loudspeaker, especially suitable for combination audio system. BMC shell has relatively high specific gravity and rigidity, performing higher sound effect than wooden ones. The higher the shell material density is, the louder the sound is, because BMC material reduces vibration produced by the speaker, particularly for loudspeaker with a high-power amplifier. BMC loudspeaker shell is able to deliver more original sound. <br> <br>Aobang provide bmc composite, mold motors, bmc compound, automotive smc moulding and etc. For more information about bulk molding compound process, please feel free to contact us! <br> <br>[a]http%3A%2F%2Fwww.waiwaitree.com%2Fshell-moulding%2F[/a]

#motor #mould <br>Mainly for injection molding, the design of the runner and the parting surface should be as small as possible, and the crossover, exit, protector and control board of the motor should not be damaged. Because BMC materials cannot be decomposed, we are the first in China without material handle structure. In addition, the inner hole of the motor can be without clearing material. Vacuuming structure, the mold temperature balance is consistent. The appearance and electrical performance of the product are guaranteed. <br> <br>Motor Mold Supplier <br>Our motor molds cover a wide range, including: servo motor molds, plastic edging motor molds, plastic encapsulations molds, BMC rotor molds, BMC stator molds, air conditioner motor molds, refrigerator motor molds, washing machine motor molds, DC motor molds, AC motor molds, automotive motor molds, power tool rotor mold, range hood motor mold, motor end cover mold, motor bracket mold, etc. <br> <br>Motor molds are widely applied. We provide a list of motor molds, including servo motor molds, plastic edging motor molds, plastic encapsulations molds, BMC rotor molds, BMC stator molds, air conditioner motor molds, refrigerator motor molds, washing machine motor molds, DC motor molds, AC motor molds, automotive motor molds, power tool rotor mold, range hood motor mold, motor end cover mold, motor bracket mold, etc. We have customized many types of motor molds for our customers according to their unique and specific requirements. <br> <br>Factors Deciding the Quality of a Motor Mould <br>Maintenance cost and maintenance cycle <br>Quality of motor mold manufactured: dimensional stability, surface roughness, use ratio of product material <br>User friendliness, mould release and auxiliary time of production. <br> <br>Damper Motor Internal Mould <br>Damper motor is responsible to direct and regulate airflow in zoning system. A functioning damper motor controls airflow of each area. We make customized damper motor internal mould to facilitate your damper motor production. <br> <br>Aobang provide bmc composite, mold motors, bmc compound, automotive smc moulding and etc. For more information about bulk molding compound process, please feel free to contact us! <br>[a]http%3A%2F%2Fwww.waiwaitree.com%2Fmotor-mold%2F[/a]

#SMC #Electrical #Products <br>Low Voltage Electrical Appliance Mould Manufacturer <br>Mainly refers to circuit breakers, fuses, switch boxes, transformers, electric control boxes, etc. The low voltage electrical products have high insulation, high temperature resistance, long service life and strong plasticity. <br> <br>Aobang provide bmc composite, SMC Electrical Products, bmc compound, automotive smc moulding and etc. For more information about bmc molding, please feel free to contact us! <br>[a]http%3A%2F%2Fwww.waiwaitree.com%2Flow-voltage-electrical-products%2F[/a]

#household #mould <br>Household Mould Description <br> <br>SMC (sheet molding compound) materials are revolutionary materials in the sanitation industry. Household mould is helping set the trend. They are widely used in household products. Compared to traditional materials used to make sinks or shower trays, It is ultra-light and waterproof, absorbing no moisture. SMC materials are of high strength and weight ratio and are resistant to shock. SMC is several times the impact strength of acrylic materials. When you drop the SMC shower tray from 1 meter high, it won&#039;t even break. It is stain-free and easy to clean. The SMC shower tray provides you with a guaranteed life of more than 30 years. <br> <br>Advantages of Smc Household Sanitary Ware <br>High impact strength <br>High gloss <br>long service life <br>Easy to install, leakproof <br>Beautiful appearance, no formaldehyde, no harmful substances <br>High fire performance <br>acid and alkali resistant <br>Waterproof and moisture proof <br> <br>Household Mould Available <br>Washbasin mold, laundry basin mold, trash can mold, platen mold, and ceiling mold. <br> <br>Why Is Smc Household Mould Popular? <br>As living standards evolving, people expect more from sanitary products. Sanitary products play an important role in the fast-paced life. SMC household products are easy to clean and maintain. The surface make the household products eye-pleasing. Its weight is only one-fifth of the tile, not prone to crack, deform or fall off. The formaldehyde emission meets E0 standard, which is in line with environmental friendly concept. On the other hand, due to SMC properties, it is well suited for mass production, while maintaining consistent quality. <br> <br>For more information about BMC composite and bulk molding compound process, please feel free to contact us! <br>[a]http%3A%2F%2Fwww.waiwaitree.com%2Fhousehold-mould%2F[/a]

#frame #moulding #supplier <br>BMC Frame Moulding Description <br>SMC and BMC development is driven by automotive industry by a large portion. SMC and BMC products is motivated under the rising gas fare and environment problems. Framing parts are one of SMC and BMC products employed in auto industry. SMC and BMC frame moulding contributes to professionalized, automated, high efficient production. We are a frame mold supplier. Inverter frame mold is available for you. <br> <br>Advantages of SMC and BMC frame <br> <br>SMC/BMC is ideal substitute for metal as frame working in high temperature conditions. SMC and BMC are highly mouldable, of high strength and lightweight. Thermoset composite material is a perfect solution to gain flame resistance, high strength and light weight. SMC and BMC meet the design purposes of strength, shape and safety. <br> <br>How can the frame mould be precise? <br> <br>The superior properties make SMC and BMC composite materials more and more popular in jumbo and highly precise parts. But direct contact of mould with composite materials in moulding process might cause the mould to be out of shape, which will influence the size and shape of part piece. <br>As a professional frame moulding supplier, we perform modeling in design process, which will improve the efficiency and precision of mould design and make mould better align with the composite parts moulding requirements. Dimensional and springback compensation is considered as well during design to deliver high precision mould. <br> <br>For more bmc composite products wholesale at competitive price directly from China factory. <br>[a]http%3A%2F%2Fwww.waiwaitree.com%2Fframe-moulding%2F[/a]

#bmc #appliances <br>Household appliance including BMC appliances and SMC appliances accessories have strict requirements for durability. These accessories may be used for 10 years or more, during which they may be exposed to heat, load, impact and corrosion. All kinds of household appliance accessories, in addition to maintaining important physical characteristics in the harsh environment over the years, have to maintain a good appearance. Affordable bulk molding compound (BMC) is stable in shape, stain and corrosion resistant, and maintains color even at temperatures up to 232 degrees Celsius. Manufacturers of major household appliances have specified bulk molding compounds (BMC) as frying pan lids and brackets, as well as kitchen component materials such as oven end plates. <br> <br>Aobang provide bmc composite, bmc molding, automotive smc moulding and etc. Contact us to know more. <br> <br>[a]http%3A%2F%2Fwww.waiwaitree.com%2Felectrical-appliances.html[/a]
