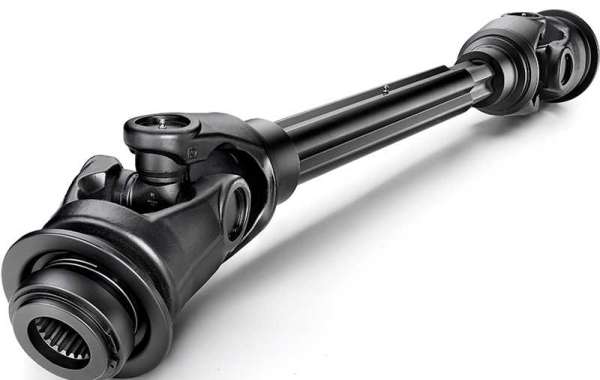

What Is A Driveshaft?

The driveshaft, which is a part of the tractor driveshaft, is referred to by a variety of names, including propeller shaft, prop shaft, and driveline.

A drive shaft is a device for transferring mechanical power, torque, and rotation that is typically used to connect other drivetrain parts that cannot be connected directly due to their location or the requirement to allow for some degree of relative movement.

Drive shafts, which act as torque carriers, are subject to torsion and shear stress, which is equal to the gap between the input torque and the load. They must consequently be able to withstand the strain without adding too much weight, which would increase their inertia.

Driveshafts usually include one or more universal joints, jaw couplings, or rag joints, and occasionally a splined joint or prismatic joint, to accommodate variations in the alignment and distance between the driving and driven components.

One way to move power from an engine and PTO to supplementary equipment installed on a vehicle, like an air compressor, is using driveshafts. When there isn't enough room next to the engine for an additional accessory, driveshafts are employed. The shaft spans the area between the engine PTO and the accessory, allowing it to be positioned elsewhere on the vehicle.

Definition of driveshaft

The objective of the drive shaft, also known as the propeller shaft or prop shaft, is to convey torque from the gearbox to the differential, which then transmits this torque to the wheels in order to move the vehicle. The drive shaft is a part of the drive train in a vehicle.

How Does the Driveshaft Work?

Power is transferred from the engine to the vehicle's rear via the driveshaft, which is a rotating tube. By transferring the spinning power from front to rear, it does this. For the car to move, the transmission delivers torque to the differential, which then delivers torque to the wheels.

You cannot drive without the torque transfer between the various parts. The driveshaft absorbs motions, allowing two distinct sections to move without damaging other portions of the drive system.

It's crucial to remember that front-wheel-drive cars lack drive shafts. A transaxle is a single unit that combines the transmission and axle. The transmission and axle are independent components in cars with four wheels and rear-wheel drive, though. As a result, the driveshaft transmits the transmission's turning action to the axle.

To guarantee that it is both strong and lightweight, this component has a tubular construction and is typically composed of aluminium, steel, or carbon fibre.

Advantages of Driveshaft

• It is less probable that the drive system will jam.

• When clothing or a body part gets caught between an exposed chain and a sprocket, the rider cannot get dirty from chain grease or suffer from "chain bite," which could result in injuries.

• When the driving shaft is contained within a tube, it requires less maintenance than a chain arrangement.

•  A drive shaft bicycle, according to Dynamic Bicycles, can operate at 94 percent efficiency, whereas a chain-driven bicycle, depending on its condition, can operate at 75 to 97 percent efficiency.

Disadvantages of Driveshaft

• A drive shaft system typically weights 0.5–1 kg (1-2 lb) more than a chain system.

• A chain-driven bicycle can accomplish many of the benefits touted by advocates of the drive shaft, such as covering the chain and sprockets.

• Although hub gears can be used, using lightweight derailleur gears with a lot of ratios is not practical.

• Some designs make it challenging to remove the wheels (as it is for some chain-driven bicycles with hub gears).
